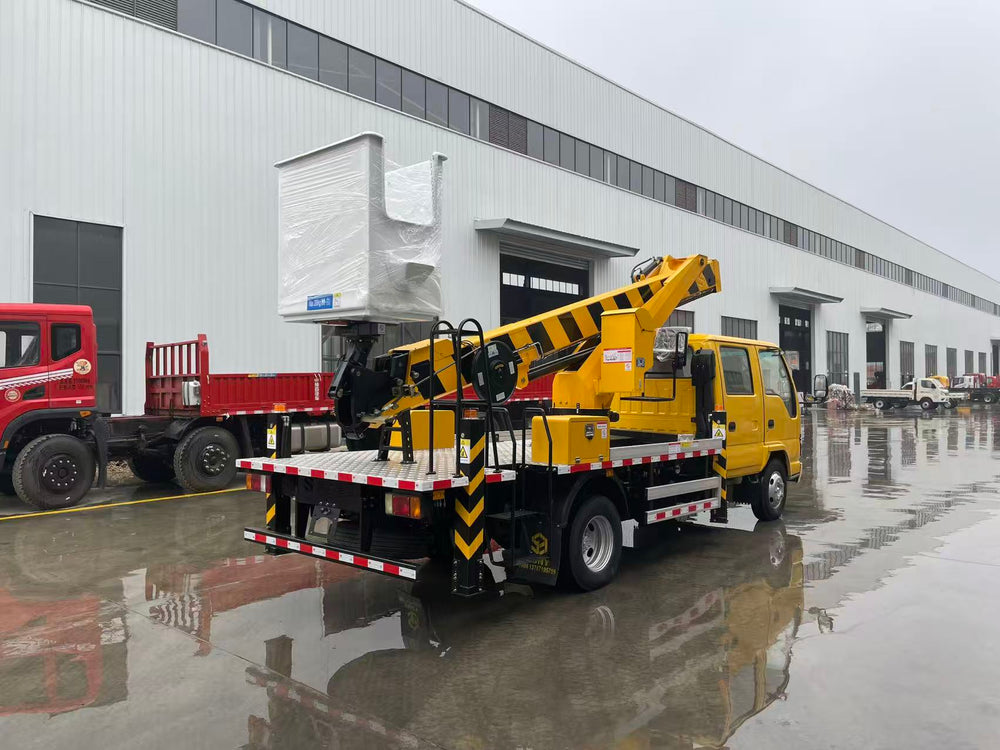

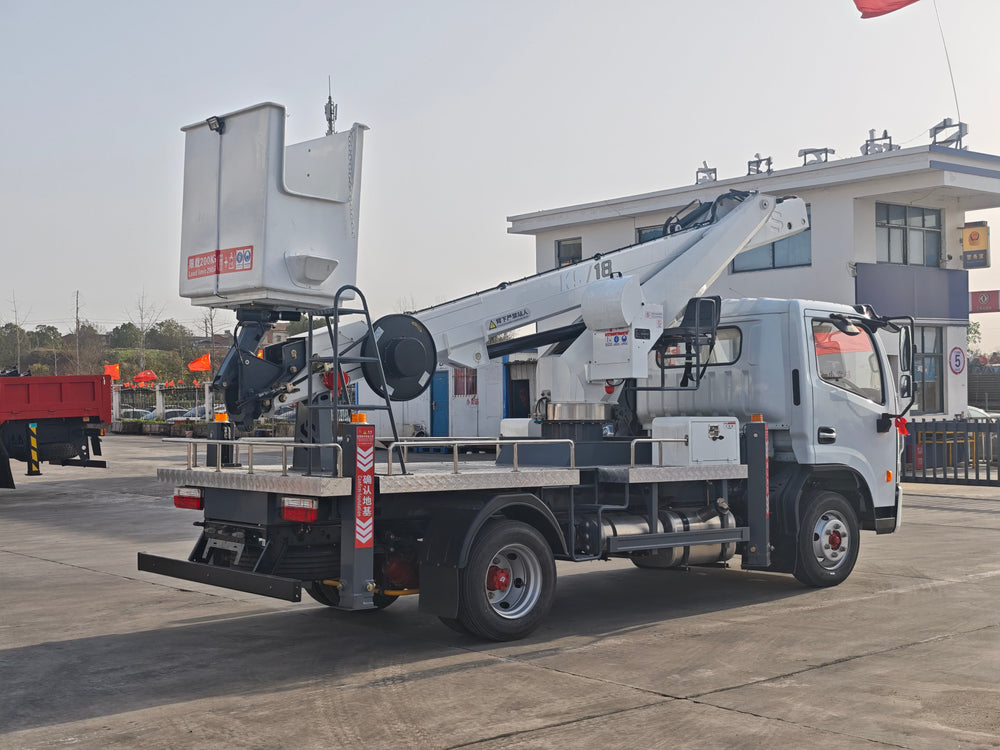

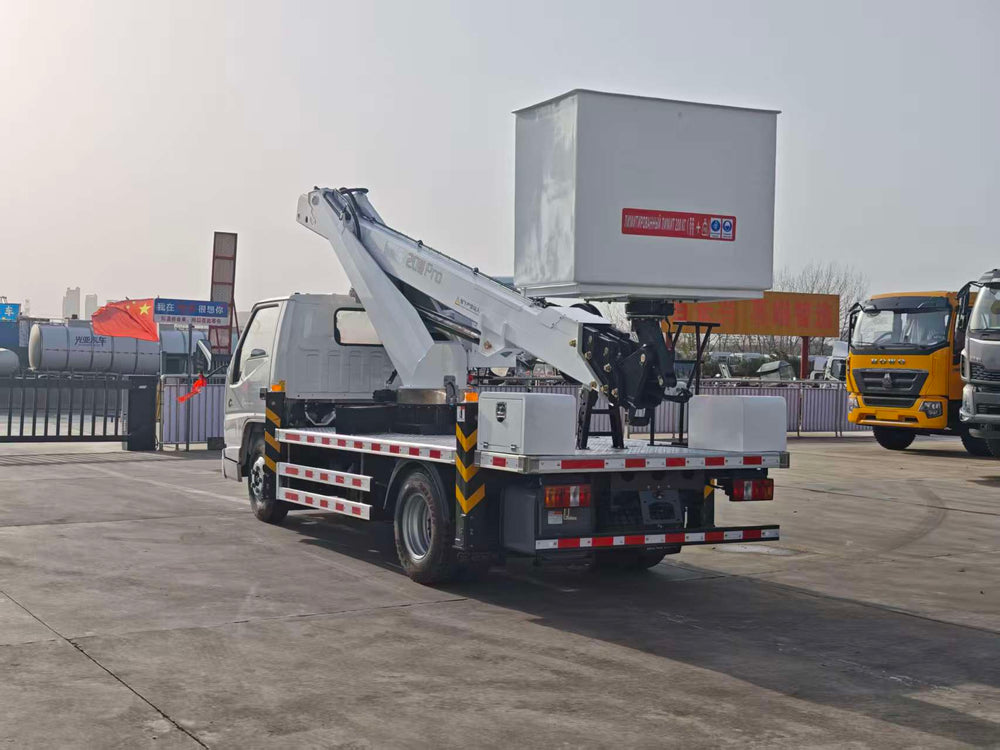

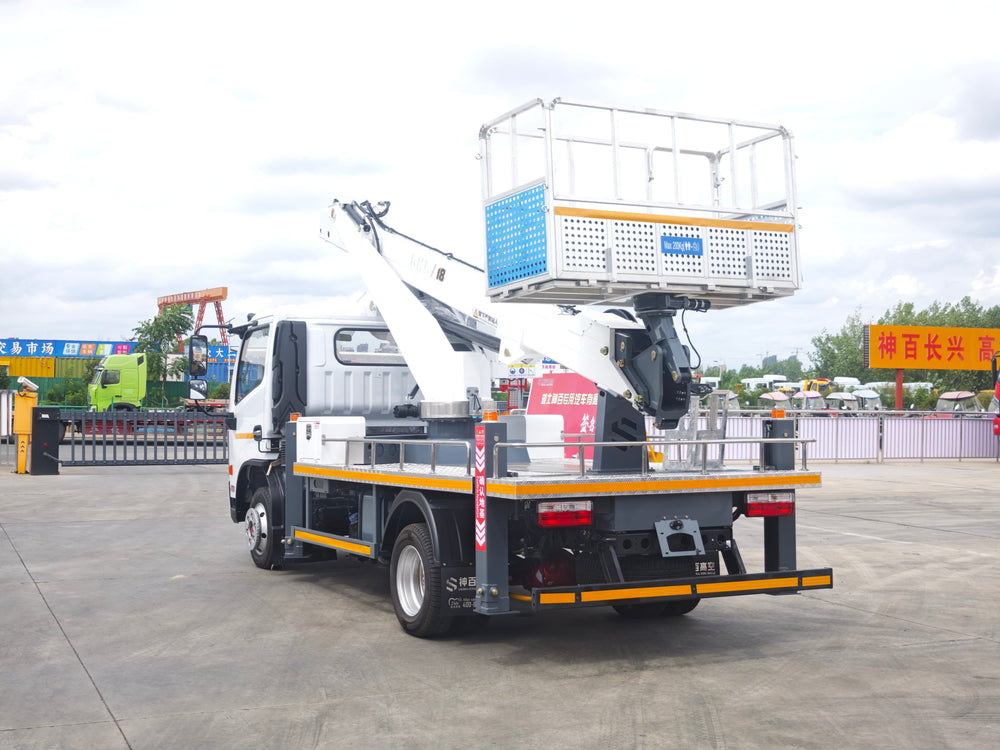

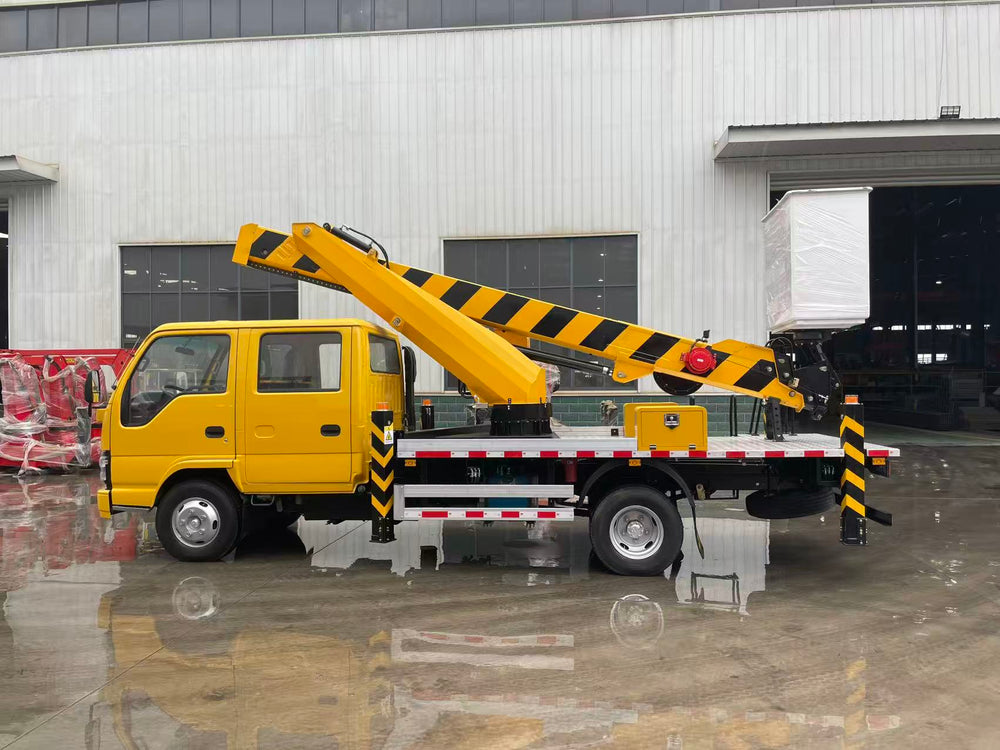

Customized 14-18m Aerial Work Platform Truck
Request a Quote Now
Custom-made folding arm aerial vehicle with working height from 14m to 18m for construction & municipal maintenance.
- Core Working Performance
| Item | Parameter |
|---|---|
| Max Working Height | 18 m |
| Max Working Reach | 11 m |
| Rated Platform Load | 200 kg (Optional upgrade to 400 kg) |

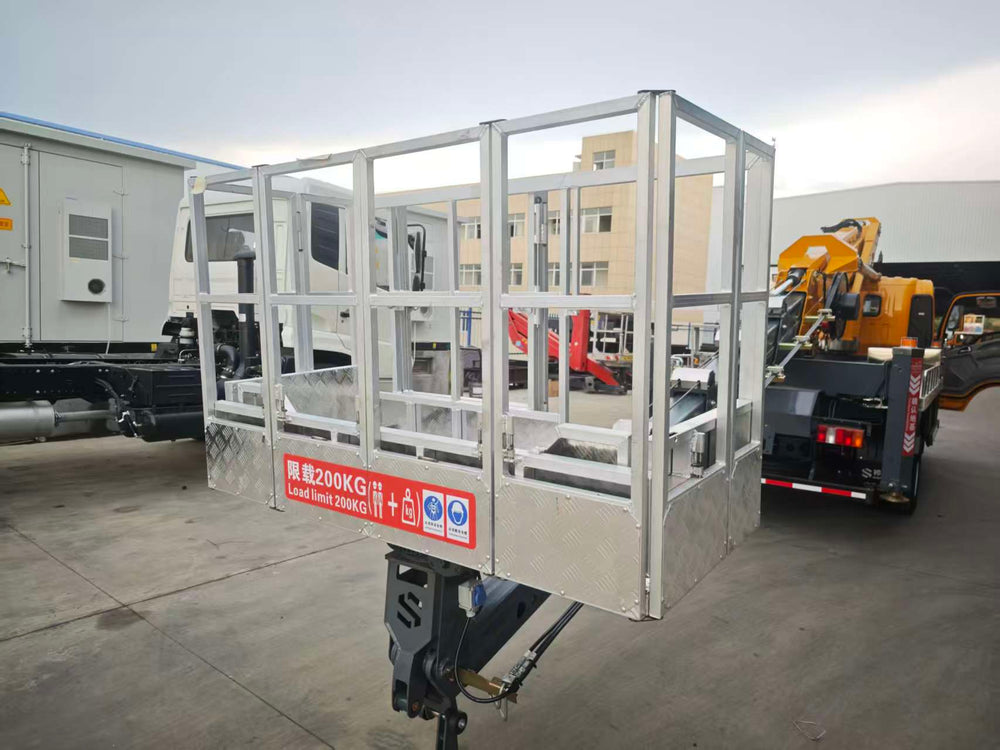

| Standard Platform Spec | 1600×700×1000 mm Full Aluminum Alloy Basket |
| Rotation Range | Turntable & Work Basket: 360° Unlimited Rotation |
2. Structural Design
| Item | Parameter |
|---|---|
| Boom Structure | Hexagonal 3-section Boom, 2-section Synchronous Extension |
| Lifting Cylinder | Single Luffing & Lifting Hydraulic Cylinder |
| Outrigger System | Front V-type + Rear H-type Square Outriggers |
| Auxiliary Device | External Hose Reel |
3. Hydraulic & Control System
| Item | Parameter |
|---|---|
| Hydraulic System | Domestic Top-tier Brand Hydraulic Components |

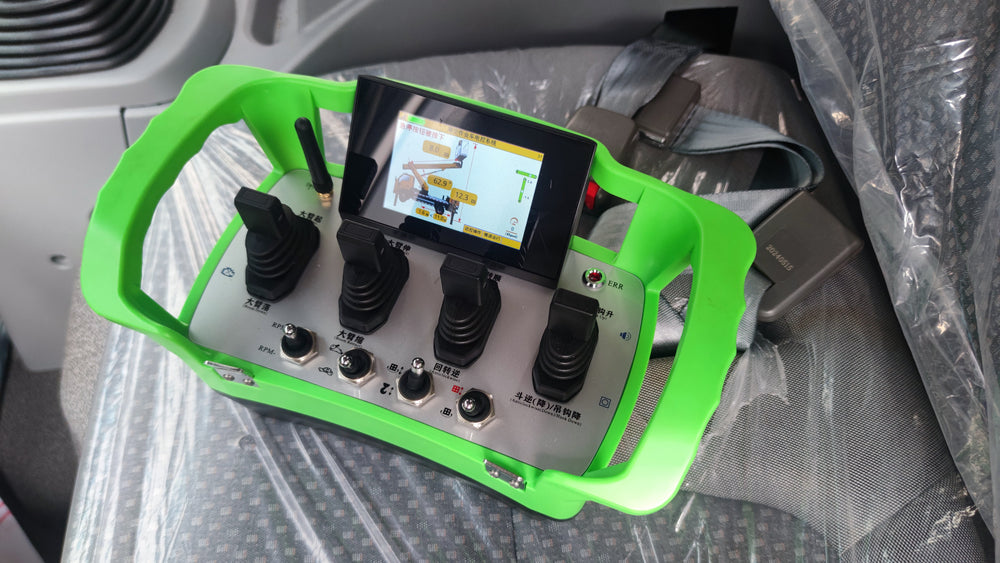

| Operation Modes | 1. Turntable Hydraulic Lever Control (with Operator Seat); 2. Lower Chassis Electric Control (with Wireless Remote Controller) |
| Emergency Backup | Hydraulic Manual Emergency Pump |
4. Optional Equipment
| Item | Available Options |
|---|---|

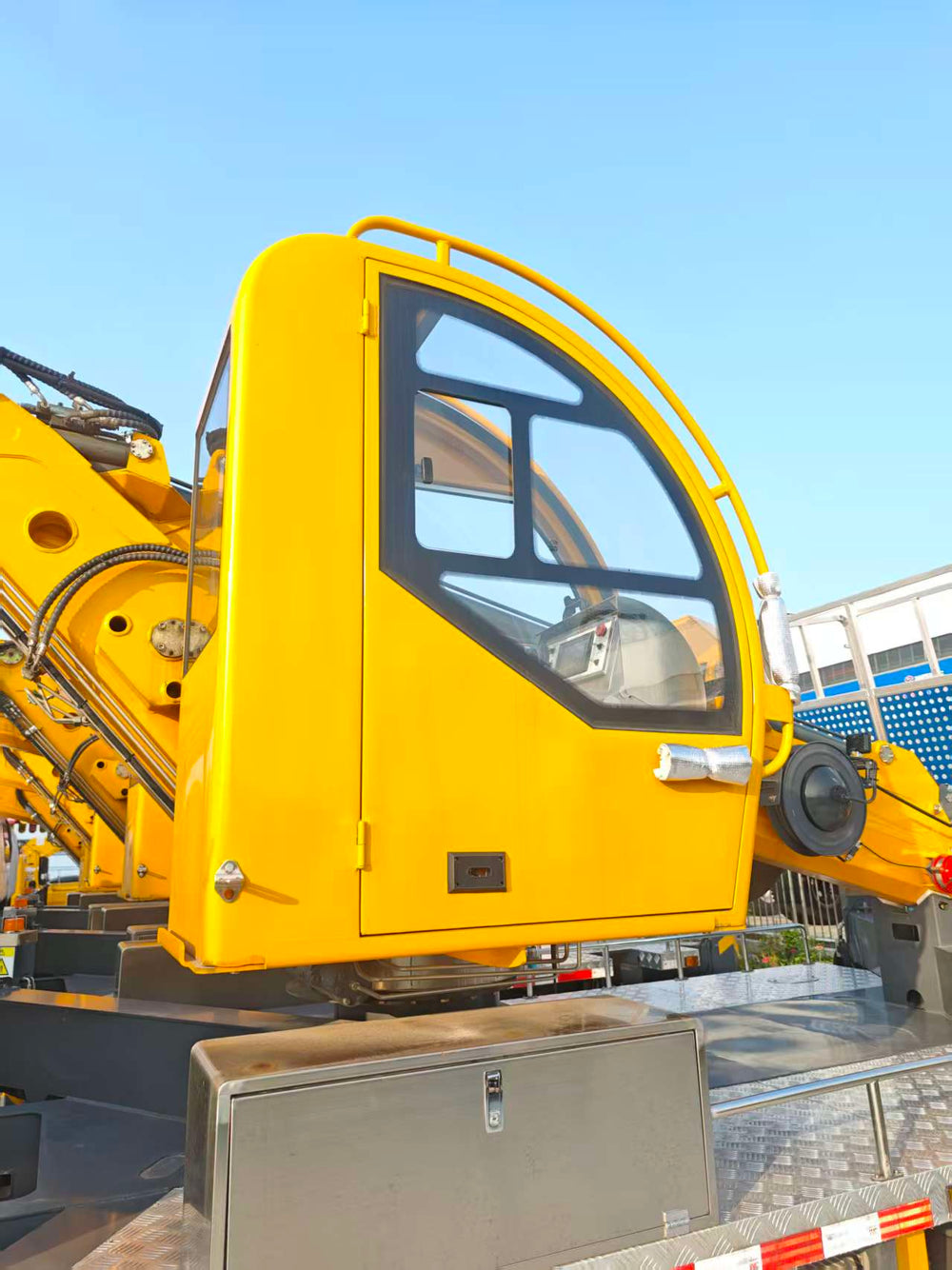

| Upper Operation Cabin | Optional |
| Insulated Basket | Optional, Size: 1100×700×1100 mm / 1400×700×1100 mm |
| Safety Accessories | Optional Weighing Instrument, Anemometer |
