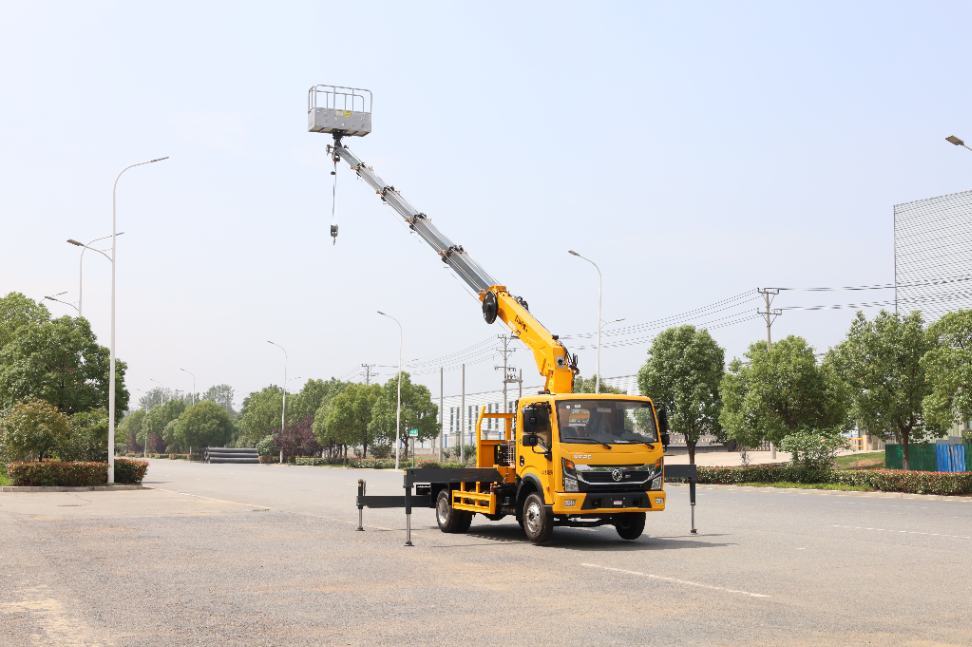

Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck

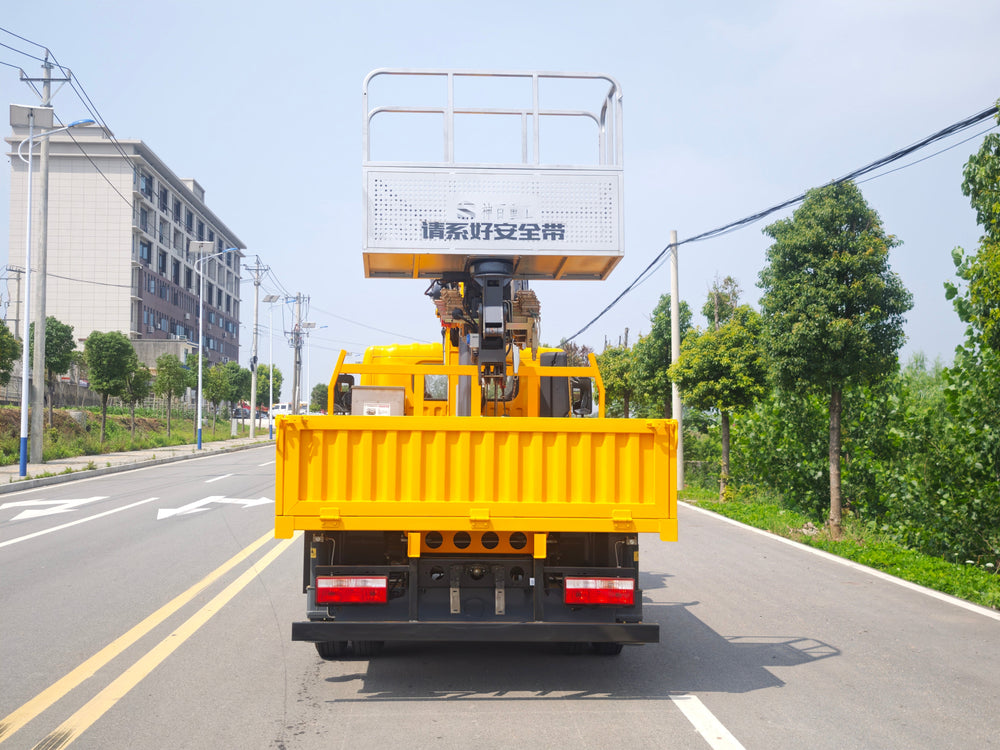

Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
1 / 10
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck

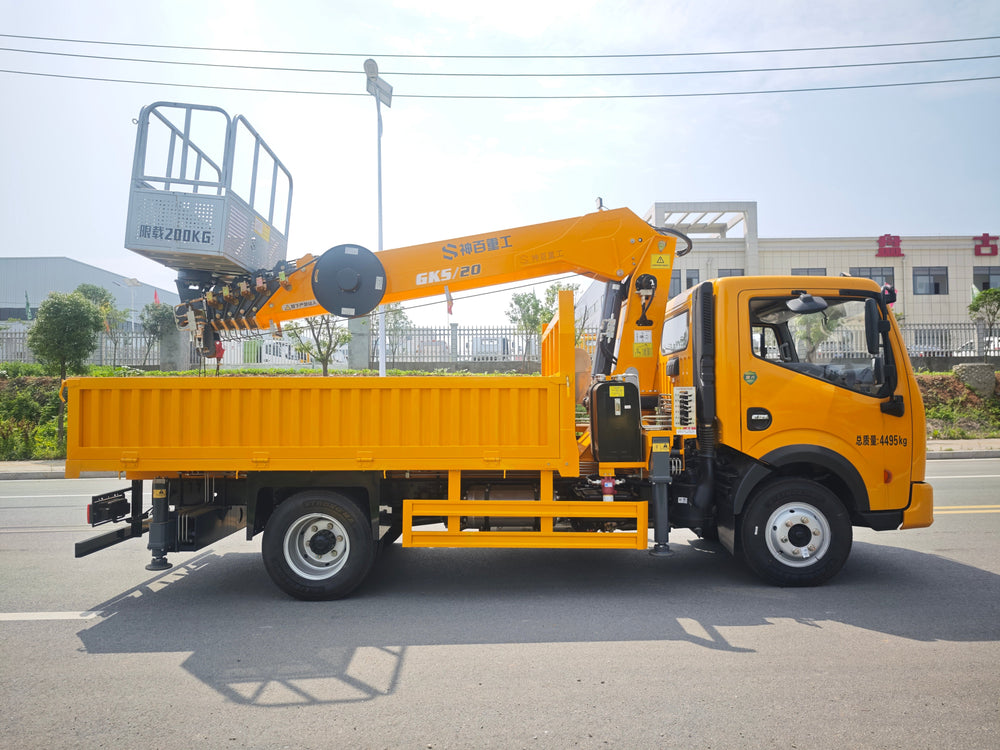

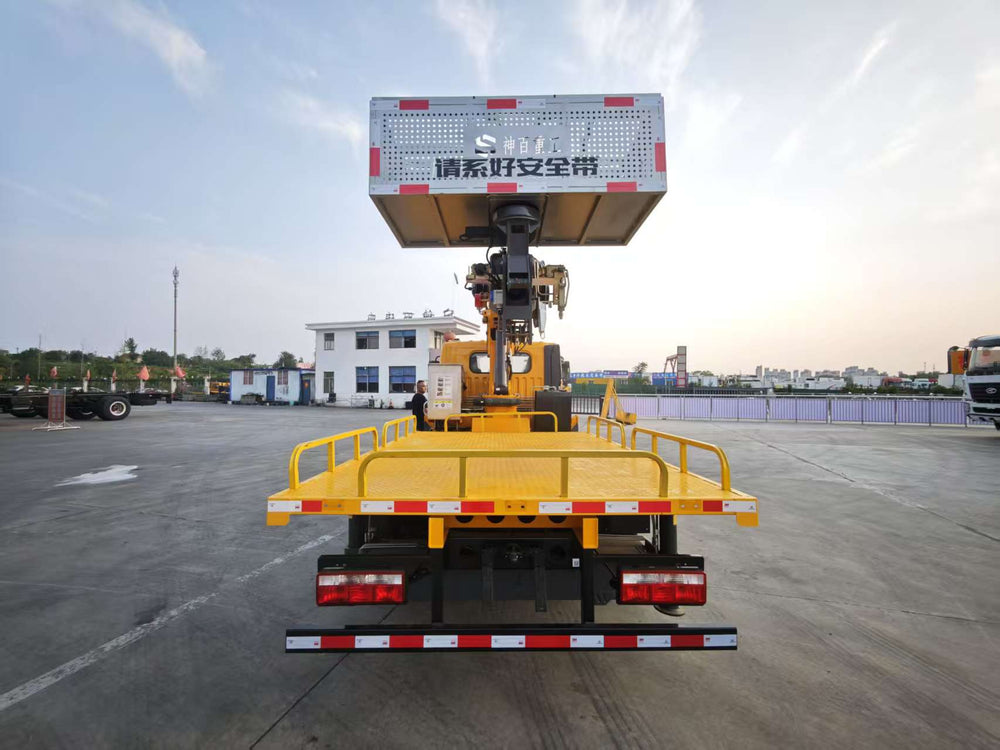

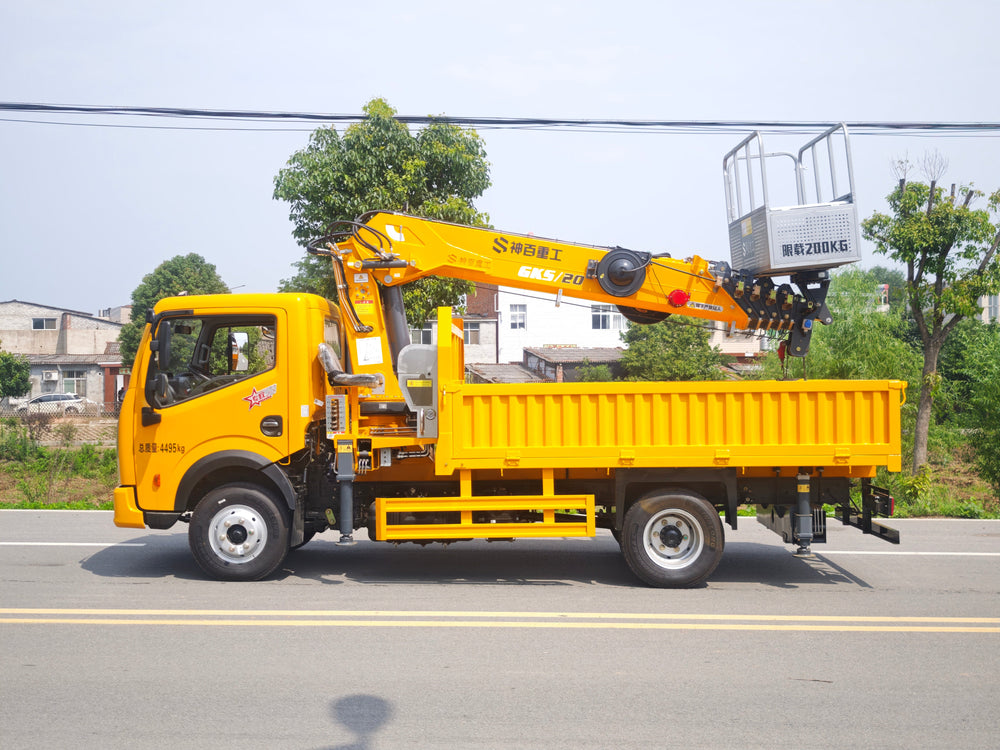

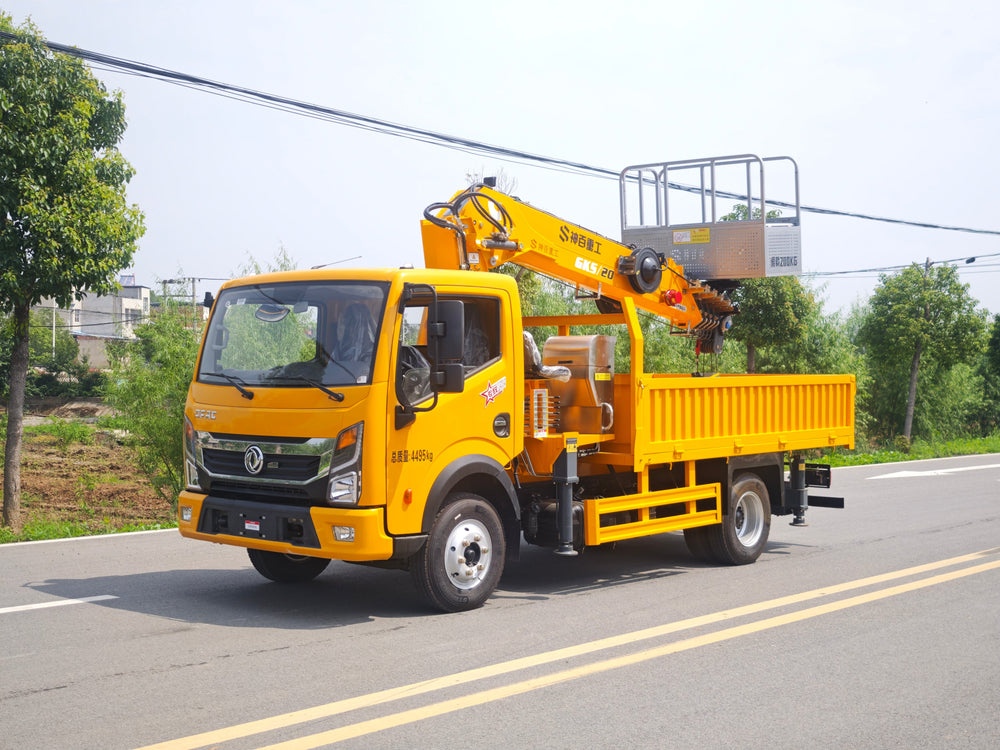

Multi-purpose aerial work truck for municipal maintenance, tree trimming and emergency rescue up to 20m working height.

1. Basic Vehicle Parameters

Item Parameter
Approval Model ABC5045JGKE6 Truck-mounted Aerial Work Vehicle
Gross Vehicle Weight 4495 kg
Curb Weight 4300 kg
Transmission 8-speed Gearbox with Synchronizer
Axle Quantity 2
Wheelbase 3308 mm
Tire Spec 7.00R16 8PR
Engine Model YN25PLUS160B
Engine Manufacturer Kunming Yunnei Power Co., Ltd.
Displacement 2499 mL
Rated Power / Final Drive Ratio 114 kW / 4.785

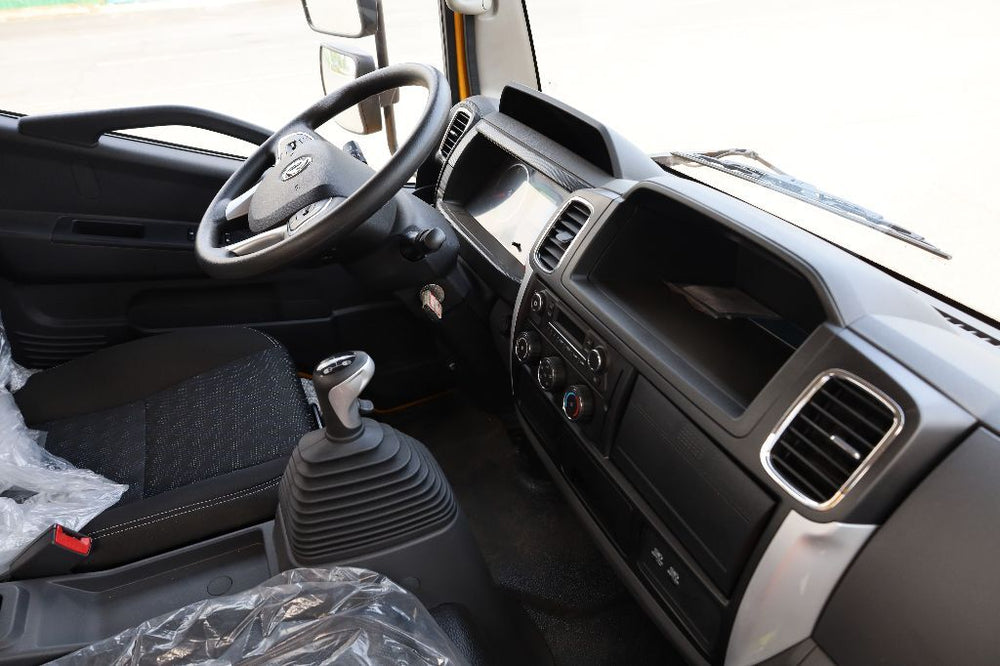

Standard Chassis Configuration D6 Single-row 1900 Cab, Double-layer Through Frame, 6T Rear Axle, ABS, Central Door Lock, Power Window, Air Conditioner
Outrigger Transverse Span Front/Rear:5150mm / 4500mm
Outrigger Longitudinal Span 3400 mm

2. GKS20 Aerial Working Superstructure

Item Parameter
Max Working Height 19.2 m
Max Working Reach 12 m
Rated Platform Load 200 kg
Boom Slewing Range 360° Full Rotation

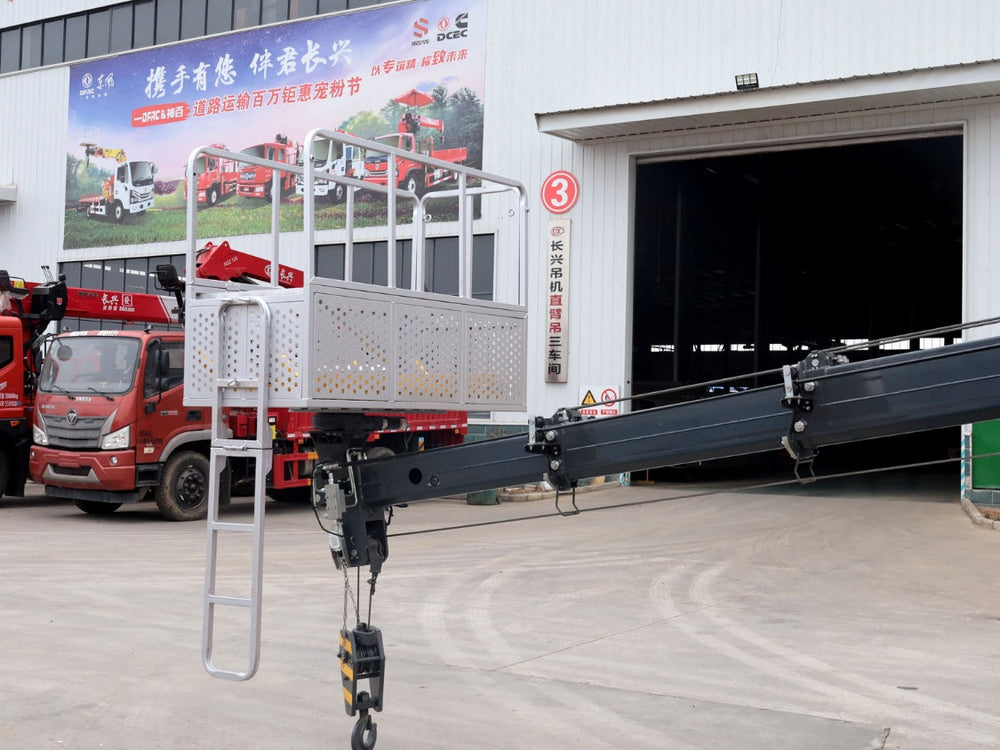

Platform Dimension 1500×700×1100 mm
Platform Rotation ±180°
Boom Structure 6-section boom, 5-section synchronous extension; spare steel cable for emergency lowering

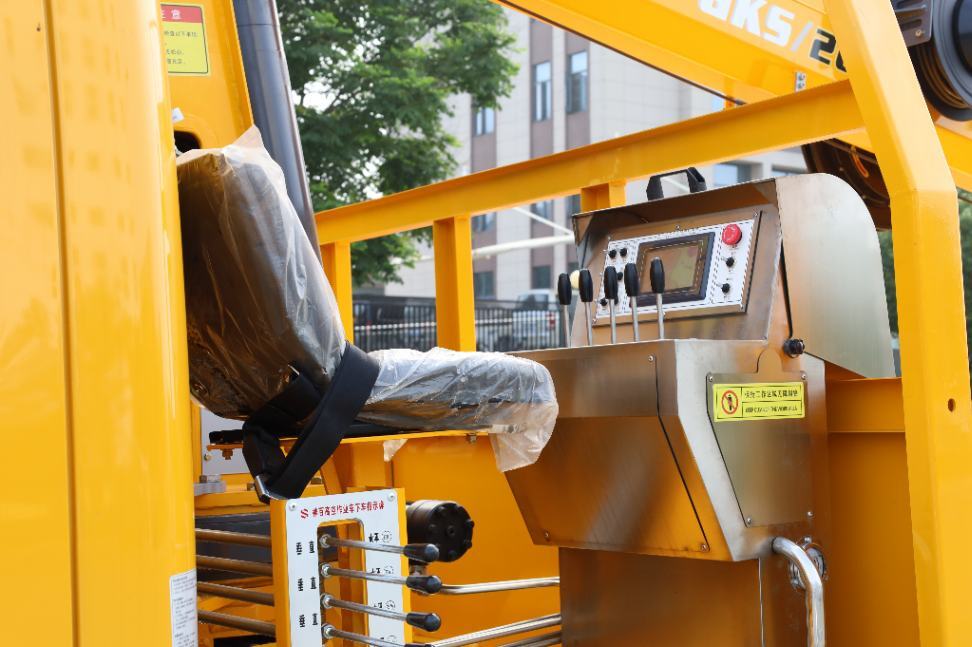

Control System Domestic Famous Electric Control, Wireless Remote + Central Control with Display Screen
Hydraulic System Electro-hydraulic Proportional Valve, Stepless Speed Regulation
Outrigger H-type, 4 Independently Adjustable Telescopic Legs
Safety Devices Upper-lower Cabin Interlock, Limit Protection, Bi-directional Hydraulic Balance Valve

3. Truck-mounted Crane Part

Item Parameter
Max Lifting Capacity 5000 kg
Main Winch Rated Load 5 T
Crane Boom 6-section Internal Routing Boom
Max Lifting Height 17 m
Slewing 360° Unlimited Rotation
Hydraulic Pump Single Pump

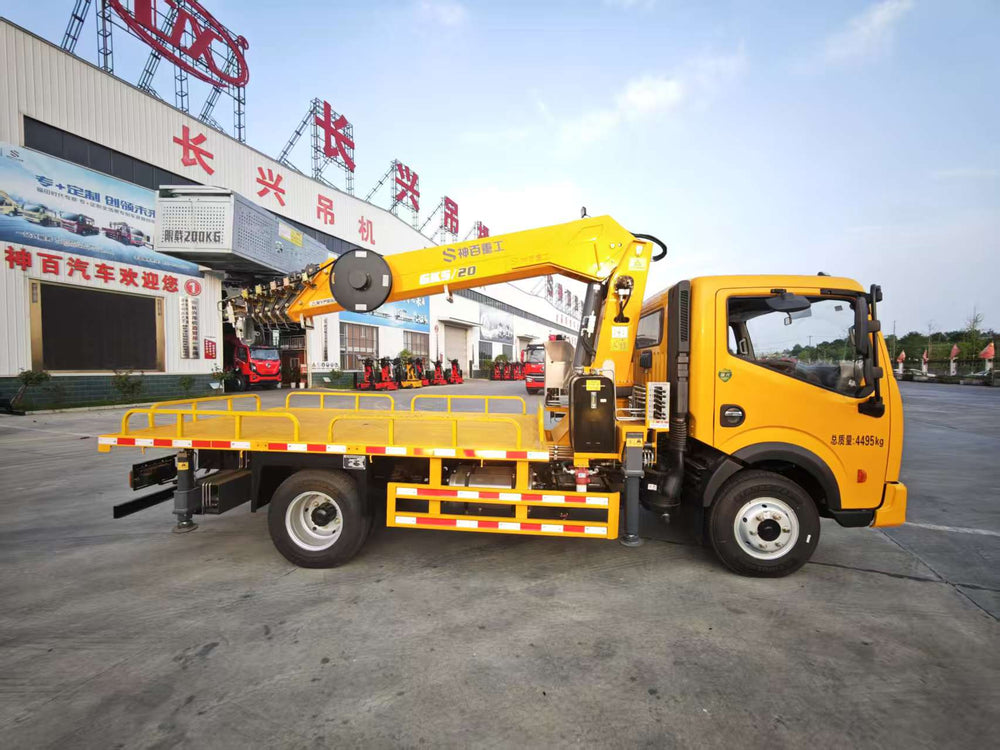

4. Cargo Transport Section

Item Parameter
Cargo Box Size 3300×2200 mm
Operation Mode Central Manual Control + Intelligent Wireless Remote Control
