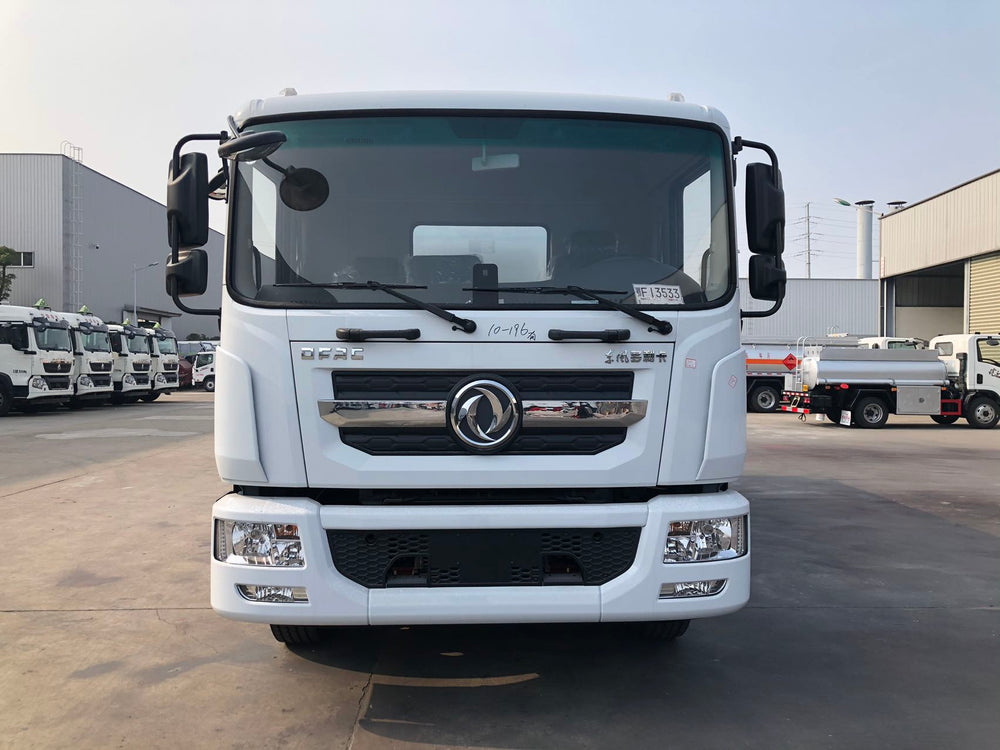

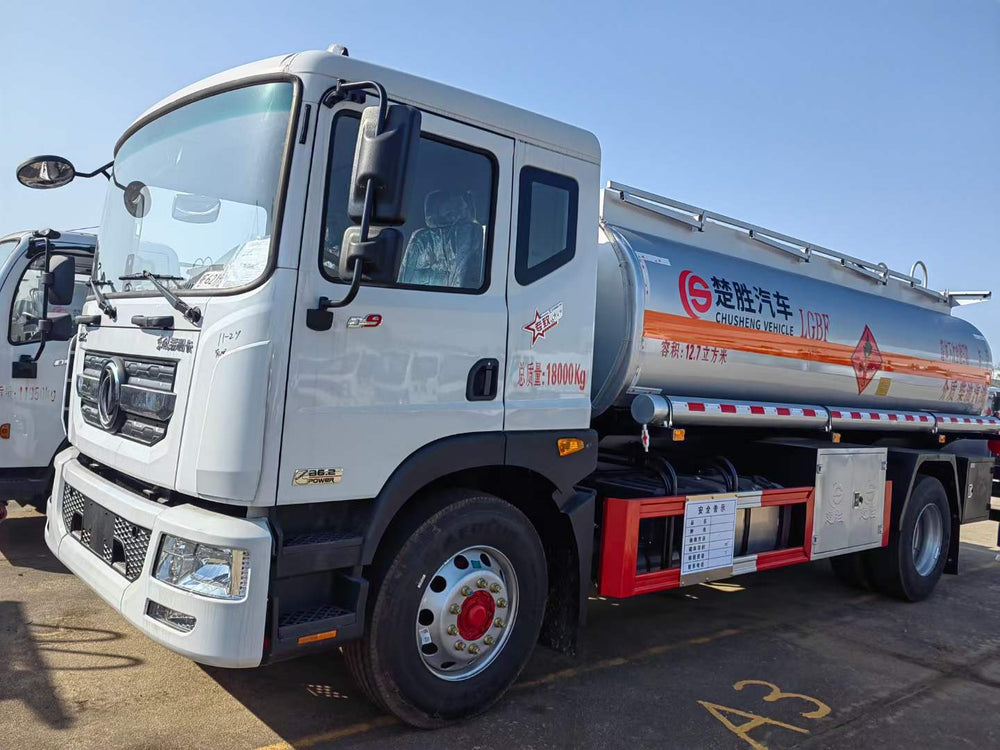

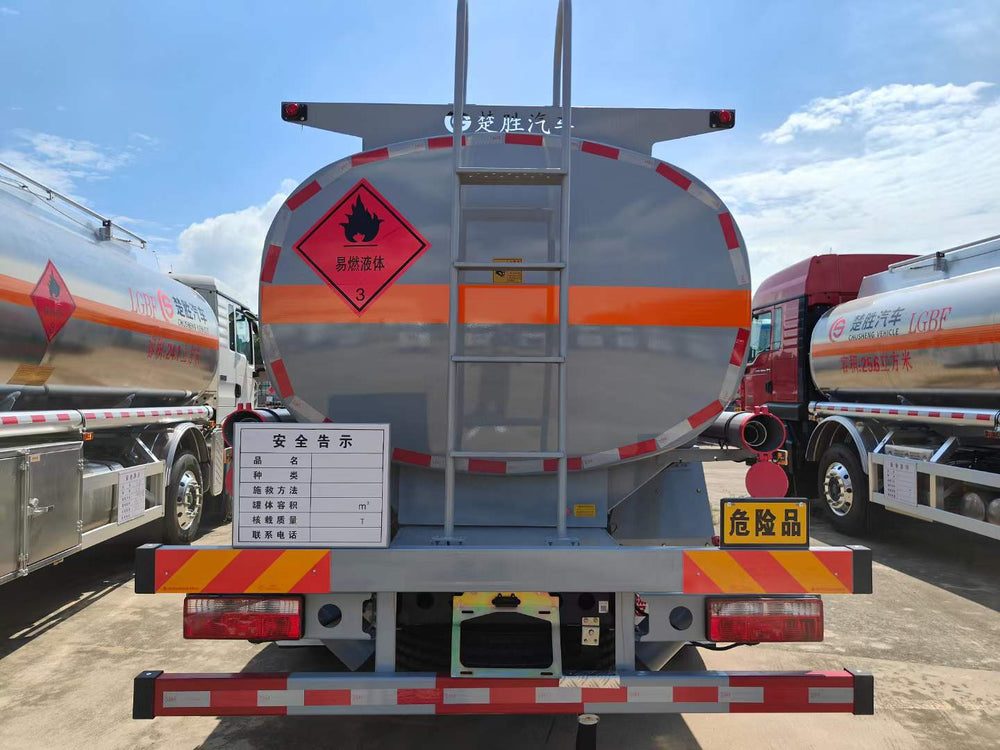

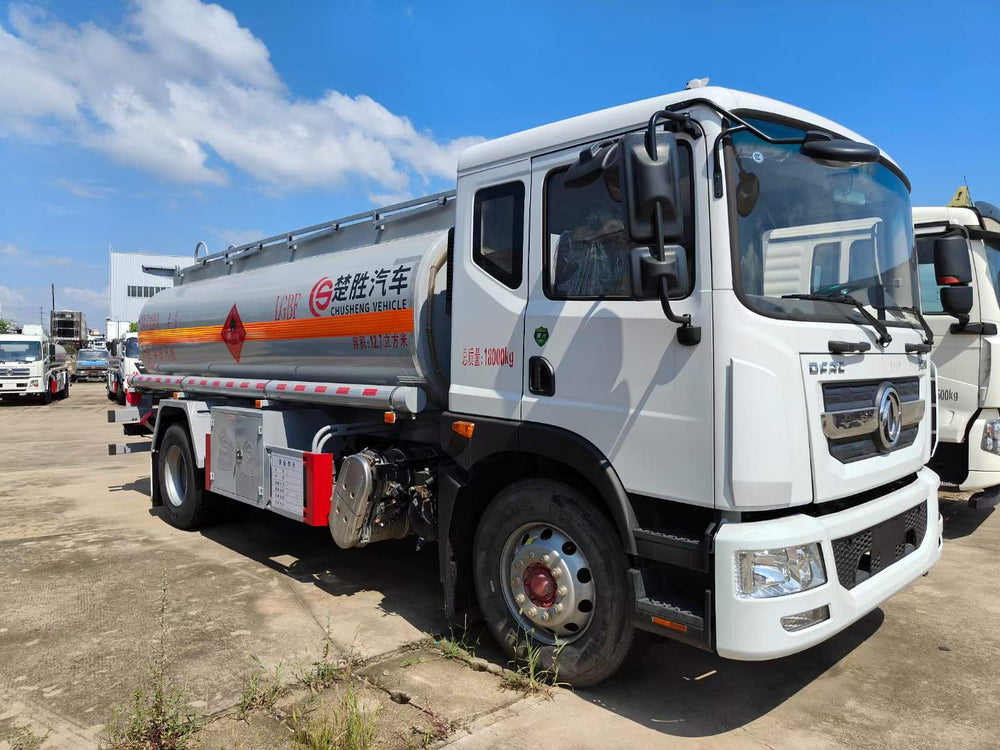

DongFeng 230HP Oil Tank Truck（12.7-14.5m³）For Sale

DongFeng 230HP Oil Tank Truck（12.7-14.5m³）For Sale
DongFeng 230HP Oil Tank Truck（12.7-14.5m³）For Sale
DongFeng 230HP Oil Tank Truck（12.7-14.5m³）For Sale
DongFeng 230HP Oil Tank Truck（12.7-14.5m³）For Sale
1 / 4
DongFeng 230HP Oil Tank Truck（12.7-14.5m³）For Sale
DongFeng 230HP Oil Tank Truck（12.7-14.5m³）For Sale
DongFeng 230HP Oil Tank Truck（12.7-14.5m³）For Sale
DongFeng 230HP Oil Tank Truck（12.7-14.5m³）For Sale

1. Chassis Configuration

Parameter Value
Cab Type Dongfeng Duolika D9, 2315 Half-Row Cab
Wheelbase 4700 mm
Engine Model B6.2NS6B230
Engine Power Cummins 230 HP
Transmission Fast 8JS95 with Power Take-Off
Tire Specification 295/80R22.5
Tire Safety Feature Explosion-Proof Tires
Front Axle Rated Load 4.5 Tons
Rear Axle Brand & Load Dana 10-Ton Rear Axle
Frame Specification 860-250×80×(7+4) Double-Layer Frame
Suspension System Air Suspension
Driver Seat Airbag Suspension Seat
Cab Interior Air Conditioner, Electric Windows, Central Door Locking
Brake System ABS, EBS (Electronic Braking System), AEBS (Advanced Emergency Braking System)
Stability Control ESC (Electronic Stability Control)
Advanced Safety Systems Collision Warning, Lane Departure Warning, Tire Pressure Monitoring

2. Tank Body (Upper Structure) Configuration

Parameter Value
Vehicle Type Oil Tanker / Fuel Dispenser Truck
Transport Medium Diesel, Gasoline
Tank Body Thickness 5 mm (≥ 4.2 mm)
Tank Head Thickness 5 mm (≥ 4.2 mm)
Power Take-Off Switch Mounted above clutch pedal
Pump System Equipped with pump
European Standard Manholes 2 units
Bottom Valve 1 unit (with separate left & right valve boxes)
Bottom Loading System 1 unit (installed on passenger side)
Vapor Recovery System 1 unit
Anti-Overflow System Anti-overflow probe and socket
Bottom Valve Alarm Acoustic-optical automatic alarm system
Pump Inlet/Outlet Installed on passenger side
Side Toolbox 1.05m long on driver side (reserved interface, 2 ball valves)
Tank Sealing Fully sealed tank body with structural bracing
Drip Valve Small ball valve with drip hole at front end of barrel pipe
Triangular Top Light Equipped
Static Grounding Reel Equipped
Toolbox 1 unit
Folding Guardrail Equipped
Fire Cap 1 unit
Oil Delivery Pipes 2 pipes equal to tank body length
Fire Extinguishers 2 units
Other Accessories Remaining factory standard configuration
Dimension Compliance Tank body and overall vehicle dimensions strictly per official announcement

3. Official Announcement Models

Model No. Vehicle Type Total Volume Transport Medium Tank Dimension (L×W×H)
CSC5185GYY6A Oil Tanker 12.7 m³ Gasoline, Diesel 5700 × 2000 × 1400 mm
CSC5185GJY6A Fuel Dispenser Truck 12.7 m³ Gasoline, Diesel 5700 × 2000 × 1400 mm
CSC5185GYY6 Oil Tanker 14.5 m³ Gasoline 5700 × 2150 × 1480 mm
