1. Overall Mass Parameters

Parameter Value
Gross Vehicle Weight 18000 KG
Optional Curb Weight 14000KG / 12900KG / 12000KG / 11500KG / 11000KG
Crane Mounting Approval Range 8–12 tons, complete official filing documents for all domestic truck-mounted cranes, easy license registration
Wheelbase Options 5100 mm, 4500 mm

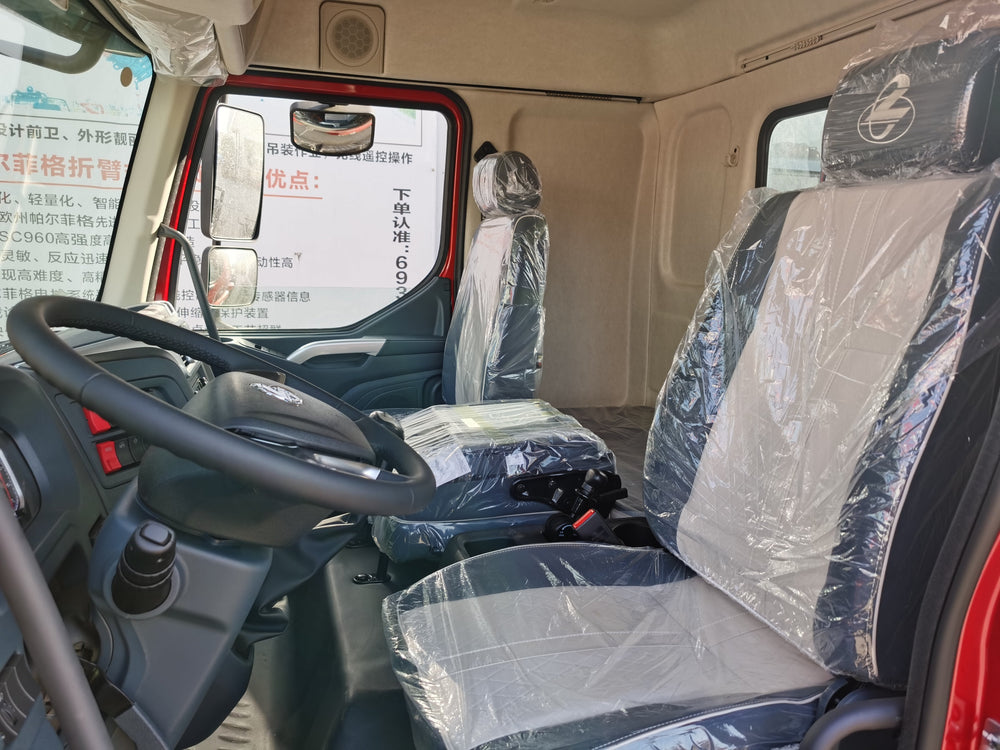

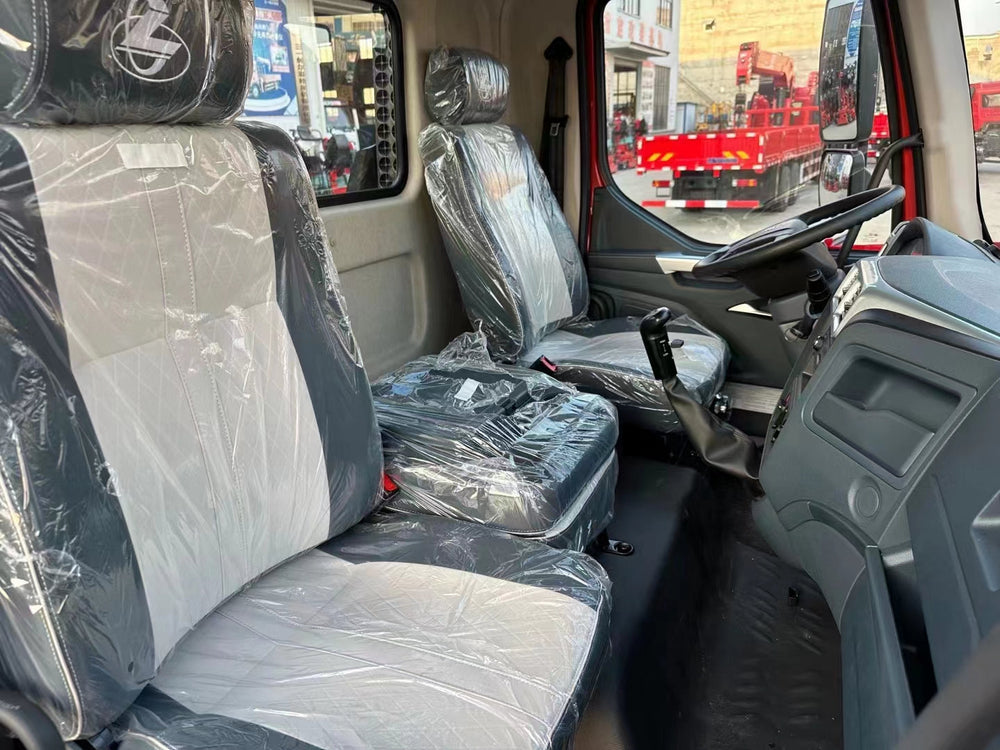

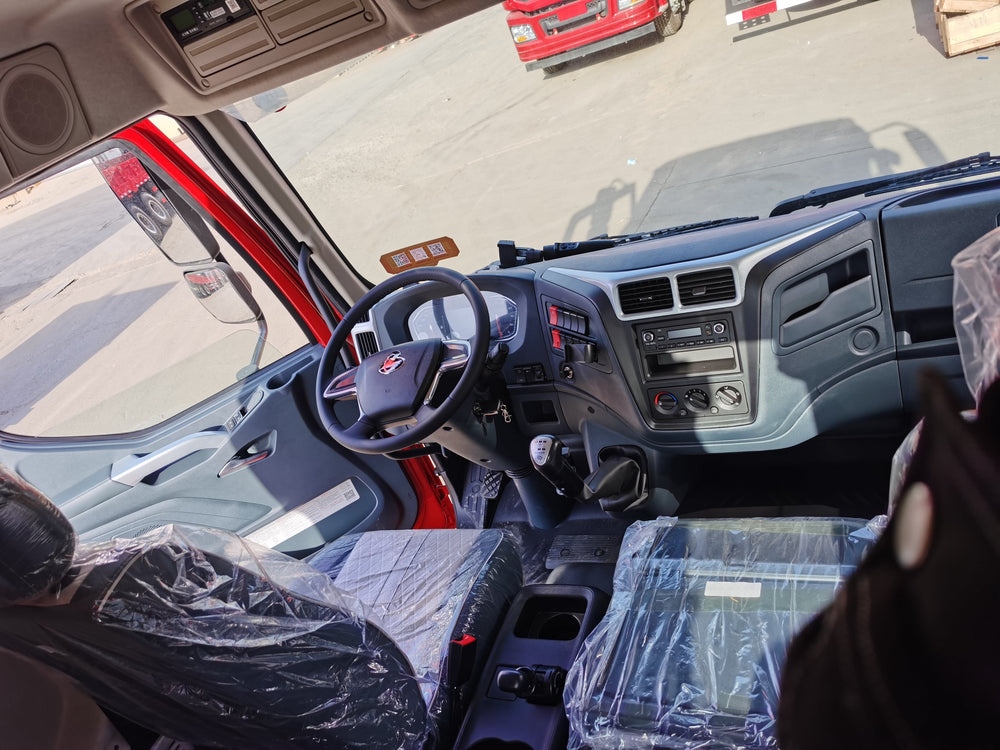

2. Cab Configuration

Parameter Value
Cab Suspension Semi-floating suspension structure
Cab Tilting Mode Manual hydraulic tilting system
Driver Seat New type knitted fabric seat
Window System Electric window lifters
Lock System Remote control central locking
Air Conditioning Equipped with air conditioner
On-board Terminal Driving recorder, compatible with Beidou & GPS positioning
External Accessory External sun visor
Control Switch Multi-state switch
Safety Function Right turn reminder system
Fuel Tank Volume 160 L fuel tank
Power Take-off Power take-off unit equipped
Throttle Control Remote accelerator, knob-type remote accelerator
Brake System ABS, automatic brake slack adjusters
Battery Type Maintenance-free battery
Cooling Fan Electronically controlled silicone oil fan
Auxiliary Function Under-chassis start & stop function
Exterior Parts Body-colored front bumper and fenders

3. Chassis & Powertrain Configuration

Parameter Value
Engine Specification Model YCS06, 245 horsepower, 6-cylinder diesel engine
Optional Cab Type Single-row cab / Single-and-a-half row cab
Transmission Model 8JS95E-C gearbox with spline power take-off
Rated Front Axle Load 5.5 tons
Rated Rear Axle Load 10 tons
Main Frame 282mm integrated pressed frame, one-piece forming by 6300-ton hydraulic press, nicknamed "Dragon Spine Frame"
Tire Specification 10.00R20 steel wire radial tire

4. Overall & Cargo Body Dimensions

Parameter Value
Overall Length (5100mm Wheelbase) 9000 mm
Cargo Box Length (5100mm WB, Single-row Cab) 6000 mm
Cargo Box Length (5100mm WB, Single-and-a-half Row Cab) 5600 mm
Overall Length (4500mm Wheelbase) 8420 mm
Cargo Box Length (4500mm WB, Single-row Cab) 5400 mm
Cargo Box Length (4500mm WB, Single-and-a-half Row Cab) 5000 mm

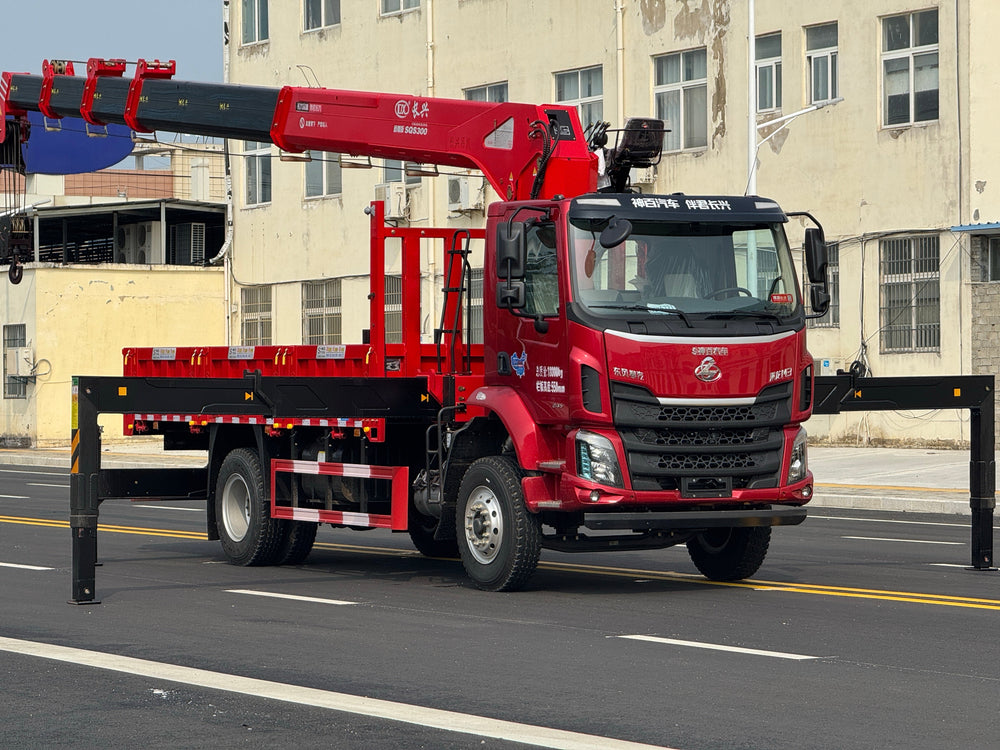

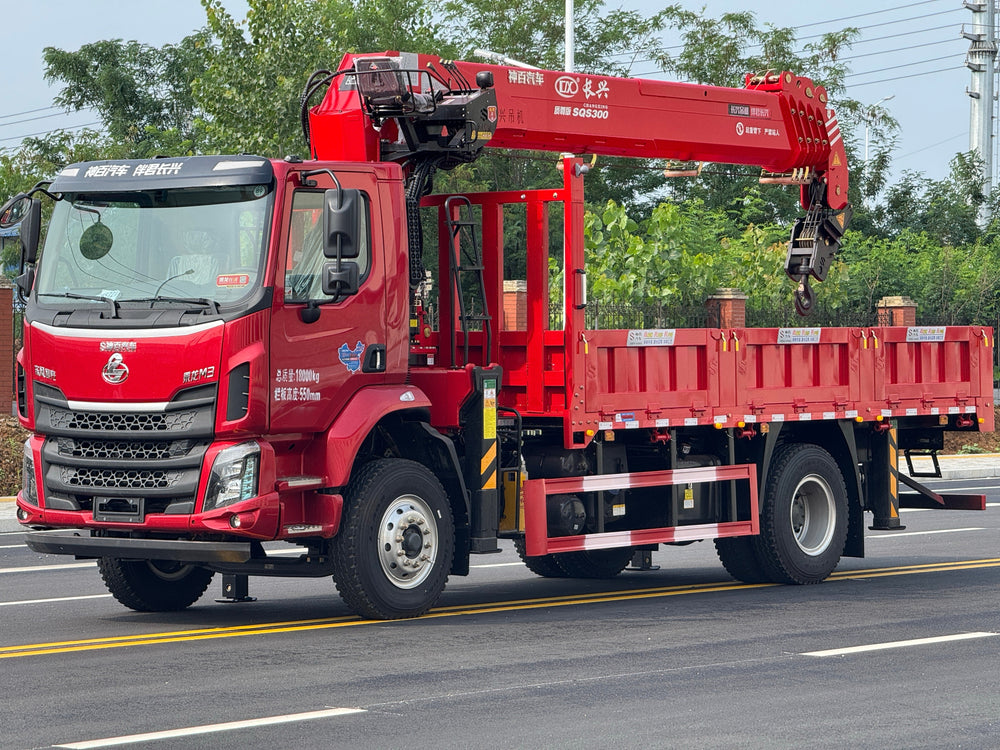

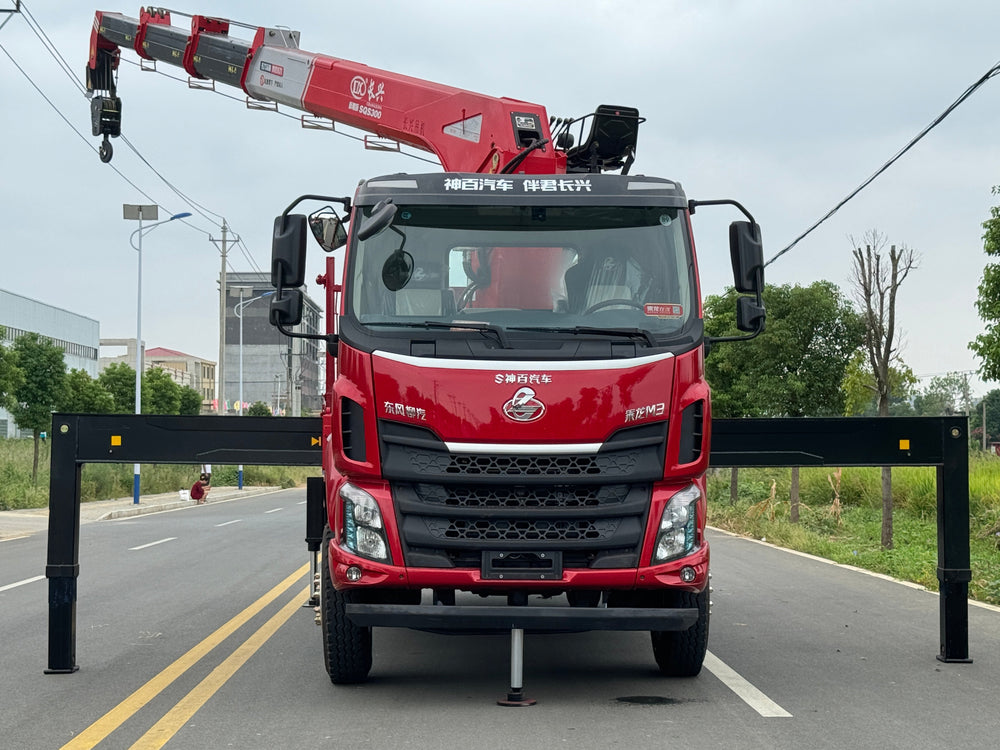

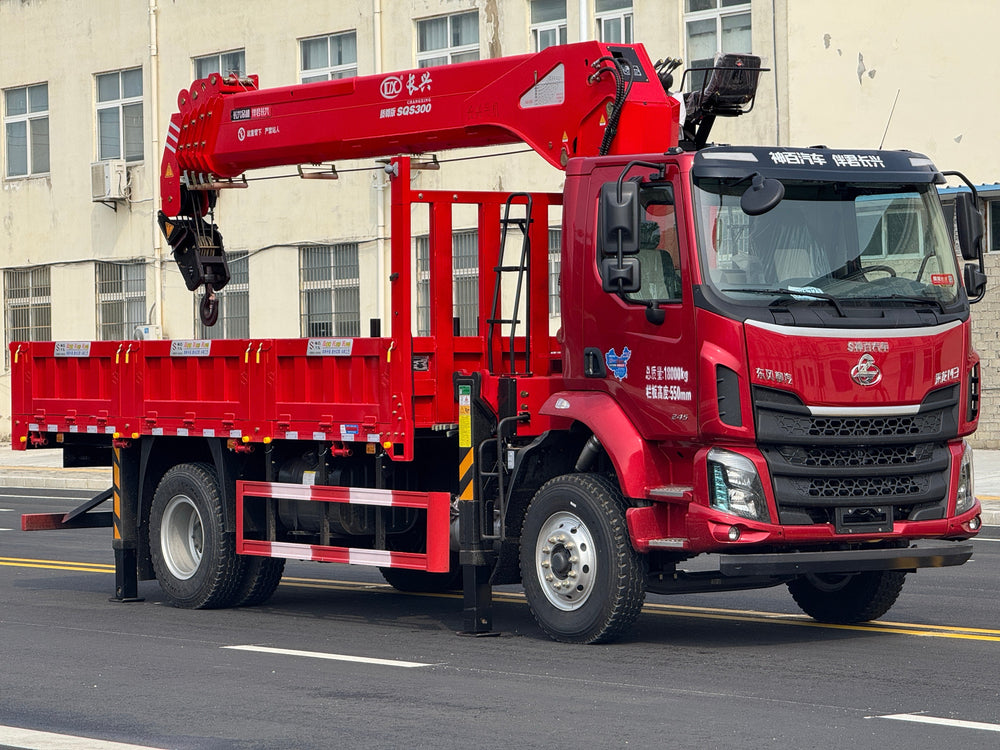

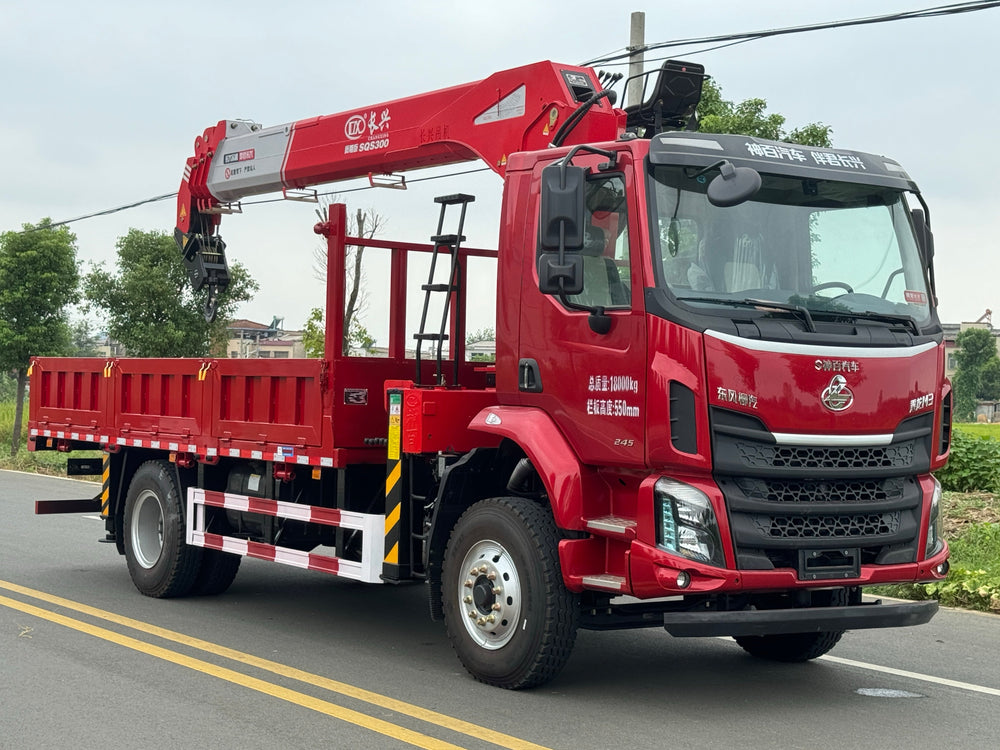

5. Upper Crane Assembly Options (Changxing Brand)

Model Specification Technical Configuration & Performance Data
8 Ton, 4-section Ultimate Version Crane Working radius: 13.5m, Lifting height: 15.5m, Top operation, radiator, single gear pump
8 Ton, 5-section Synchronous Telescopic Fortune Version Crane Boom length: 18.1m, Lifting height: 19.6m, Top operation, radiator, single gear pump, double-section composite front outriggers
8 Ton, 5-section Synchronous Telescopic Ultimate Version Crane Boom length: 18.1m, Lifting height: 19.6m, Top operation, through sub-frame, radiator, double gear pump, double-section composite front outriggers
8 Ton, 5-section Boom Crane Working radius: 16.3m, Lifting height: 18.5m, Top operation, through sub-frame, radiator, double gear pump, independent extension of second boom section
8 Ton, 5-section Pro Version Crane Working radius: 18.1m, Lifting height: 20.1m, Top operation, through sub-frame, radiator, double gear pump, independent extension of second boom section, dual slewing, double-section composite front outriggers
8 Ton, 6-section Boom Crane Working radius: 20m, Lifting height: 22m, Top operation, through sub-frame, radiator, independent extension of 2nd & 3rd boom sections, dual slewing, double-section front outriggers
10 Ton, 5-section Boom Crane Working radius: 16.3m, Lifting height: 18.5m, Top operation, through sub-frame, radiator, double gear pump, independent extension of second boom section
10 Ton, 6-section Boom Crane Working radius: 22m, Lifting height: 24m, Top operation, through sub-frame, radiator, independent control for second boom, dual slewing, double-section front outriggers
12 Ton, 4-section Boom Crane Working radius: 15.2m, Lifting height: 17.2m, Top operation, radiator, single gear pump
12 Ton, 5-section Boom Crane Working radius: 19.9m, Lifting height: 21.3m, Top operation, radiator, double-section
