1. Basic Chassis & Mass Parameters

Parameter Value
Chassis Model LZ1255H5DCT
Optional Curb Weight 19000KG / 18500KG / 18000KG / 17600KG / 16800KG / 16100KG / 15800KG
Crane Approval Scope 12–14 tons, complete official filing documents for all domestic truck-mounted cranes, trouble-free license registration
Optional Wheelbase Combinations 5850+1350mm / 4800+1350mm / 4350+1350mm / 3850+1350mm (long & short wheelbase options)
Overall Length Options 12000mm, 10900mm, 10300mm, 9580mm
Cargo Box Length Options 8400mm, 7200mm, 6600mm, 6000mm

2. Chassis & Powertrain Configuration

Parameter Value
Engine Model & Displacement YCS07L300-66 engine, 7L displacement
Transmission Model Fast 9JS119T-B with QHG50 flange power take-off
Axle Rated Load Front axle: 6.5T, Rear tandem axles: 2×13T, Final drive ratio: 5.143
Differential Lock Inter-wheel differential lock + inter-axle differential lock, oil-lubricated wheel hub reduction
Clutch Specification Φ430 pull-type clutch
Leaf Spring & Fastener 11/10-leaf spring with double saddle bolts
Main Frame 300(8+8+4) Baosteel 750 three-layer pressed through-type frame, with reinforcing subframe connecting plates & rear outrigger connecting plates; 4-stage plastic spraying, alkali cleaning & coating process
Fuel Tank 350L aluminum fuel tank
Tire Size 11.00R20 steel wire radial tire
Electrical System 150AH storage battery, 80A alternator, maintenance-free battery, double saddle bolts
Throttle Control Rocker arm self-reset remote accelerator
Auxiliary Function Under-chassis start & stop function
Exterior Bumper Parts Color-matched bumper & fenders, high-position bumper, reinforced front leaf spring

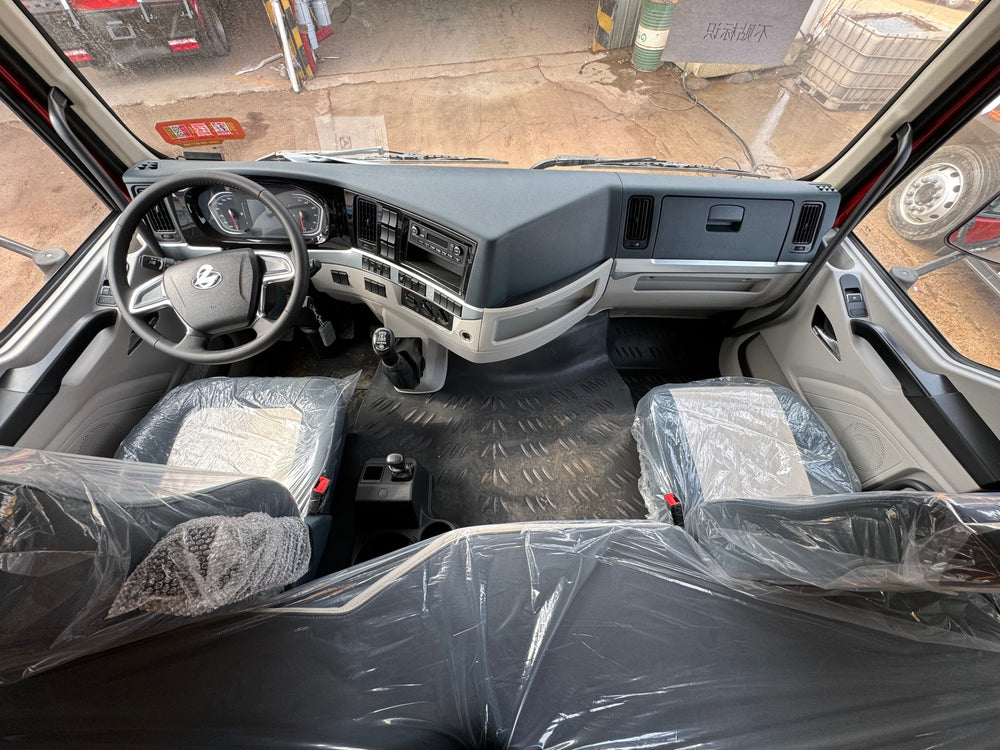

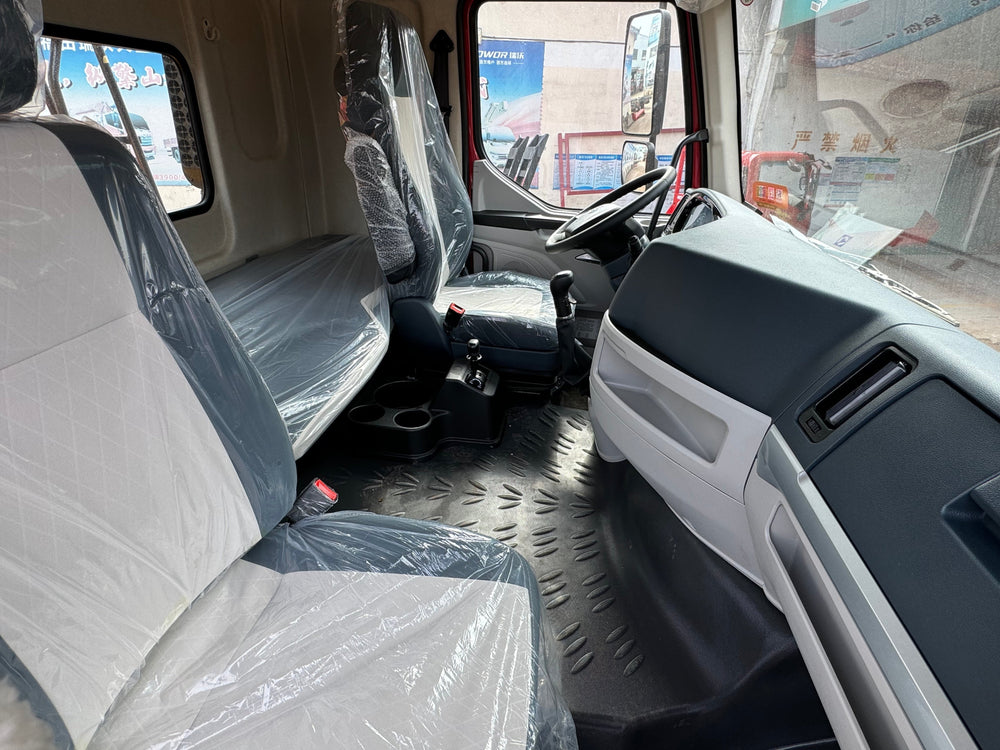

3. Cab Configuration

Parameter Value
Cab Type & Height Adjustment H51S height-adjustable cab with H5 sticker
Cab Suspension Four-point precisely adjustable full-floating cab suspension (exclusive domestic technology)
Cab Tilting System Manual hydraulic tilting structure
Seating System Knitted air suspension driver seat, fixed knitted passenger seat
Steering Wheel Leather steering wheel
Window Control Electric window lifters
Central Lock Remote control central locking
Air Conditioner Manual air conditioner
On-board Terminal Driving recorder, compatible with Beidou & GPS positioning, Chenglong V+ internet of vehicles system
External Accessory External sun visor
Control & Safety Switches Multi-state switch, right-turn reminder function, overspeed alarm function
Audio System MP3 + Radio
Instrument Panel 5-inch black & white combination meter
Exterior Logo & Lighting Standard brand logo, halogen headlamp
Brake System Equipped with ABS

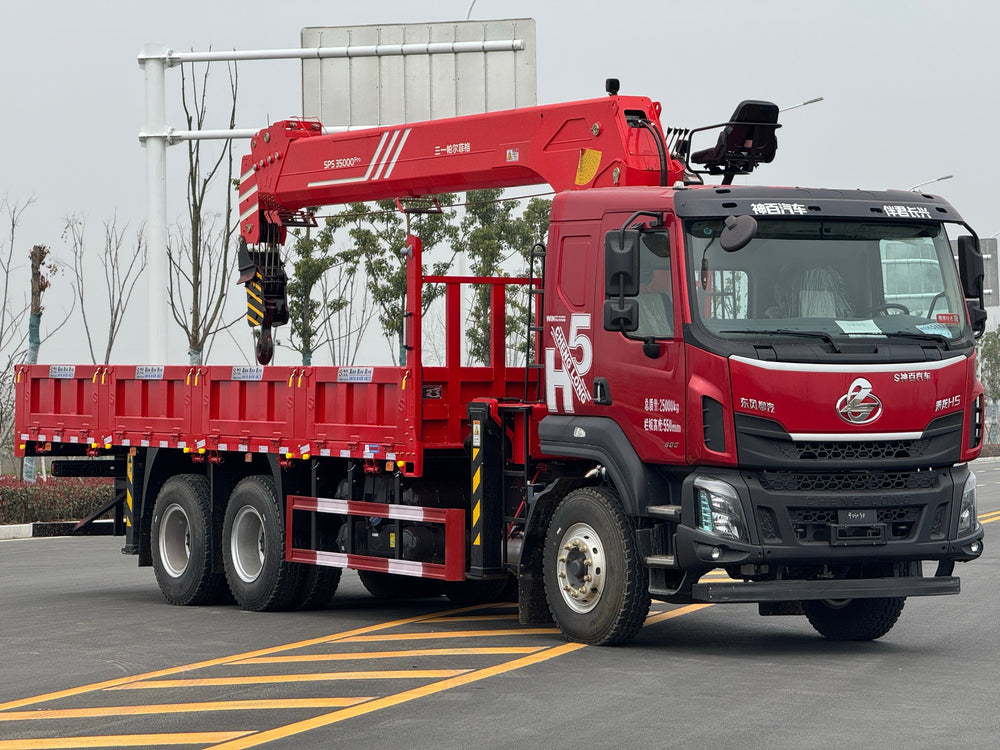

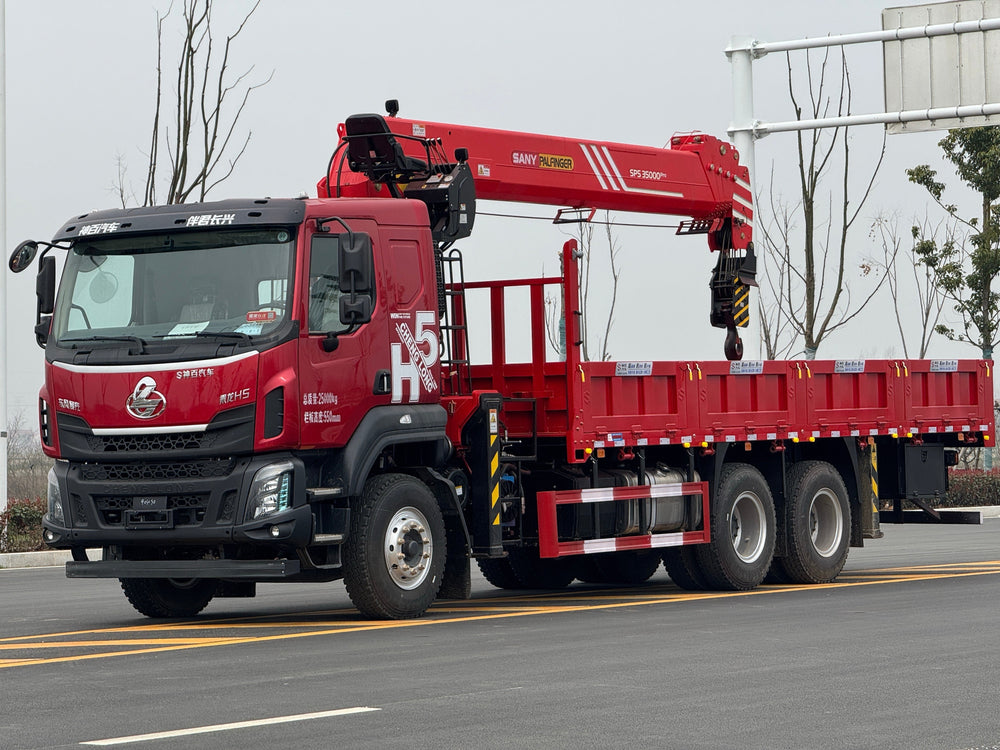

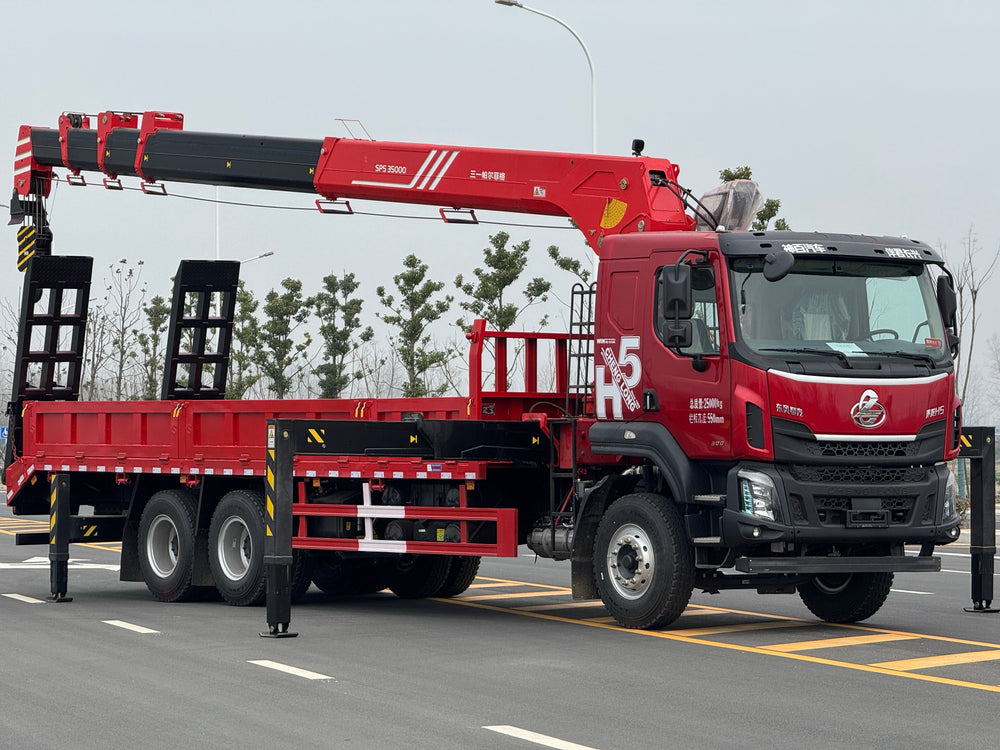

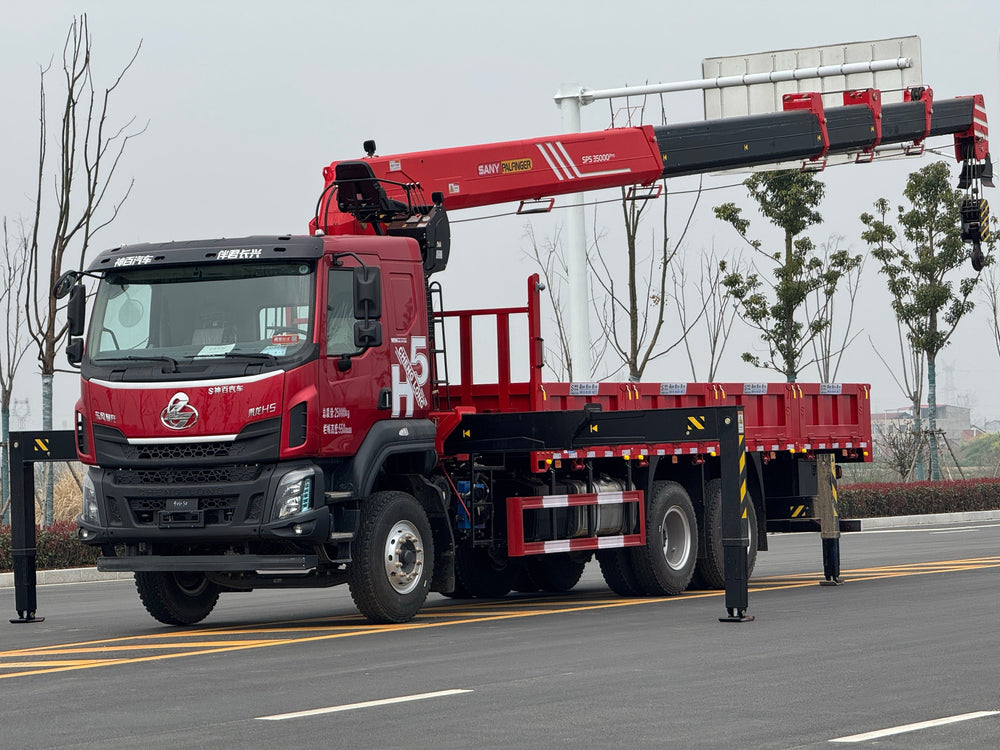

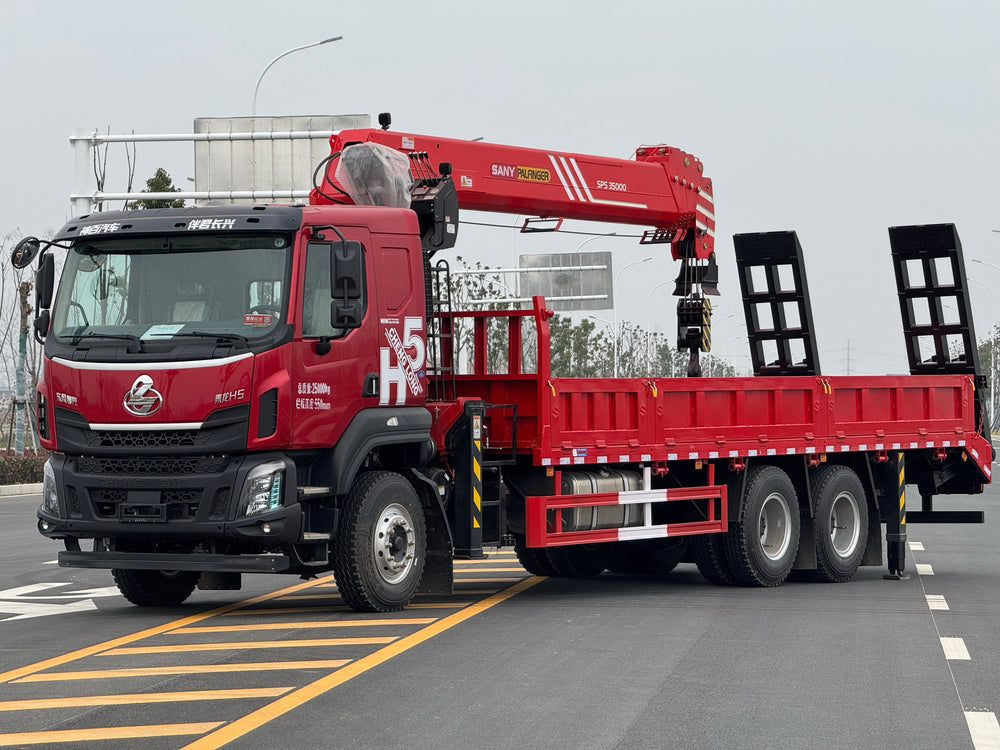

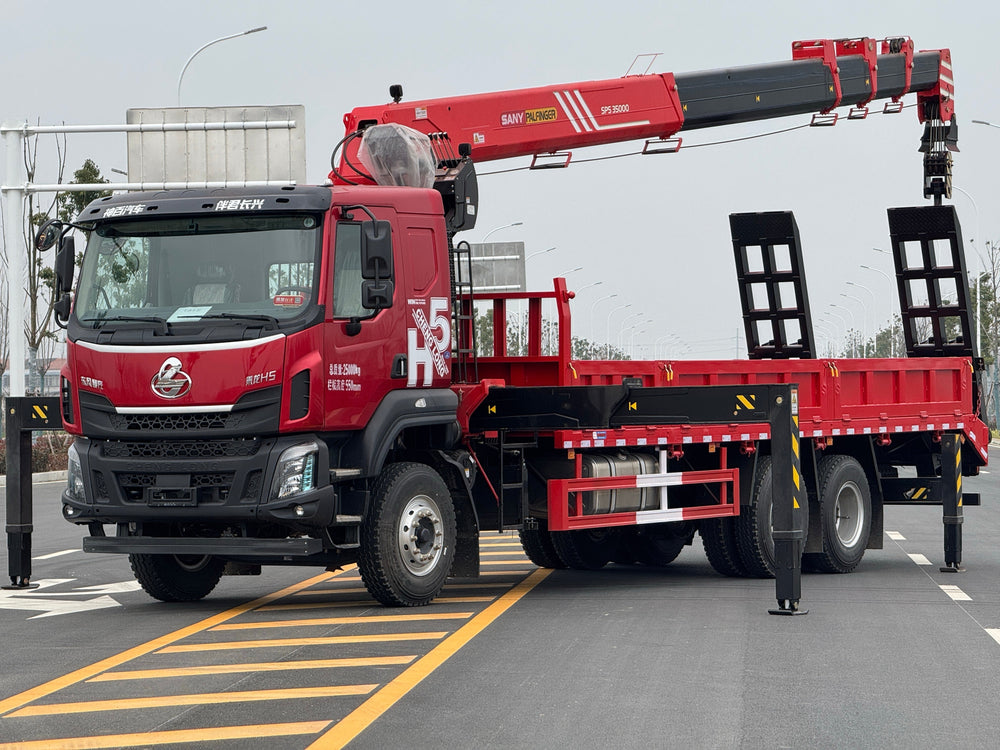

4. Upper Crane Assembly (Sany Brand)

Crane Model Specification Technical Configuration & Performance Parameters
Sany 12 Ton, 4-Section Boom Crane Boom length: 14.8m, Lifting height: 16.8m, Top operation, through subframe, radiator, original Sany single-chamber rear outriggers
Sany 12 Ton, 4-Section Pro Version Crane Boom length: 16.2m, Lifting height: 18.2m, Top operation, through subframe, radiator, original Sany single-chamber rear outriggers, automatic hook retraction
Sany 12 Ton, 5-Section Boom Crane Boom length: 18.3m, Lifting height: 20.3m, Top operation, through subframe, radiator, independent extension of second boom section, original Sany single-chamber rear outriggers
Sany 12 Ton, 5-Section Pro Version Crane Boom length: 19.8m, Lifting height: 21.8m, Top operation, through subframe, radiator, independent extension of second boom section, double-section composite front outriggers, original Sany single-chamber rear outriggers, automatic hook retraction
Sany 14 Ton, 5-Section Boom Crane Boom length: 18.5m, Lifting height: 20.5m, Top operation, through subframe, radiator, independent extension of second boom section, original Sany double-chamber rear outriggers
Sany 14 Ton, New 5-Section Boom Crane Boom length: 19.8m, Lifting height: 21.8m, Top operation, through subframe, radiator, independent extension of second boom section, dual slewing, double-section composite fro
