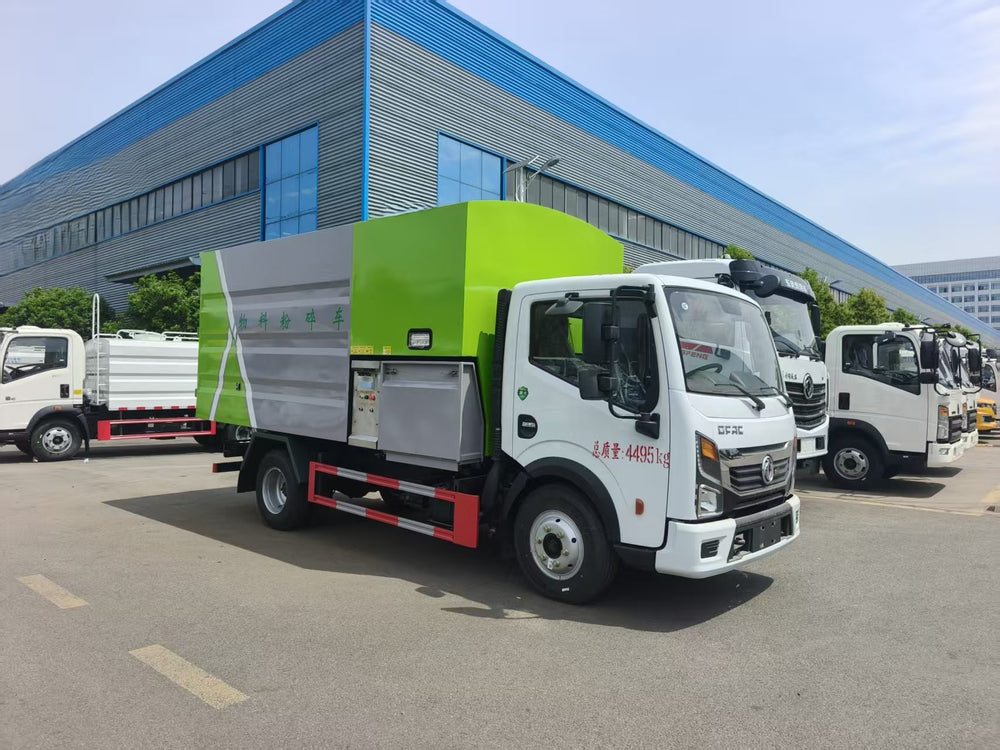

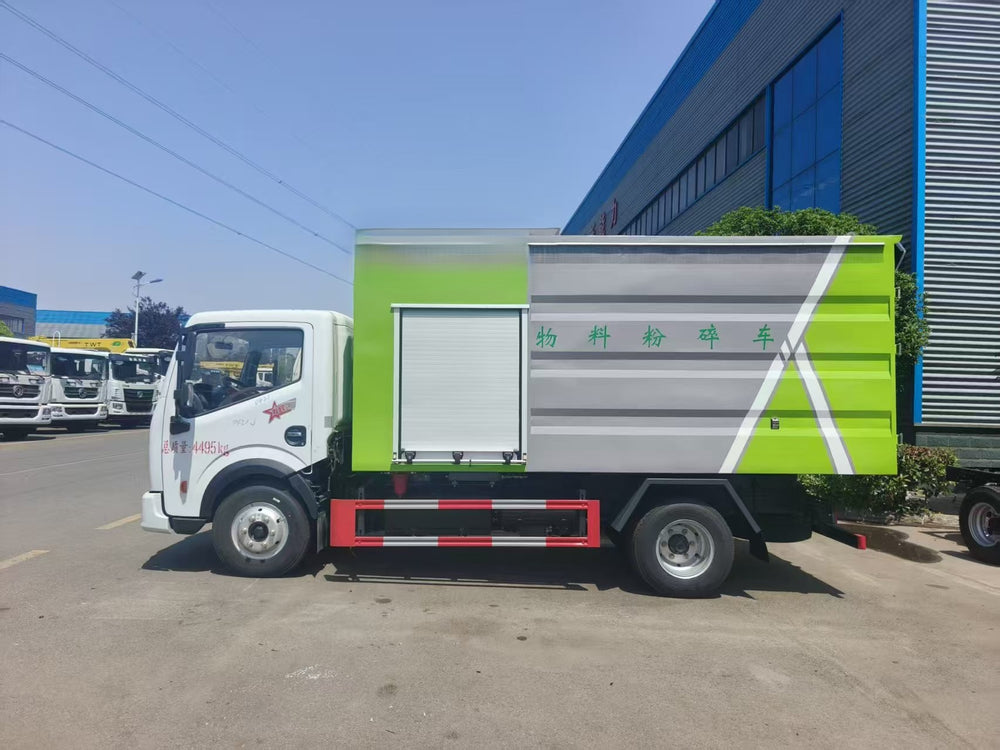

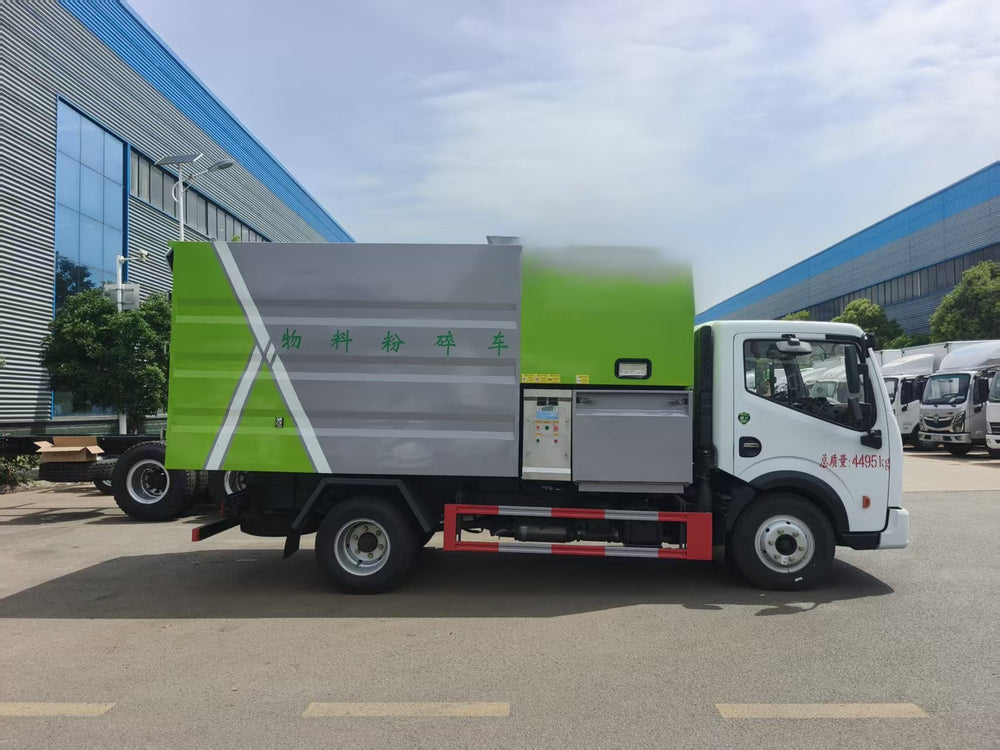

Dongfeng Branch Shredder Truck
Request a Quote Now
| Gross Vehicle Weight (Kg) | 4495 |
| Tank Volume (m³) | 10.5 |
| Curb Weight (Kg) | 4365 |
| Overall Dimensions (mm) | 5980×2060×2990 |
| Wheelbase (mm) | 3308 |
| Approach/Departure Angle (°) | 28/15 |
| Front Overhang/Rear Overhang (mm) | 1055/1617 |
| Maximum Speed (Km/h) | 110 |
| Axle Load (Kg) | 1600/2895 |
| Number of Tires | 6+1 |
| Chassis Configuration | |
| Chassis Model | EQ1045SJ3CDF |
| Chassis Brand | Dongfeng |
| Engine Model | Q23-136E60 |
| Engine Manufacturer | Anhui Quanchai Power Co., Ltd. |
| Rated Power (kw) | 100 |
| Horsepower (ps) | 136 |
| Displacement (ml) | 2300 |
| Emission Standard | GB17691-2018 China VI |
| Transmission | Wanliyang 6-Speed |
| Air Conditioning | Factory Original Heating & Cooling Air Conditioning |
| Front Axle (T) | 2 |
| Rear Axle (T) | 3.5 |
| Other Standard Equipment | Power Windows, Central Door Lock, ABS, Automatic Headlight Adjustment |
| Superstructure Configuration | |
| Wood Chipper Model | ZX6500 |
| Wood Chipper Type | Drum Type, Double-sided Cutting Blades |
| Hydraulic Tank Volume (L) | 36 |
| Discharge Method | Rear Tilt Cylinder Lifting Discharge |
| Control Method | PLC |
| Whole Machine Drive | Hydraulic Drive |
| Hopper Volume (m³) | 10.5 |
| Driving Power | Mechanical Power Take-off from Main Engine (No Auxiliary Engine) |
| Feeding Platform Height (mm) | 900 |
| Feed Roller Height | Adjustable within 260mm |
| Feed Hopper Opening Size (mm) | 400*300 |
| Feed Roller | Single Feed Roller, Hydraulic Drive |
| Maximum Crushing Diameter (mm) | 200 |
