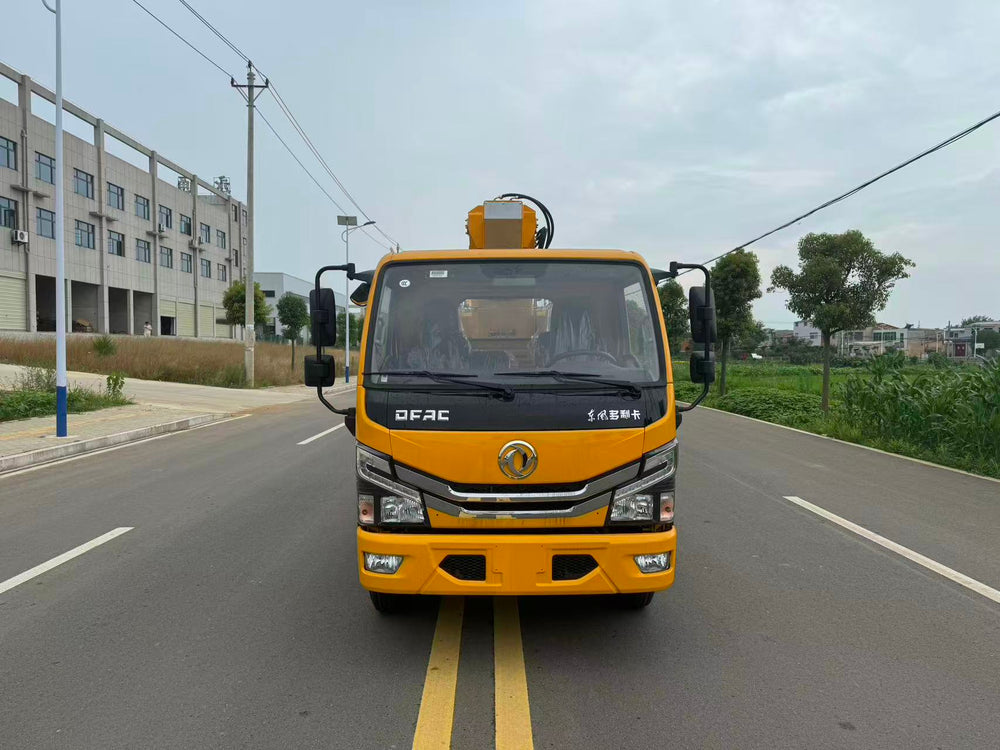

Dongfeng D5 30-meter aerial work platform vehicle

Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
1 / 9
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle
Dongfeng D5 30-meter aerial work platform vehicle

1. Key Advantages & Innovations

Feature Description
Material Baosteel 960 Ultra-High-Strength Steel Plate
Boom Design 7-section 14-sided polygonal boom (6-section synchronous telescopic)
Swing Design Zero-Tail Design: Turntable stays within vehicle body width during rotation
Platform 1.8m Aluminum Alloy Basket (Expandable to 3.8m)
Lifting System Dual lifting thickened hydraulic cylinders
Base Design Box-type frame with ladder-type triple-layer reinforced slewing base
Compactness Ultra-low overall height of 2.7 meters for better accessibility

2. Chassis Specifications

Item Details
Chassis Model Dongfeng Dollicar D5
Gross Vehicle Weight (GVW) 4495 KG
Curb Weight 4365 KG
Engine Quanchai Diesel Engine, 132 HP
Transmission Wanliyang 5-Speed
Wheelbase 2950 mm
Overall Dimensions 5995×2090×2700mm
Tires 650R15LT
Brake System Air Brake (Pneumatic)
Comfort Features Electric windows, Air conditioning, Central locking

3. Upper Structure (Model: GKS30)

Item Details
Max Working Height 28.3 Meters
Max Working Radius 16.0 Meters
Max Boom Length 24.5 Meters
Platform Rated Load 200 KG
Boom Rotation Angle 360° Continuous
Platform Dimensions 1800×700×1000mm (Expandable to 3800mm)
Platform Rotation 360° Infinite rotation
Safety Redundancy Dual wire rope system (Primary + Emergency backup cable)
Control System Domestic high-end electronic control with wireless remote & Upper Display Screen
Hydraulic System Electro-hydraulic proportional valve (stepless regulation)

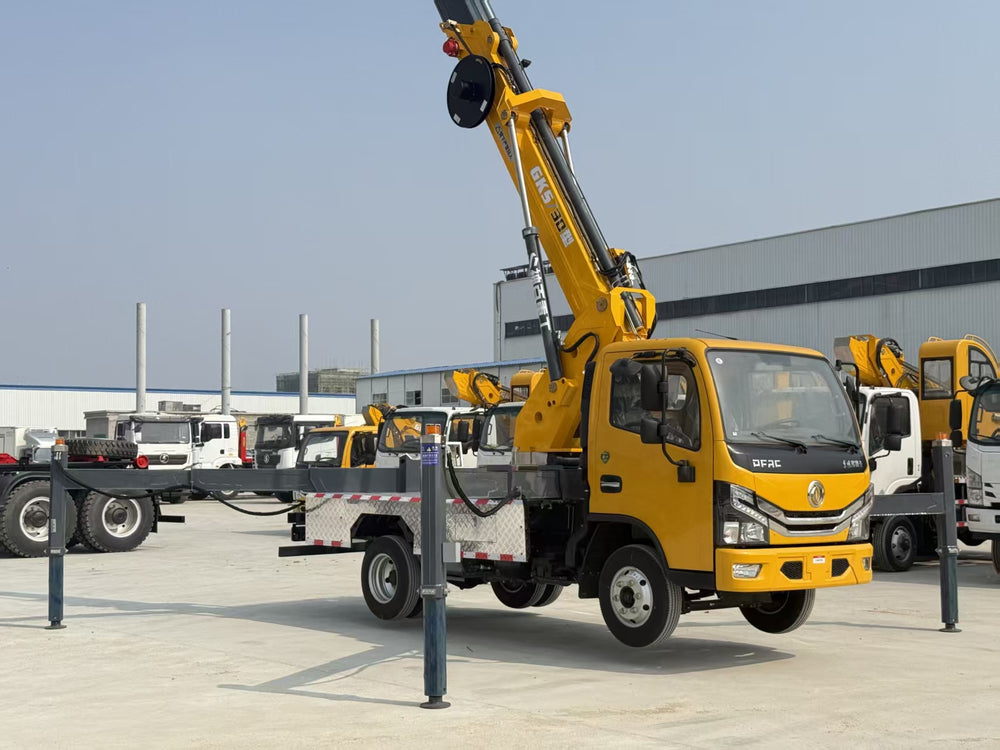

Outriggers X-type configuration, 4 double-section legs; Span: 6000×5800mm
Walkway Anti-slip Aluminum Alloy decking

4. Safety Protection Devices

  • Operation Interlock: Safety interlock system between upper and lower operations.
  • Emergency Power Source: Secondary system to retract the boom in case of engine failure.
  • Hydraulic Safety: Dual-way hydraulic balance valves to maintain stability.
  • Backup Cable: Redundant steel wire rope ensures the platform can be lowered safely even if the main cable fails.
