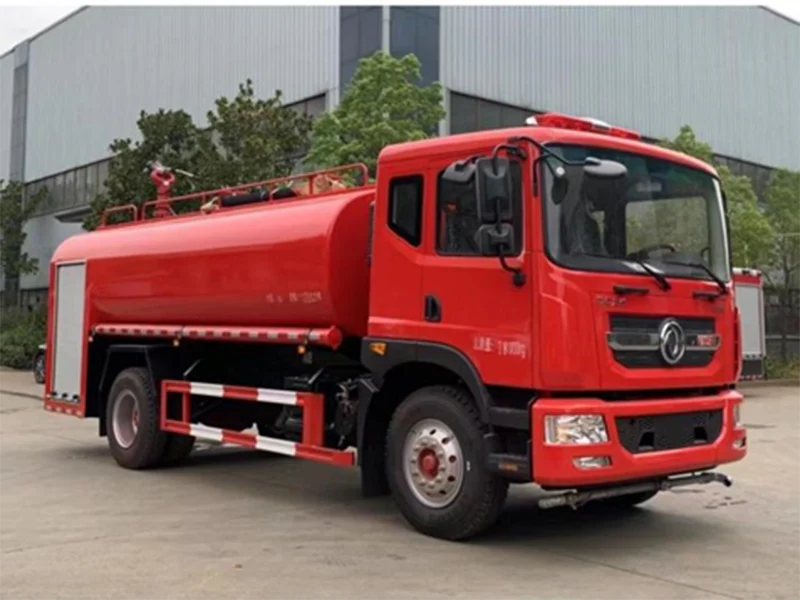

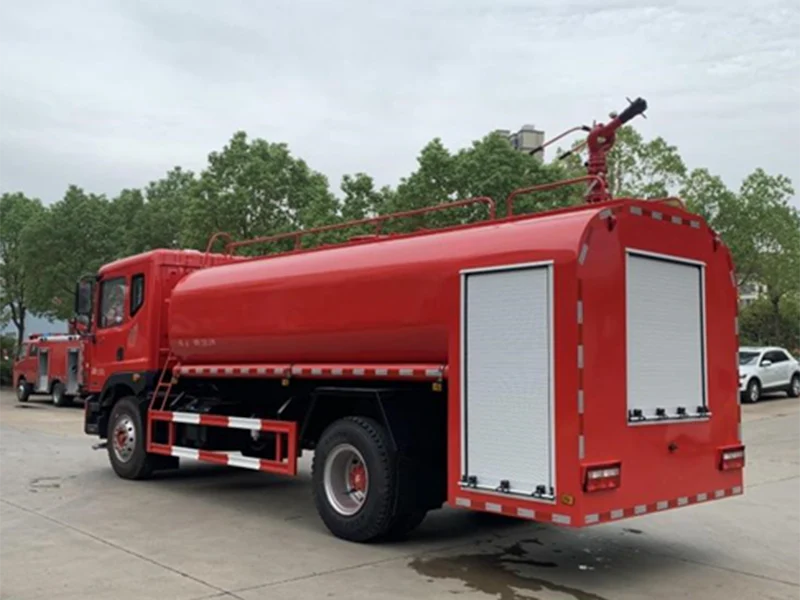

Dongfeng D9 12 CBM Water Tank Fire Truck

1 / 2

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Item	Specification
1. CHASSIS BASIC PARAMETERS
Chassis Brand & Model	Dongfeng D9, EQ1165LJ9CDE
Drive Type	4×2 Rear Wheel Drive
Cab Type	Single Row 3-seat Cab (Optional Double Row Crew Cab)
Wheelbase	3950 mm
Overall Dimension (L×W×H)	7900 × 2480 × 3150 mm
Tire Specification	10.00R20 Heavy Duty Radial Tire, 6 tires
Transmission Gearbox	6-speed Manual Transmission
Steering System	Hydraulic Power Steering
Brake System	Full Air Brake with ABS Anti-lock System
Max Travel Speed	90 km/h
Emission Standard	Euro VI
2. ENGINE PARAMETERS
Engine Model	Dongfeng Cummins B6.2NS6B210
Fuel Type	Diesel
Rated Power	154 kW / 210 HP
Displacement	6.2 L
Intake Mode	Turbocharged & Intercooled
Cooling Mode	Water Cooling
3. VEHICLE WEIGHT & LOAD DATA
Gross Vehicle Weight (GVW)	16000 kg
Curb Weight	8200 kg
Rated Loading Capacity	7800 kg
Front Overhang	1230 mm
Rear Overhang	2720 mm
4. TANK & LIQUID CAPACITY
Water Tank Volume	12000 L (12 CBM)
Tank Material	High-strength Carbon Steel with Full Anti-corrosion & Anti-rust Treatment
Tank Structure	Built-in Wave Baffles, Reinforced Tank Body, Float-type Liquid Level Indicator
Tank Thickness	4mm Tank Body, 5mm Tank Head
Drain Valve	3-inch Stainless Steel Ball Valve
Manhole	500mm Diameter Sealed Manhole with Access Ladder
5. FIRE FIGHTING & SPRINKLING CORE PERFORMANCE
Fire Pump Model	Self-priming Centrifugal Fire Pump
Rated Pump Flow	40 L/s
Rated Working Pressure	0.8 MPa
Suction Depth	≥ 6 m
Self-priming Time	≤ 30 s
Fire Monitor	PS40 Water Cannon
Rated Monitor Flow	40 L/s
Water Jet Range	≥ 60 m
Monitor Rotation	360° Horizontal Rotation, -30°~+45° Vertical Pitch
Sprinkling System	Front Flush, Rear Spray, Side Spray, Top Water Cannon
Sprinkling Width	≥ 14 m
Flushing Range	≥ 30 m
6. STANDARD EQUIPMENT
Fire Fighting Accessories	Full set of fire hoses, suction pipes, quick couplings, spray nozzles & fire hydrant connectors
Warning & Lighting System	Roof red warning light, 80W alarm siren, LED work lights for tank & pump room
Compartment Structure	Full aluminum alloy pump room & tool compartments with lockable doors
Safety Protection Devices	Emergency stop device, pump overload protection, pressure safety valve & anti-freeze device
Rescue Hand Tools	Complete fire rescue hand tools, fire axe, crowbar, fire spade & 6m fire ladder
Pump Drive & Control System	Independent PTO (Power Take-off) for pump drive, in-cab pump control system
Pump System Accessories	Water filter, check valve, pressure gauge & flow meter for pump system
7. CERTIFICATION & AFTER-SALES TERMS
Main Certificates	CCC, CE, ISO9001, Vehicle Road Announcement Certificate
Warranty Period	12 months or 20,000 km from delivery date (whichever comes first)
Standard Production Lead Time	15–20 working days
Standard Loading Port	Shanghai Port / Wuhan Port, China
Optional Upgrade Items	Imported fire pump, wireless remote monitor control, foam proportion mixing system, double row crew cab
