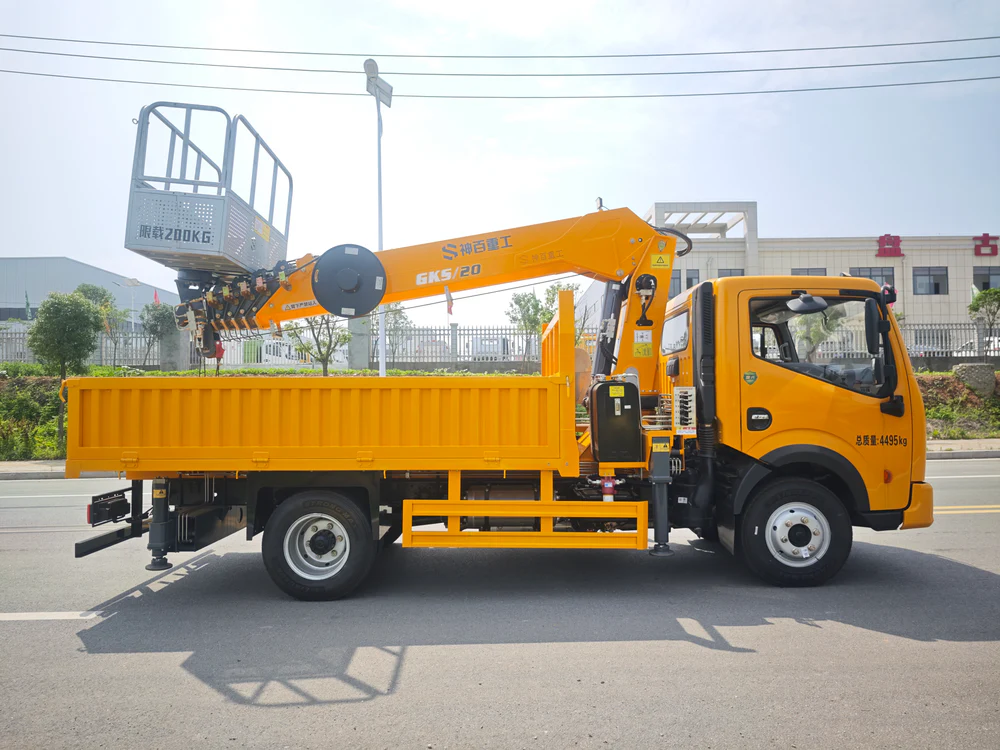

Dongfeng Dolica 20m Multifunctional Aerial Work Vehicle

Dongfeng Dolica 20m Multifunctional Aerial Work Vehicle
1 / 1
Dongfeng Dolica 20m Multifunctional Aerial Work Vehicle
Item Specification
Vehicle Name Dongfeng Dolica Heavy Duty 160HP 20m Multifunctional 3-in-1 Truck-mounted Aerial Work Vehicle
Approved Model ABC5045JGKE6 Truck-mounted Aerial Work Vehicle
Gross Vehicle Weight 4495KG
Curb Weight 4300KG
Gearbox 8-speed gearbox with synchronizer
Number of Axles 2
Wheelbase 3308mm
Tire Size 7.00R16 8PR
Engine Model YN25PLUS160B
Engine Manufacturer Kunming Yunnei Power Co., Ltd.
Displacement 2499ml
Rated Power 114KW
Gear Ratio 4.785
Basic Chassis Configuration D6 single row 1900mm cab, double-layer straight-through frame, 6-ton rear axle, ABS, central locking, electric windows, air conditioner
Outrigger Transverse Span 5150mm / 4500mm
Outrigger Longitudinal Span 3400mm
Upper Equipment Model GKS20
Maximum Working Height 19.2m
Maximum Working Radius 12m
Rated Platform Load 200KG
Boom Slewing Angle 360°
Platform Dimension 1500mm700mm1100mm
Platform Rotation Range ±180°
Boom Structure 6-section boom, 5 sections synchronous telescoping, fitted with standby steel wire rope for safe descent
Control System Well-known domestic electric control system, wireless remote control, middle operation with display screen
Hydraulic System Electro-hydraulic proportional valve, stepless speed regulation
Hydraulic Outrigger H-type four telescopic outriggers, independently adjustable for higher stability
Safety Devices Upper and lower operation interlock, limit protection, two-way hydraulic balance valve
Max Lifting Capacity 5000kg
Main Winch 5 Ton
Crane Boom 6-section inner rope boom
Max Lifting Height 17m
Slewing Mode 360° full rotation
Power Pump Single pump
Cargo Box Size 3300mm*2200mm
Operation Mode Middle operation & intelligent remote control
