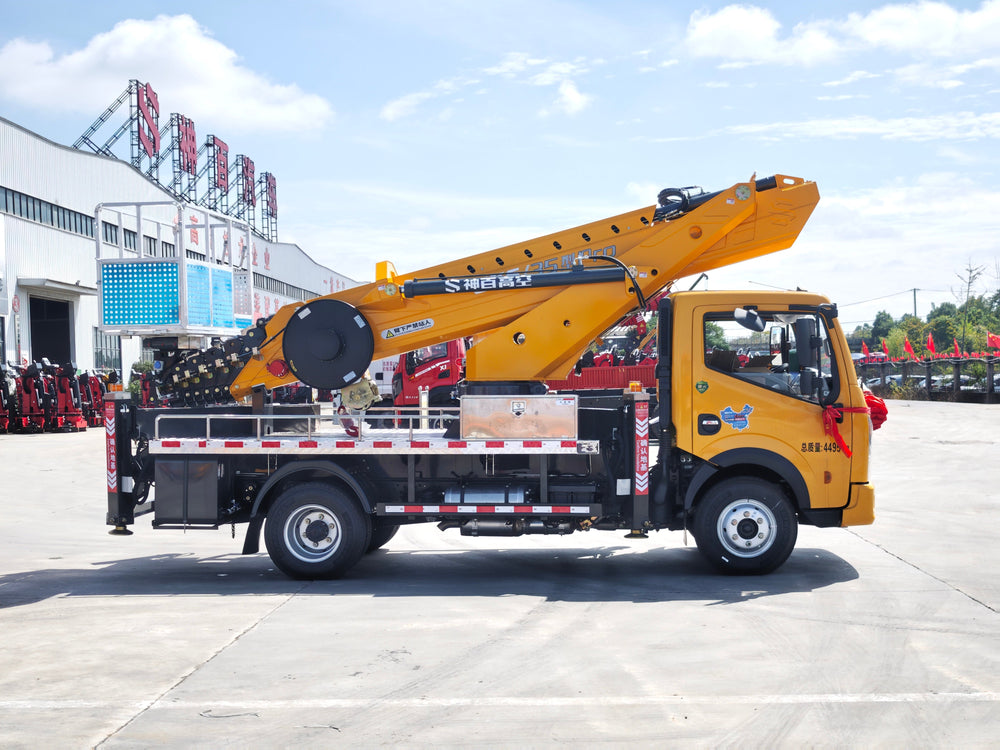

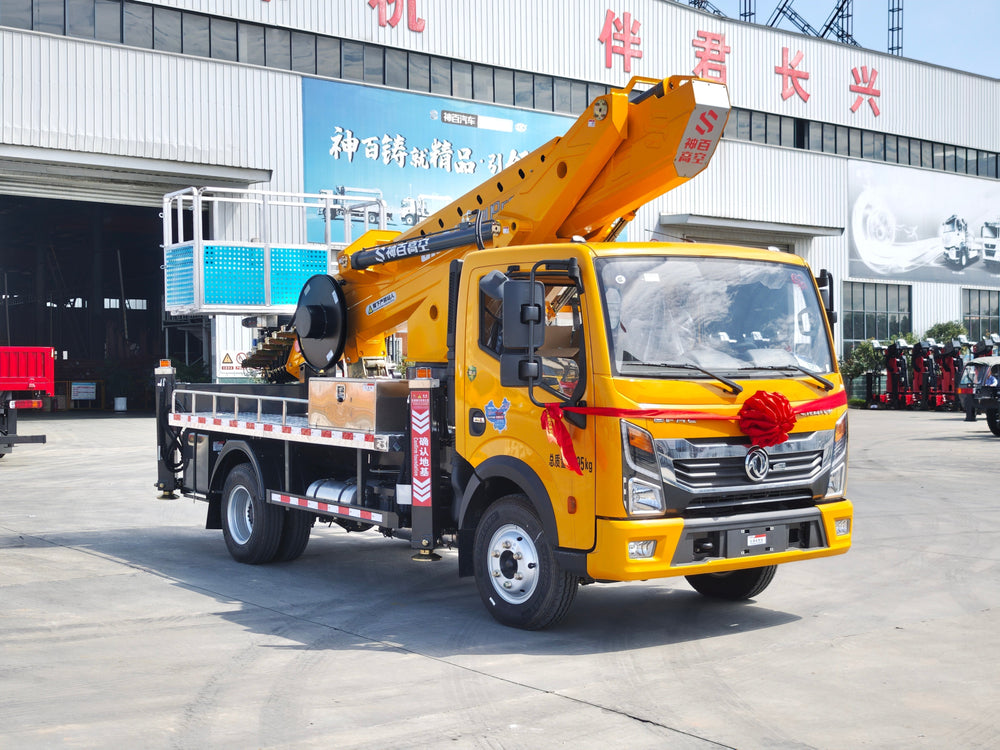

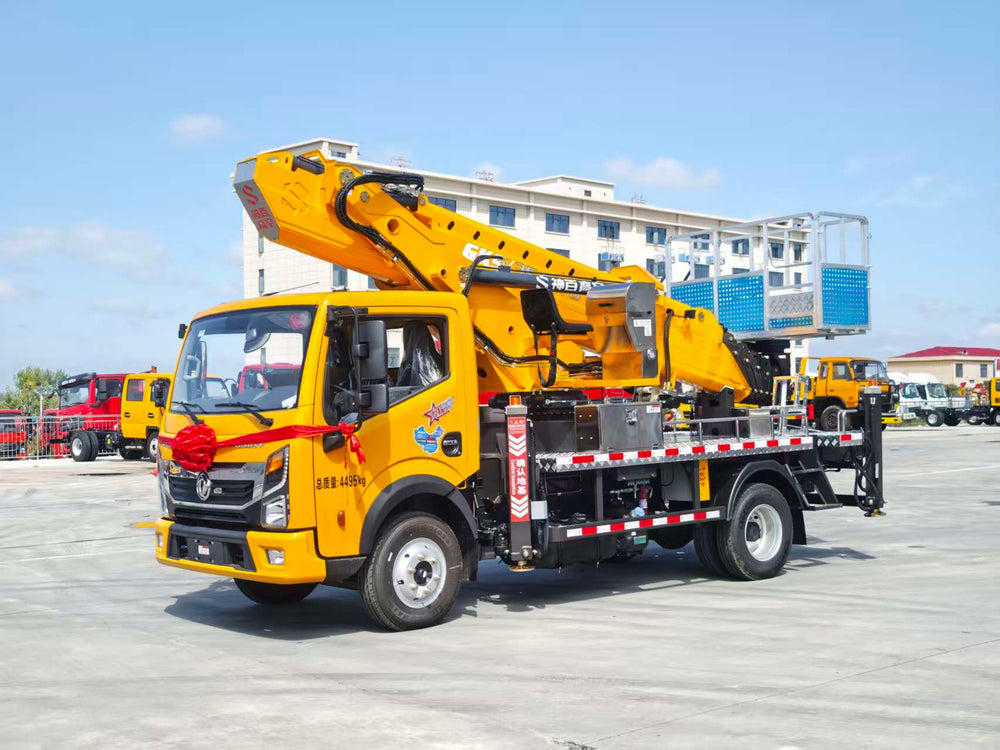

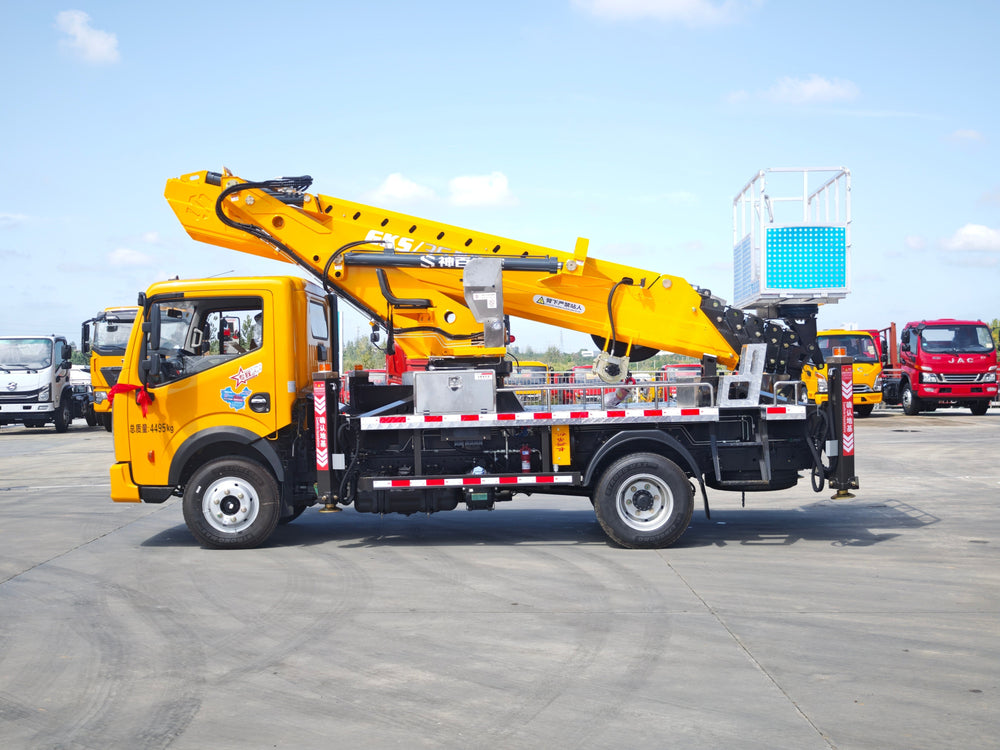

DongFeng GKS35Pro Aerial Work Platform Truck For Sale
Request a Quote Now
- Chassis Configuration
| Item | Parameter |
|---|---|
| Chassis | Dongfeng Heavy-duty Xingyun 1900 Cab, Engineering-grade Heavy-load Chassis |
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 4300 kg |
| Engine | Yunnei 160 HP Diesel Engine |
| Transmission | Changtai 8-speed with synchronizer |
| Wheelbase | 3308 mm, Double-layer Widened Frame, 6T Rear Axle |
| Overall Dimension | 5995×2200×3150 mm |
| Tire Spec | 700R16LT |
| Brake | Air Cut-off Brake |

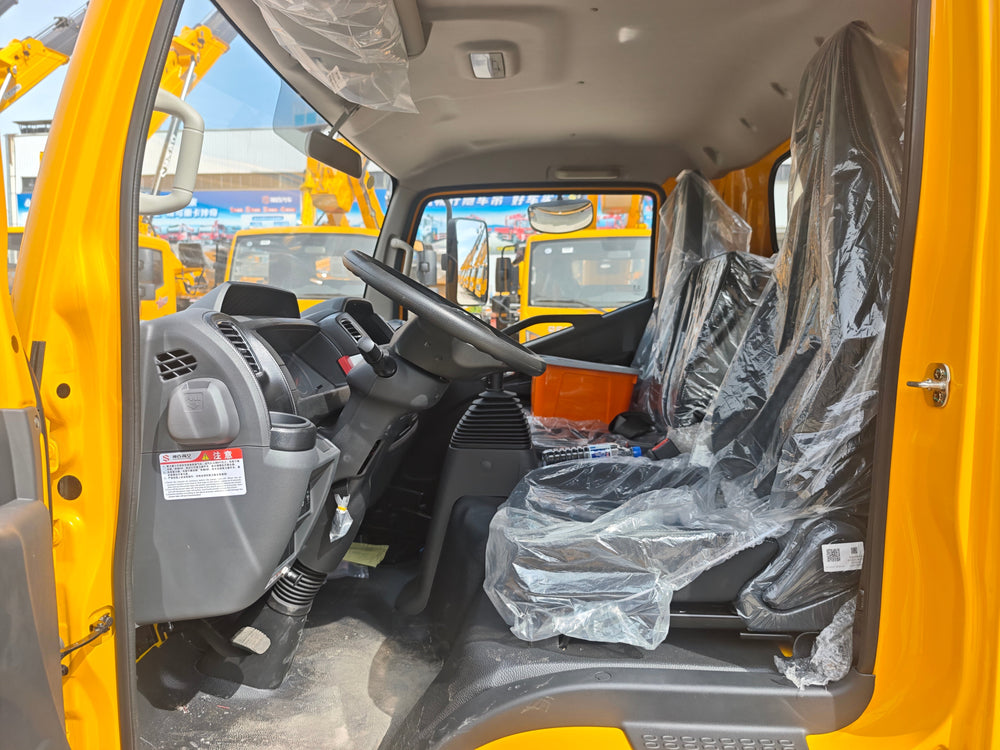

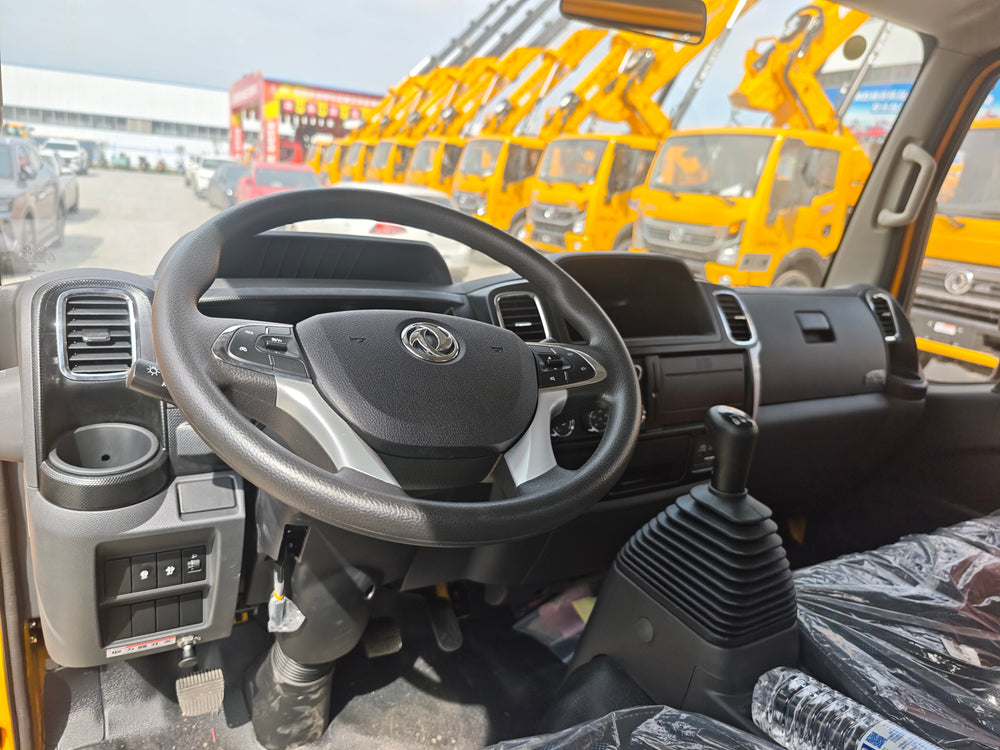

| Standard Accessories | Power Window, Air Conditioner, Central Door Lock |
| Core Advantage | Unique nationwide model with engineering heavy chassis, 7-section boom for 33.8m blue-plate certification |
2. Superstructure (GKS35 Pro)
| Item | Parameter |
|---|---|
| Max Working Height | 33.8 m |
| Max Working Radius | 16.5 m |
| Rated Platform Load | 200 kg |
| Boom Slewing | 360° Full Rotation |
| Platform Size | 1800×700×1000 mm with flip plate & cargo platform, full aluminum alloy |

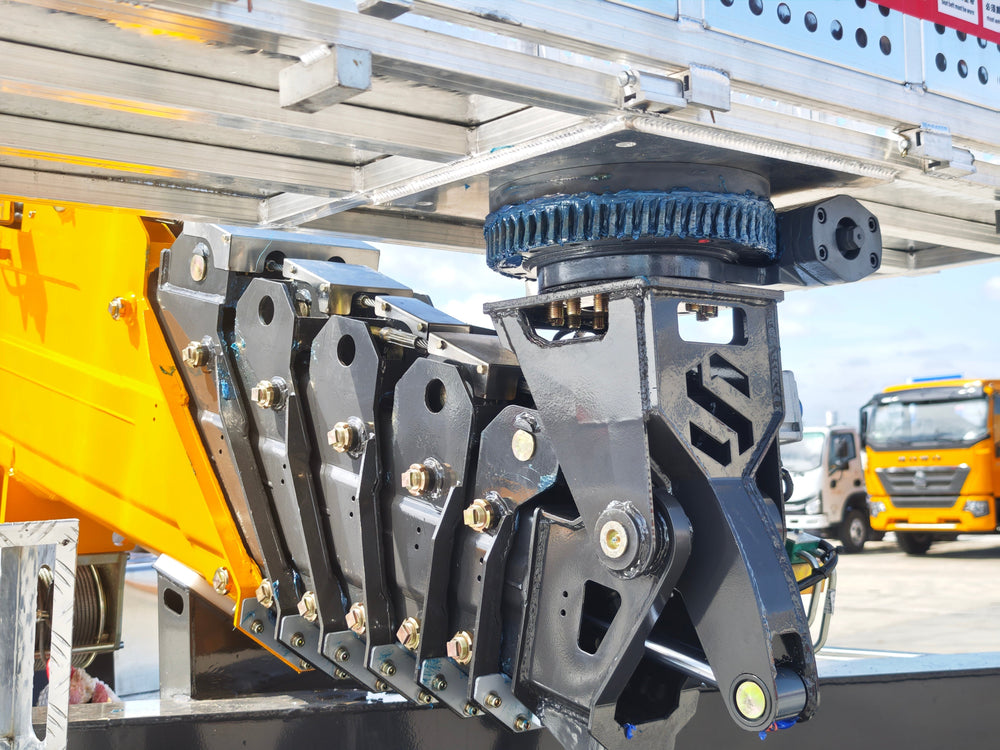

| Platform Rotation | Unlimited 360° Rotation |
| Boom Structure | 7-section boom, 6-section synchronous extension; spare steel cable for emergency lowering |
| Boom Material | Lightweight 960 High-strength Steel Plate |

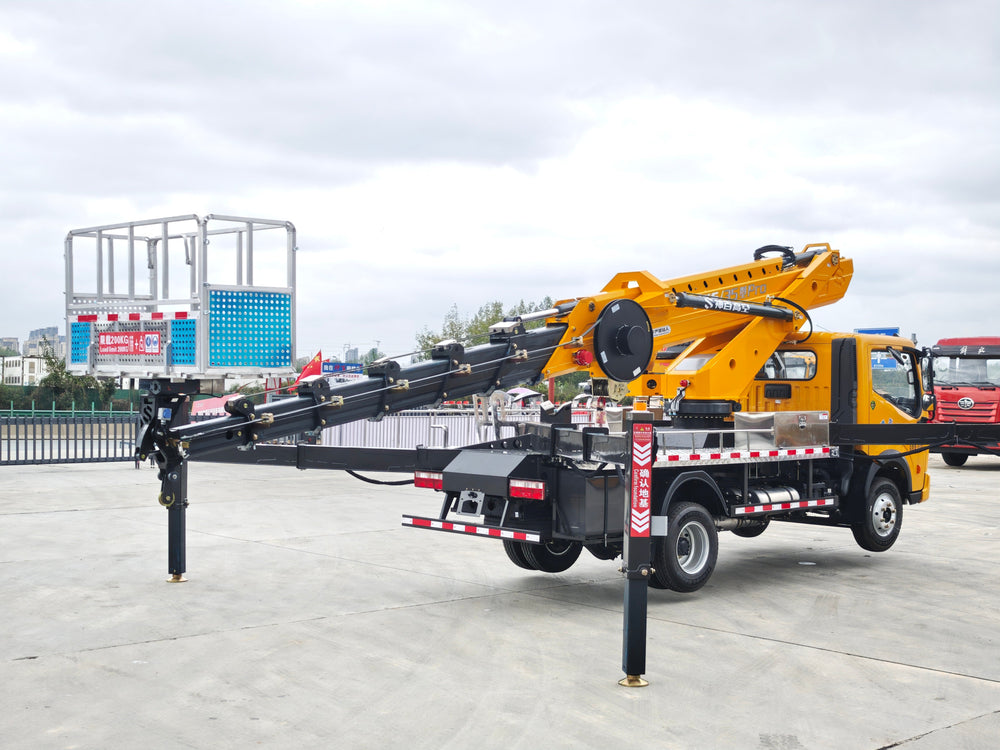

| Outrigger | X-type, 4 independent double-stage legs; Span: Trans 5800mm / Long 6700mm |
| Subframe | Box-type Subframe + 3-layer Trapezoidal Reinforced Slewing Base |

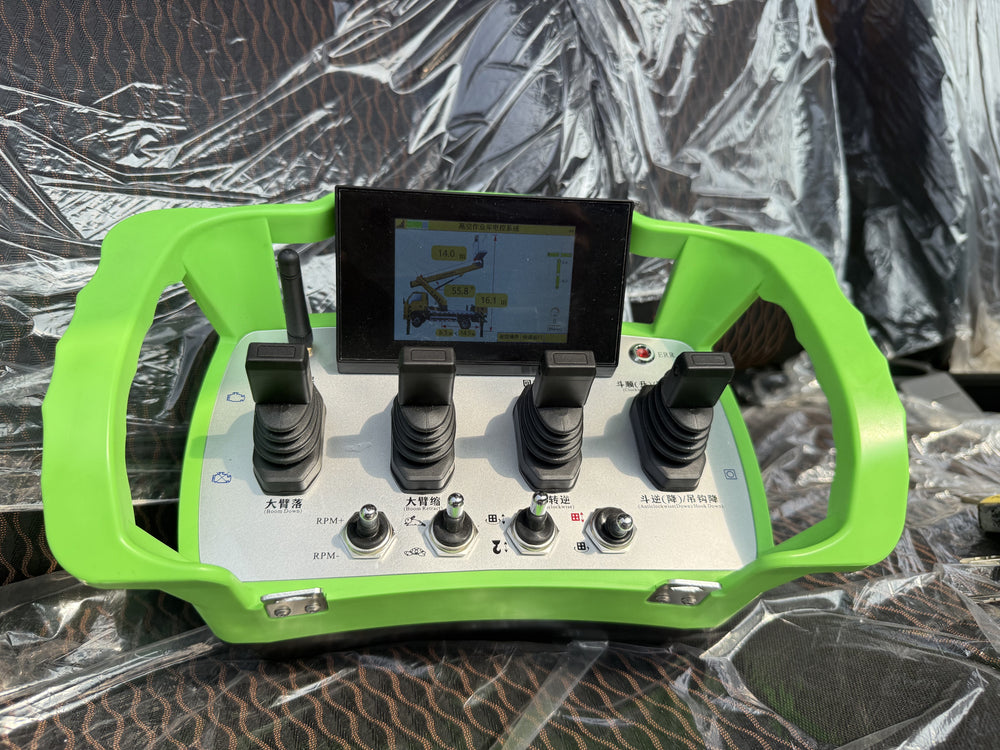

| Control System | Domestic Famous ECU, Wireless Remote + Central Control with Display |

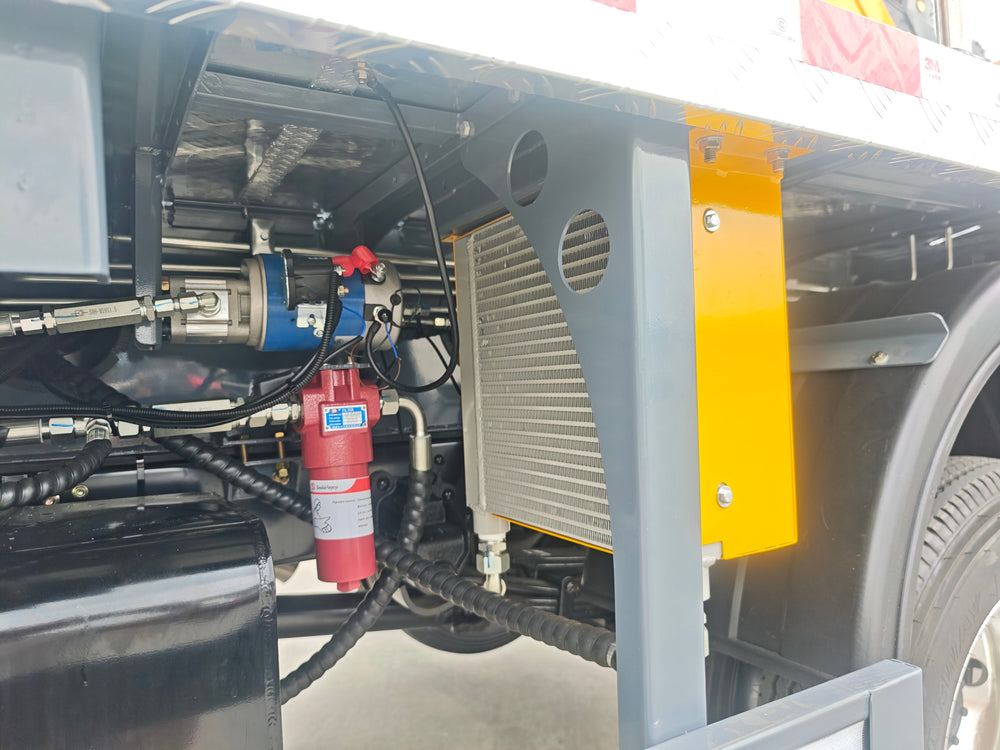

| Hydraulic System | Electro-hydraulic Proportional Valve, Stepless Speed + Emergency Power Unit |
| Walkway | Anti-slip Aluminum Alloy Walkboard |
| Safety Devices | Upper-lower Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Outrigger Protection, Radiator, 220V External Power |
| Optional Parts | 1T Winch, Upper Operation Cabin |
| Total Boom Length | 30.3 m |
| Whole Vehicle Height | 3.15 m |
