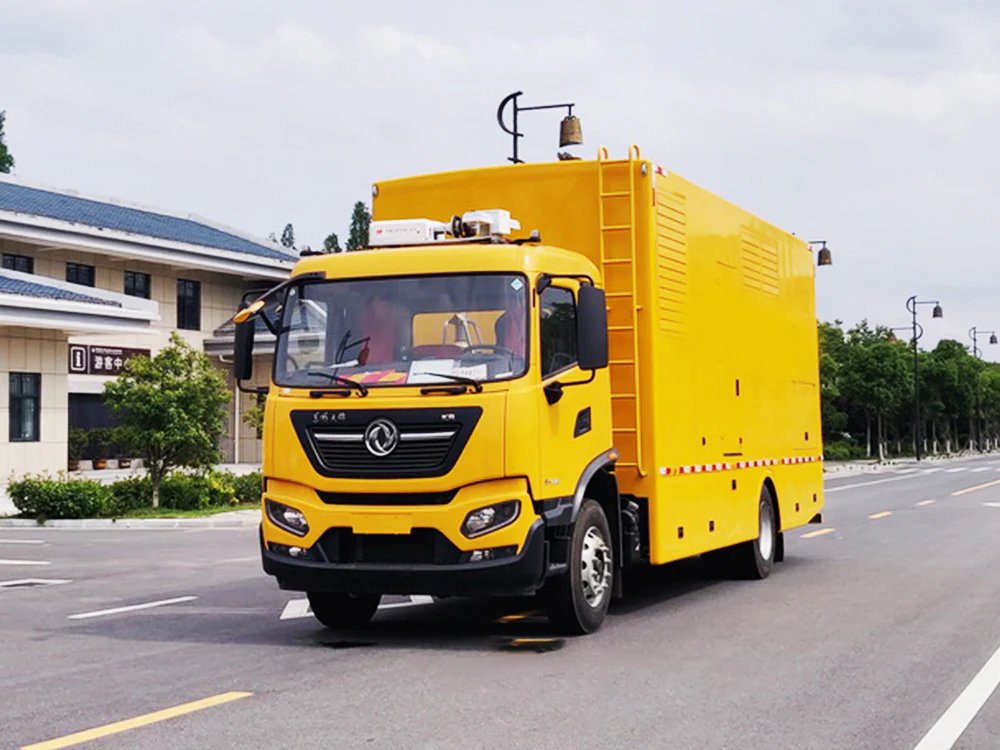

Dongfeng Kinland 4×2 Emergency Drainage Rescue Vehicle

1 / 1

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Configuration Item	Specification & Parameter
Vehicle Basic Parameters
Vehicle Model	Dongfeng Tianjin 4×2 Drainage & Rescue Vehicle
Rated Drainage Flow	300m³/h ~ 1000m³/h (Optional)
Maximum Suction Lift	≥ 6m
Rated Head	≥ 20m
Drive Type	4×2 (Single Rear Axle)
Overall Dimensions (L×W×H)	≤ 9500mm × 2550mm × 3600mm
Curb Weight	≤ 12500kg
Gross Vehicle Weight	≤ 18000kg
Maximum Speed	≥ 90km/h
Minimum Turning Radius	≤ 8.5m
Gradeability	≥ 25%
Operating Temperature Range	-40℃ ~ +50℃
Chassis System
Chassis Model	Dongfeng Tianjin DFL1180BX6
Cab Type	D530 Integrated Cab, Air Suspension Seat, Air Conditioning
Number of Axles	2
Wheelbase	4200mm
Tire Specification	11.00R20 Radial Tires (6+1 Spare)
Front Axle Rated Load	≤ 6500kg
Rear Axle Rated Load	≤ 11500kg
Suspension System	Front: Leaf Spring + Shock Absorber; Rear: Leaf Spring + Stabilizer Bar
Brake System	Dual Circuit Air Brake, ABS, ASR, Exhaust Brake
Steering System	Hydraulic Power Steering
Engine System
Engine Brand	Dongfeng Cummins / Dongfeng Chaochai (Domestic Top Tier)
Engine Type	4-Stroke, Water-Cooled, Turbocharged, Intercooled Diesel Engine
Number of Cylinders	Inline 6 Cylinders
Displacement	≥ 6.7L
Rated Power	180KW ~ 320KW @ 2200rpm
Rated Speed	2200rpm
Maximum Torque	≥ 1100N·m @ 1200-1600rpm
Fuel System	Electronic Fuel Injection, High Pressure Common Rail
Cooling System	Forced Water Cooling, Large Capacity Radiator
Air Intake System	Dry Air Filter, Double Stage Filtration
Exhaust System	Vertical Exhaust Pipe, Spark Arrestor, Muffler
Fuel Tank Capacity	≥ 300L
Fuel Consumption	≤ 195g/KW·h
Emission Standard	China VI / Euro V (Optional)
Drainage & Pumping System (Core)
Pump Brand	Domestic Top Tier Pump Manufacturer / Imported Brand (Optional)
Pump Type	Self-Priming Centrifugal Pump, Non-Clogging Design
Impeller Material	High Chromium Cast Iron / Stainless Steel (Optional)
Pump Casing Material	Ductile Iron
Rated Flow	300m³/h / 500m³/h / 800m³/h / 1000m³/h (Optional)
Rated Head	20m / 25m / 30m (Optional)
Maximum Suction Lift	6m (Static Water)
Self-Priming Time	≤ 60s (For 6m Suction Lift)
Drive Mode	Engine Direct Drive / Hydraulic Drive (Optional)
Pipeline System	Large Diameter Suction & Discharge Pipes, Quick Connect Couplings
Pipe Diameter	DN200 / DN250 / DN300 (Corresponding to Flow)
Valve System	Electric Control Gate Valves, Check Valves, Ball Valves
Filter System	Suction Strainer, Double Stage Filtration, Anti-Clogging Design
Power Distribution & Control System
Control System Type	Intelligent Digital Integrated Control System
Display Unit	7-inch Color Touch Screen, Real-time Data Display
Monitoring Parameters	Engine Speed, Oil Pressure, Water Temperature, Fuel Level, Pump Flow, Pressure, Vacuum Degree, Battery Voltage
Protection Functions	Overpressure, Underpressure, Overflow, Low Oil Pressure, High Water Temperature, Over Speed, Suction Loss Protection, Pipeline Blockage Protection
Alarm Functions	Sound & Light Alarm for Abnormal Parameters, Fault Code Display
Starting System	24V DC Electric Starting, Dual Battery Pack (≥ 150Ah)
Emergency Stop	Multiple Emergency Stop Buttons (Cab, Compartment, Outside)
Operation Mode	Local Manual Operation, Remote Operation, Automatic Operation (Optional)
Remote Monitoring	Support 4G Remote Monitoring, GPS Positioning, Operation Data Upload (Optional)
Compartment & Installation System
Compartment Structure	All-Steel Welded Frame, Waterproof, Dustproof, Soundproof, Heat Insulation
Compartment Material	Outer: Cold Rolled Steel Plate; Inner: Galvanized Steel Plate; Middle: Fireproof Sound-Absorbing Cotton
Sound Insulation Performance	Noise Level ≤ 78dB(A) @ 1m, Rated Load
Ventilation System	Forced Ventilation with Large Capacity Fans, Air Inlet/Outlet with Dust and Water Proof Filters
Rainproof Design	Rainproof Louvers, Sealed Compartment Doors, Drainage System, Anti-Ponding Design
Installation Structure	High Strength Steel Chassis Frame, Vibration Damping Mounts for Pump Unit and Engine
Compartment Doors	Double Opening Rear Doors, Side Maintenance Doors, Lockable, Anti-Theft Design
Lighting System	LED Interior Lighting, Work Lights, Emergency Lighting, Flood Lights for Night Operation
Hose Management	Hose Compartment, Hose Reels, Quick Coupling Storage, Fixing Brackets
Lifting Points	Multiple Lifting Lugs for Whole Vehicle Lifting
Safety & Protection System
Fire Protection System	Automatic Fire Detection & Suppression System, Dry Powder Fire Extinguishers
Grounding System	Reliable Grounding Device, Grounding Cable, Grounding Rod for Static Elimination
High Pressure Protection	Pressure Relief Valve, Pipeline Burst Protection, Overpressure Alarm
Anti-Corrosion Protection	Whole Vehicle Sandblasting, Anti-Rust Primer, Anti-Corrosion Paint, Salt Spray Resistant
Lightning Protection	Lightning Protection Device for Electrical System
Safety Marking	Standard Safety Warning Signs, Operation Instructions, Reflective Markings, Anti-Slip Stickers
Cab Safety	Airbag, Seat Belt, Crash Protection Structure, Rollover Protection
Operation Safety	Interlock Protection for Pump and Engine, Safety Guard for Rotating Parts
Optional Configuration
Pump Upgrade	Higher Flow Pump (up to 2000m³/h), Higher Head Pump, Stainless Steel Pump for Corrosive Water
Operation System	Wireless Remote Control, Automatic Drainage Control, PLC Intelligent Control System
Hose Configuration	Large Diameter Suction & Discharge Hoses, Quick Connect Couplings, Hose Reels, Hose Storage Rack
Power Supply System	On-board Generator Set (5KW-30KW), Independent Power Supply for Auxiliary Equipment
Low Noise Package	Super Soundproof Compartment, Muffler, Noise Reduction to ≤ 68dB(A) @ 1m
Fuel Tank Upgrade	Large Capacity Fuel Tank (≥ 500L), Long Endurance Operation
Cold Climate Package	Engine Pre-Heating System, Compartment Heating System, Battery Insulation, Anti-Freezing System for Pipes
Hot Climate Package	Enhanced Cooling System, Compartment Ventilation, Sun Protection Coating, Heat Insulation Upgrade
Video Monitoring System	Interior & Exterior Cameras, DVR, Display, Night Vision Camera
Auxiliary Equipment	Water Quality Detection Device, Sludge Suction Device, High Pressure Cleaning Device, Lighting Tower
