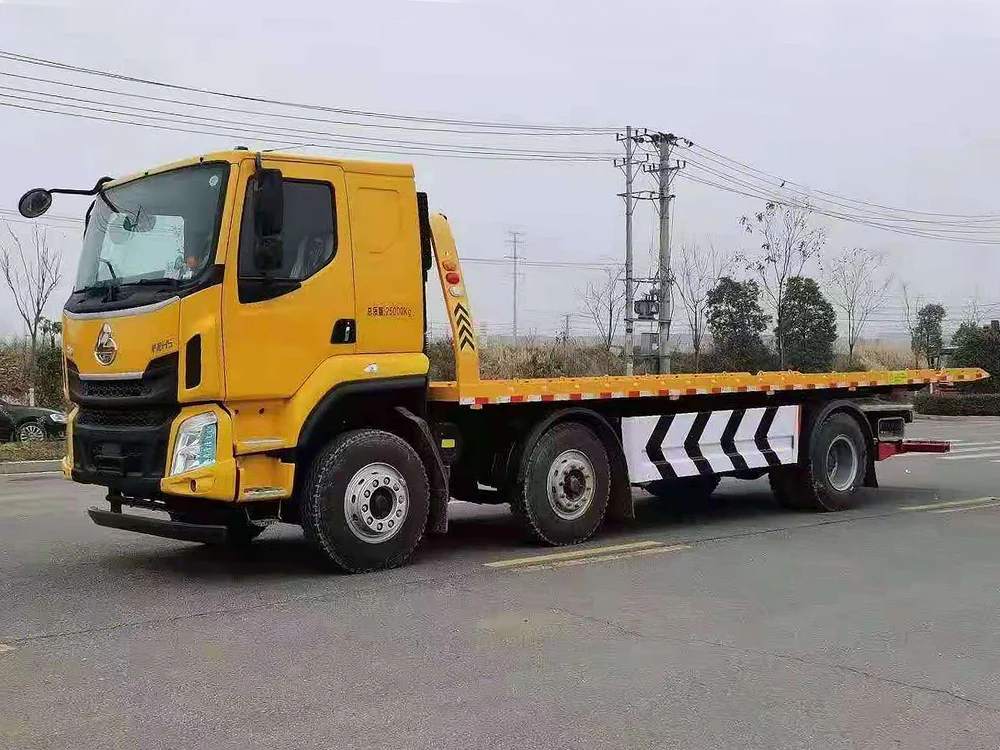

DONGFENG LIUZHOU MOTOR 6×2 (3-AXLE) Wrecker Truck

1 / 1

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Configuration Item	Parameter Value
1. Basic Vehicle Parameters
Product Name	DONGFENG LIUZHOU MOTOR 6×2 (3-AXLE) Integrated Tow & Crane Wrecker Recovery Truck
Gross Vehicle Weight	24500kg
Curb Weight	14800kg
Overall Dimensions	12345×2550×3150mm
Wheelbase	2050+5350mm
Maximum Design Speed	89km/h
Maximum Gradeability	30%
Emission Standard	China VI
Cab Capacity	3 Persons
Approach Angle / Departure Angle	20° / 6°
Front Overhang / Rear Overhang	1445mm / 3500mm
Axle Configuration	6×2 (3-Axle, 1 front steering axle + 1 steering drive axle + 1 rear drive axle)
2. Chassis Configuration
Chassis Model	LZ1253H5CCT
Engine Model	Yuchai YCK05260-61
Engine Type	Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged Intercooled Diesel Engine
Maximum Horsepower	260HP (191kW)
Maximum Torque	950N·m @ 1200-1600rpm
Gearbox Model	Fast JS95TE-C 9-speed Manual Gearbox with Overdrive
Power Take-off (PTO)	Flange-type Hydraulic PTO, Matched with Gearbox
Front Axle	2×4.2T Forged I-beam Steering Front Axle, Disc Brake
Rear Axle	153/4.444 Single-stage Reduction Rear Drive Axle, 10-ton Grade, Drum Brake
Axle Ratio	4.444
Frame Structure	Double-layer Reinforced Frame (8+8mm Thickness, 264mm Width)
Suspension System	Front and Rear Reinforced Multi-leaf Springs (11/11/12+9 Leaves)
Tire Specification	10.00R20 18PR Steel Radial Tires
Braking System	Dual-circuit Air Brake System, ABS (4S/4M), Automatic Brake Adjusting Arm
Steering System	Hydraulic Power Steering with Integral Steering Gear
Fuel Tank	350L Aluminum Alloy Fuel Tank
Cab Configuration	Liuzhou Motor M31B Wide-body Row-half Cab, Mechanical Semi-floating Suspension, Leather Airbag Driver's Seat, Factory Air Conditioning, Electric Windows, Central Locking, Electric Heated Rearview Mirrors, Multifunctional Steering Wheel, Cruise Control, Driving Recorder, V+ Telematics 3.0 System
3. Superstructure Special Configuration
Superstructure Model	16T Integrated Wrecker and Crane Superstructure
Crane Boom	2-section Hexagonal High-strength Steel Plate Telescopic Boom, 360° Full Rotation, Planetary Reduction Mechanism
Maximum Lifting Capacity of Crane	16 Tons
Maximum Working Radius of Crane Boom	12.5m
Tow Arm	3-section Telescopic and Liftable Tow Arm, High-strength Steel Welded Structure
In-situ Lifting Capacity of Tow Arm	16 Tons
Maximum Lifting Capacity at Full Extension	6.5 Tons
Maximum Towing Capacity	25 Tons
Maximum Traction Capacity of Drawbar	50 Tons
Effective Length of Tow Arm	1350mm-2800mm
Telescopic Stroke of Tow Arm	1750mm
Hydraulic System	Imported Hydraulic Valve Group and Seals, Bilateral Linkage Operation Device, Wireless Remote Control Operation, Overload Protection Device
Hydraulic Winch	2 Sets of 10-ton Hydraulic Winches, 45m Steel Wire Rope (Diameter 18mm), with 20-ton Safety Hooks
Outriggers	4 Double-cavity Hydraulic Outriggers, Front Outriggers are Foldable, with Mechanical Locking Device
Flatbed	12P12 Pattern Steel Flatbed (8mm Thickness), Main Board Tail Can Be Hydraulically Flipped, Total Length 9.2m, Width 2.55m
Compartment	Split-type Tool Compartment, Welded with High-strength Steel Plate, with Lockable Doors
Counterweight	1.5-ton Counterweight Installed on Front Bumper
Standard Configuration	1 Set of U-type Tire Holding Device, 5 Pairs of Tow Forks, 1 Pair of Tow Fork Seats, 2 Chain Hooks, 1 Hand Wash Box, 1 Set of Auxiliary Light Assembly, 1 Set of Auxiliary Brake Air Pipe Assembly, 1 LED Long-row Engineering Warning Light, Reversing Image System, 1 Set of On-board Special Tools, 4 Nylon Binding Belts, 2 Auxiliary Small Wheels
4. Performance Parameters
Maximum Lifting Height of Crane Boom	11.5m
Slewing Angle of Crane Boom	360° Full Continuous Rotation
Upward/Downward Inclination Angle of Tow Arm	7° / -7°
Folding Angle of Tow Arm	-7° ~ 90°
Maximum Ground Clearance of Fully Retracted Tow Arm Upper Surface	850mm
Minimum Limiting Speed of Steel Wire Rope	5m/min
Rated Working Pressure of Hydraulic System	16MPa
Maximum Flow Rate of Hydraulic System	80L/min
Operating Temperature Range	-20℃ ~ +45℃
