Dongfeng Tianjin KR 260HP 4×2 9.8m Box Cargo Truck

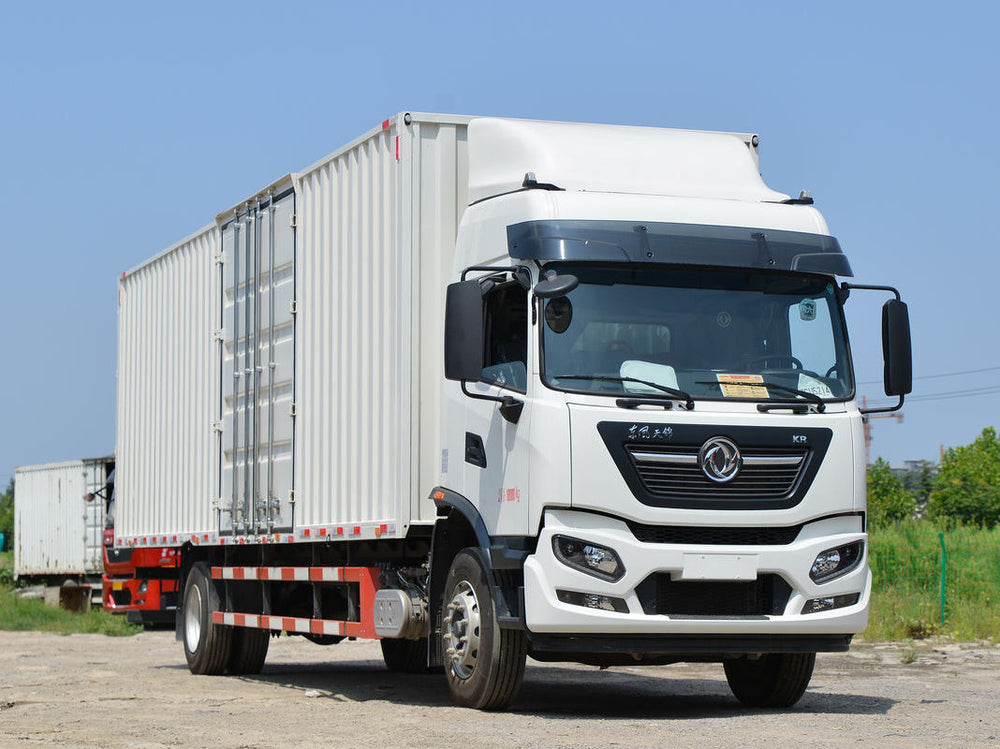

Dongfeng Tianjin KR Box Truck - Front Quarter View

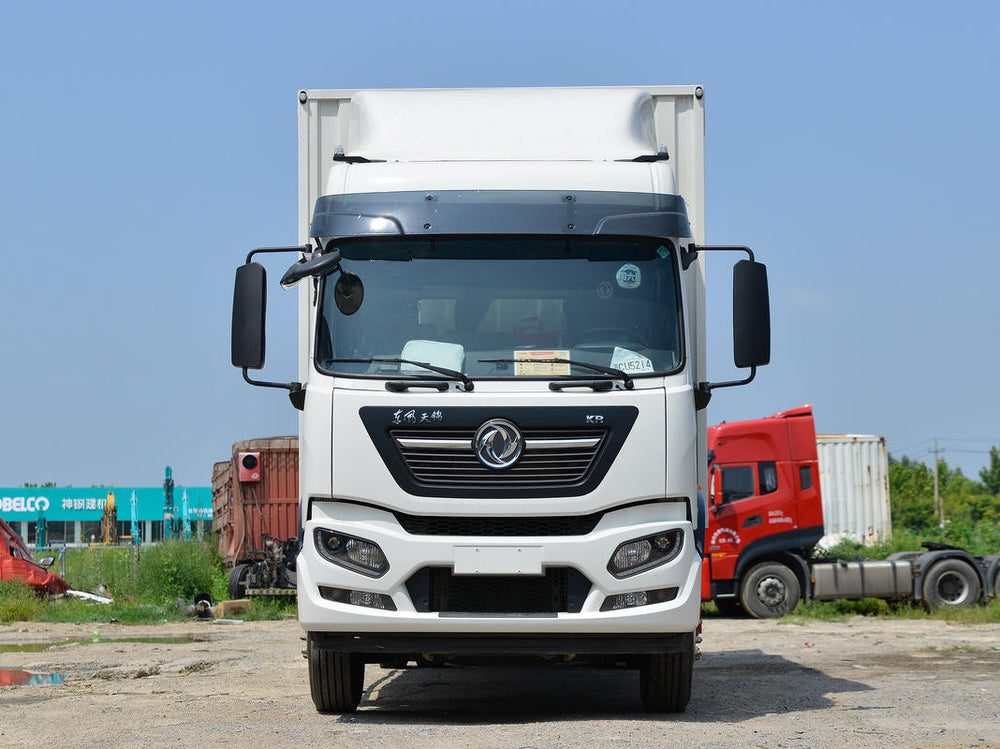

Dongfeng Tianjin KR Box Truck - Front View

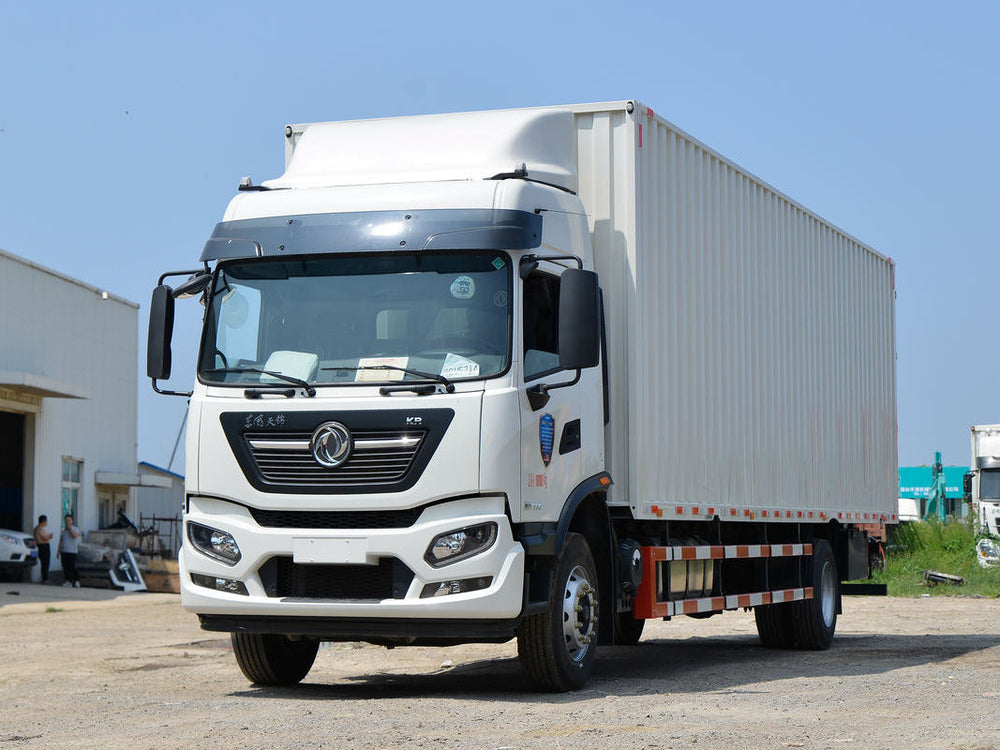

Dongfeng Tianjin KR Box Truck - Side Front View

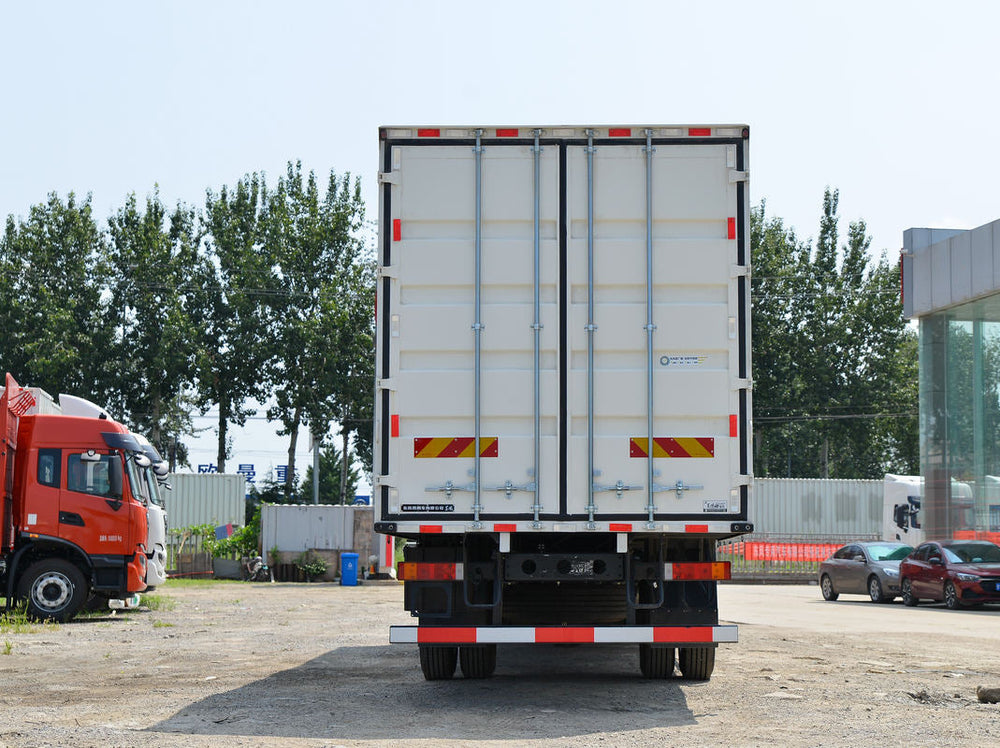

Dongfeng Tianjin KR Box Truck - Rear View

1 / 4

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Category	Item	Specification	Remarks
Basic Vehicle Information	Brand & Model	Dongfeng Tianjin KR 9.8m Box Cargo Truck	Dongfeng Commercial Vehicle's flagship medium-duty long-haul logistics truck
	Drive Form	4×2 (1 front steering axle, 1 rear drive axle)	Two-axle configuration, compliant with national 18-ton total mass limit
	Overall Outer Dimensions	12000×2550×3950mm	Length×Width×Height
	Cargo Box Inner Dimensions	9800×2450×2500mm	Standard 9.8m long cargo compartment
	Wheelbase	5600mm	Optimized for 9.8m cargo box layout, stable driving
	Gross Vehicle Weight	18000kg	Legal maximum total mass for 4×2 medium-duty trucks
	Curb Weight	7800kg	Lightweight chassis design, higher payload capacity
	Rated Payload	10000kg	Suitable for long-haul FTL and LTL logistics transportation
	Seating Capacity	2-3 persons	High-roof double sleeper cab, optional 3-seat configuration
	Emission Standard	China VI (Euro VI equivalent)	Fully compliant with national latest heavy-duty truck emission regulations
	Vehicle Type	Fully enclosed box-type cargo truck	For urban and intercity general cargo, express delivery, industrial goods transportation
Engine Parameters	Engine Model	Dongfeng Cummins B6.2NS6B260	Inline 6-cylinder diesel engine, dedicated for medium-duty trucks
	Displacement	6.2L	Large displacement, sufficient power output
	Maximum Power Output	191kW / 260HP	Peak power at 2300rpm
	Maximum Torque	1000N·m	Peak torque at 1200-1800rpm, excellent low-speed torque performance
	Intake Form	Turbocharged intercooled, high-pressure common rail electronic fuel injection	Fuel-saving, stable combustion, low emission
	Emission Control System	SCR+DOC+DPF+ASC	China VI after-treatment system, no AdBlue fault
	Rated Speed	2300rpm	Standard rated speed for heavy-duty diesel engines
Transmission & Hydraulic Retarder System	Transmission Model	Dongfeng DT1420 14-speed manual synchronized transmission	14 forward gears, 2 reverse gears, wide gear ratio coverage
	Shift Mechanism	Manual shift, full synchronizer	Smooth shifting, easy operation for long-haul driving
	Hydraulic Retarder	Dongfeng HR120 Hydraulic Retarder (Voith technology)	Contactless wear-free braking, provides up to 1200N·m braking torque
	Retarder Function	Multi-stage adjustable braking force, downhill speed stabilization, brake pad wear reduction by 90%	Core safety configuration for long mountain highway operations
Chassis Configuration	Chassis Brand	Dongfeng Commercial Vehicle Original Chassis	Factory original matching, reliable quality
	Front Axle	4.5-ton rated load capacity, forged steel axle	Lightweight, high strength
	Rear Axle	10-ton rated load capacity, single reduction axle	Final drive ratio 4.33, optional 3.91 for high-speed fuel saving
	Tire Specification	11R22.5 18-ply steel radial tires, total 6 units	Wear-resistant, puncture-resistant, suitable for long-distance high-speed driving
	Fuel Tank Capacity	600L aluminum alloy fuel tank	Large capacity, supports over 2000km continuous driving
	Steering System	Hydraulic power steering	Light operation, precise control under full load
	Suspension System	Front leaf spring independent suspension, rear leaf spring non-independent suspension	3/4+1 leaf spring configuration, balance of comfort and load capacity
	Brake System	Full drum brake, dual-circuit pneumatic brake	Standard with ABS, EBS, exhaust brake, hydraulic retarder
Cab Configuration	Cab Type	Dongfeng Tianjin KR High-roof Double Sleeper Cab	Four-point air suspension, hydraulic flip structure
	Cab Interior	Large windshield, wide field of view, double sleeper design	Spacious space for long-haul driver rest
	Standard Comfort Configuration	Factory installed automatic air conditioning, power windows, central door lock, multifunctional steering wheel	Standard factory configuration
	Seats	Air suspension driver seat, adjustable co-driver seat	Reduce driving fatigue during long-distance operation
Cargo Box Superstructure	Box Material	High-quality corrugated steel plate, galvanized anti-rust treatment	Anti-impact, anti-rust, long service life
	Box Structure	Fully enclosed sealed cargo compartment, rear double swing doors, optional left/right side sliding doors	Dustproof, rainproof, protect goods from damage
	Cargo Volume	Approximately 60m³	Large space for bulk cargo loading
	Safety Fittings	Full perimeter red-white reflective warning strips, rear anti-collision buffer beam, top wind deflector	Comply with GB 7258 road transport safety standards, reduce wind resistance
	Optional Customization	Stainless steel box, insulated cold storage box, hydraulic tailgate, side door design	For cold chain, fragile goods, special cargo transportation
Standard Safety Configuration	Active Safety	ABS anti-lock braking system, EBS electronic brake force distribution, ESC electronic stability control, hydraulic retarder, tire pressure monitoring system (TPMS)	Prevent wheel lock, skidding, improve driving safety
	Passive Safety	Front crash buffer structure, 3-point safety belts for all occupants, anti-intrusion door beam	Reduce injury risk in collision accidents
	Lighting System	Full LED composite headlights, side marker lights, rear brake & warning lights, clearance lamps	Meet international road lighting requirements
Optional Upgrades & Export Customization	Comfort Upgrade	Reversing camera + 10-inch multimedia display, GPS navigation, cruise control, leather seats	Eliminate rear blind spots, improve long-haul driving comfort
	Safety Upgrade	Lane Departure Warning System (LDWS), Forward Collision Warning (FCWS), Blind Spot Monitoring System	Meet national heavy-duty truck safety regulations
	Export Customization	Right-hand drive (RHD) modification, overseas emission standard calibration, custom cargo box size, full set of export inspection documents	For global long-haul logistics, cross-border transportation projects, supports customization for different countries' regulations
