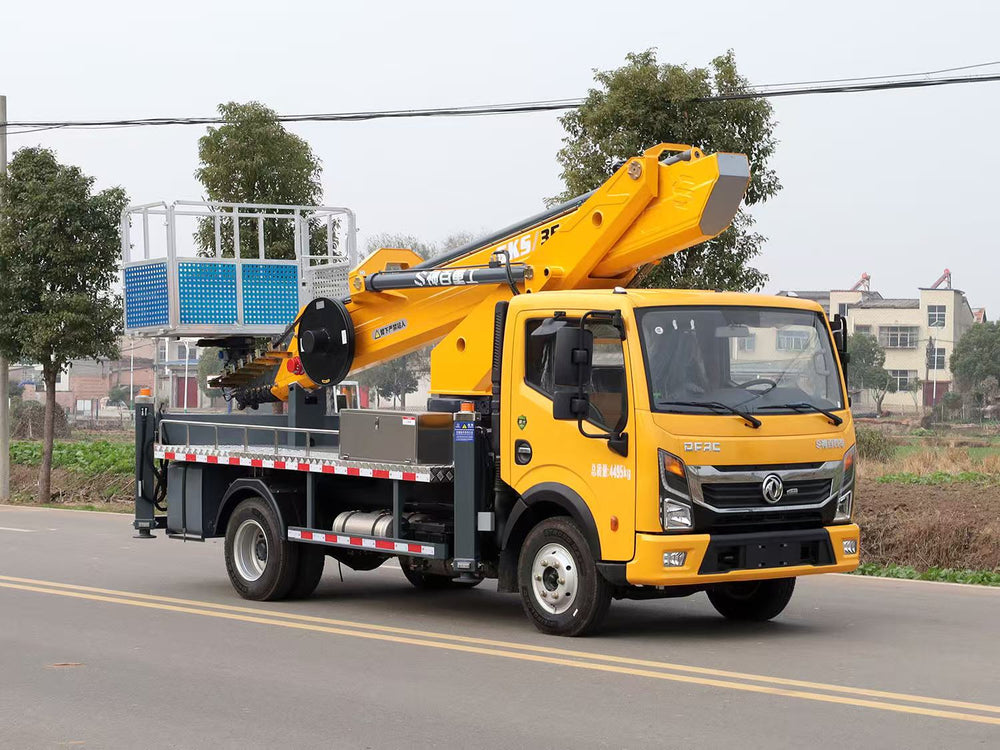

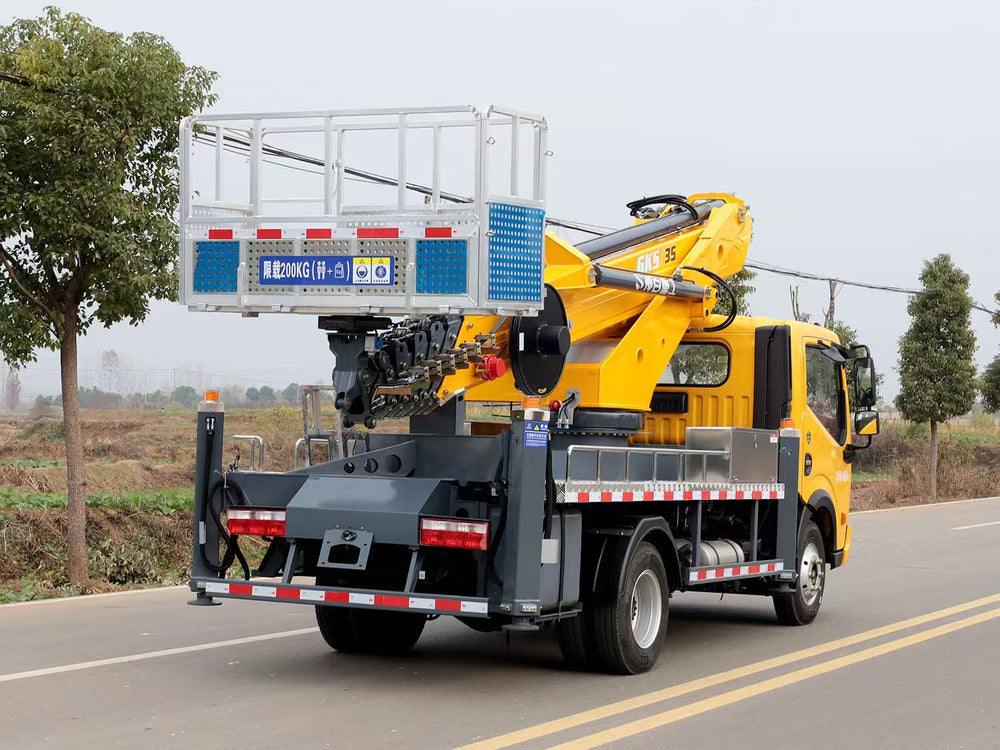

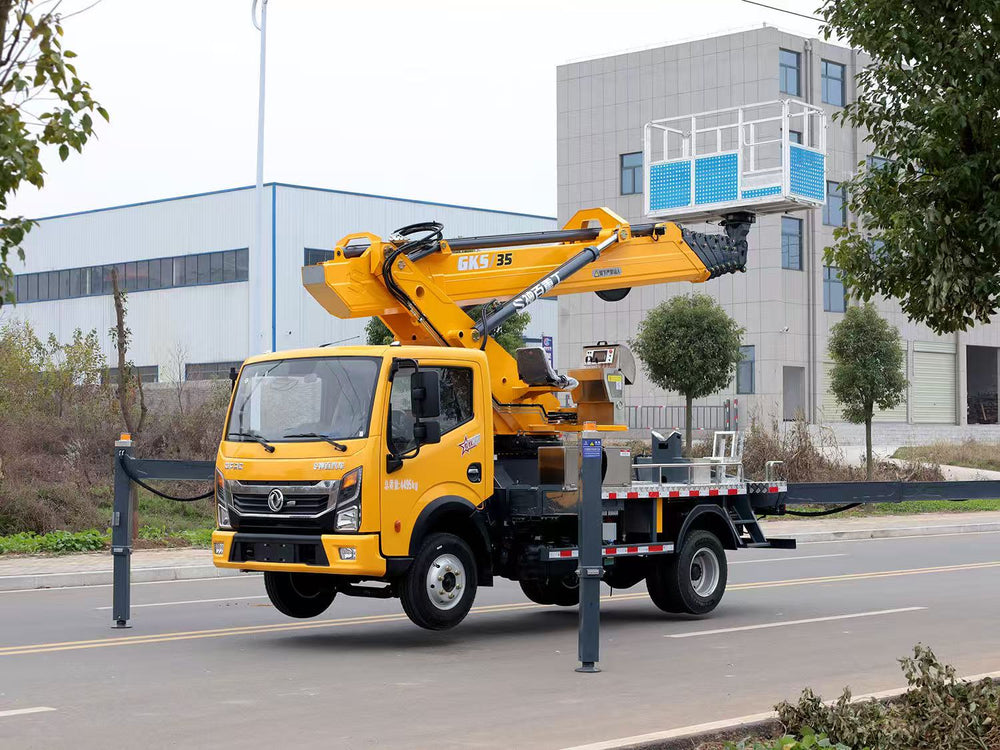

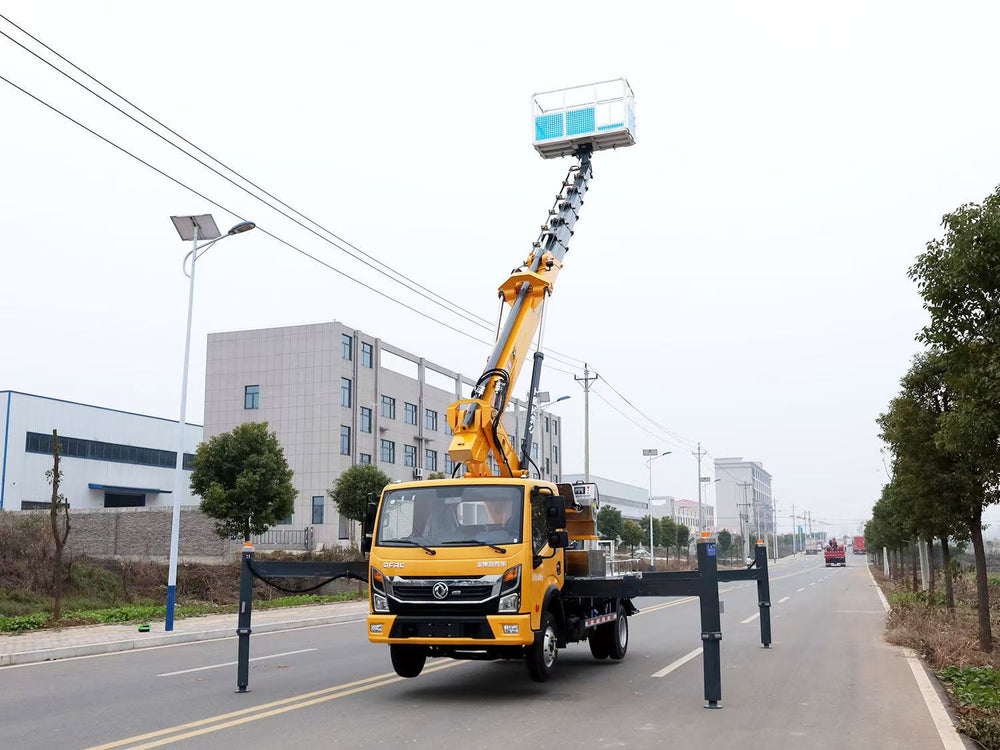

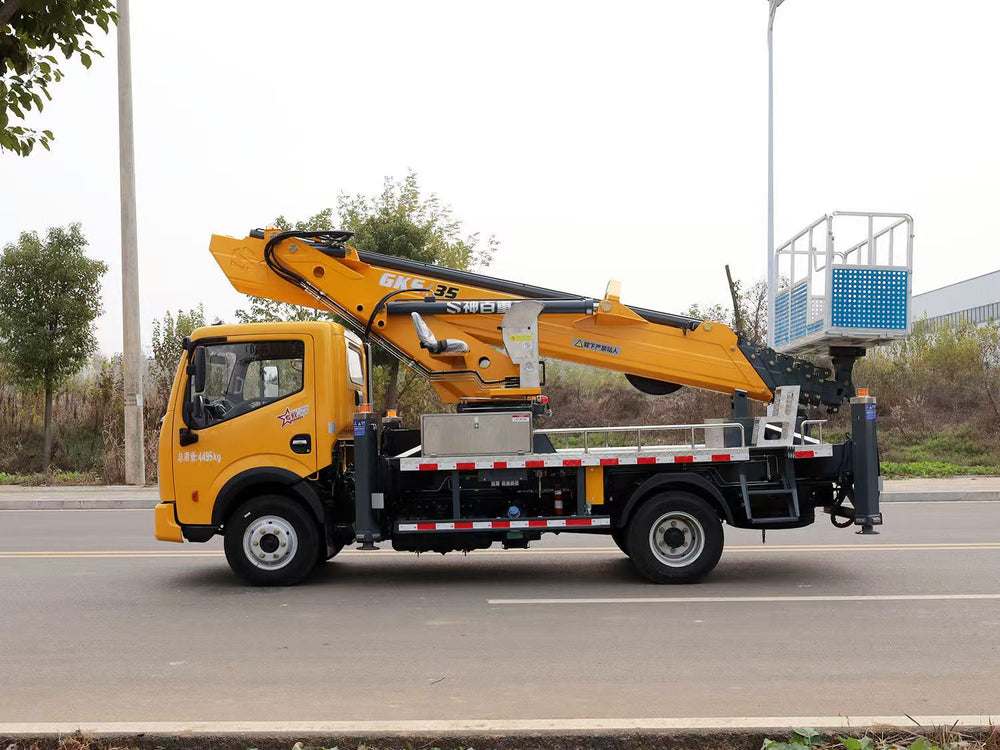

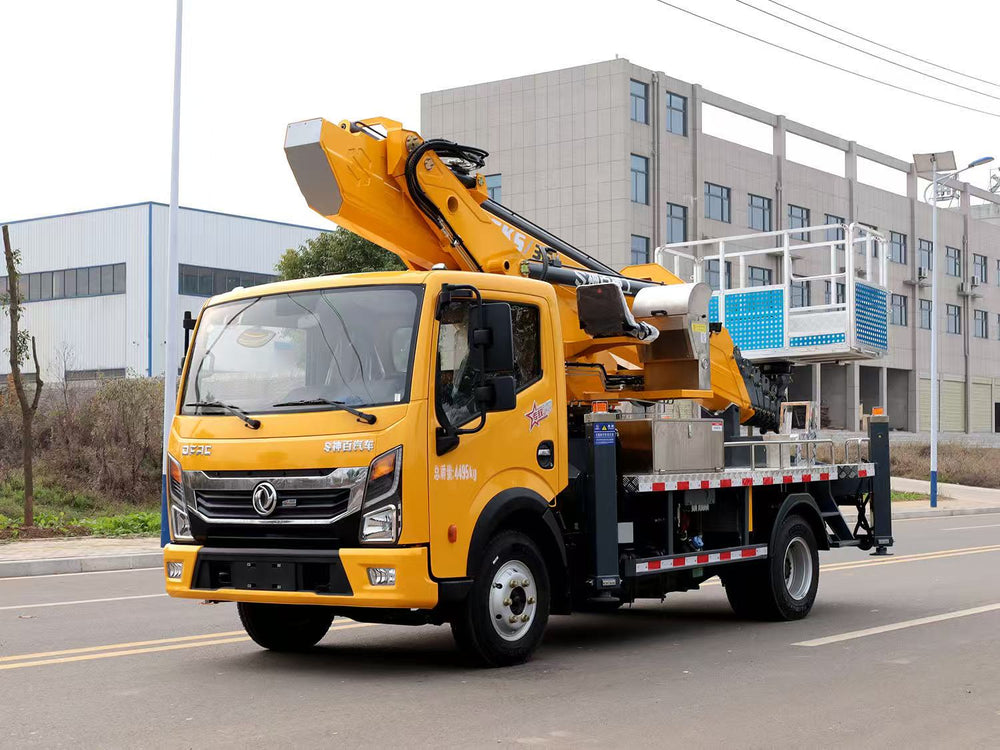

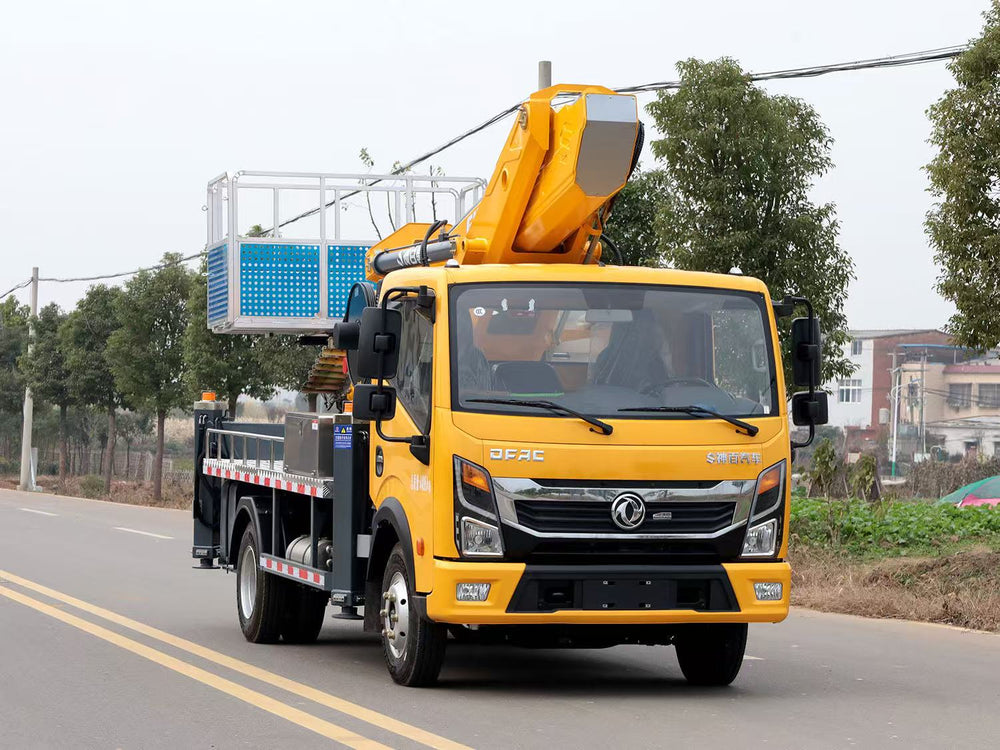

DongFeng35m Aerial Working Platform Vehicle

DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
1 / 7
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle
DongFeng35m Aerial Working Platform Vehicle

1. General Highlights

Feature Description
Material Baosteel 960 High-Strength Steel Plate
Outriggers Double-section type; Span: 5800mm×6700mm
Boom Design 7-section boom (6 sections synchronous telescopic)
Lifting Height 33.8 Meters
Chassis Frame High-rigidity Box-type Frame
Lifting Mechanism Dual lifting cylinders design
Vehicle Height 3.15 Meters (Ultra-low profile for better accessibility)
Max Working Radius 16.5 Meters
Max Working Outreach 28.6 Meters

2. Chassis Specifications

Item Details
Chassis Model Dongfeng Dollicar Xingyun (1900mm Cabin)
Gross Vehicle Weight (GVW) 4495 KG
Curb Weight 4365 KG
Engine Yunnei 160 HP Diesel
Transmission Changtai 8-Speed (with Synchronizer)
Wheelbase 3308 mm
Overall Dimensions 5995×2200×3150mm
Tires 700R16LT
Brake System Pneumatic (Air) Brake
Comfort Features Electric windows, Air conditioning, Central locking

3. Upper Structure (Model: GKS35)

Item Details
Max Working Height 33.8 Meters
Platform Rated Load 200 KG
Boom Rotation Angle 360° Continuous
Platform Size 1800×700×1000mm (with extension/folding board)
Platform Rotation 360° Infinite rotation
Safety Redundancy Dual wire rope system (Primary + Emergency backup cable)
Control System Domestic high-end electronic control with wireless remote
Hydraulic System Electro-hydraulic proportional valve (stepless regulation)
Outrigger Type X-type configuration, 4 individually adjustable double-section legs
Walkway Anti-slip Aluminum Alloy decking

4. Safety & Protection Devices

  • Operation Interlock: Interlock system for upper and lower operation to prevent misuse.
  • Emergency Power Source: Secondary power system for safe retraction in case of engine failure.
  • Balance Valves: Dual-way hydraulic balance valves for stable load holding.
  • Safety Backup: Redundant steel wire rope ensures the platform can be lowered manually even if the main cable fails.
