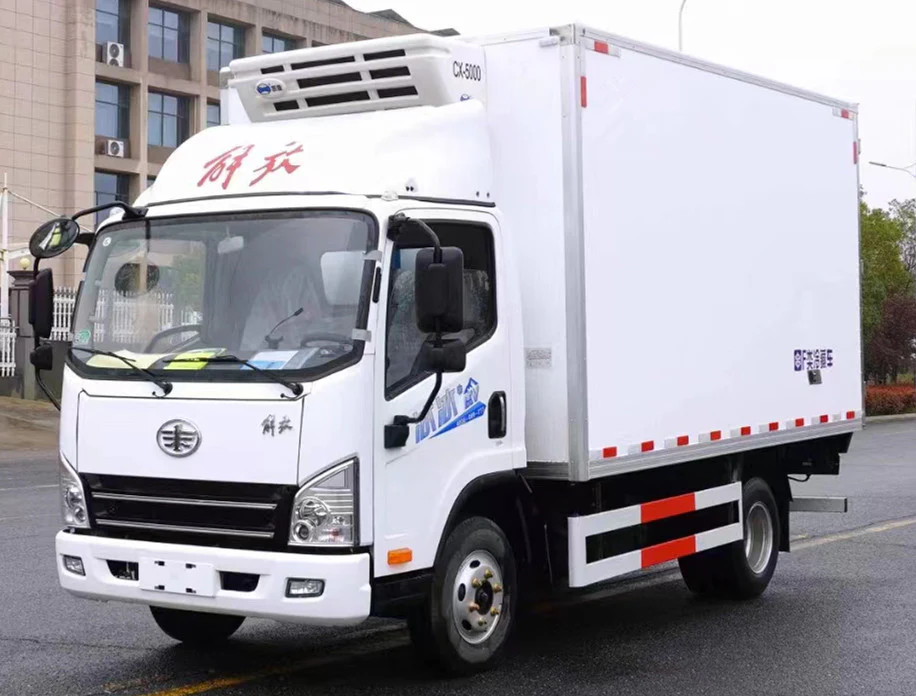

FAW 4×2 Refrigerated Truck – Detailed Configuration
Item Specification
Chassis Parameters
Chassis Model CA5041XLCP40K61L2E6A84 (FAW Hu VN)
Drive Type 4×2, Left Hand Drive
Engine Brand Weichai Power
Engine Model WP2.3NQ130E61
Engine Power 130 HP (96 kW)
Emission Standard Euro 6 (China VI)
Transmission Manual, 6-Forward Gears
Wheelbase 3,300 mm
Overall Dimensions (L×W×H) 5,995×2,310×3,380 mm
Gross Vehicle Weight 4,495 kg
Rated Payload 1,100 kg
Kerb Weight 3,200 kg
Tire Specification 7.00R16
Fuel Tank Capacity 120 L
Cab Type Single row, 3 passengers
Box Body Parameters
Box Body Dimensions (L×W×H) 4,130×2,100×2,100 mm
Box Body Material FRP (Fiberglass Reinforced Plastic) interior and exterior
Insulation Material Polyurethane foam, 80mm thickness
Insulation Performance National Grade A standard, temperature rise ≤1.8°C in 8 hours
Box Body Type Sandwich panel construction
Door Type Rear double doors, optional side door
Floor Anti-slip aluminum plate
Seal Labyrinth rubber sealing strips
Refrigeration System
Refrigeration Unit Optional: Hanxue, Carrier, Thermo King
Temperature Range -18°C to +8°C (adjustable)
Cooling Capacity Standard unit suitable for fresh and frozen goods
Power Source Engine-driven via PTO
