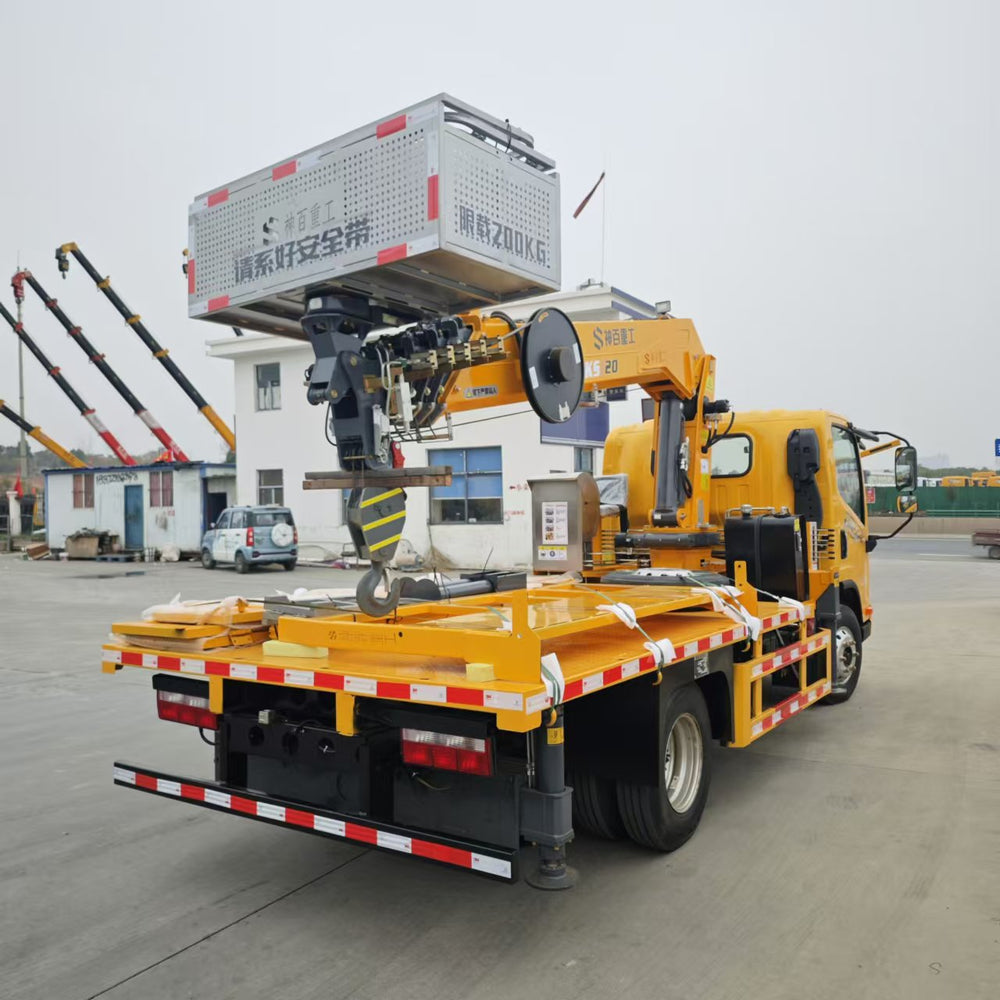

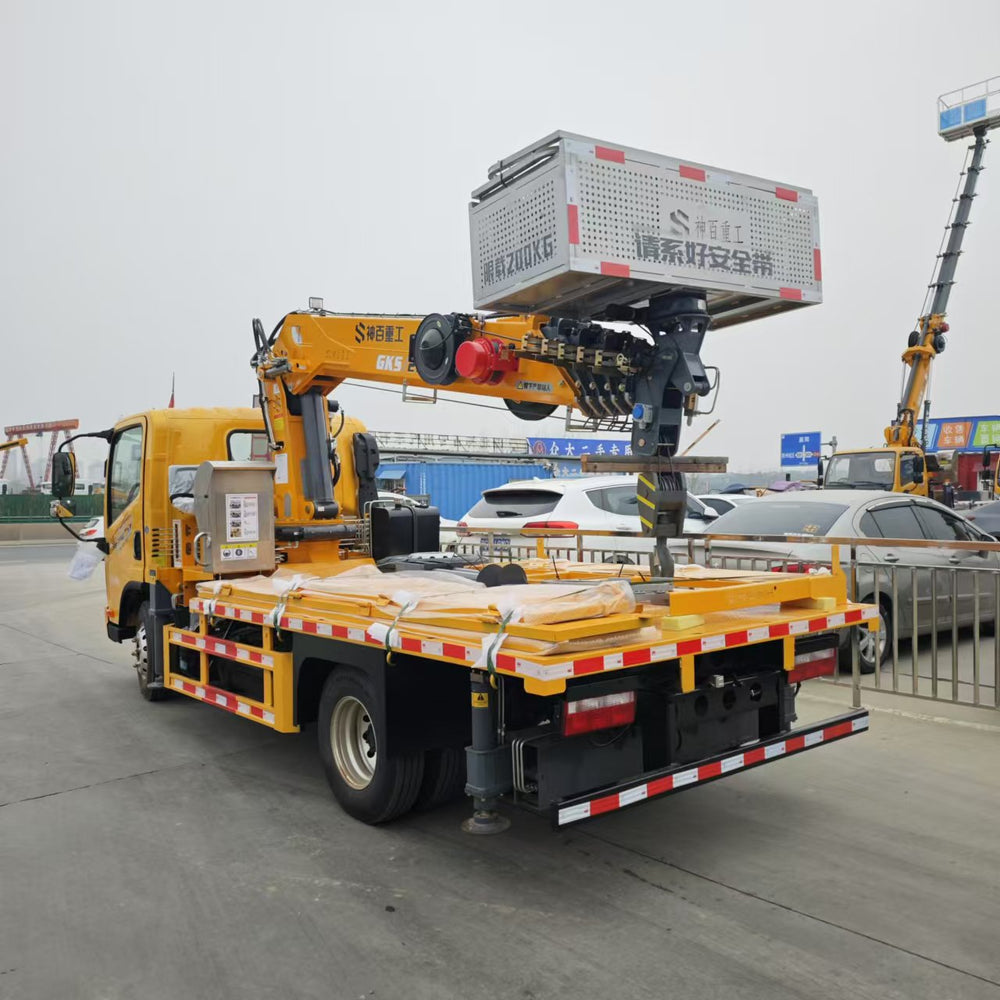

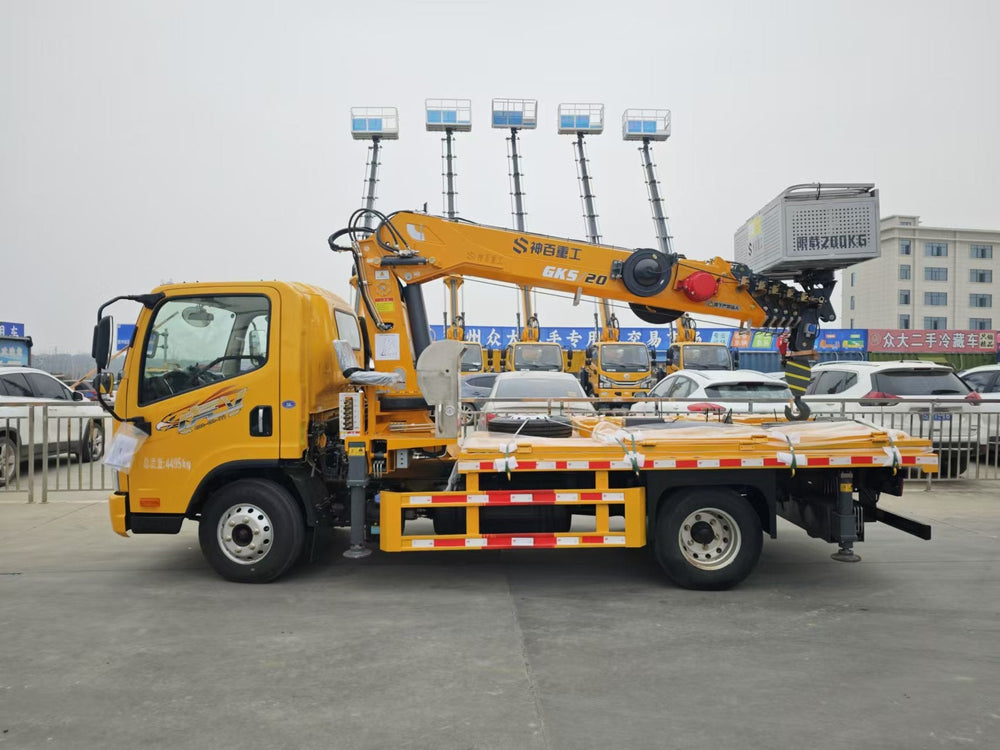

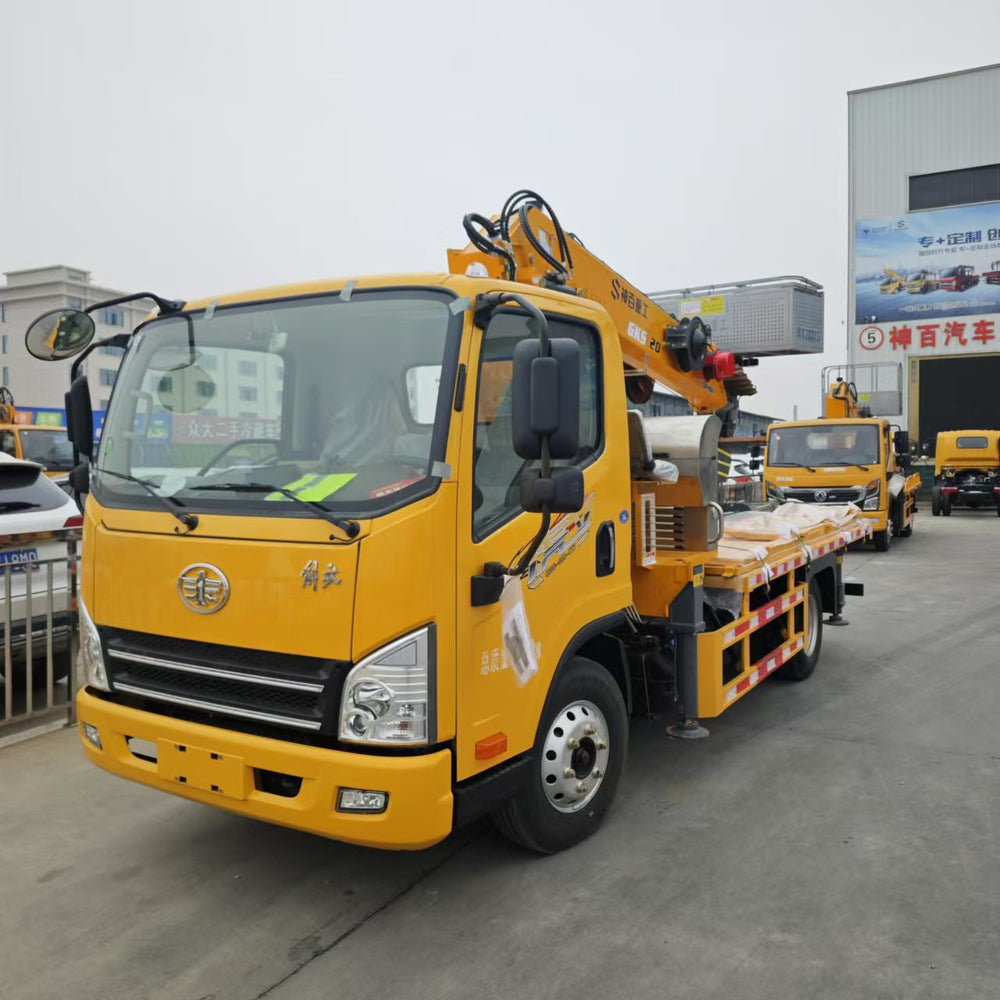

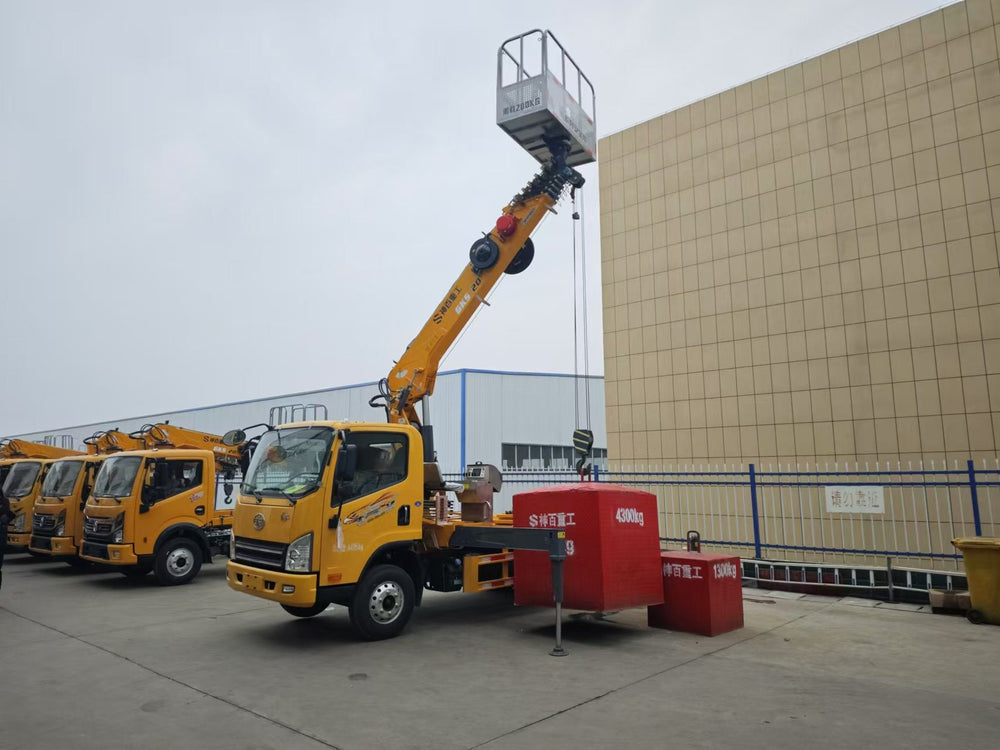

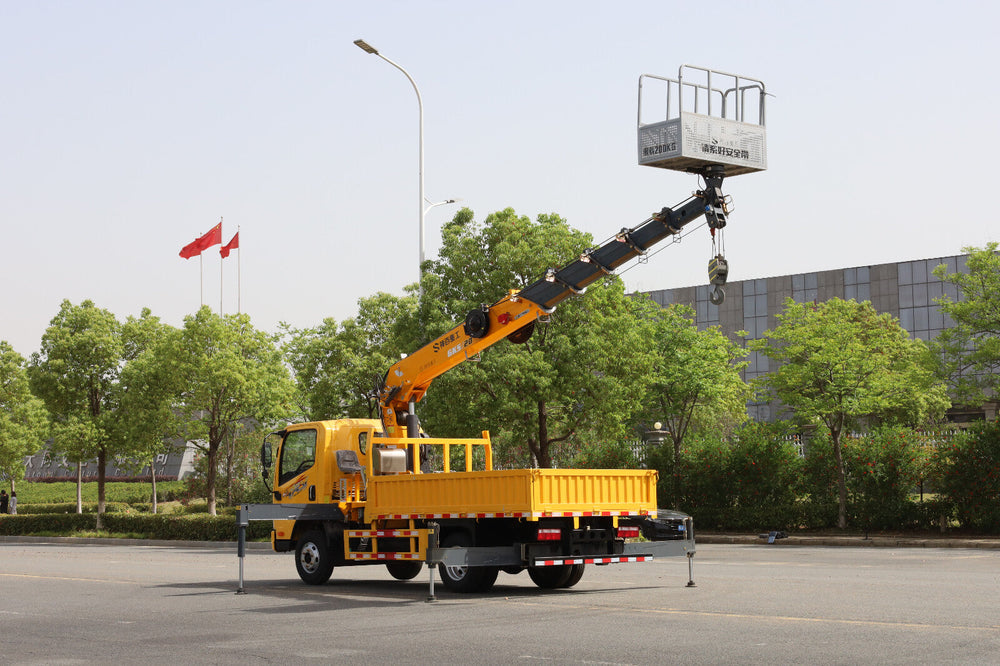

FAW GKS20 3-in-1 Aerial Work Platform With Crane
Request a Quote Now
- Product Advantages
| Item | Description |
|---|---|
| Boom Material | 960 high-strength steel, high strength & light dead weight, smooth telescopic movement |
| Body Design | Modular assembly after paint baking, nice appearance & easy component maintenance |
| Hydraulic System | Top domestic & partial imported key parts, optimized pipeline, no extra radiator needed, stable under extreme temp |

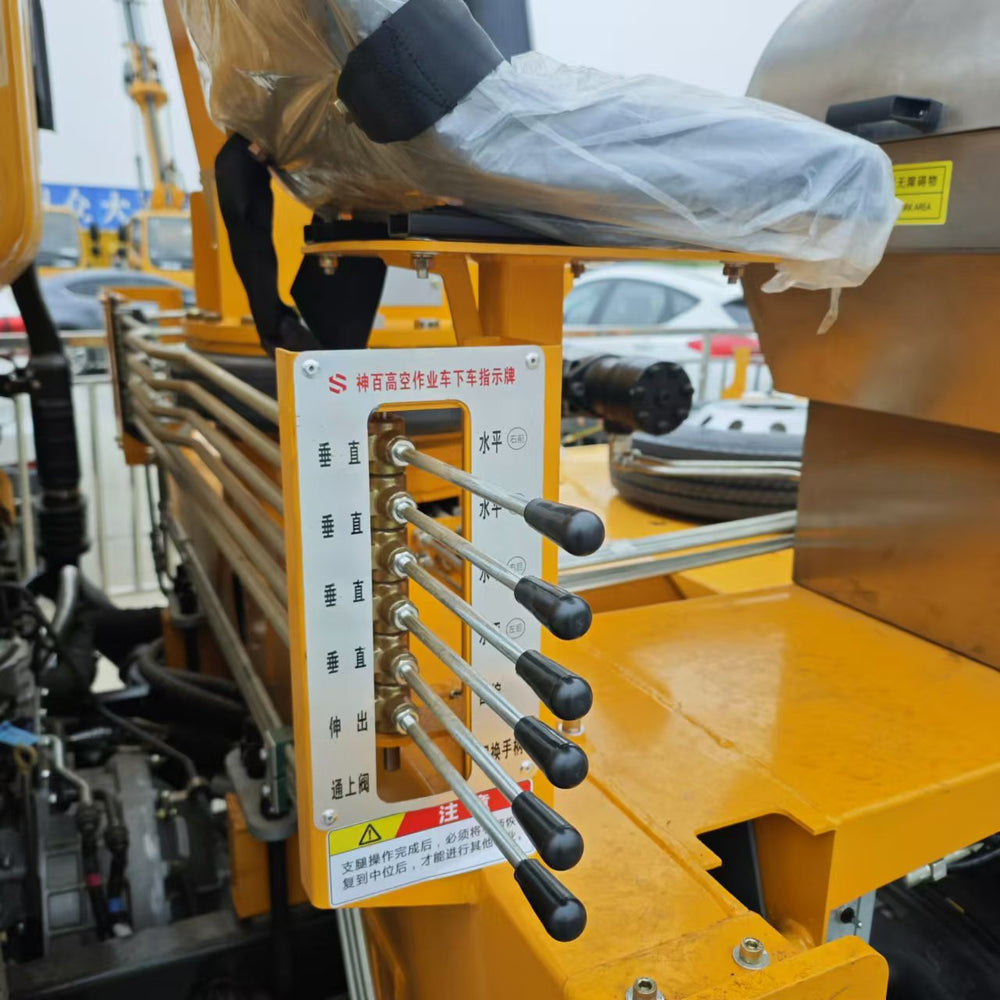

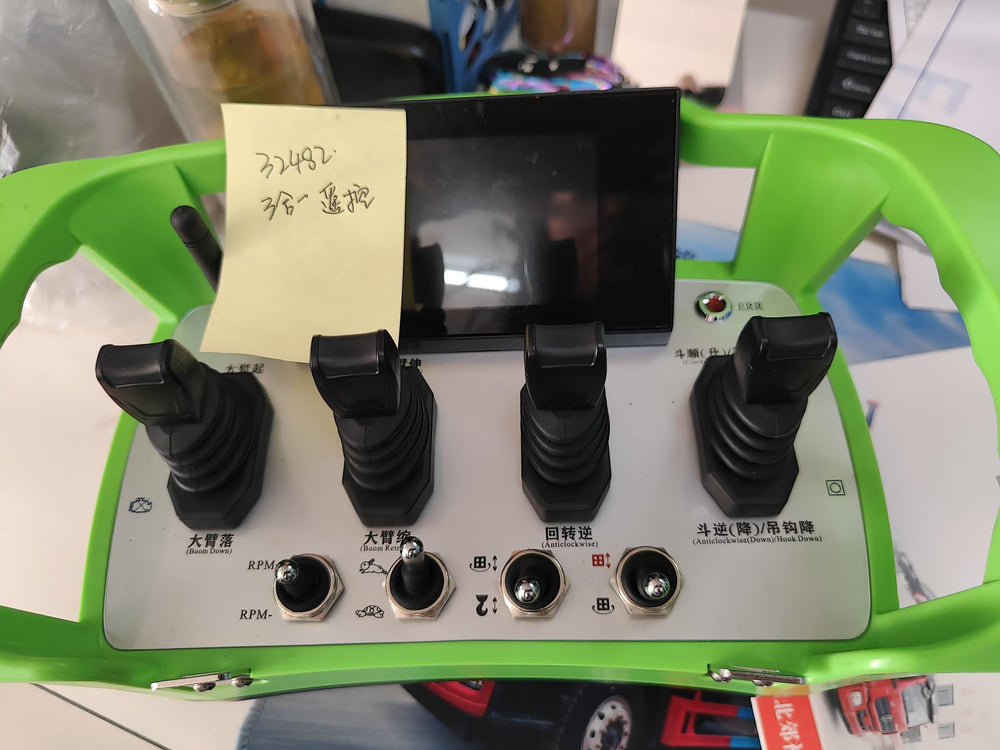

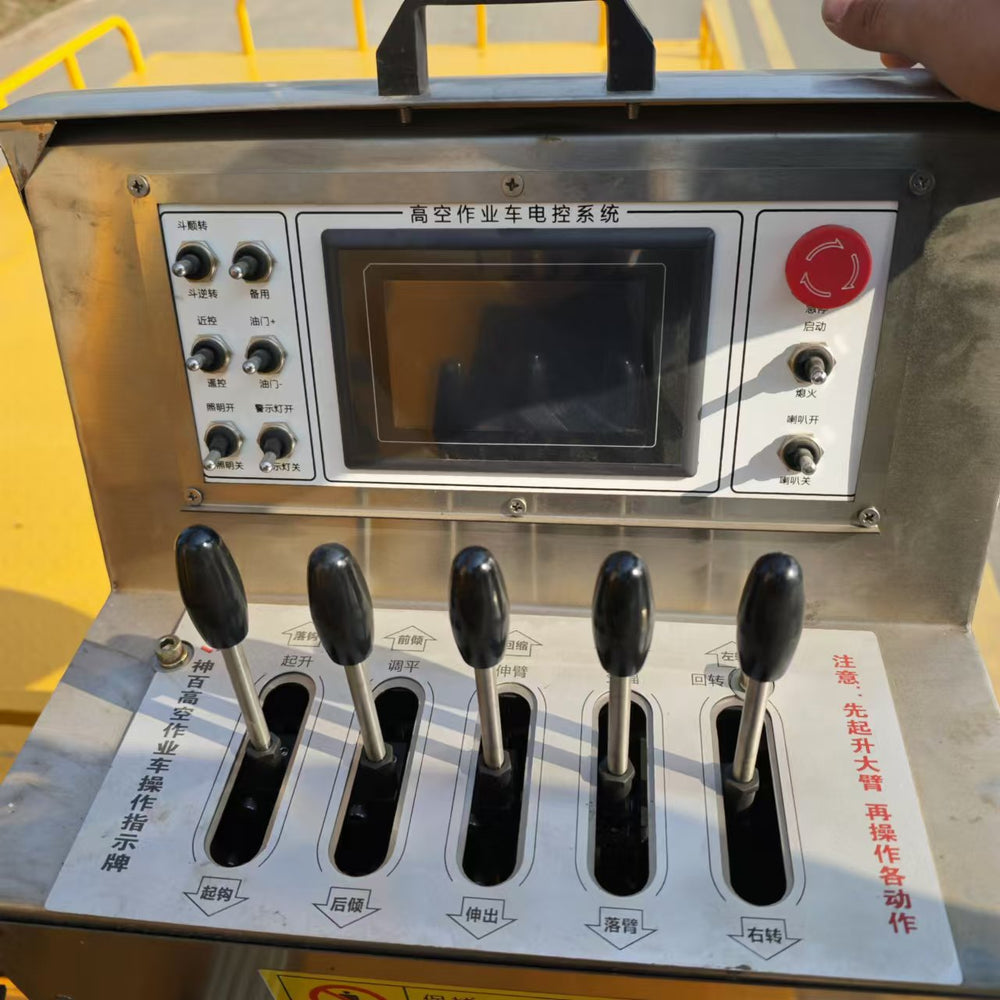

| Electric Control | Turntable + wireless remote dual control, LCD display for real-time working data; with height limit, overload lock, speed adjustment & stroke buffer |
2. Chassis Configuration
| Item | Parameter |
|---|---|

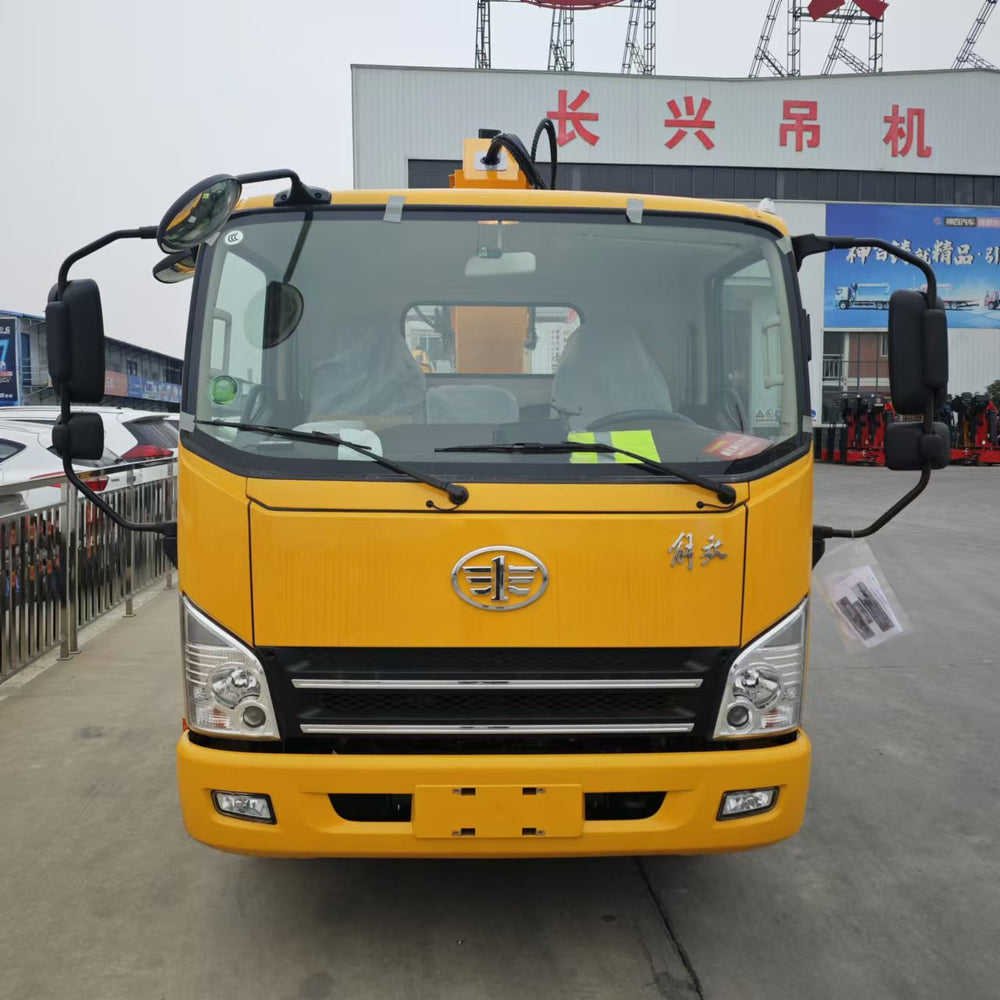

| Cab | Hubei Tiger VN Single-row (3 seats) |
| Engine | Yunnei 150 HP Diesel |
| Transmission | Wanliyang 5-speed Gearbox |
| Frame | 180mm Wide-section Chassis Frame |
| Tire | 7.00R16 Steel Radial Tire |
| Wheelbase | 3300 mm |
| Rear Axle | 5T, Final Drive Ratio:4.875 |
| Brake | Air Cut-off Brake + ABS, Drum Brake |
| Aux Tank | 10L Urea Tank; 70L Plastic Fuel Tank |
| Suspension | Leaf Spring 3/7+3 |
| Standard Fittings |
Air Conditioner, Power Window, Central Door Lock |
3. Superstructure (GKS20-6, 5T Crane + Aerial Platform)
| Item | Parameter |
|---|---|
| Boom Spec | 6-section boom, Max Lifting Capacity:5t; Full extension load:550kg |
| Max Working Height | 19.2 m |
| Max Working Radius | 15 m |
| Outrigger Span | Transverse:5150/4500mm; Longitudinal:3400mm |

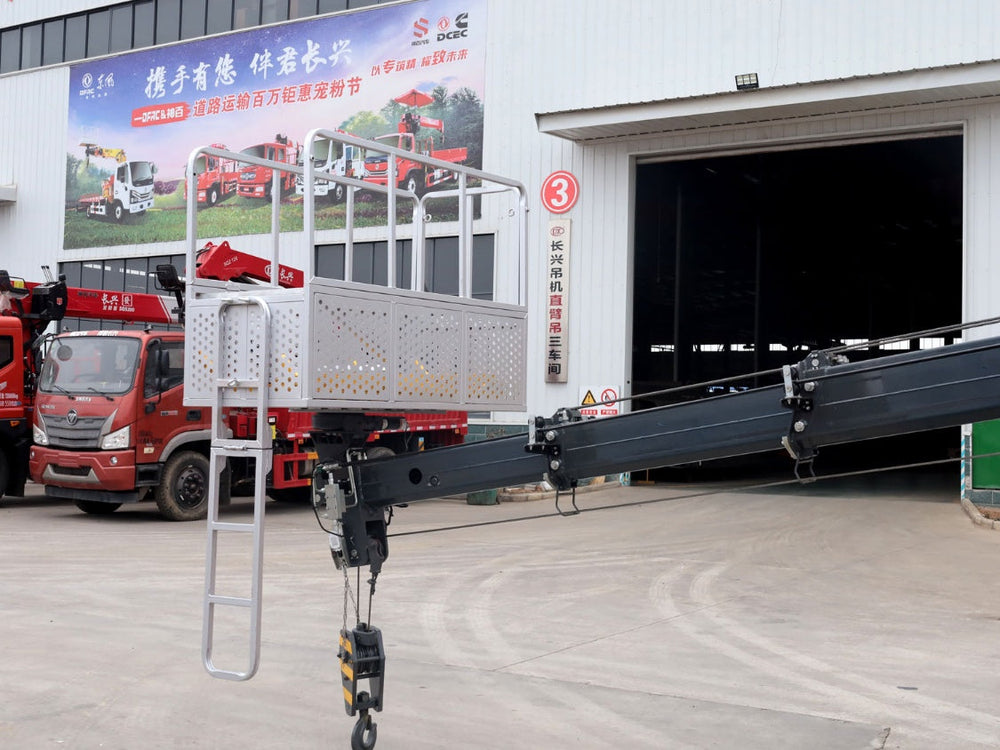

| Aerial Basket | 1.5m Height Suspended Basket |
| Surface Process | Shot blasting + paint baking for whole crane body |
| Standard Gift | Wireless Remote, 2 Safety Helmets, 2 Safety Belts, 1 Pair of Intercom |
| Overall Vehicle Size | 5998×2200×3450mm (height ≤3m after platform folded) |
| Cargo Box Size | 3400×2100×400mm (with one set side guardrail) |
