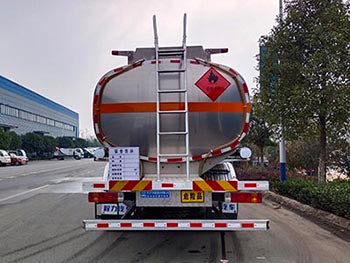

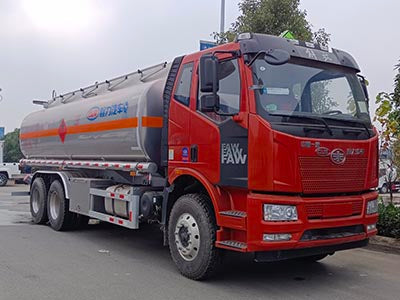

FAW J6P 6×4 LPG

1 / 2

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Category	Item	Detailed Specification	Additional Notes
Chassis Parameters	Chassis Brand & Model	FAW J6P 6×4 Hazardous Goods Special Chassis	6x4 layout: 1 steering front axle + double rear drive axles
	Engine	Xichai CA6DM2 series diesel engine, 420HP / 460HP	Euro 5 / Euro 6 emission standards optional
	Gearbox	12-speed manual synchronized transmission	Heavy-load matching, stable long-distance transport
	Wheelbase	3800+1400mm	Standard factory wheelbase
	Tire Model	12R22.5 heavy-duty radial tires, total 10 pcs	Wear-resistant for intercity gas delivery
	Cab	J6P double sleeper dangerous goods dedicated cab	With A/C, electric windows, central door lock, explosion-proof interior circuit
	Brake System	Dual-circuit air brake, ABS, ASR, exhaust auxiliary brake	Fully compliant with hazardous chemical transport safety codes
	Steering System	Hydraulic power-assisted steering	Light operation under full load
LPG Pressure Tank Body	Tank Material	Q345R special pressure vessel steel	National standard boiler plate, anti-pressure & anti-corrosion
	Design Working Pressure	1.77MPa	Special for liquefied petroleum gas storage & transit
	Tank Volume	20–25 cubic meters	Single integral pressure tank compartment
	Transport Medium	Liquefied Petroleum Gas (LPG), propane, butane	Class 2 flammable gas dangerous goods
	Tank Internal Structure	Cylindrical pressure vessel, built-in reinforced anti-wave baffles	Reduce liquid sloshing during driving, improve stability
	Top Platform Fittings	Anti-slip safety walkway, aluminum climbing ladder, multi-function manhole assembly	Equipped with safety relief valve, pressure gauge, liquid level indicator
	Loading & Unloading Assembly	LPG dedicated stainless steel pipeline, emergency bottom cut-off valve, gas transfer pump, quick disconnect couplings	Fast filling & discharge, automatic emergency shut-off function
Full Vehicle Explosion-Proof & Safety Configuration	Hazard Warning Marks	Class 2 flammable gas diamond warning sticker, "Dangerous Goods" rear sign, full perimeter reflective strips	Meet UN & GB dangerous goods transport marking standards
	Anti-static & Explosion-proof Parts	Full vehicle explosion-proof electrical components, exhaust spark arrester, static grounding chain	Eliminate static spark fire risks
	Emergency Safety Gear	2 sets of 4kg ABC dry powder fire extinguishers, emergency pressure relief device, dedicated maintenance toolbox	Standard for gas tanker emergency disposal
	Crash Protection Devices	Rear anti-under-running crash beam, side anti-collision guardrails, front buffer baffle	Prevent secondary damage in traffic accidents
Standard Cab Interior Equipment	Control & Comfort Parts	Multi-functional steering wheel, constant temperature air conditioner, adjustable shock-absorbing seats, storage cabinet, hazard alarm system	Factory standard matching
	Full Lighting System	LED composite headlights, side marker lights, rear brake & warning lights, clearance outline lamps	Comply with international road lighting regulations
Optional Upgrade Customization Items	Tank Body Upgrade	Thermal insulation coating, multi-compartment separated tank, anti-corrosion lining	For mixed transport of multiple gas media
	Transfer System Upgrade	High-flow LPG pump, digital flow meter, automatic hose reel, remote operation controller	Boost loading/unloading efficiency
	Driving Safety Upgrade	TPMS tire pressure monitoring, LDWS lane departure warning, reversing visual camera, forward collision warning	For overseas high-standard safety certification
	Export Global Customization	Right-hand drive (RHD) refit, overseas emission calibration, customized tank capacity, full set of export inspection documents	Supports export to Middle East, Africa, Southeast Asia gas stations & energy projects
