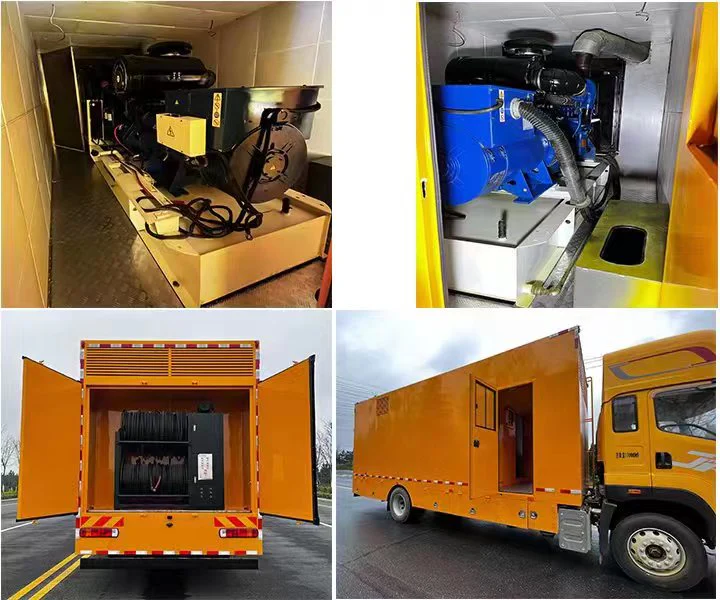

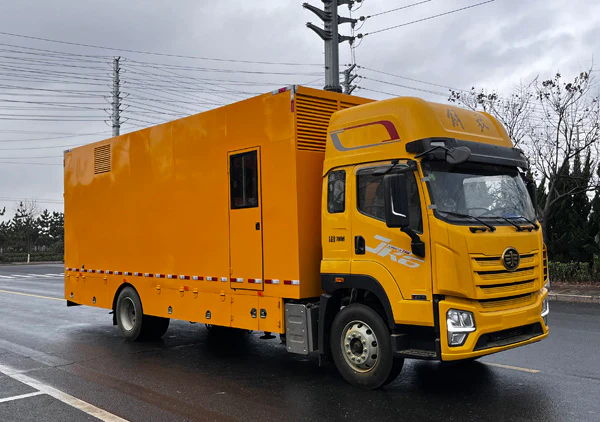

FAW Jiefang 4×2 Emergency Power Vehicle

1 / 2

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Configuration Item	Specification & Parameter
Vehicle Basic Parameters
Vehicle Model	FAW Jiefang 4×2 Power Vehicle
Rated Power Range	200KW - 400KW
Drive Type	4×2 (Single Rear Axle)
Overall Dimensions (L×W×H)	≤ 9000mm × 2550mm × 3500mm
Curb Weight	≤ 12000kg
Gross Vehicle Weight	≤ 18000kg
Maximum Speed	≥ 100km/h
Minimum Turning Radius	≤ 8.5m
Gradeability	≥ 25%
Operating Temperature Range	-40℃ ~ +50℃
Chassis System
Chassis Model	FAW Jiefang CA1180P62K1L2E6
Cab Type	P620 Integrated Cab, Air Suspension Seat
Number of Axles	2
Wheelbase	4200mm
Tire Specification	11.00R20 Radial Tires (6+1 Spare)
Front Axle Rated Load	≤ 6500kg
Rear Axle Rated Load	≤ 11500kg
Suspension System	Front: Leaf Spring + Shock Absorber; Rear: Leaf Spring + Stabilizer Bar
Brake System	Dual Circuit Air Brake, ABS, ASR
Steering System	Hydraulic Power Steering
Engine System
Engine Brand	FAW Xichai / Wuxi Diesel (Domestic Top Tier)
Engine Type	4-Stroke, Water-Cooled, Turbocharged, Intercooled Diesel Engine
Number of Cylinders	Inline 6 Cylinders
Displacement	≥ 8.6L
Rated Power	220KW ~ 440KW @ 1500rpm
Rated Speed	1500rpm
Maximum Torque	≥ 2200N·m @ 1000-1200rpm
Fuel System	Electronic Fuel Injection, High Pressure Common Rail
Cooling System	Forced Water Cooling, Large Capacity Radiator
Air Intake System	Dry Air Filter, Double Stage Filtration
Exhaust System	Vertical Exhaust Pipe, Spark Arrestor, Muffler
Fuel Tank Capacity	≥ 300L
Fuel Consumption	≤ 200g/KW·h
Emission Standard	China VI / Euro V (Optional)
Generator Set System
Generator Brand	Wuxi Stamford / Marathon (Domestic Top Tier)
Generator Type	Brushless, Self-Excited, 3-Phase AC Synchronous Generator
Rated Power Output	200KW / 250KW / 300KW / 400KW (Optional)
Rated Voltage	400V / 230V (3-Phase 4-Wire)
Rated Current	360A ~ 720A (Corresponding to Power)
Rated Frequency	50Hz
Power Factor	0.8 (Lagging)
Insulation Class	H Class
Protection Level	IP23
Voltage Regulation Accuracy	≤ ±0.5%
Frequency Regulation Accuracy	≤ ±0.5%
Maximum Transient Voltage Deviation	≤ ±15%
Maximum Transient Frequency Deviation	≤ ±10%
Excitation System	Automatic Voltage Regulation (AVR)
Power Distribution & Control System
Control System Type	Intelligent Digital Integrated Control System
Display Unit	7-inch Color Touch Screen, Real-time Data Display
Monitoring Parameters	Voltage, Current, Frequency, Power, Oil Pressure, Water Temperature, Speed, Fuel Level, Battery Voltage
Protection Functions	Overvoltage, Undervoltage, Overfrequency, Underfrequency, Overload, Short Circuit, Low Oil Pressure, High Water Temperature, Over Speed, Phase Loss, Reverse Power
Alarm Functions	Sound & Light Alarm for Abnormal Parameters, Fault Code Display
Starting System	24V DC Electric Starting, Dual Battery Pack (≥ 150Ah)
Emergency Stop	Multiple Emergency Stop Buttons (Cab, Compartment, Outside)
Power Distribution Panel	Copper Busbar Design, Main Circuit Breaker, Output Terminals
Output Interface	Multiple Industrial Sockets / Hard Wiring Terminals, Customizable
Parallel Operation Capability	Support Multi-unit Parallel Operation (Optional)
Remote Monitoring	Support 4G Remote Monitoring, GPS Positioning (Optional)
Compartment & Installation System
Compartment Structure	All-Steel Welded Frame, Waterproof, Dustproof, Soundproof, Heat Insulation
Compartment Material	Outer: Cold Rolled Steel Plate; Inner: Galvanized Steel Plate; Middle: Fireproof Sound-Absorbing Cotton
Sound Insulation Performance	Noise Level ≤ 75dB(A) @ 1m, 70% Load
Ventilation System	Forced Ventilation with Large Capacity Fans, Air Inlet/Outlet with Dust Filter
Rainproof Design	Rainproof Louvers, Sealed Compartment Doors, Drainage System
Installation Structure	High Strength Steel Chassis Frame, Vibration Damping Mounts for Generator Set
Compartment Doors	Double Opening Rear Doors, Side Maintenance Doors, Lockable
Lighting System	LED Interior Lighting, Work Lights, Emergency Lighting
Cable Management	Cable Compartment, Cable Reel (Optional), Cable Fixing Brackets
Lifting Points	Multiple Lifting Lugs for Whole Vehicle Lifting
Safety & Protection System
Fire Protection System	Automatic Fire Detection & Suppression System, Dry Powder Fire Extinguishers
Grounding System	Reliable Grounding Device, Grounding Cable, Grounding Rod
High Voltage Protection	Insulation Monitoring, High Voltage Interlock Protection
Anti-Corrosion Protection	Whole Vehicle Sandblasting, Anti-Rust Primer, Anti-Corrosion Paint
Lightning Protection	Lightning Protection Device for Electrical System
Safety Marking	Standard Safety Warning Signs, Operation Instructions, Reflective Markings
Cab Safety	Airbag, Seat Belt, Crash Protection Structure
Optional Configuration
Power Output Interface	Customized Industrial Sockets, Quick Connectors, Cable Reels
Parallel Operation System	Multi-unit Parallel Cabinet, Synchronization Control System
Remote Monitoring System	4G DTU, GPS Module, Cloud Platform Monitoring
Low Noise Package	Super Soundproof Compartment, Muffler, Noise Reduction to ≤ 68dB(A) @ 1m
Fuel Tank Upgrade	Large Capacity Fuel Tank (≥ 500L), Long Endurance
Cold Climate Package	Engine Pre-Heating System, Compartment Heating System, Battery Insulation
Hot Climate Package	Enhanced Cooling System, Compartment Ventilation, Sun Protection Coating
Automatic Transfer Switch (ATS)	Dual Power Automatic Switching System
Insulation Test Device	High Voltage Insulation Resistance Tester
Video Monitoring System	Interior & Exterior Camera, DVR, Display
