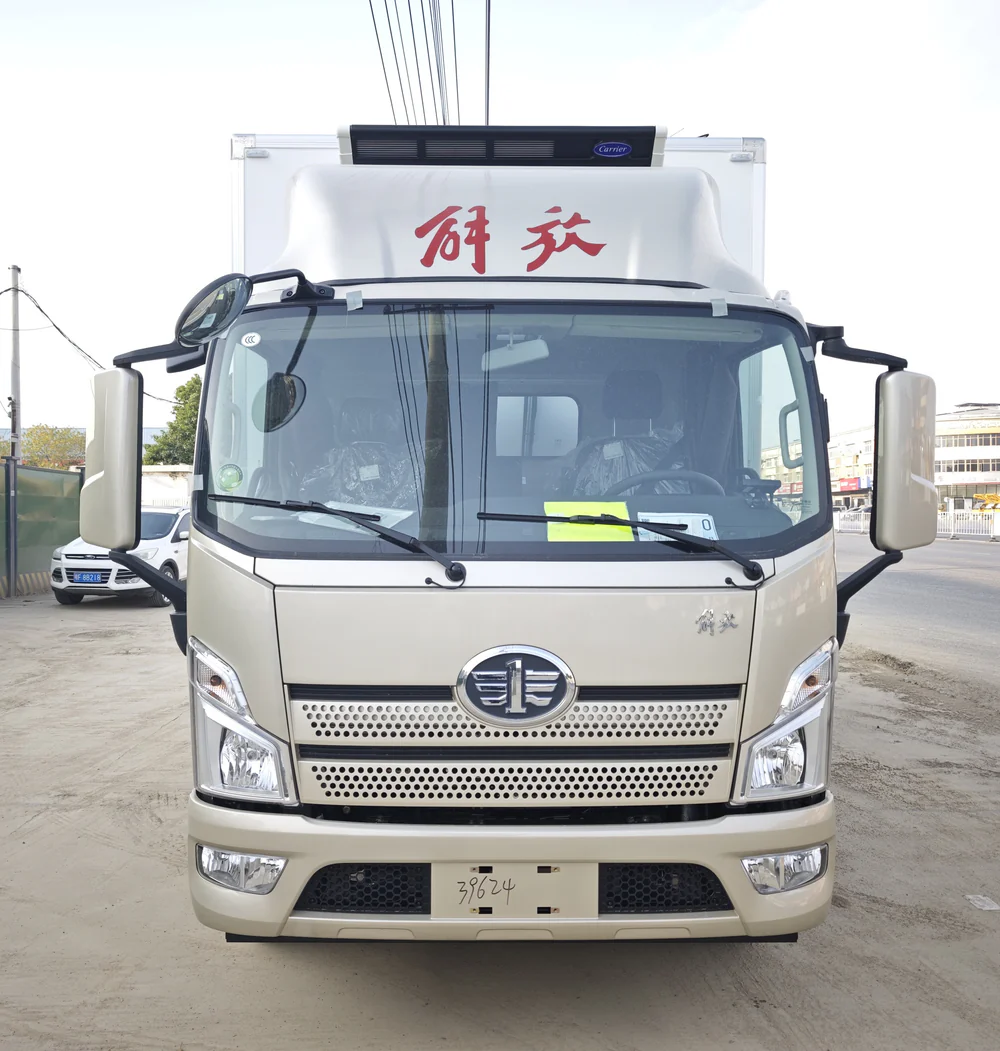

FAW Jiefang Refrigerated Truck

FAW Jiefang Refrigerated Truck
1 / 1
FAW Jiefang Refrigerated Truck
Category Specification Details
Chassis Basic Info
Complete Model CA5121XLCP40K42L2E6A84（Yellow Plate 12Ton GVW）
Overall Dimension 6455×2600×3540 mm
Inner Refrigerated Box 4180×2440×2300 mm，Total Volume≈23.5 CBM
Wheelbase 3800mm（3300/3900mm）
GVW/Curb/Payload 12000KG / 4000KG / 7800KG
Drive Layout 4×2 Rear Wheel Drive
Fuel Type Diesel
Max Speed 100km/h
Policy Advantage No mandatory BD terminal, unlimited driving speed/time, flexible urban access
Engine
Engine Model DDE CA4DD2-18E6 Inline4 Turbo Diesel 3.2L
Displacement 3198cc
Power/Torque 132kW(180HP) / 550N·m@1400rpm
Emission China National VI b (Euro6 Equivalent,DOC+DPF+SCR+ASC)
Fuel/Urea Tank 300L Aluminum Fuel Tank / 22L Urea Tank
Transmission & Chassis
Gearbox Fast 8JS75TC 8-speed Aluminum Manual Gearbox
Final Drive Ratio 4.333 Optional
Brake System Full Air Brake + ABS+EBD+Exhaust Brake
Tire Spec 245/70R19.5 Tubeless All-steel Tire（6pcs）
Axle Front 3.5T / Rear 7T Heavy-duty Cast Axle
Suspension Front 3-Leaf + Rear10+4 Reinforced Multi-leaf Spring
Cold Special Config Original factory dual compressor bracket,24V high-output alternator,PTO interface
驾驶室 Cabin (Bingbing Edition Wide Cab with Sleeper)
Cabin Type 2100mm Wide Half-row Single Sleeper,3-passenger seat
Standard Equip Airbag driver seat+Ventilation+Heating+Lumbar support, Factory A/C, Power window, Central lock+Remote key, Multi-function steering,Cruise control,Heated rearview mirror,LED DRL,LCD instrument,Privacy curtain
Optional Android Touch Screen, Reverse camera
Insulated Cargo Box
Craft Vacuum Integral Sandwich Panel,80mm Grade A PU Insulation,Bridge-break thermal insulation
Material Inner&Outer FRP + High-density PU Foam Core
Floor Anti-slip Aluminum Checkered Plate
Standard Fitting Aluminum wrap edge,Stainless steel hinge&lock,Labyrinth rubber seal,Inner LED lamp,Rear double door
Optional Upgrade Side access door,Full underfloor air duct,Meat hanging rails
Refrigeration Unit
Standard Domestic PTO-driven refrigeration unit
Import Option Carrier / Thermo King independent cooling unit
Temp Range -18℃ ~ +25℃ Adjustable,R404A refrigerant
