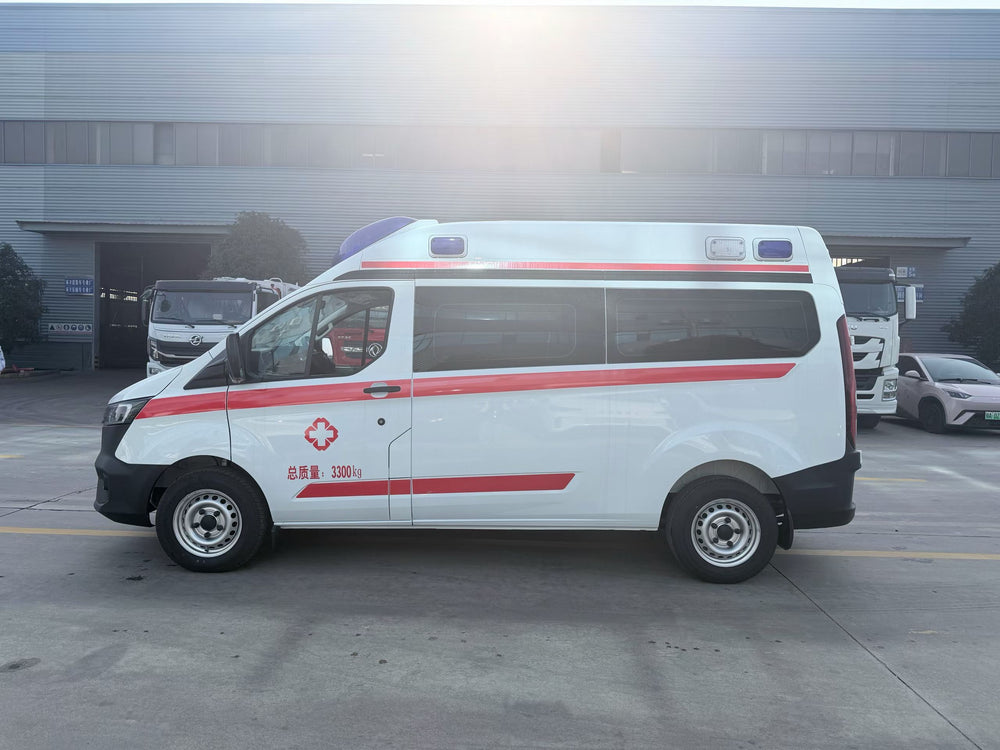

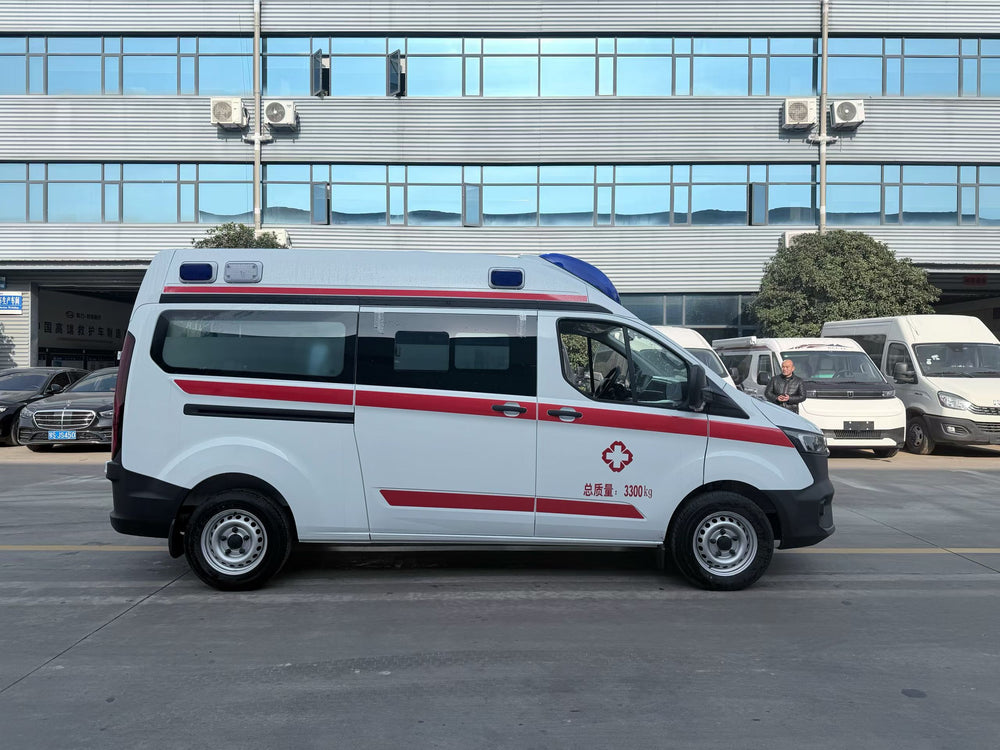

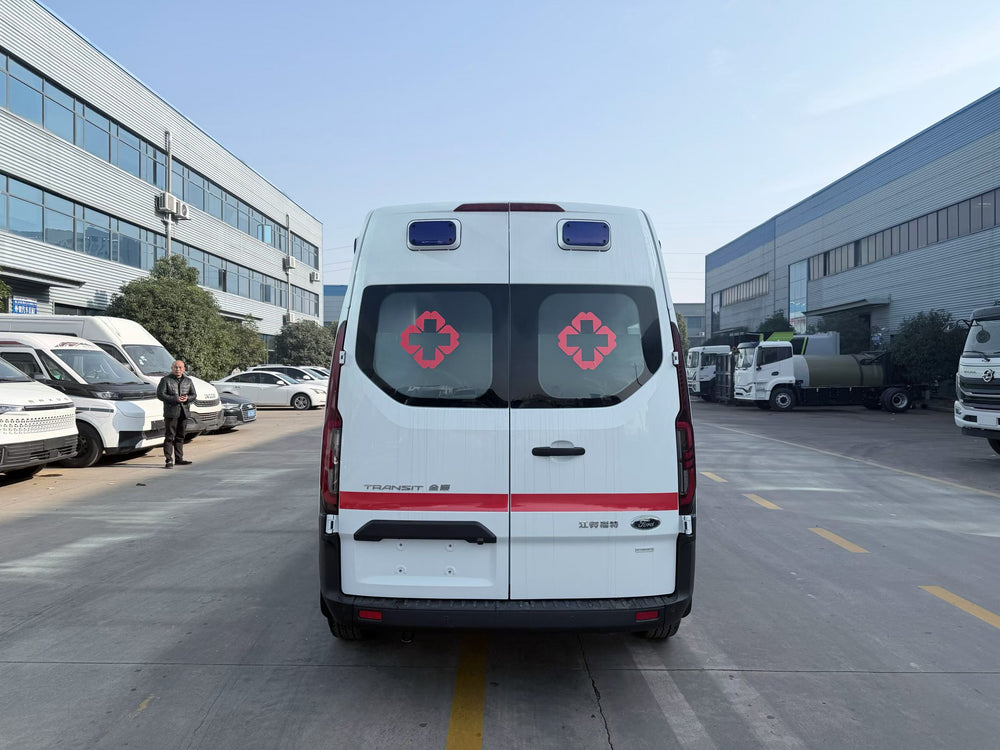

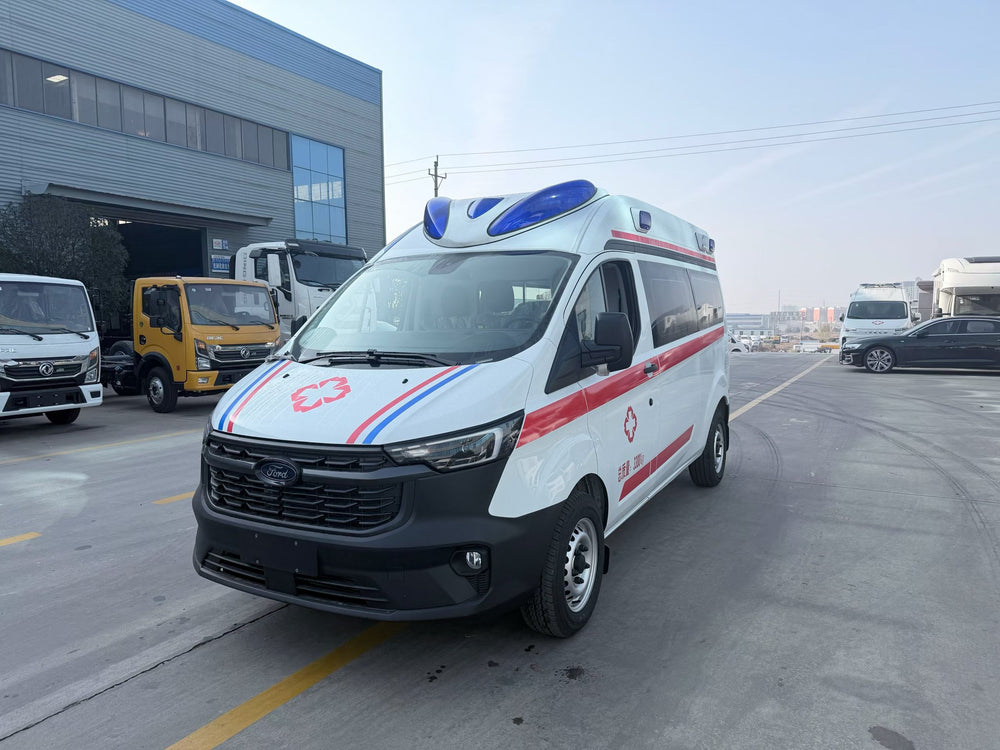

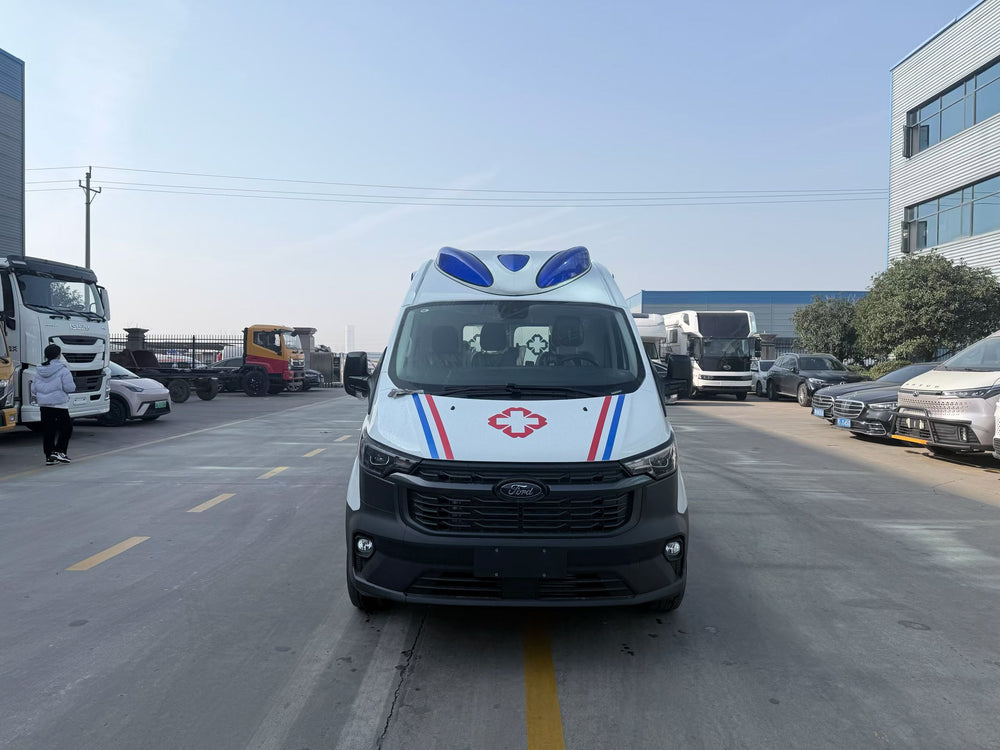

Ford Medium Wheelbase Medium Roof Ambulance

Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
1 / 7
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance
Ford Medium Wheelbase Medium Roof Ambulance

1. Vehicle Performance & Technical Parameters

Item Specification
Vehicle Type Medical Ambulance
Exterior Color White / Red
Max. Gross Weight 3510 kg
Seating Capacity 7 - 8 Persons
Wheelbase 3350 mm
Exterior Dimensions (LxWxH) 5341 / 5531 × 2030 / 2040 × 2435 / 2590 mm
Medical Cabin Dimensions 2850 × 1720 × 1530 mm
Tire Specification 215/75R16LT
Max. Speed 160 km/h
Engine Model DURATORQ4D20C6H (Manual) / DURATORQ4D20B6H (Auto)
Displacement 2.0 L
Engine Power 107 kW
Fuel Type Diesel
Fuel Tank Capacity 80 L
Drive Type Rear-Wheel Drive (RWD)
Min. Ground Clearance 141 mm
Transmission 6MT (Manual) / 9AT (Automatic)
Suspension System Front: McPherson Independent / Rear: Leaf Spring
Steering System Hydraulic Power Steering
Braking System Front Disc / Rear Drum

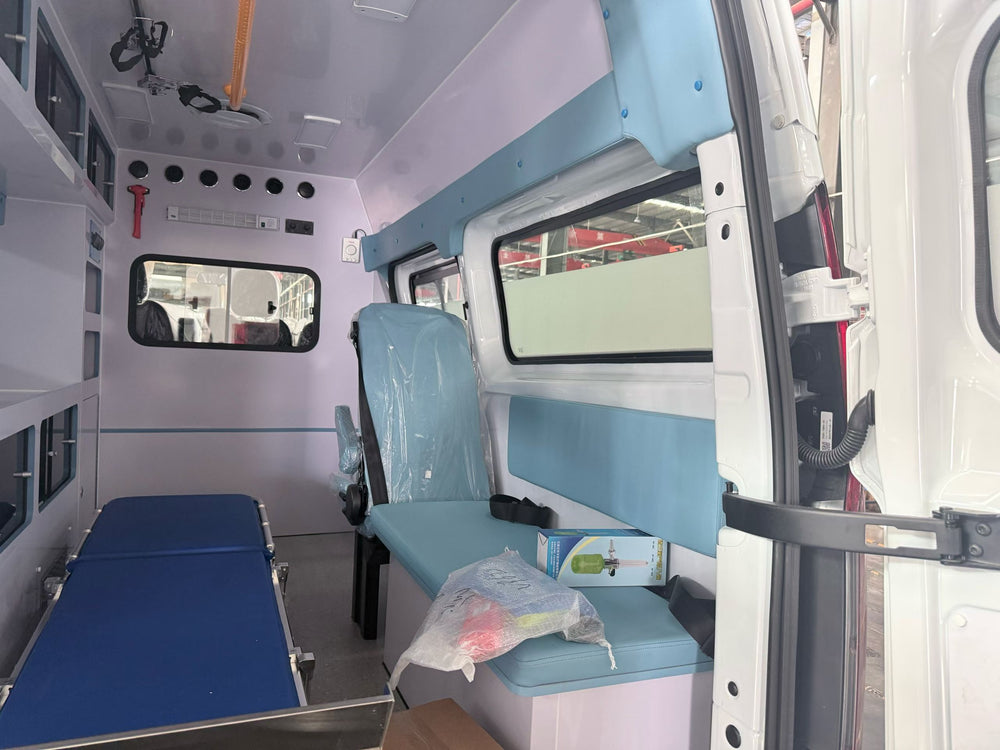

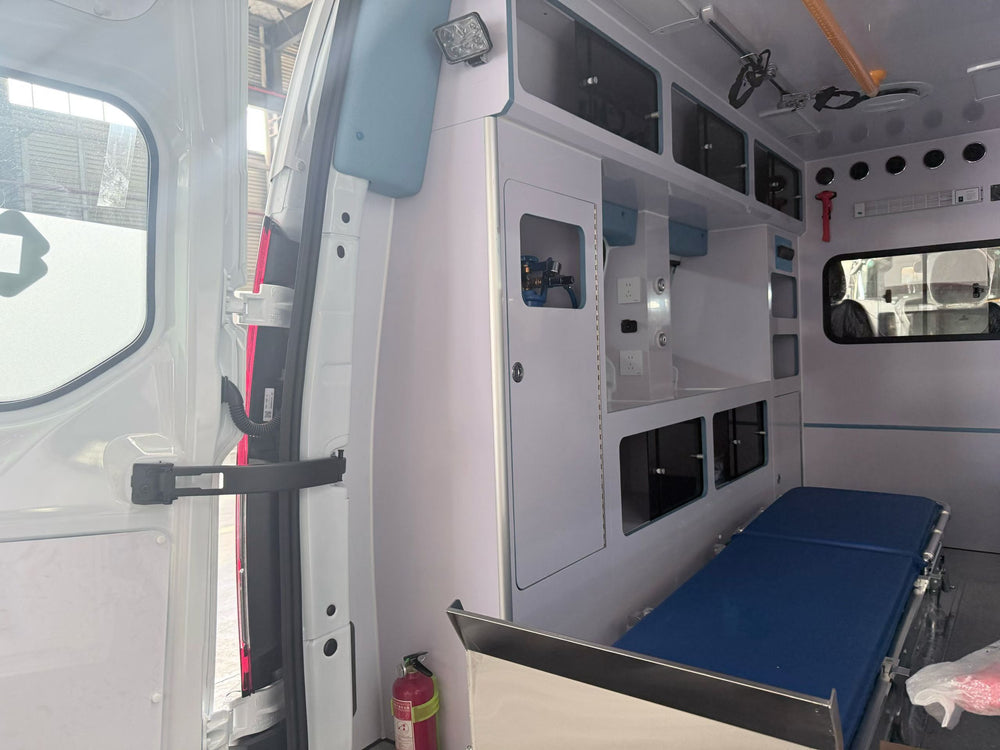

2. Medical Compartment Decoration & Protection

Category Configuration Details
Body Structure High-strength steel frame with safety collision design.
Windows Dark privacy film for rear and side windows; sliding glass window.
Interior Lining Integrated ABS/PVC composite material; easy to clean and disinfect.
Flooring Medical-grade PVC flooring; anti-slip, acid & alkali resistant.
Partition Full partition wall between cab and medical cabin with a sliding window.
Warning System Blue LED long-bar warning light; 100W siren with multi-tone controller.

3. Medical Systems & Equipment

System Configuration Details
Oxygen Supply 2 × 10L Oxygen Cylinders; flowmeters, humidifiers, and concealed piping.
Electrical System 1000W Inverter; 220V/12V dual power sockets; UV disinfection lamp.
Lighting System 12V LED interior lighting; powerful rear loading searchlight.
Air Circulation Two-way ventilation fan; independent rear air conditioning/heating.
Stretcher System Automatic loading stretcher; Scoop stretcher (optional); Spine board.
Storage Cabinets Integrated medical cabinets for medicine, instruments, and equipment.
Emergency Gear 1kg Fire extinguisher; First aid kit; Medical waste bin; Handrails.
