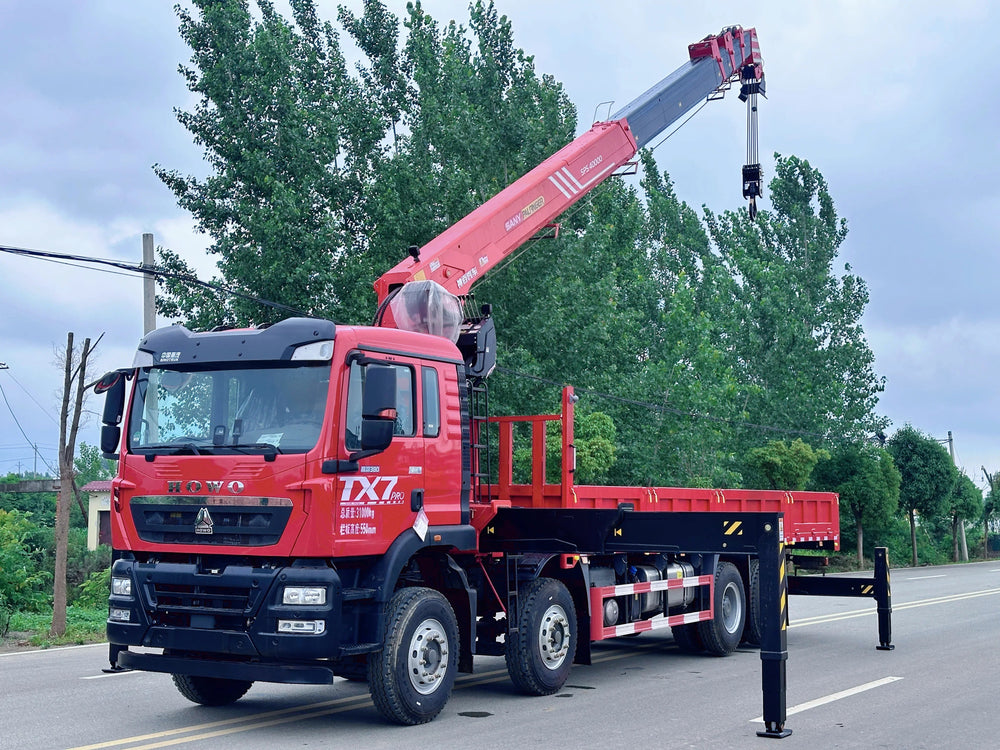

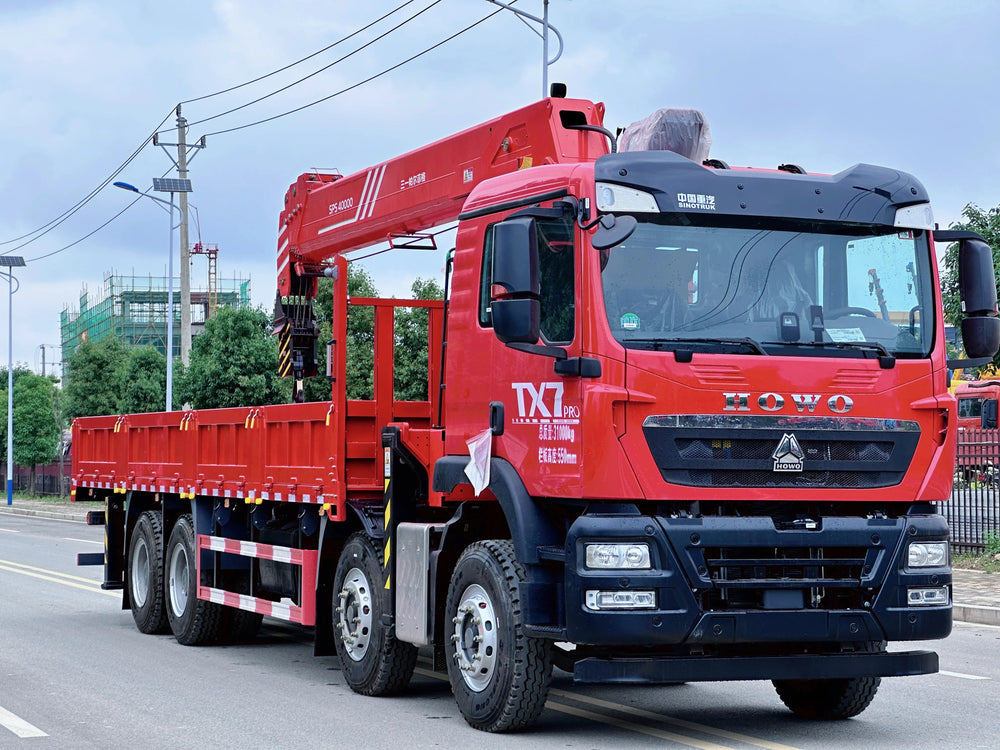

HOWO 8×4 16TSany Palfinger Telescopic Boom Crane

1 / 2

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Parameter	Specification
Engine	Weichai 8T, 380HP, 8.2L Displacement
Gearbox + Power Take-off (PTO)	HW25712XSTL Gearbox + HW70 Flange-type PTO
Front Axle	VGD75 Self-adjusting Arm Front Axle (Drum Brake)
Rear Axle	MAT16ZG Self-adjusting Arm Dual Rear Axles (Drum Brake), 16-ton Wheel Reduction Axle
Axle Ratio	4.803
Frame	Triple-layer Through Frame (8+5+8/318)
Leaf Spring Quantity	11/11/12
Tires	11.00R20 Tires (Mixed Pattern/18PR)
Cab Model	TX-K Extended Cab (Woying Edition)
Steering Wheel	Multi-function Steering Wheel
Rearview Mirrors	Electrically Adjustable and Heated Rearview Mirrors
Seats	Driver Airbag Seat + Passenger Simple Seat
Engine Model	WP 8T 380E62
Front Axle Model	VGD75 Self-adjusting Arm Front Axle (Drum Brake)
Rear Axle Model	MCX16ZG Self-adjusting Arm Dual Rear Axles (Drum Brake)
Leaf Springs	Front and Rear Standard Multi-leaf Springs (11/11/12)
Driving Assistance System	AEBS + ABS (4S/4M) + ESC
Center Console Screen	10.1-inch Full HD LCD Center Console Screen (MP5)
Bumper	High-position Full-metal Bumper
Cab Lifting	Manual Lifting
Fuel Tank	400L Fuel Tank
Cab Additional Seat	Cab Middle Seat
Optional Equipment	Under-vehicle Start-stop Switch
Power System Matching	Weichai 8T 380HP engine, HOWO 12-speed gearbox, integrated development of engine, gearbox and axle for superior vehicle adaptability
Cab Safety Design	Authentic German MAN cab body, three-section full-metal high-position bumper, four-point cab suspension with world-leading collapse technology, effectively protecting the safety of drivers and passengers in emergency situations
Driving Comfort	Driver's popular aviation airbag seat with multi-directional adjustment and lumbar support, user-friendly seat belt design for a comfortable driving experience
Frame & Suspension Performance	Triple-layer through frame (8+5+8/318), reinforced by engineering vehicle leaf springs and four U-bolts, with industry-leading torsion resistance under complex road conditions; equipped with V-type thrust rod for optimal body stability under heavy load
Rear Axle Performance	Sinotruk independently developed dual 16-ton wheel reduction rear axles with three differential locks, providing speed reduction and torque increase to easily handle various complex road conditions
Crane	SANY 16-ton 5-section Boom Crane, Boom Length 19m, Upper Operation, Single Extension of 2nd Boom, Double-section Front Outriggers (Double Oil Cylinders)
Crane Hydraulic System	Original Factory Radiator Piston Pump, Planetary Slewing (Piston Motor), Hoisting (Piston Motor)
Cargo Box	Through Auxiliary Beam, 8.4m Engineering Cargo Box with 3mm Side Plate and 5mm Bottom Plate
