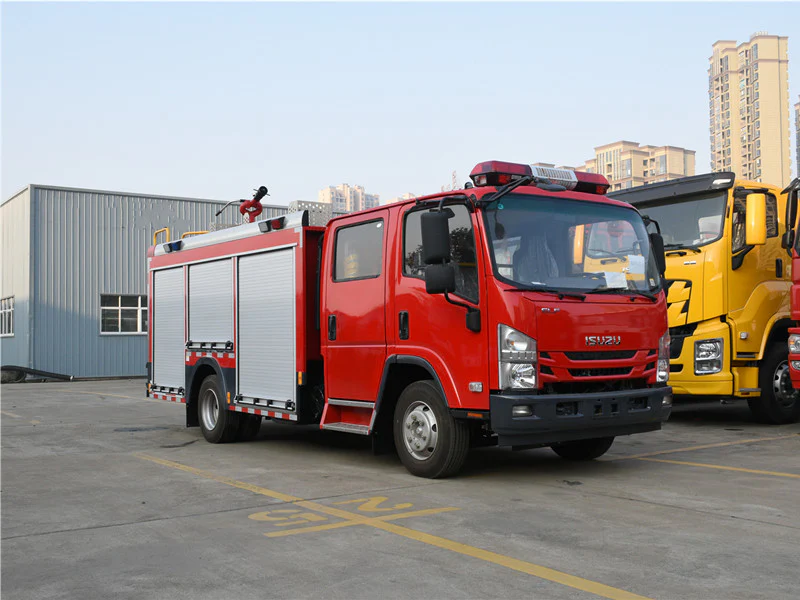

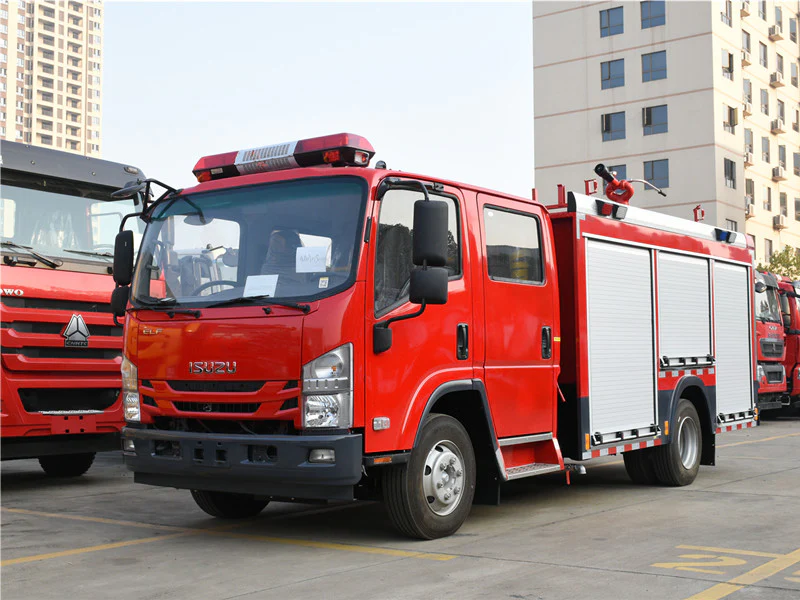

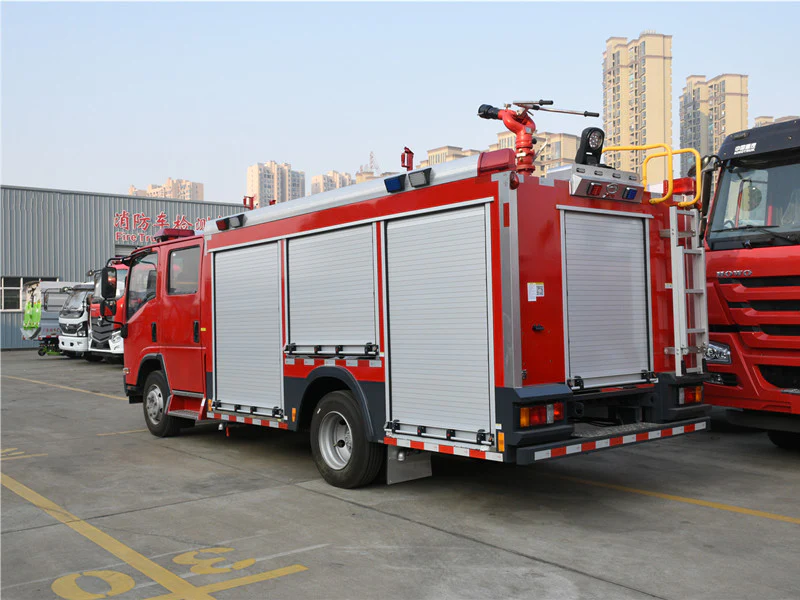

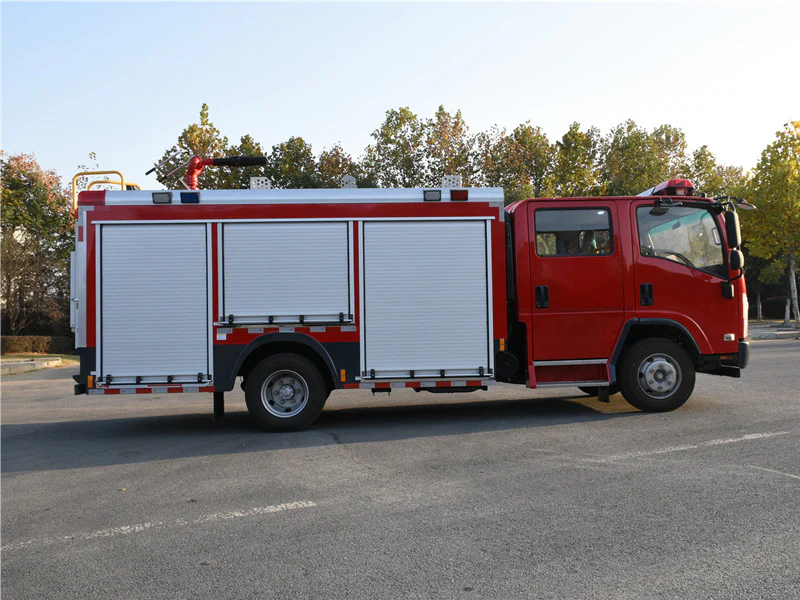

ISUZU 4 TON WATER TANK FIRE TRUCK

1 / 4

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Item	Specification
1. CHASSIS BASIC PARAMETERS
Chassis Brand & Model	Isuzu N-Series, QL1070BUKWY
Drive Type	4×2 Rear Wheel Drive
Cab Type	Double Row 4-door Crew Cab, 5 Seats Total
Wheelbase	3360 mm
Overall Dimension (L×W×H)	6150 × 1980 × 2850 mm
Tire Specification	7.00R16LT 10PR Heavy Duty Radial Tire, 6 tires
Transmission Gearbox	5-speed Manual Transmission
Steering System	Hydraulic Power Steering
Brake System	Full Air Brake with ABS Anti-lock System
Max Travel Speed	95 km/h
Emission Standard	Euro VI
2. ENGINE PARAMETERS
Engine Model	Isuzu 4KH1-TCG61
Fuel Type	Diesel
Rated Power	96 kW / 130 HP
Displacement	2999 ml
Intake Mode	Turbocharged & Intercooled
Cooling Mode	Water Cooling
3. VEHICLE WEIGHT & LOAD CAPACITY
Gross Vehicle Weight (GVW)	7360 kg
Curb Weight	3360 kg
Rated Water Loading Capacity	4000 kg (4 Ton)
Front Overhang	1100 mm
Rear Overhang	1690 mm
4. TANK & LIQUID CAPACITY
Water Tank Volume	4000 L (4 CBM)
Tank Material	High-strength Carbon Steel with Full Anti-corrosion & Anti-rust Treatment
Tank Structure	Built-in Wave Baffles, Reinforced Tank Body, Float-type Liquid Level Indicator
Tank Thickness	4mm Tank Body, 5mm Tank Head
Drain Valve	2.5-inch Stainless Steel Ball Valve
Manhole	450mm Diameter Sealed Manhole with Access Ladder
5. FIRE FIGHTING CORE PERFORMANCE
Fire Pump Model	Self-priming Centrifugal Fire Pump
Rated Pump Flow	30 L/s
Rated Working Pressure	0.8 MPa
Suction Depth	≥ 6 m
Self-priming Time	≤ 30 s
Fire Monitor	PS30 Water Cannon
Rated Monitor Flow	30 L/s
Water Jet Range	≥ 55 m
Monitor Rotation	360° Horizontal Rotation, -30°~+45° Vertical Pitch
Power Take-off (PTO)	Independent Full Power PTO for Pump Drive
Pump Control System	In-cab + Pump Room Dual Manual Control System
6. STANDARD EQUIPMENT
Fire Fighting Accessories	Full set of fire hoses, suction pipes, quick couplings, spray nozzles & fire hydrant connectors
Warning & Lighting System	Roof red warning light, 80W high-decibel alarm siren, LED work lights for pump room & tool compartment
Compartment Structure	Full aluminum alloy pump room & lockable tool compartments, anti-slip walking platform
Safety Protection Devices	Emergency stop device, pump overload protection, pressure safety valve & anti-freeze device
Rescue Hand Tools	Complete fire rescue hand tools, fire axe, crowbar, fire spade & 4m fire ladder
Pump System Accessories	Water filter, check valve, high-precision pressure gauge & flow meter
7. CERTIFICATION & AFTER-SALES TERMS
Main Certificates	CCC, CE, ISO9001, Vehicle Official Road Announcement Certificate
Warranty Period	12 months or 20,000 km from delivery date (whichever comes first)
Standard Production Lead Time	15–20 working days
Standard Loading Port	Shanghai Port / Wuhan Port, China
Optional Upgrade Items	Imported fire pump, wireless remote monitor control, foam proportion mixing system, front flush sprinkler system
