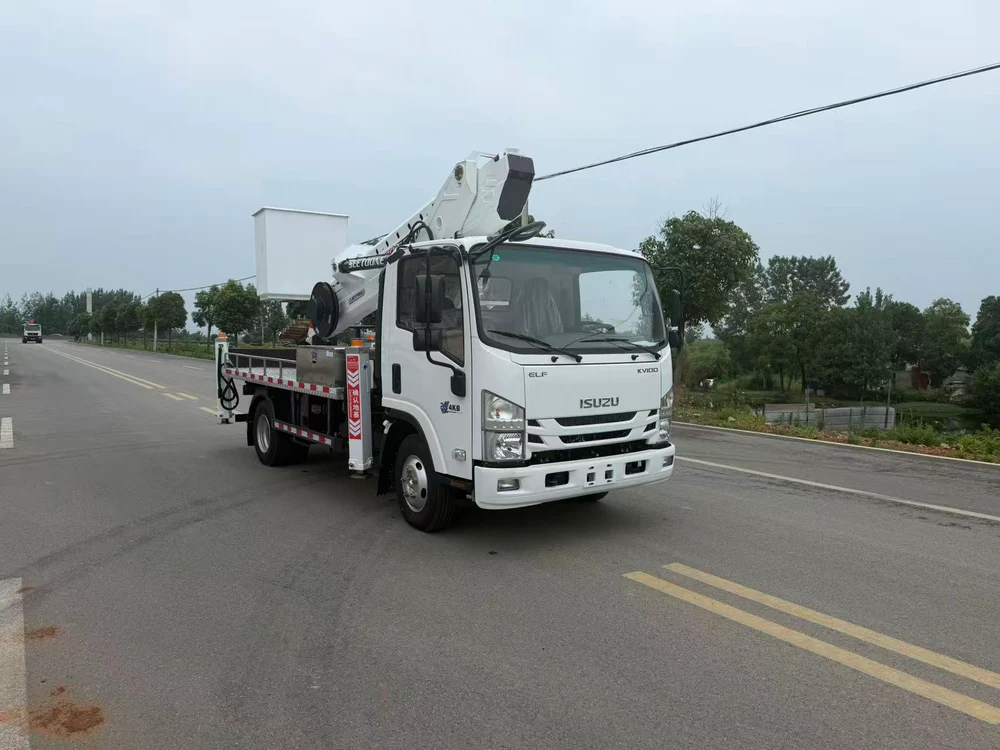

ISUZU ELF KV100 4KB Aerial Work Truck

ISUZU ELF KV100 4KB Aerial Work Truck
1 / 1
ISUZU ELF KV100 4KB Aerial Work Truck
Item Parameter Note
Chassis Brand & Model ISUZU ELF KV100 4x2 Light Duty Truck Chassis Original ISUZU factory chassis
Chassis Model Code QL10503HAR1Y Standard China VI/Euro 6 compliant model
Wheelbase 3360mm Fixed standard wheelbase
Overall Dimensions (L×W×H) 7450mm × 2000mm × 3300mm Standard 21m boom configuration
Gross Vehicle Weight (GVW) 7300kg Legal road operation weight limit
Curb Weight 5068kg Base vehicle weight without payload
Axle Configuration 2 Axles Front Axle Load: 2500kg; Rear Axle Load: 4800kg
Cab Type Single Row Standard Cab 3-person seating capacity
Steering System Left Hand Drive (LHD), Power Assist Steering Optional Right Hand Drive (RHD) for export markets
Brake System Hydraulic Brake System with ABS Anti-lock braking system as standard
Suspension System Front 3-Leaf Spring, Rear 3+2-Leaf Spring Heavy-duty leaf spring for stable operation
Tire Specification 7.00R16 6 road tires + 1 full-size spare tire
Fuel Tank Capacity 100L Steel fuel tank with anti-corrosion treatment
Battery 12V Maintenance-Free Battery Standard electrical system configuration
Maximum Driving Speed 90km/h Legal highway driving speed limit
Emission Standard China VI / Euro 6 Compliant with global mainstream emission regulations
