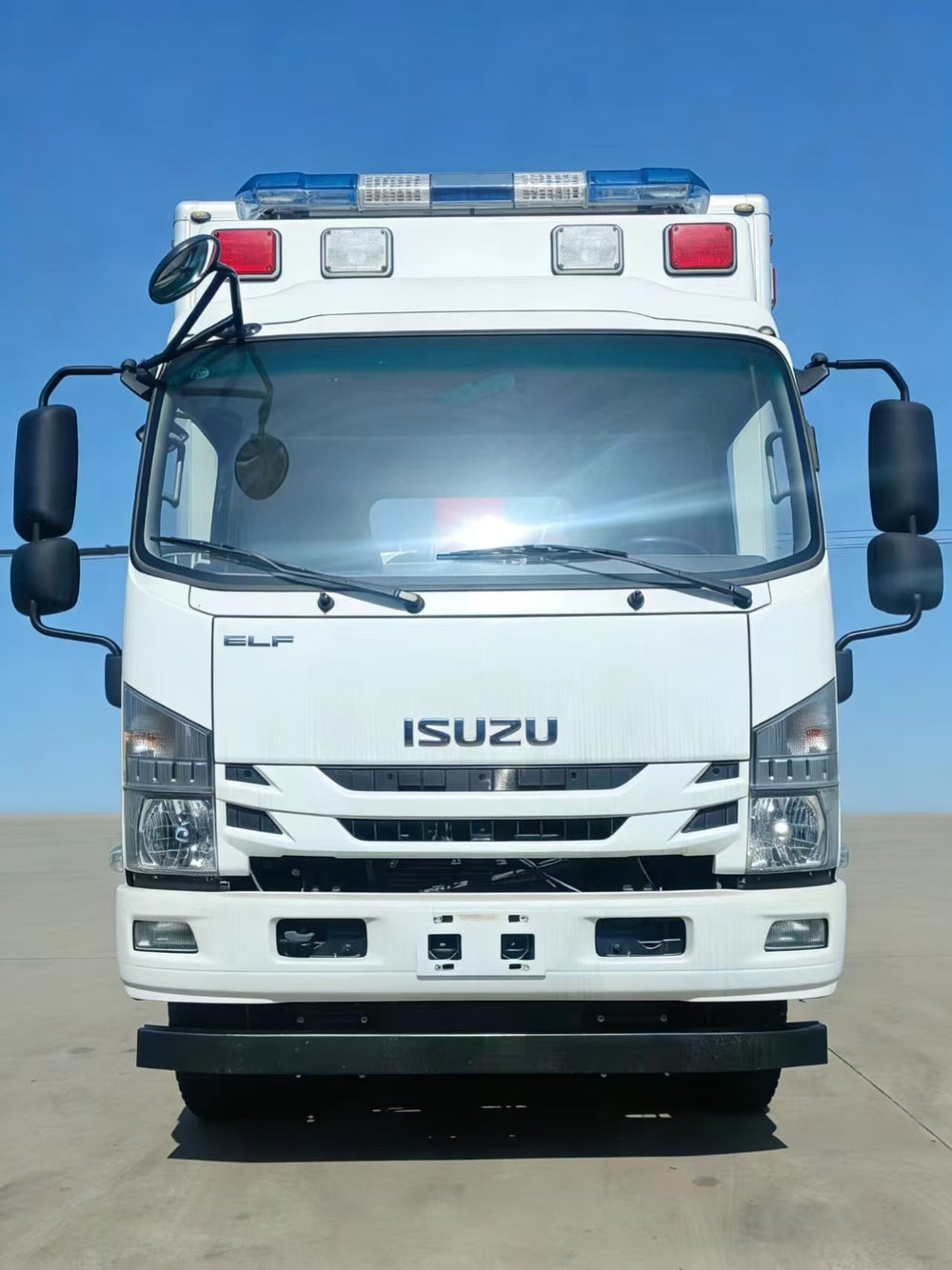

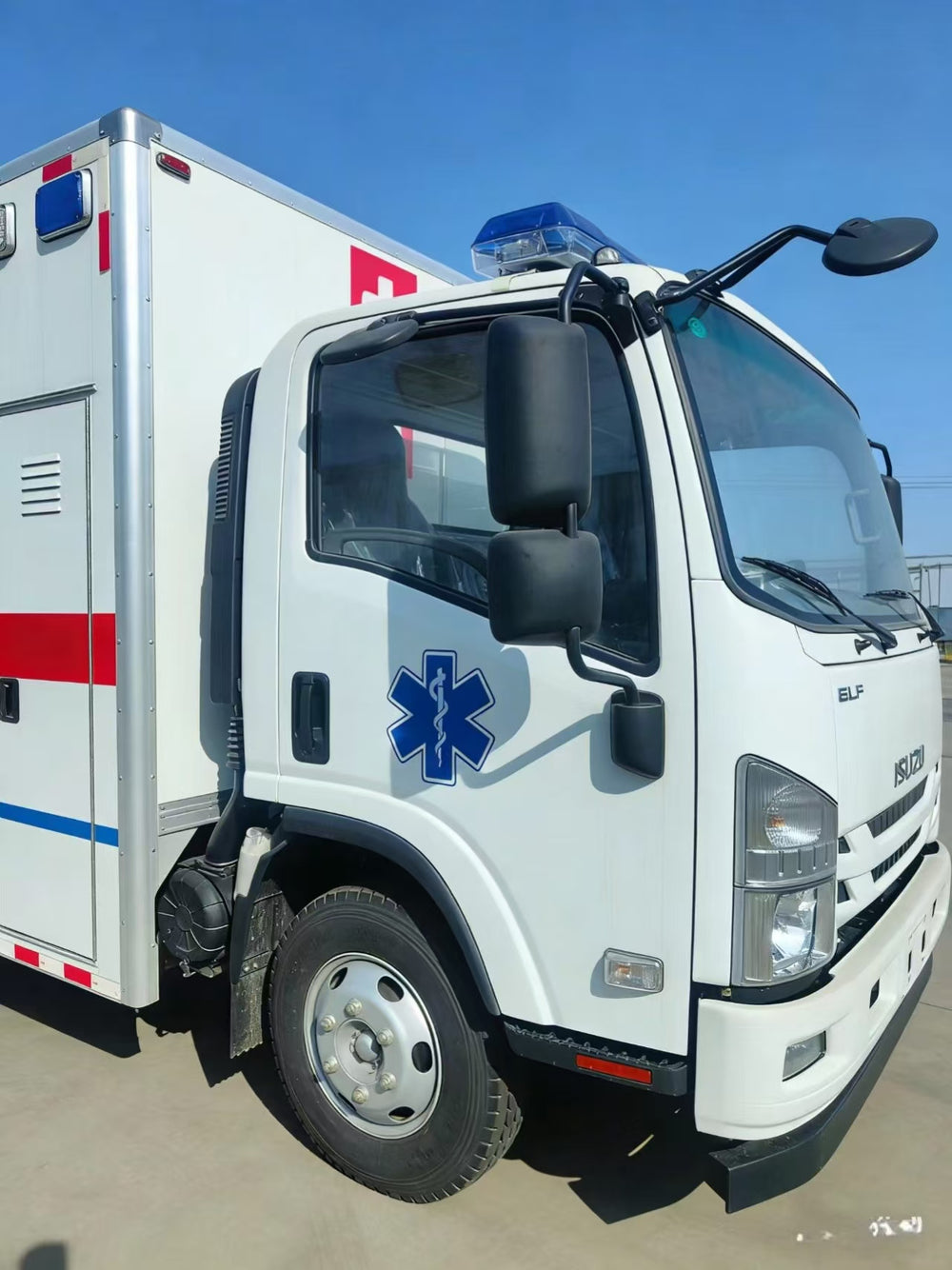

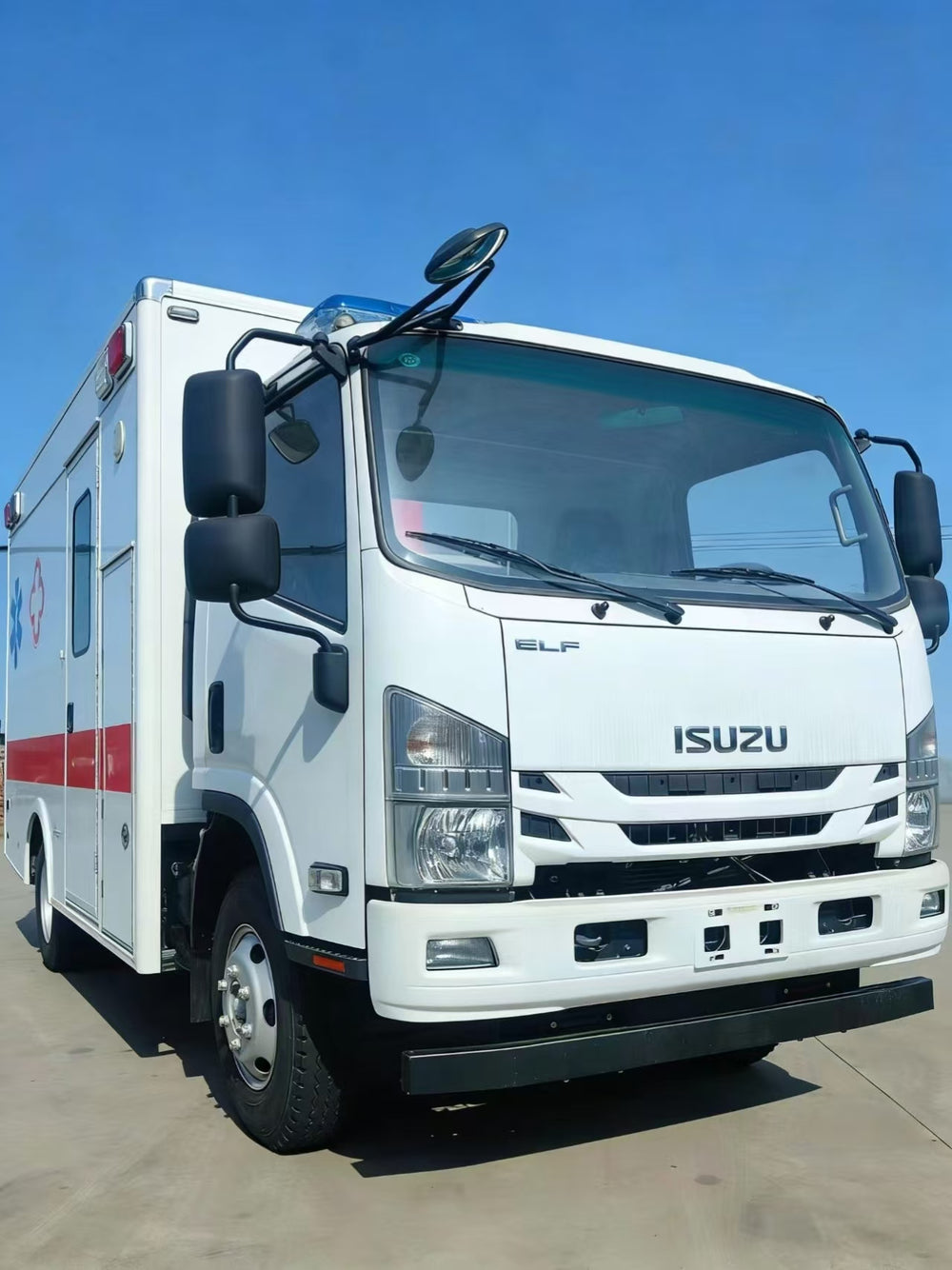

Isuzu Medical Truck

Title

Model,Specification,Value

Vehicle dimensions (mm):

6980x2170x2870

Medical module dimensions (mm):

4900x2170x2870

Wheelbase (mm):

3815

Emission standards:

Euro6

Engine model:

4HK1-TCQ61

Wheelbase:

3815

Total mass

10550kg

Curb weight

To be determined

Number of passengers

8

Fuel type

diesel

Engine type

turbocharged

Displacement

5.2L

Maximum power

139KW

transmission

6-speed manual

Drive method

 rear-wheel drive（4×2）

Rated speed

2600rpm

Maximum torque

507N.m

Maximum torque speed

1600-2600rpm

steering wheel

 Right rudder

Turning point:

Electro-hydraulic power steering

Tire specifications:

235/75R17.5

Cylinder arrangement

inline

Number of cylinders

4

Dedicated standard configuration

Appearance markings

1. First Aid Signs

Alert system

1. 100W siren and handheld control

2. Long row of warning lights mounted on the front of the roof

3. Body side pattern

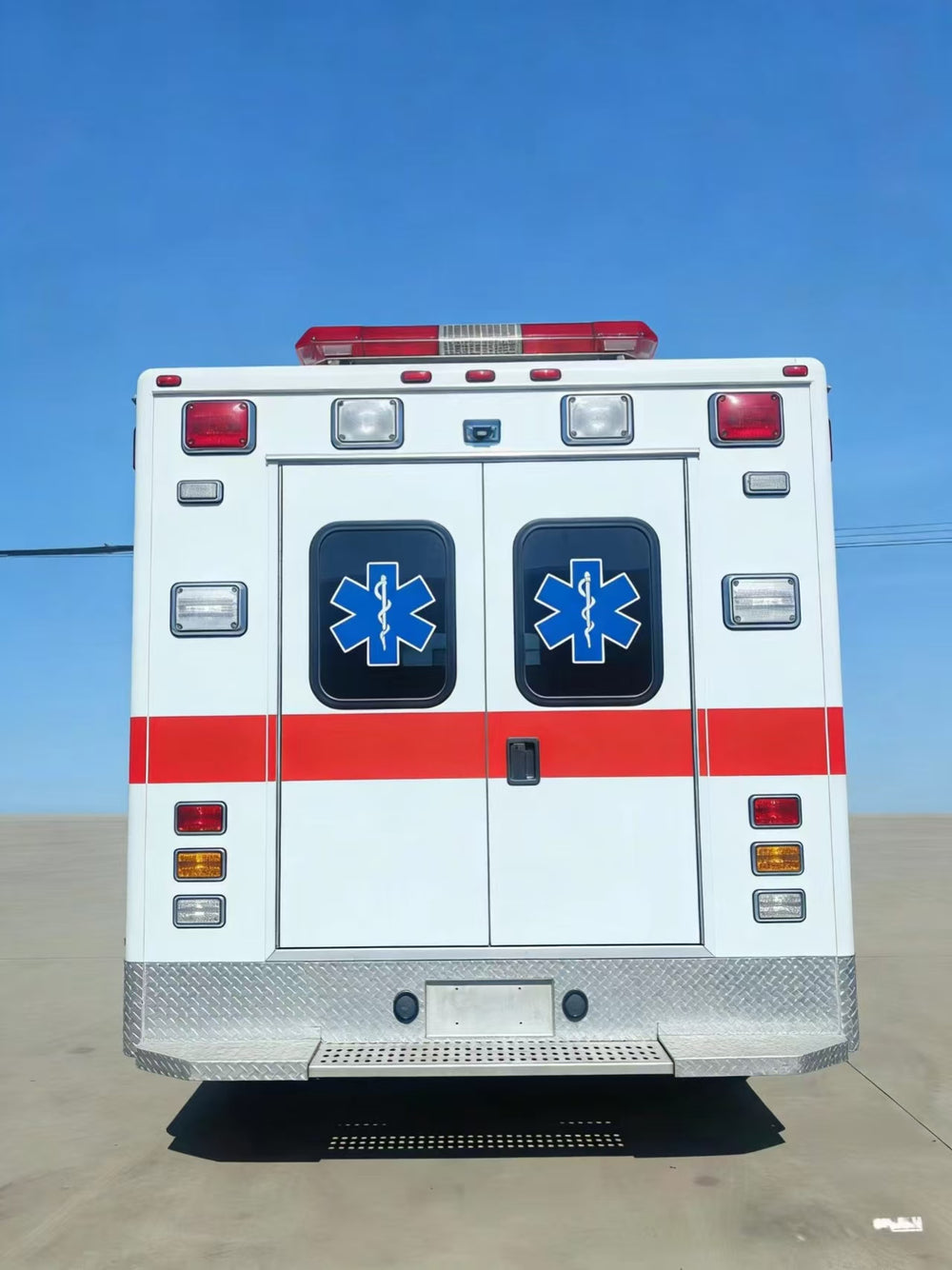

4. body rear pattern

oxygen supply system

1. 12 L oxygen cylinder with fixed stand

2. Oxygen tube, connecting pressure reducer and dispenser

3. Two national standard oxygen ports, one humidifier bottle

Exhaust system

1. One ventilation fan

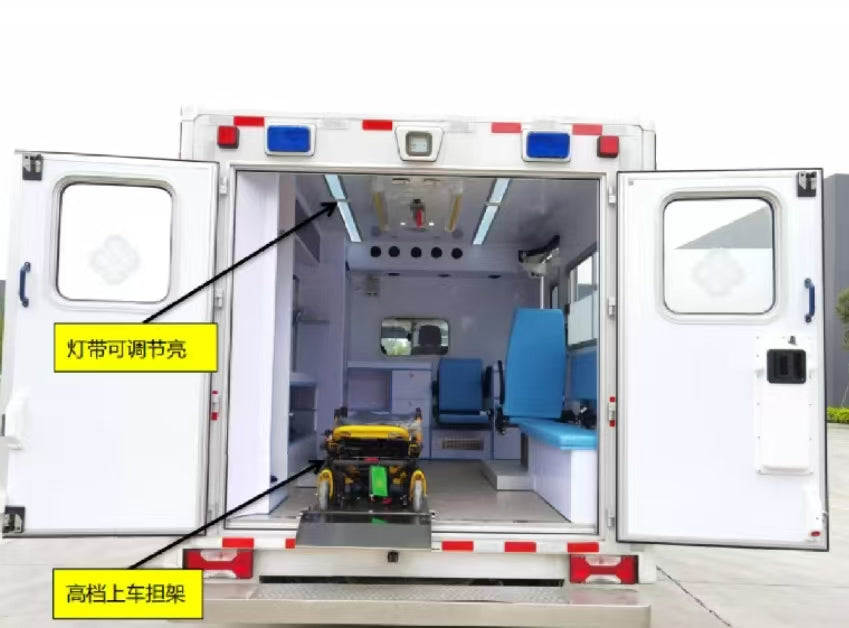

Lighting system

1. Four overhead lights (providing ample, even, and soft lighting inside the cabin)

2. Two overhead spotlights

3. One aft rear lighting unit

4. Illuminated inspection light above the examination bed

5． X-ray illuminator above the doctor's desk

sterilization system

1. One ultraviolet disinfection lamp

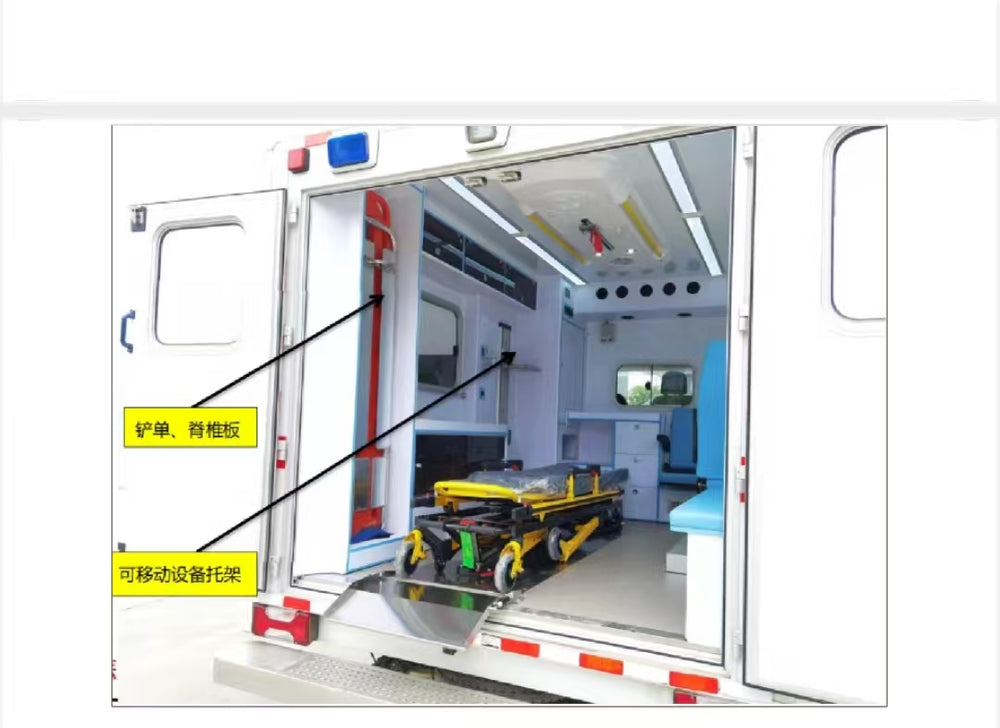

stretcher system

1. One automatic loading stretcher (high-strength aluminum alloy profile, easy to operate).

2. Stretcher pads and guide plates.

Power supply system

1.     Control panel in the patient area, air conditioning. Heating. Ventilation fan. Operating switch for lighting.

2 . Two inverters (which can provide 2000 watts of power for all medical device equipment work) with 4 220 volt power outlets and 2 12 volt power outlets.

3. . LED interior lighting covers all ceiling cabinets for day and night operation.

4. Air conditioning in the ward, rubber sealing ring around the perimeter.

5. Battery charger（220V-12V）（350W）

6. Walkie-talkie between the consultation room and the cab.

7. Digital watches

8. 100W public address system with sirens of different tones

9. A 5 kV diesel generator with inverter, junction box, electrical outlets and all necessary wires.

11. Wire (25m) for external 220V power supply, including power outlets located outside the aft cabin.

12. Double-sided electric roller shutter umbrella (3m), which can be operated by remote control.

13. Medical Refrigerator (50L）

Floor assembly

1. Environmentally friendly and corrosion-resistant laminated wood flooring

2. Medical-grade wear-resistant flooring with advantages such as flame retardancy, slip resistance, mildew resistance, easy cleaning, wear resistance, and acid and alkali resistance.

Central partition assembly

The high-polymer partition wall has a movable sliding window in the upper part.

Control cabinet assembly

1. A single medical cabinet is installed on the of the medical compartment.

2. A sliding storage cabinet is installed on the top

3. An oxygen cylinder cabinet is located at the rear

4. A single seat is installed on the of the medical compartment.

5.  Doctor's desk is installed in the medical cabin

6.    Examination bed in the medical cabin

other

1.  2 2kg dry powder fire extinguishers in the medical warehouse

2. One IV drip rail and two hooks

3. Yellow safety handrail on top

4.  Two trash cans

5. Water supply system: washbasin with electric faucet, two water tanks outside the cabin, one for clean water, one for sewage, no 50L, with 5m clean water hose.

6. Stationary heater

7.  One stretcher support platform
