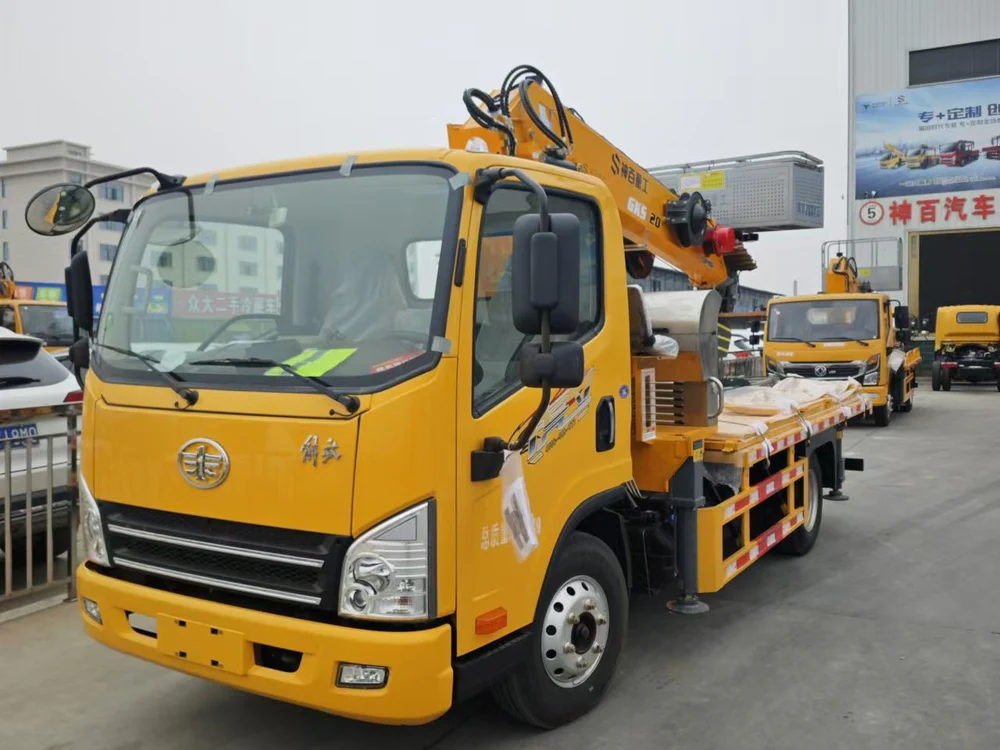

Jiefang Multifunctional Aerial Work Vehicle
Item Specification
Vehicle Name Jiefang Hu VN 3-in-1 Multifunctional Aerial Work Vehicle & Truck-mounted Crane
Policy Advantage Tax-exempt, integrate aerial work, hoisting and cargo transportation, high investment return
Vehicle Model ABC5049JGKCA6
Core Advantages 1. Boom made of 960 high-strength steel, high strength, light weight and stable extension

2. Modular design, painted assembly, easy maintenance and replacement

3. First-class domestic and imported key hydraulic parts, reasonable pipeline layout, stable operation without extra radiator

4. Dual operation modes with LCD screen, real-time working data display, safety limit and buffer protection
Cab Type Hu VN single-row 3-seater cab
Engine Yunnei 150HP
Gearbox Wanliyang 5-speed transmission
Frame 180mm widened beam
Tire Specification 7.00R16 steel wire tire
Wheelbase 3300mm
Rear Axle 5-ton rear axle, gear ratio 4.875
Brake System Air brake, wedge brake, ABS
Fuel & Urea Tank 70L fuel tank, 10L urea tank
Leaf Spring 3/7+3
Interior Configuration Air conditioner, electric windows, central control lock
Upper Equipment Model Shenbai GKS20-6
Crane Specification 5-ton 6-section boom crane
Max Lifting Weight 5 ton, 550kg with full boom extension
Max Working Height 19.2m
Max Working Radius 15m
Outrigger Span Horizontal:5150/4500mm, Longitudinal:3400mm
Aerial Basket 1.5m standard basket
Craftsmanship Shot blasting and baking finish for whole crane
Standard Accessories Wireless remote control, 2 safety helmets, 2 safety harnesses, 1 pair of walkie-talkies
Overall Dimension 5998×2200×3450mm (height ≤3m after platform folded)
Cargo Box Size 3400×2100×400mm, free cargo railing included
