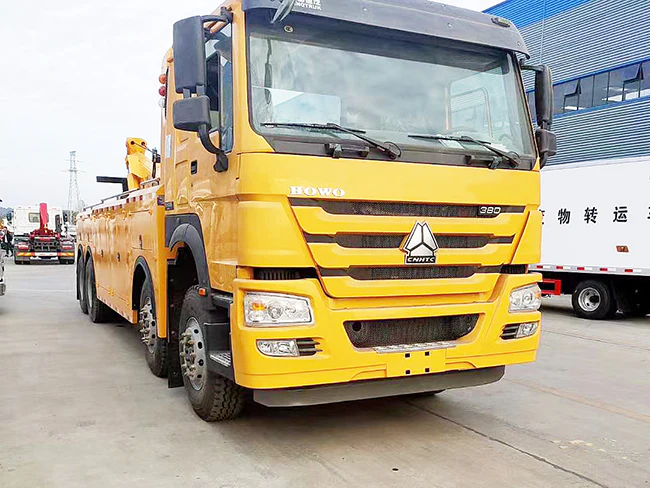

SINOTRUK HOWO 8×4 Integrated Tow & Crane Wrecker Truck

1 / 2

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Configuration Item	Parameter Value
1. Basic Vehicle Parameters
Product Name	SINOTRUK HOWO 8x4 Wrecker Tow Truck with Integrated Crane
Gross Vehicle Weight	44000kg
Curb Weight	23210kg
Overall Dimensions	11650×2540×3210mm
Wheelbase	1950+4625+1350mm
Maximum Speed	101km/h
Maximum Gradeability	35%
Emission Standard	China VI
Cab Capacity	2/3 Persons
Approach Angle/Departure Angle	14°/18°
Front Overhang/Rear Overhang	1500/2180mm
2. Chassis Configuration
Chassis Model	ZZ1317N4667E1B
Engine Model	WP10H400E62 / MC11.44-60
Engine Type	Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged Diesel Engine
Maximum Horsepower	400HP / 440HP
Maximum Torque	1900N·m / 2100N·m
Gearbox Model	HW19710 10-speed Manual Gearbox / 12JSDX220T-B 12-speed Manual Gearbox
Power Take-off	HW70 Flange-type PTO
Front Axle	VPD75D Disc Front Axle, 9-ton Grade
Rear Axle	MAT16ZG Self-adjusting Arm Twin Rear Axles, 16-ton Grade
Axle Ratio	4.42 / 4.8
Frame	Double-layer Frame (8+8/300mm)
Suspension System	Front and Rear Reinforced Multi-leaf Springs (11/11/12)
Tire Specification	12.00R20 Steel Radial Tires / 315/80R22.5 Tubeless Tires
Braking System	Air-over-hydraulic Brake, ABS (4S/4M)
Steering System	8118 Steering Gear, Hydraulic Power Steering
Fuel Tank	400L Aluminum Alloy Fuel Tank
Cab	HOWO V7/X7 Wide-body Cab, Main Airbag + Auxiliary Simple Seat, Factory Air Conditioning, Electric Windows, Central Locking
3. Superstructure Special Configuration
Superstructure Model	25T20D Integrated Wrecker and Crane Superstructure
Crane Boom	2-section Hexagonal High-strength Steel Plate Boom, Full Rotation, Planetary Reduction
Maximum Lifting Capacity	20 Tons
Maximum Working Radius of Crane Boom	14.5m
Tow Arm	3-section Telescopic and Liftable Tow Arm
In-situ Lifting Capacity	20 Tons
Maximum Lifting Capacity at Full Extension	7.31 Tons
Maximum Towing Capacity	30 Tons
Maximum Traction Capacity of Drawbar	60 Tons
Effective Length of Tow Arm	1460mm-2950mm
Telescopic Stroke of Tow Arm	1850mm
Hydraulic System	Imported Hydraulic System, Fully Imported Seals, Bilateral Linkage Operation Device, Wireless Remote Control Operation
Hydraulic Winch	2 Sets of 10-ton/15-ton Hydraulic Winches, 45m/55m Steel Wire Rope, Diameter 18mm, with 20-ton Hooks
Outriggers	4 Double-cavity Hydraulic Outriggers, Front Outriggers are Foldable
Compartment	Split-type Compartment, Welded with High-strength Steel Plate
Counterweight	1.8-ton Counterweight Installed on Front Bumper
Standard Configuration	1 Set of U-type Tire Holding Device, 5 Pairs of Tow Forks, 1 Pair of Tow Fork Seats, 2 Chain Hooks, 1 Hand Wash Box, 1 Set of Auxiliary Light Assembly, 1 Set of Auxiliary Brake Air Pipe Assembly, 1 LED Long-row Engineering Warning Light, Reversing Image, 1 Set of On-board Tools
4. Performance Parameters
Maximum Lifting Height	13.1m
Slewing Angle of Crane Boom	360° Full Rotation
Upward/Downward Inclination Angle of Tow Arm	7°/-7°
Folding Angle of Tow Arm	-7°~93°
Maximum Ground Clearance of Upper Surface of Fully Retracted Tow Arm	900mm
Minimum Limiting Speed of Steel Wire Rope	5m/min
Working Pressure of Hydraulic System	16MPa
