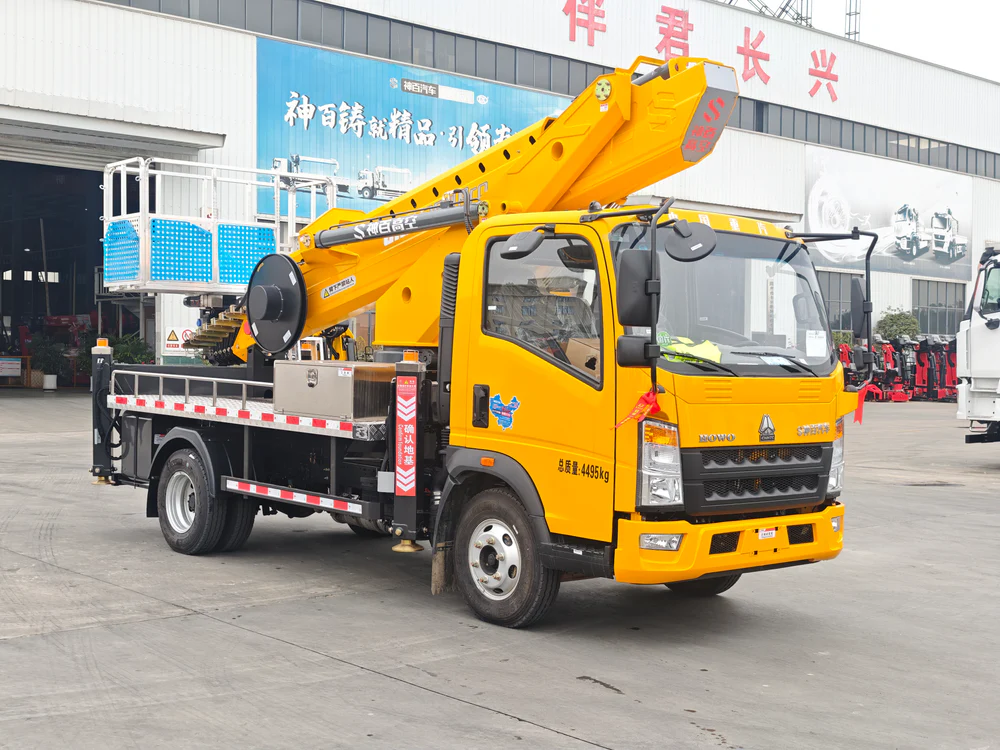

SINOTRUK Howo GKS35 Pro Aerial Work Vehicle

1 / 1

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Item	Specification
Vehicle Name	SINOTRUK Howo GKS35 Pro Aerial Work Vehicle
Core Advantage	7-section boom blue plate aerial work vehicle, max working height 33.8m, Howo Wealth Creation Edition
Brand Strength	1. Authentic SINOTRUK high-end brand, 2-year extended warranty 2. Nationwide 2150 service stations for reliable after-sales support
Approval Model	ABC5047JGKZZ6 Aerial Work Vehicle
Exclusive Feature	Pioneer 7-section boom design, 33.8m working height with blue license plate
Technical Highlights	1. Adopt 960 high-strength steel plate 2. Double-section outriggers, span 5800mm / 6700mm 3. 7-section boom with 6-section synchronous telescoping, lifting height 33.8m 4. Equipped with double lifting cylinders 5. 9-inch basket slewing support, full aluminum alloy basket with loading platform 6. Box-type subframe and trapezoidal three-layer reinforced slewing base 7. Overall vehicle height: 3.15m 8. Max working radius: 16.5m, boom length: 30.3m 9. Max working outreach: 33.8m
Chassis Cab	Howo Wealth Creation Edition Cab
Gross Vehicle Mass	4495KG
Curb Weight	4300KG
Engine Model	Weichai WP25Q160E62
Transmission	Wanliyang 6-speed / 8-speed gearbox, 120000km long oil change cycle
Wheelbase	3280mm
Overall Dimension	5995mm2200mm3150mm
Tire Specification	700R16
Brake System	Air brake
Standard Cab Fittings	Electric windows, air conditioner, central control lock
Superstructure Model	GKS35 Pro
Max Working Height	33.8m
Max Working Radius	16.5m
Rated Platform Load	200KG
Boom Slewing Angle	360°
Platform Size	1800mm700mm1000mm (with flip plate)
Platform Rotation Range	360° free full rotation
Boom Configuration	7-section boom, 6 sections synchronous extension, fitted with spare steel wire rope for safe evacuation
Control System	High-grade domestic electric control system, wireless remote control, middle operation console with display screen
Hydraulic System	Electro-hydraulic proportional valve for stepless speed regulation, built-in emergency power unit
Hydraulic Outriggers	X-type 4 sets of double-section independently adjustable outriggers
Walkway Plate	Aluminum alloy anti-slip walkway plate
Safety Devices	Upper & lower operation interlock, emergency power source, two-way hydraulic balance valve, outrigger soft leg protection, hydraulic radiator, 220V external power supply
Optional Equipments	Upper operation cab, 1-ton winch
