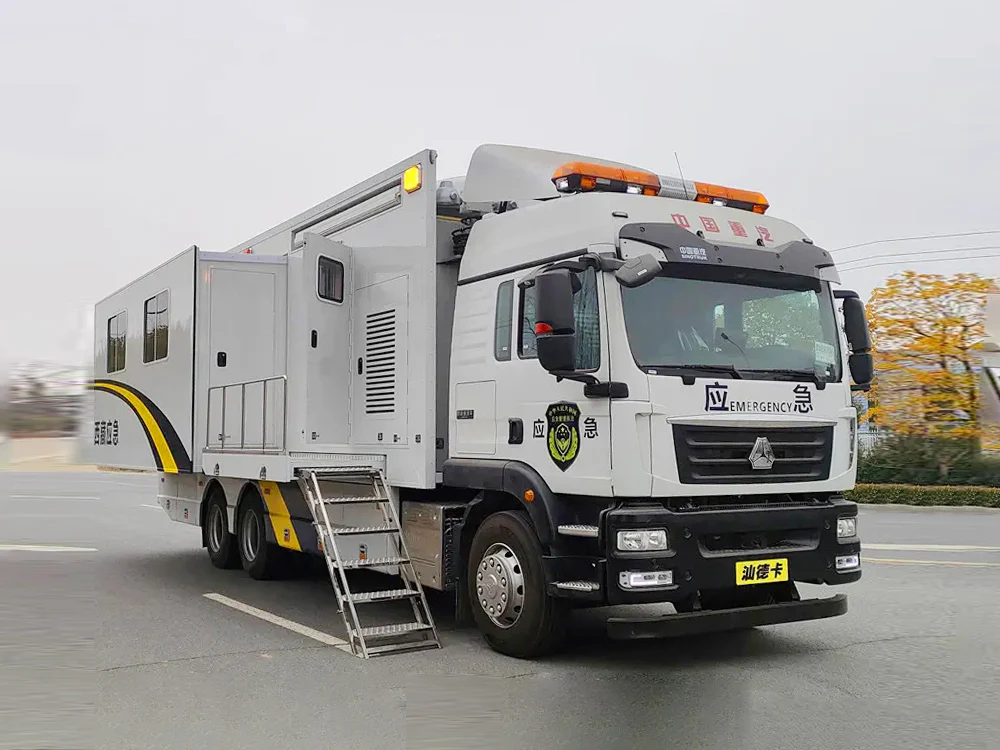

Sinotruk SITRAK 6×4 Emergency Command Vehicle

1 / 1

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Configuration Item	Specification & Parameter
Basic Vehicle Parameters
Full Model Name	Sinotruk SITRAK 6×4 Emergency Command Vehicle
Drive Mode	6×4 Rear Double Axle
Seating Capacity	2 seats in driving cab + 6 working seats in rear command compartment
Overall Dimension (L×W×H)	11800mm × 2550mm × 3950mm
Curb Weight	17800kg
Gross Vehicle Weight	32000kg
Max. Speed	≥ 90km/h
Min. Turning Radius	≤ 9.5m
Gradeability	≥ 30%
Working Ambient Temperature	-40℃ ~ +55℃
Chassis Parameters
Original Chassis Model	Sinotruk SITRAK C7H 6×4
Cab Type	High-roof single row cab, air suspension driver seat, automatic air conditioning
Wheelbase	4600+1350mm
Tire Spec	12.00R20 steel radial tires (1 spare tire included)
Front Axle Load	7000kg
Rear Tandem Axle Total Load	25000kg
Suspension	Front leaf spring, rear heavy-duty leaf spring with stabilizer bar
Brake System	Dual-circuit air brake, ABS, ASR, exhaust auxiliary brake
Steering	Hydraulic power steering
Transmission	12-speed AMT automatic transmission
Main Engine System
Engine Brand	Sinotruk MC13 Diesel Engine
Engine Type	Inline 6-cylinder, water-cooled, turbocharged & intercooled
Displacement	12.42L
Rated Power / Speed	400hp (294kW) / 1900rpm
Peak Torque	2000N·m @ 1000~1400rpm
Fuel Supply	High pressure common rail electronic injection
Fuel Tank Volume	400L
Emission Standard	National VI / Euro VI
Exhaust Device	Vertical exhaust with spark arrester & silencer
Rear Command Compartment (Core)
Compartment Structure	All steel welded sealed box, fully waterproof, dustproof, sound insulation & thermal insulation
Outer Plate	Cold rolled steel plate; Inner decorative fireproof panel
Floor	Anti-static fireproof floor, concealed wiring channel
Access Design	Side maintenance door, rear double door, external aluminum boarding ladder
Window Configuration	Double-layer hollow tempered privacy glass with sunshade curtain
Ventilation System	Positive pressure forced air intake + exhaust fans, rainproof dust filter shutters
Internal Environment Control	Dual independent inverter air conditioners + heating system, constant temperature control
Interior Lighting	Dimmable LED ambient light, console task light, emergency evacuation light
Exterior Warning Light	Top integrated orange long-row warning light bar
Integrated Command & Communication System
Central Operation Platform	Integrated intelligent command host, 4 multi-function operation workstations
Video Conference System	HD MCU multi-point video conference terminal, screen sharing & remote meeting
Satellite Communication	Vehicle-mounted moving VSAT satellite station, global voice/video/data transmission
Trunking Radio System	DMR digital repeater, group call / emergency call function
Network Access	5G/4G multi-carrier aggregation router, full coverage WiFi6, VPN encrypted transmission
Audio PA System	Digital audio matrix, outdoor high-power loudspeaker, emergency siren broadcast
Positioning Module	Beidou + GPS dual-mode high-precision positioning, real-time vehicle tracking
Display System	Wall-mounted multi-split display screen, real-time monitoring of field situation
Power Supply & Distribution System
Power Supply Mode	4-way redundant power: city mains / onboard silent generator / UPS backup / chassis power
On-board Generator	25kW silent diesel generator, auto start-stop linkage
Online UPS Power	20kVA UPS uninterruptible power supply, standby time ≥ 2 hours
Main Distribution Cabinet	Intelligent copper busbar power cabinet, overload, short circuit, leakage full protection
Output Interface	Multiple 220V AC industrial sockets, 380V heavy-duty power terminals, 24V DC ports
Low/High Voltage Separate Wiring	Fire-resistant wiring harness, independent circuit protection for each loop
Full Safety Protection System
Fire Protection	Smoke & temperature automatic fire alarm, dry powder fire extinguishers inside & outside
Grounding System	Retractable grounding rod & cable, whole vehicle equipotential bonding, grounding resistance ≤ 4Ω
Lightning Protection	Class II lightning protection module for communication and power circuits
Anti-corrosion Treatment	Whole vehicle sandblasting primer + outdoor anti-corrosion finish paint
Safety Marking	Standard emergency reflective marking, warning signs, operation specification labels
Emergency Devices	Multi-position emergency stop buttons, escape hammer, first aid kit
360° Surveillance	Panoramic exterior cameras + interior monitoring system with DVR storage
Standard Equipments & Optional Upgrades
Standard On-board Accessories	Conference table, office chairs, printer, whiteboard, intercom terminals, safety protective gear
Optional Upgrade 1	UAV vehicle-mounted take-off & control system, roof sliding drone platform
Optional Upgrade 2	Larger capacity lithium battery pack, solar auxiliary power system
Optional Upgrade 3	Expandable slide-out compartment, bulletproof armored compartment upgrade
Optional Upgrade 4	Cold region preheating package / high temperature enhanced cooling package
