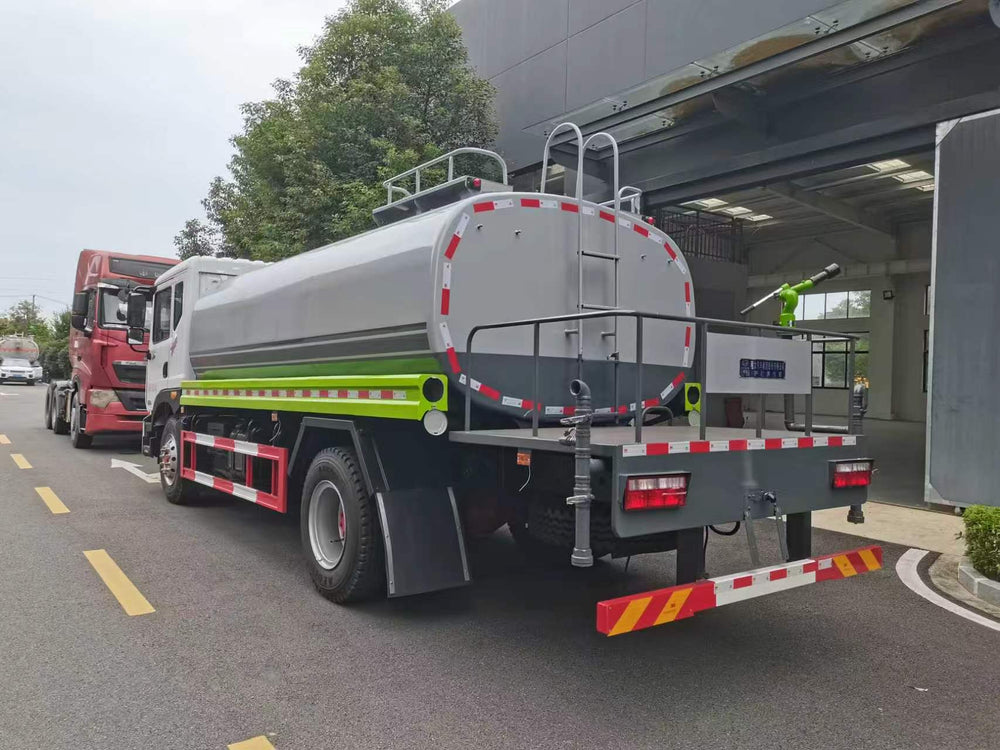

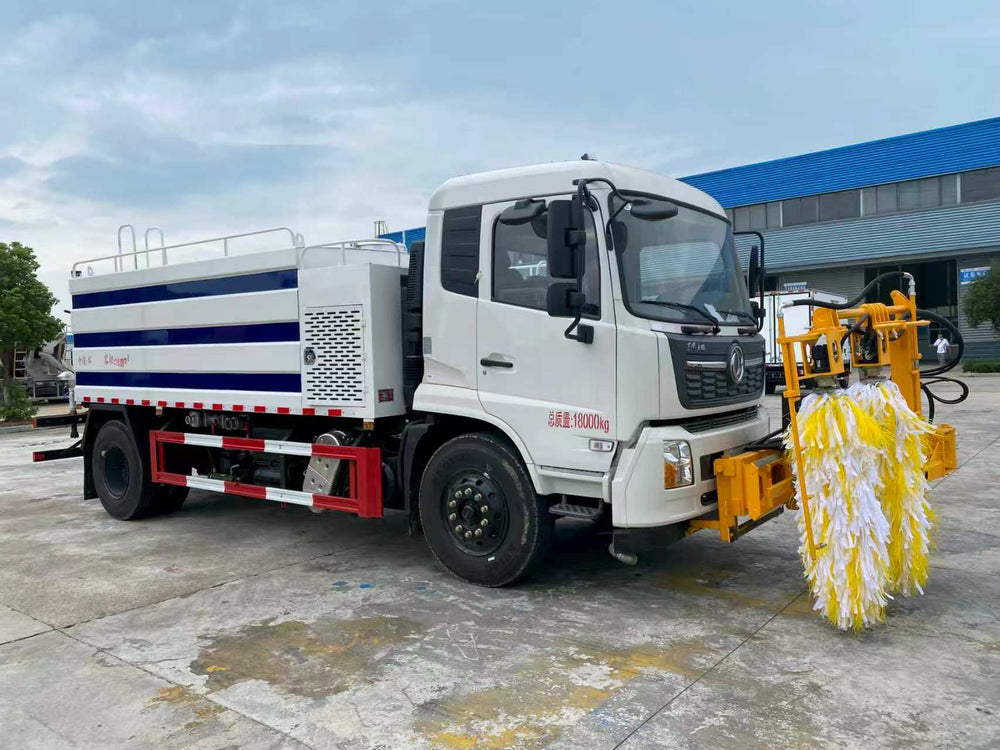

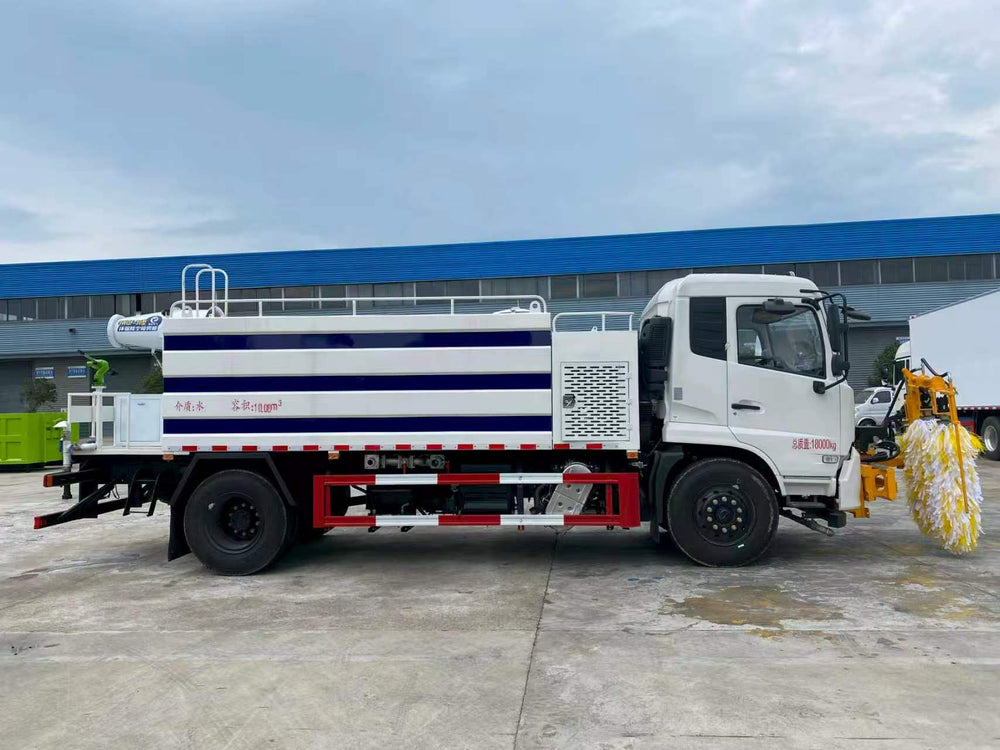

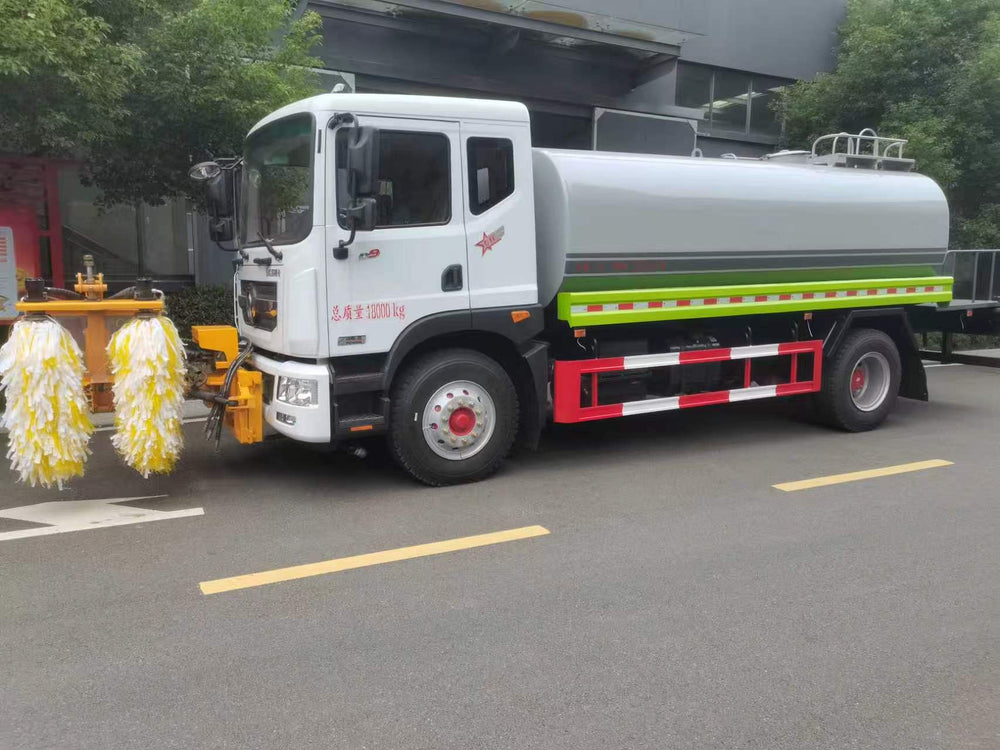

DongFeng 13m³ Guardrail Cleaning Truck

DongFeng 13m³ Guardrail Cleaning Truck
DongFeng 13m³ Guardrail Cleaning Truck
DongFeng 13m³ Guardrail Cleaning Truck
DongFeng 13m³ Guardrail Cleaning Truck
1 / 4
DongFeng 13m³ Guardrail Cleaning Truck
DongFeng 13m³ Guardrail Cleaning Truck
DongFeng 13m³ Guardrail Cleaning Truck
DongFeng 13m³ Guardrail Cleaning Truck

1. Complete Vehicle Basic Parameters

Parameter Value
Vehicle Type High-Speed Road Cleaning Truck
Complete Vehicle Model CL5186GQX6HL
Gross Vehicle Weight 18000 kg
Rated Load Capacity 9670 kg / 9605 kg
Curb Weight 8200 kg
Number of Axles 2
Axle Load Distribution 6500 kg / 11500 kg
Cab Seating Capacity 3 persons / 2 persons
Maximum Speed 89 km/h / 98 km/h
Chassis Model DFH1180EX8
Chassis Type Cargo Truck Chassis

2. Dimension & Wheel Parameters

Parameter Value
Overall Dimension (L×W×H) 8100/8300/9300/9500 × 2400/2500 × 3200/3300 mm
Wheelbase 4500 mm / 4700 mm
Front Overhang / Rear Overhang 1400/2100 mm, 1430/2070 mm
Front Track Width 1876 / 1896 / 1920 / 1950 / 1914 / 1934 / 1980 / 2000 / 1815 / 1860 mm
Rear Track Width 1820 / 1860 / 1800 / 1840 mm
Tire Specification 10.00R20 18PR
Number of Tires 6

3. Powertrain System

Parameter Value
Engine Options Cummins 230 HP / Longqing 260 HP
Fuel Type Diesel
Transmission Shaanxi Fast 8-speed Gearbox

4. Water Tank & Sprinkler System

Parameter Value
Tank Effective Volume 9.77 m³ (approx. 13 m³ total)
Tank External Dimension 3800 × 2450 × 1300 mm
Tank Material Q235 Carbon Steel
Tank Wall Thickness 4 mm
Sprinkler Pump Model Tianyi 60-90 Water Pump
Standard Sprinkler Functions Front flush, rear spray, S-type high-pressure water cannon, fire hose connection, tank anti-corrosion coating, side protection, climbing ladder, thickened perforated rear work platform, suction hose, reversing camera, pneumatic ball valve
Optional Accessories 30-meter fog cannon, arrow warning light

5. High-Speed Cleaning Power System

Parameter Value
Power Take-off Mode Chassis PTO-driven
System Working Pressure 4 MPa
System Flow Rate 40 L/min
Cleaning Brush Quantity 2 cylindrical brushes
Brush Diameter 700 mm
Brush Length 600 – 800 mm
Brush Rotation Speed 300 rpm
Cleaning Arm Lifting Range 1000 – 1500 mm
Auxiliary Engine Model Jiangling Lingfa
Auxiliary Engine Working Speed 1500 – 1700 rpm
High-Pressure Water Pump Brand Putzmeister (Germany)
High-Pressure Pump Pressure 12 MPa
High-Pressure Water Flow 170 L/min
Water Pump Flow Range 0 – 42.3 L/min
Cleaning Type High-pressure washing type
Control Mode In-cab operation; electro-hydraulic control
Brush Material Ultra-soft polyethylene multi-filament + adhesive cloth strips
Working Cleaning Speed 2 – 20 km/h
Standard System Accessories Auxiliary engine, high-pressure pump, hydraulic oil tank, filter, hydraulic pump, hydraulic motor, distribution valve, oil cylinder, hydraulic hoses, water cooling system

6. Chassis Standard Configuration

Parameter Value
Cab Type Half-row crew cab
Cab Color Options Sheep Fat White / Engineering Yellow
Front Axle Rated Load 4.5 Tons
Rear Axle Rated Load 9 Tons
Frame Specification 250 mm Frame
Driver Seat Air Suspension Seat
Cab Interior Original factory air conditioner, electric windows, central door locking
Brake System ABS anti-lock braking system, exhaust brake
Safety Feature Seatbelt voice alarm reminder
