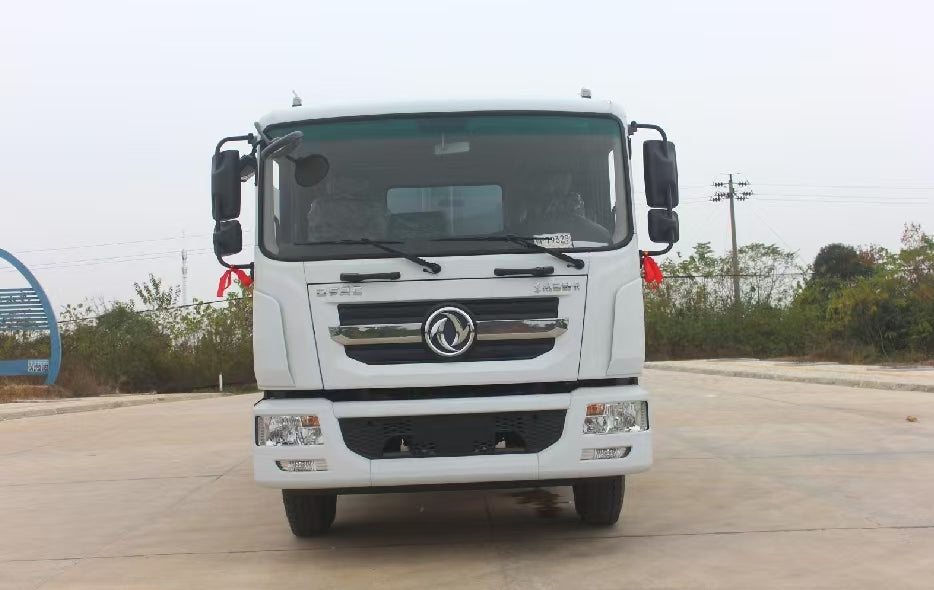

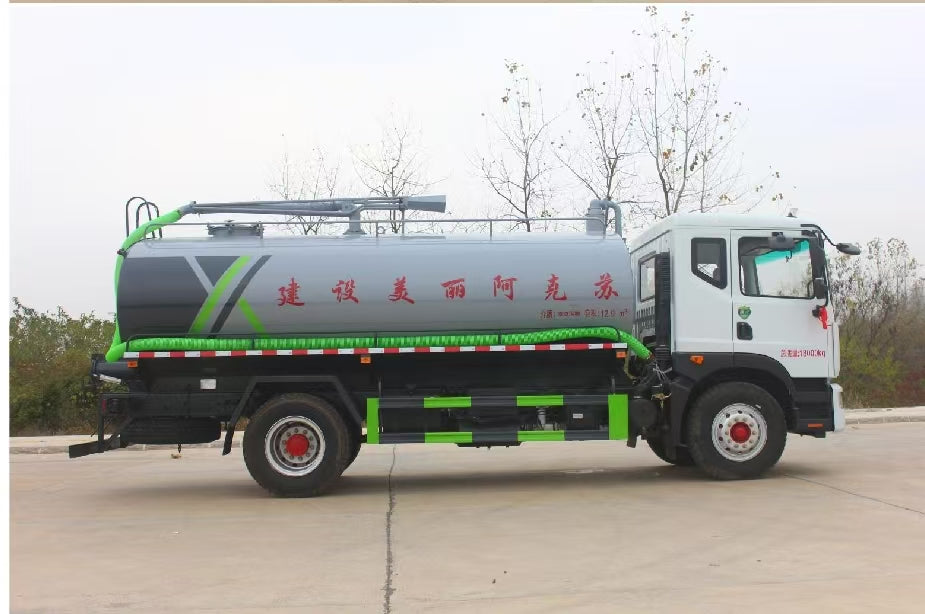

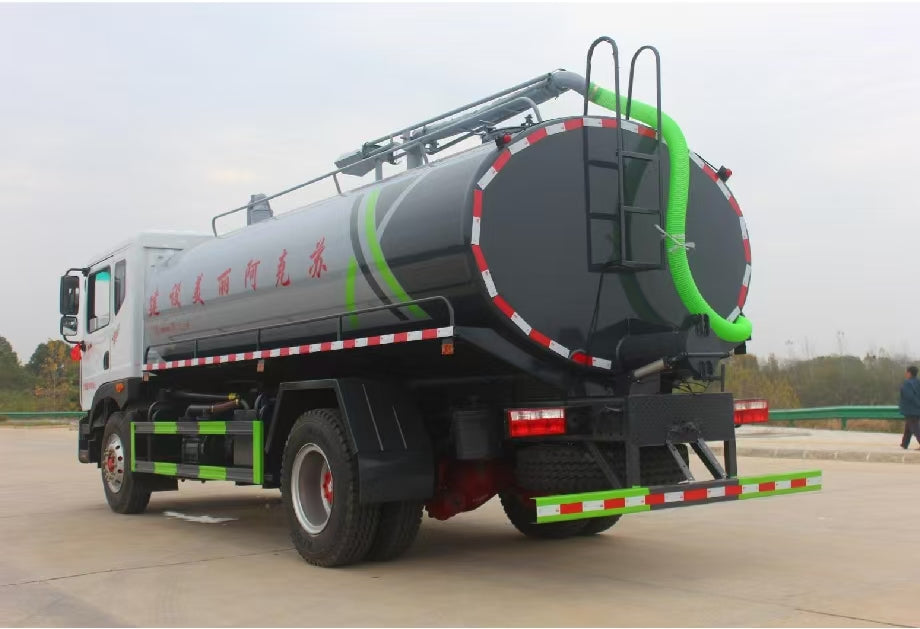

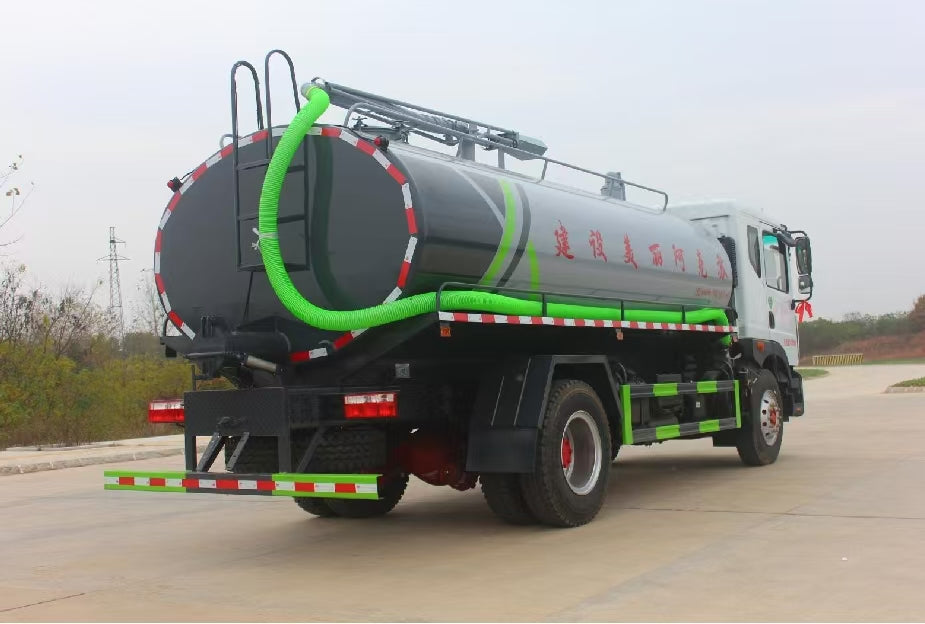

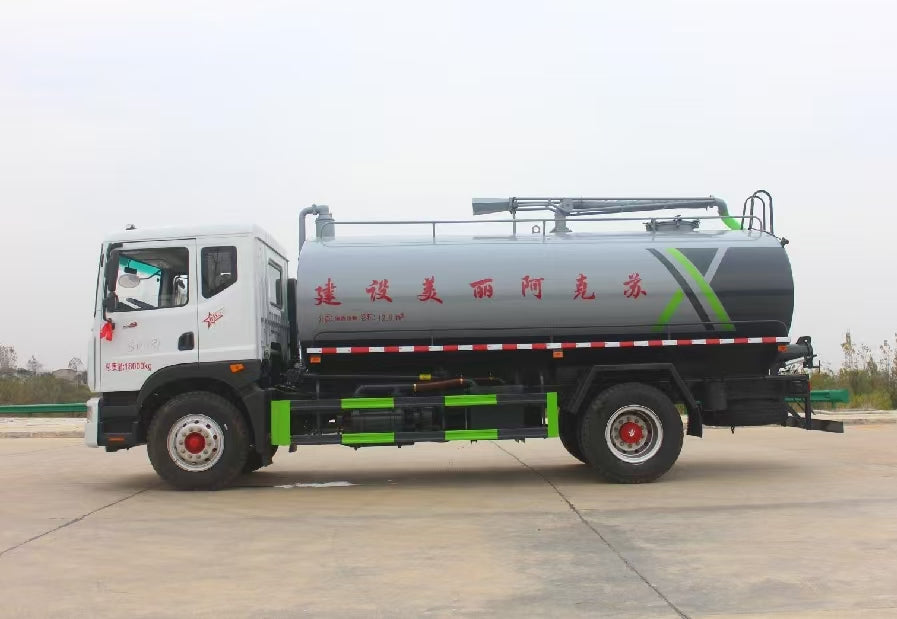

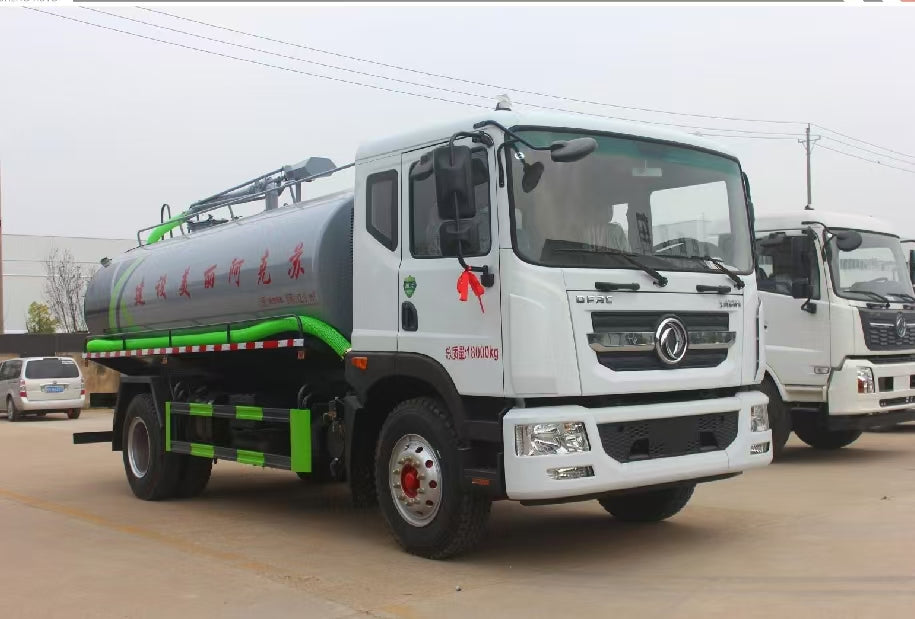

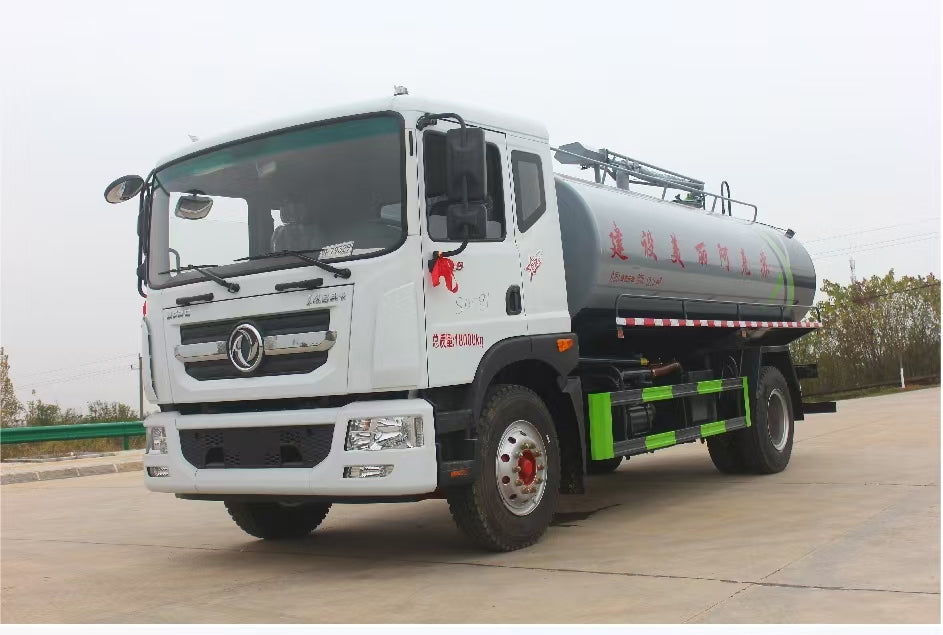

Dongfeng 15m³ sewage suction truck

Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
1 / 7
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck
Dongfeng 15m³ sewage suction truck



Feature Option 1 Option 2
Engine Model Cummins D4.0NS6B195 Cummins B6.2NS6B230
Horsepower 195 HP 230 HP
Gearbox Fast 8-speed Fast 8-speed
Cab 2315 Series 2315 Series
Tires 10.00 Steel wire tires 10.00 Steel wire tires
Standard Equipment Air brake, A/C, Power windows, Central locking Air brake, A/C, Power windows, Central locking

2. Main Technical Parameters

Item Specification / Value
Vehicle Model  XSH5180GXEE Vacuum Truck
Engine Model Cummins D4.0NS6B195 / B6.2NS6B230
Horsepower / Displacement 195 HP / 4.0L; 230 HP / 6.2L
Gearbox Fast 8-speed
Tire Specification 9.00 Steel wire tires
Wheelbase 4500 mm
Gross Vehicle Weight (GVW) 18,000 kg
Curb Weight 7,570 / 7,970 kg
Rated Payload 10,235 / 10,300 / 9,835 / 9,900 kg
Overall Dimensions (L×W×H) (7,600 / 8,150) × 2,500 × (3,150 / 3,250) mm
Tank Volume 15 m³
Emission Standard GB17691-2018 (China VI)
Vacuum Pump Model 10-ton Oil Pump / SK-12 Water Circulation Pump
Tank Material Q235 Carbon Steel (Wuhan Steel)
