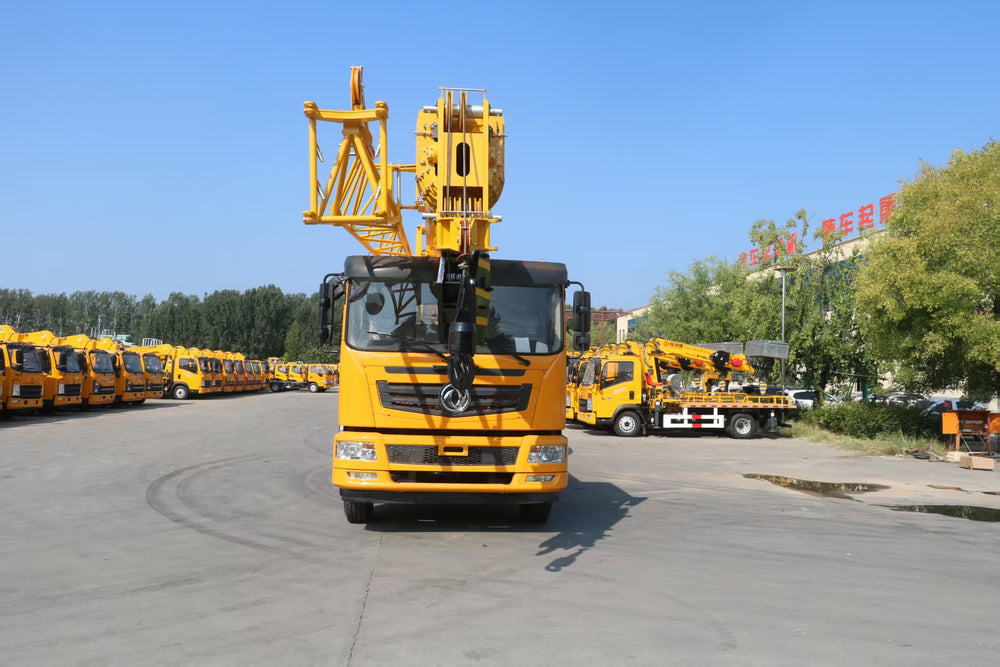

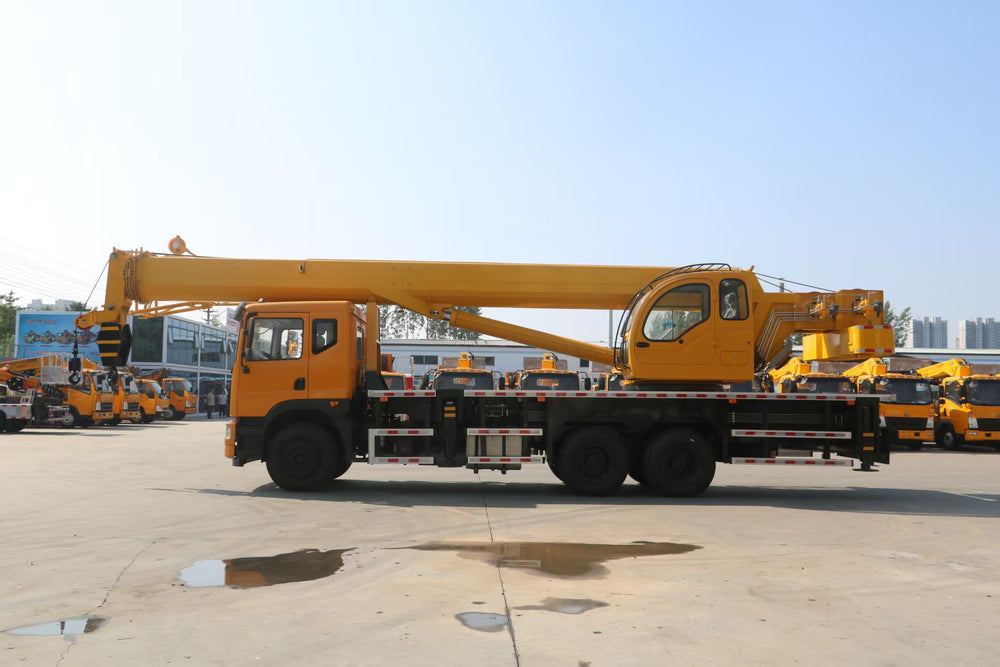

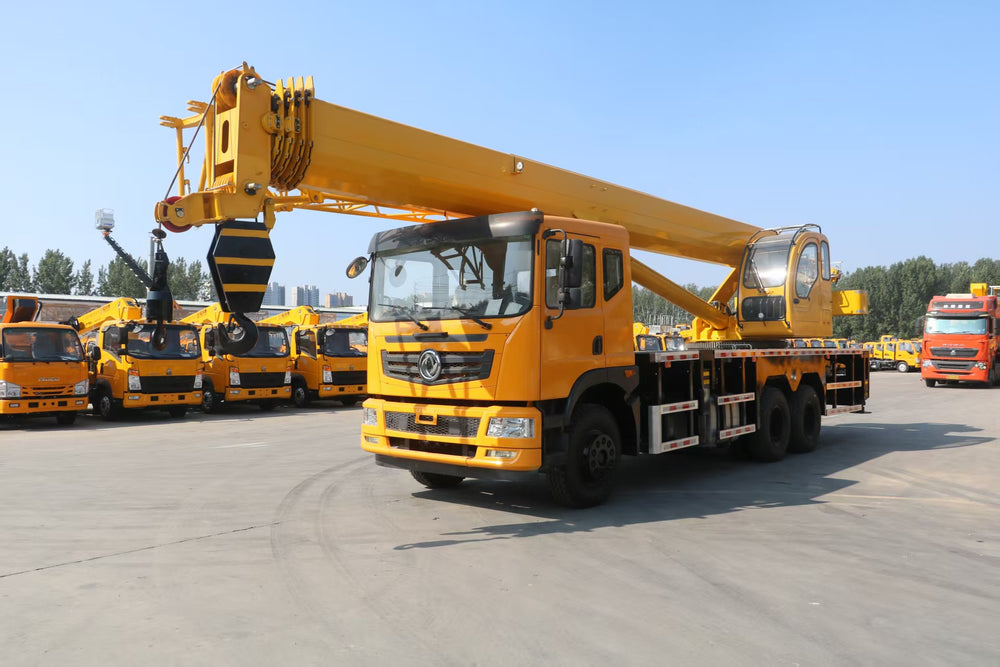

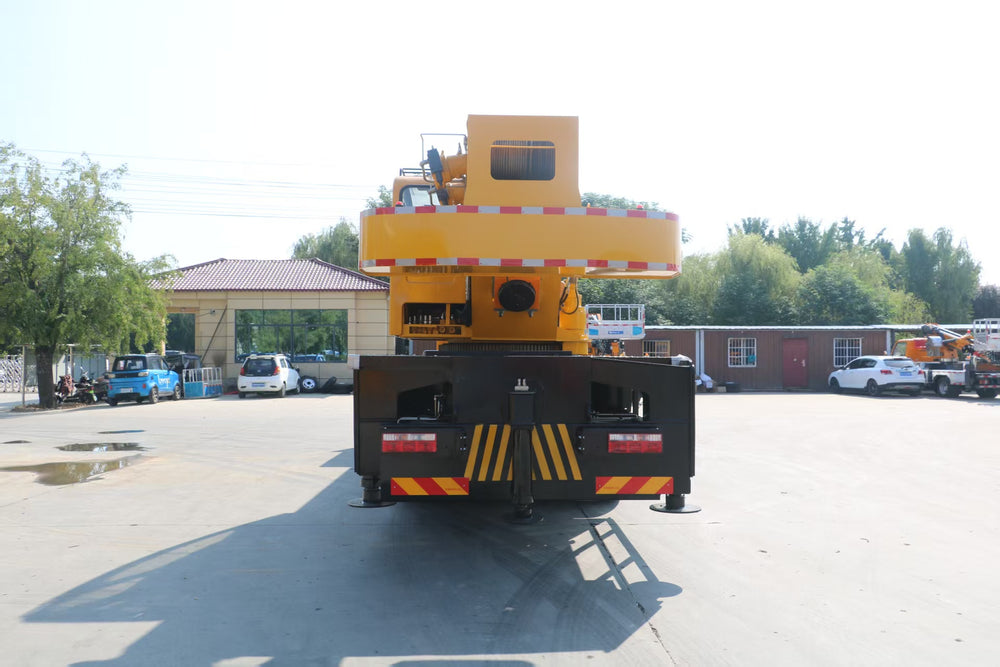

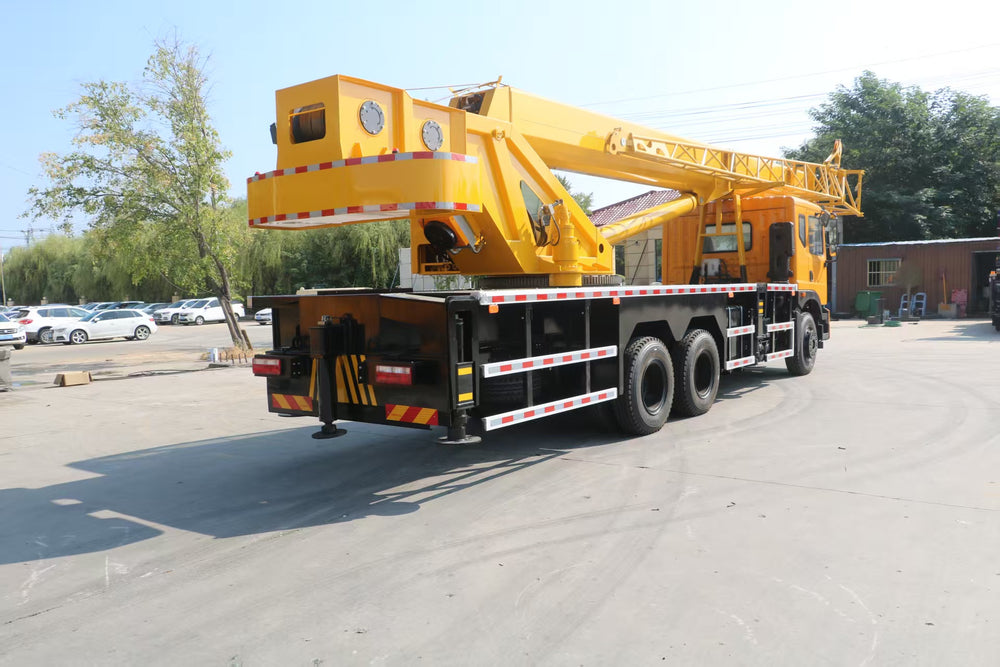

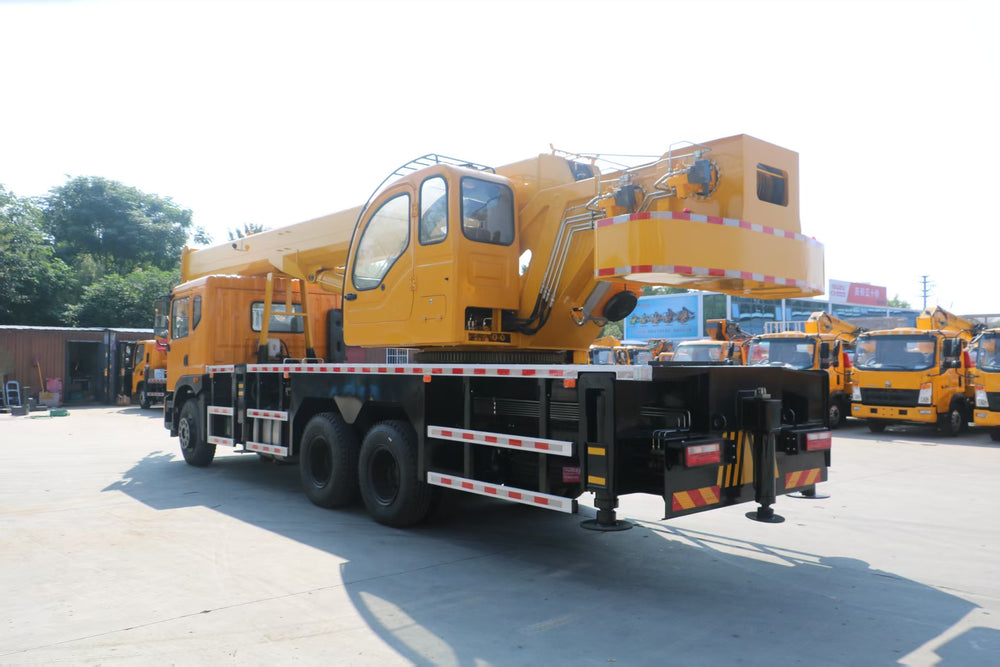

Dongfeng 25T Truck Crane Configuration
Request a Quote Now
| Vehicle Model | Dongfeng 25T Truck Crane |
| Curb Weight | 26670 kg |
| Overall Dimensions (L×W×H) | 13190 mm × 2550 mm × 3760 mm |
| Wheelbase | 4350 mm + 1350 mm |
| Chassis Configuration | |
| Engine | Cummins 245 HP |
| Transmission | Fast 9-speed Manual Gearbox |
| Front / Rear Axle Load | 5T / 10T / 10T |
| Tire Specification | 10.00R20 Steel Wire Tyres |
| Braking System | Air Brake |
| Standard Cab Equipment | Airbag Seat, Constant Temperature Air Conditioning, LED Headlights |
| Upper Body Configuration | |
| Upper Body Model | FTC25L5 |
| Maximum Lifting Capacity | 25000 kg |
| Main / Auxiliary Winch Capacity | 25T / 25T |
| Boom Specification | 9.6m 5-section Single Plate Boom |
| Maximum Lifting Height | 41 m |
| Slewing Structure | 360° Unlimited Slewing |
| Frame & Hydraulic System | |
| Main Frame | New Anti-torsion Box Type Main Frame |
| Hydraulic Pump | Triple Pump |
| Outrigger System | |
| Outrigger Configuration | 4 Double-section Outriggers |
| Outrigger Longitudinal Span | 6300 mm |
| Outrigger Transverse Span | 6600 mm |
| Optional Equipment | |
| Optional 1 | Jib |
| Optional 2 | 17Kw Electric Motor |
| Optional 3 | Load Moment Indicator |
| Optional 4 | Heating and Cooling Air Conditioning |
| Optional 5 | Camera |
