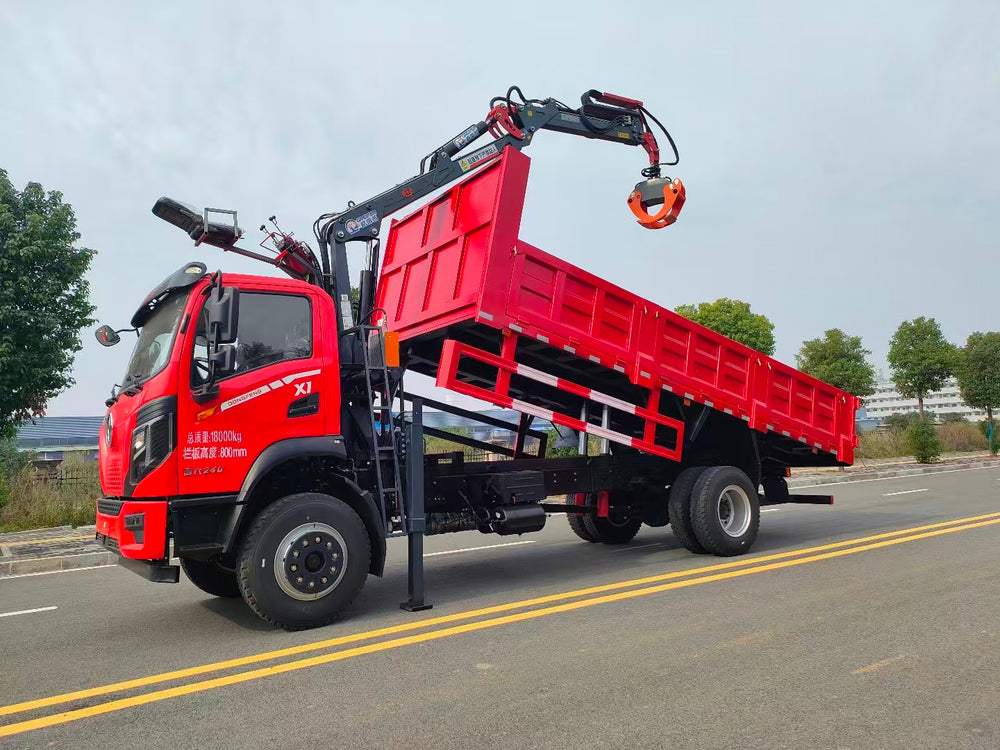

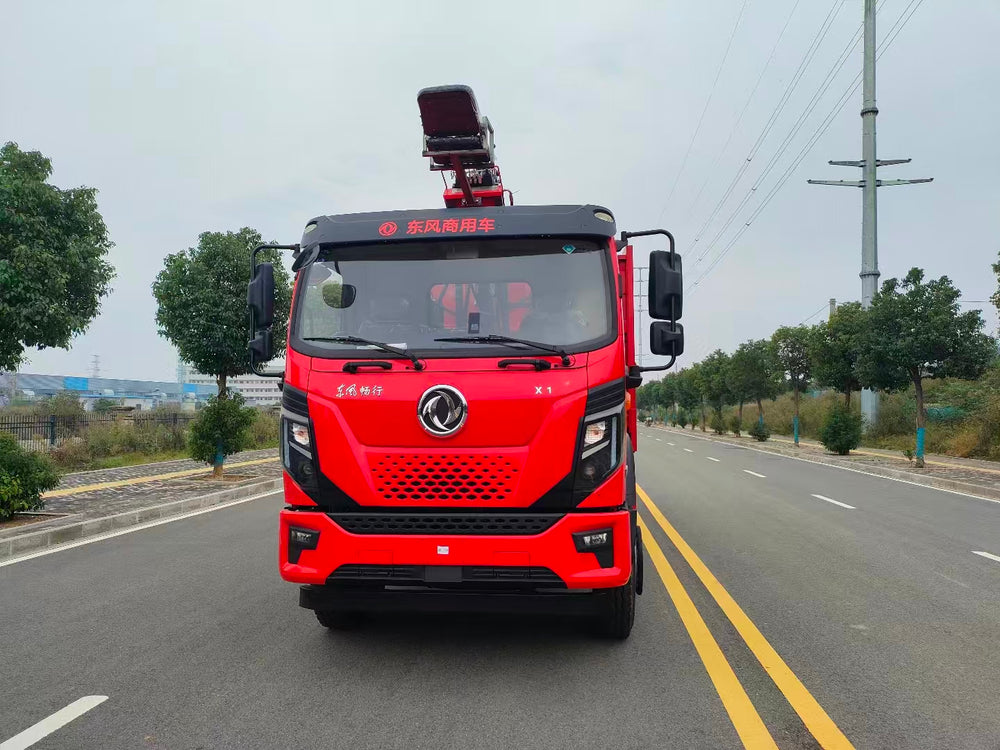

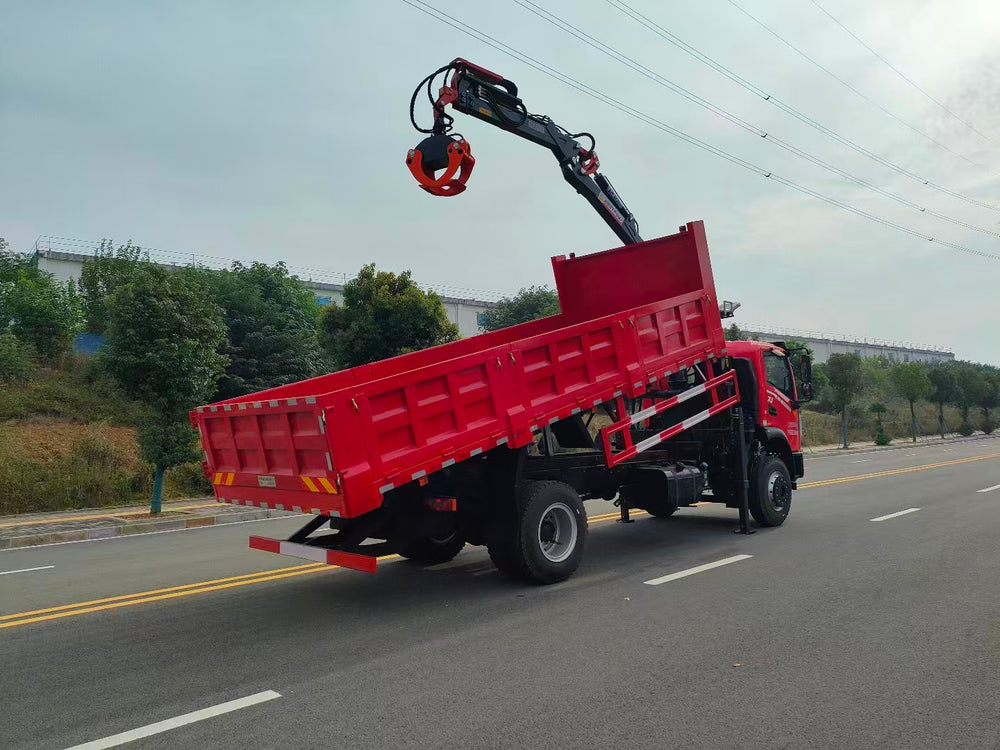

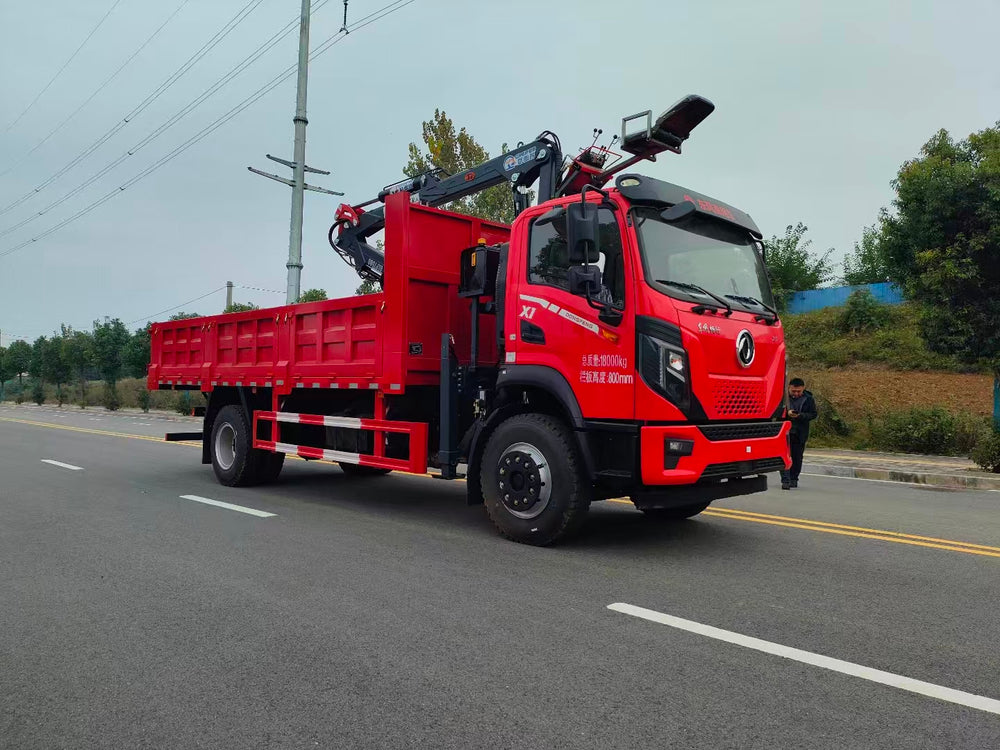

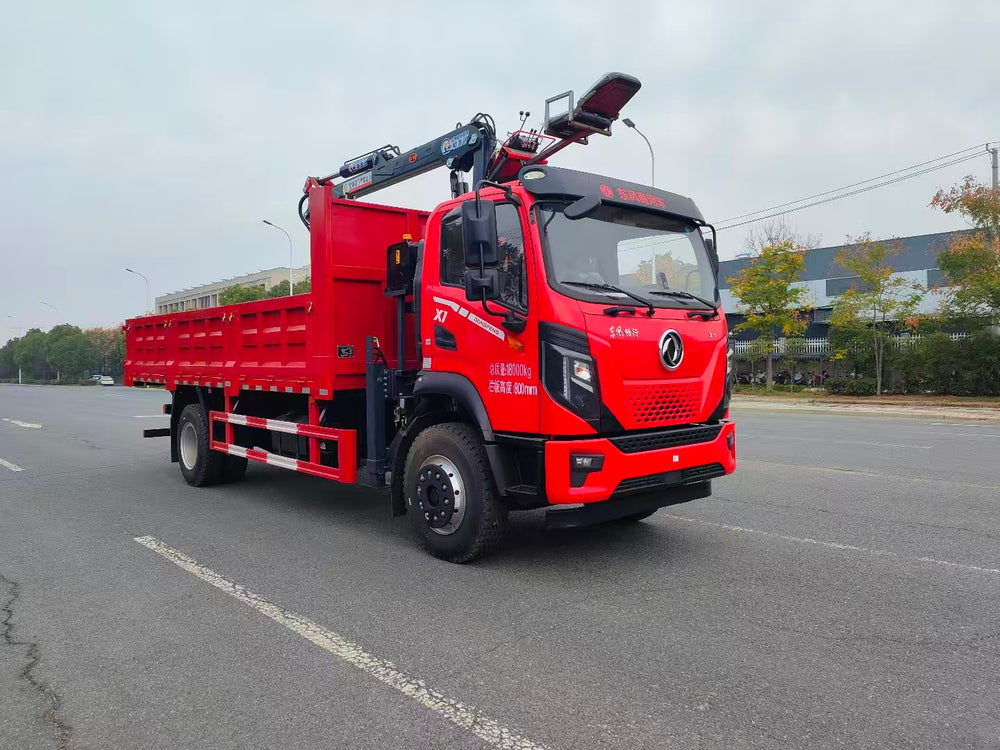

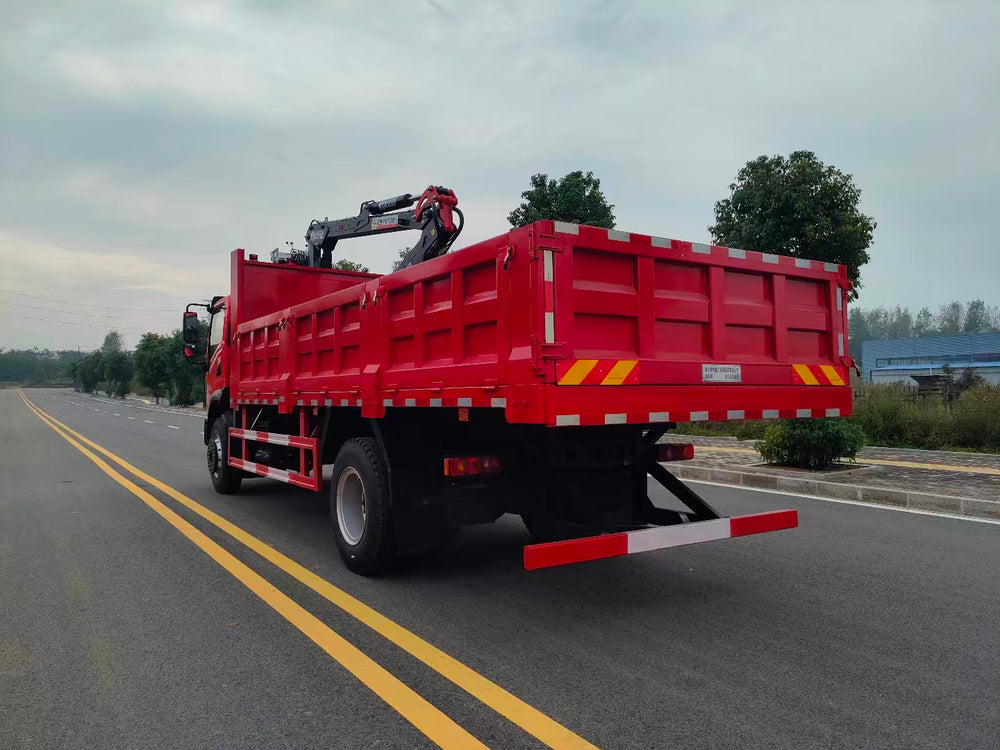

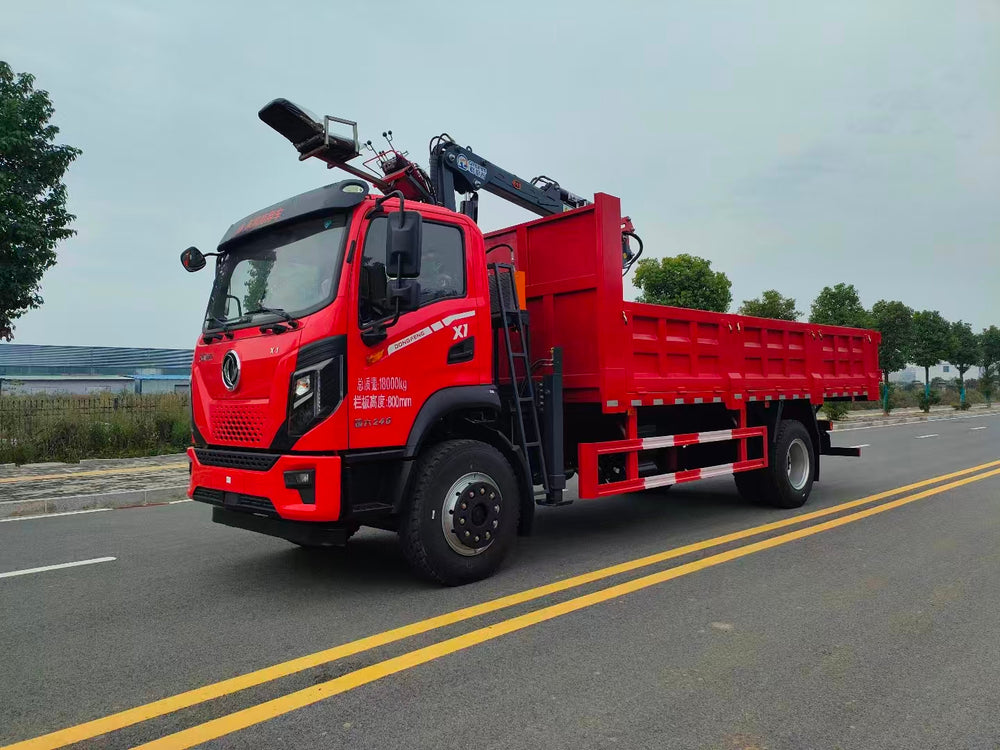

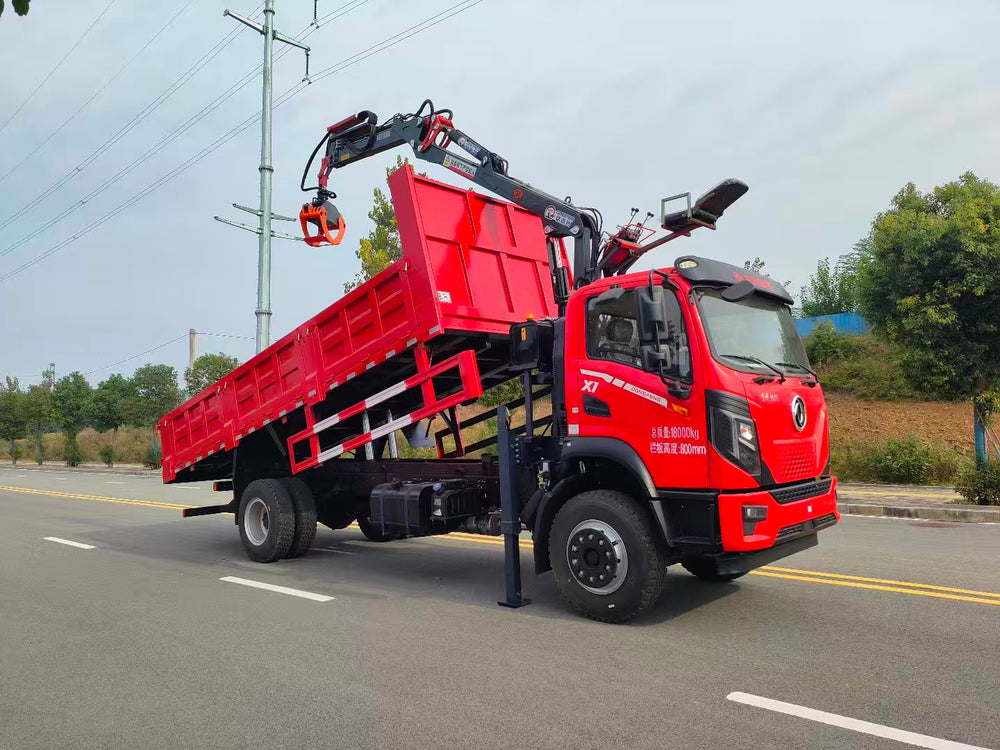

Dongfeng Truck-mounted Timber Grab Crane
Request a Quote Now
| Basic Parameters | |
| Wheelbase | 4500mm, 5100mm |
| Cargo Box Length | 5.5-6.3 Meters |
| Chassis Configuration | |
| Configuration Item | Specification |
| Cab | New X1 Luxury Cab (2-point suspension) |
| Engine | Yuchai 240HP (YCS04240-66) |
| Gearbox | Fast 8-speed Gearbox (8JS85E-C) |
| Frame | 280mm (8+4+6) Straight-through Three-layer Frame |
| Front Axle | Dana 5.5T Front Axle |
| Rear Axle | Dana 11.5T Rear Axle (Gear Ratio 5.571) |
| Tires | 10.00R20 Steel Wire Tires |
| Safety & Basic Equipment | Original ABS, Electric Windows, Lower Protection |
| Comfort Equipment | Airbag Seat, Central Lock, Original Air Conditioning |
| Control & Entertainment | Multi-function Steering Wheel, 9-inch Multimedia Display |
| Auxiliary Equipment | Driving Recorder, Three-person Seats |
| Special Configuration | Special Power Take-off for Truck-mounted Crane and Remote Throttle |
| Regulatory Compliance | Comply with New Regulations |
| Upper Mounting Configuration | |
| Configuration Item | Specification |
| Crane Main Body | Grapple 7.5m Two-section / 8.5m Two-section Telescopic Arm Grapple Crane |
| Control System | 8-way Mechanical Control, One Control Three (Electronic Control Optional) |
| Hydraulic System | Hydraulic Rotary Motor |
| Cargo Box Type | Self-dumping Engineering Cargo Box |
| Cargo Box Material Specification | Cargo Box Bottom: 4-side 3-thickness |
| Structural Material | Upright Posts and Bottom Plate Frame Made of High-strength Steel Fully Folded Steel |
