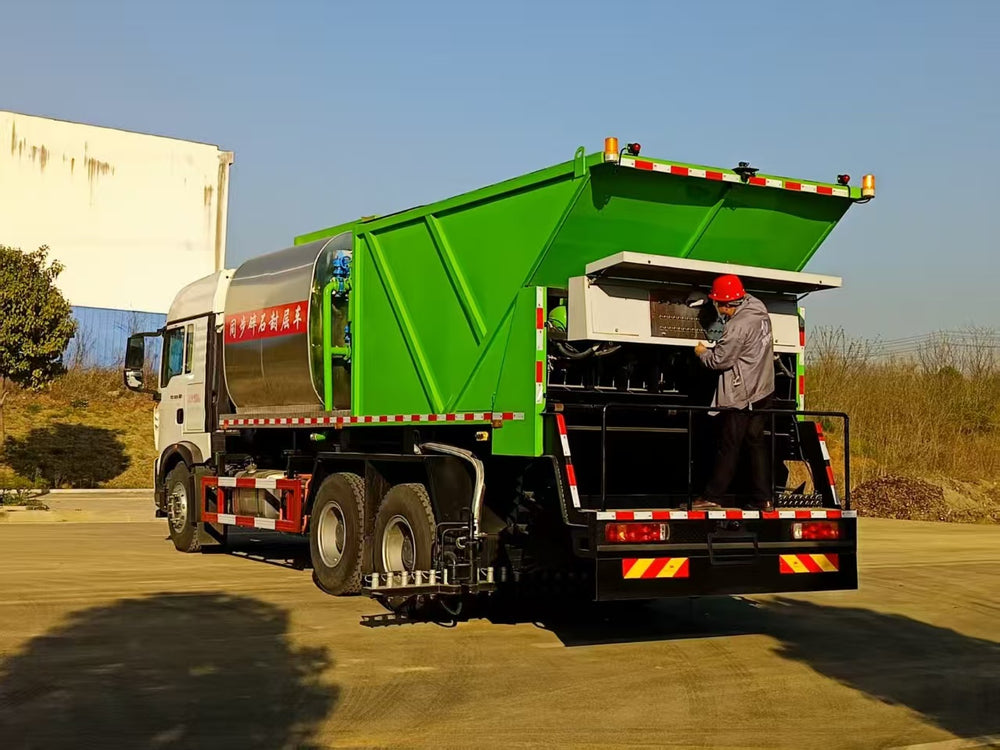

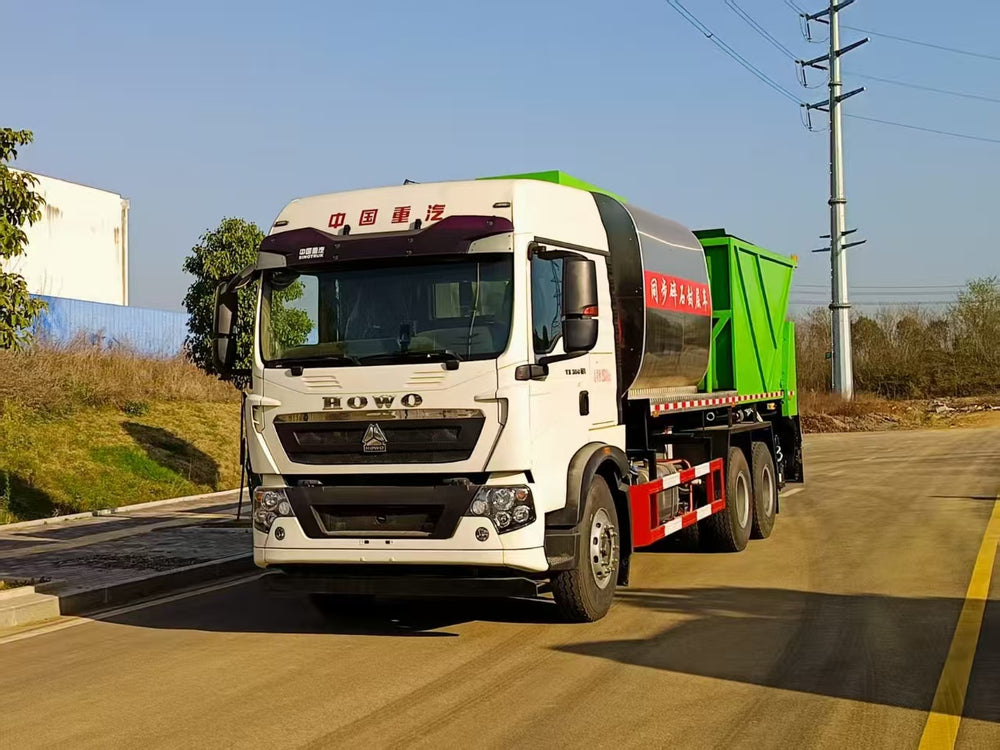

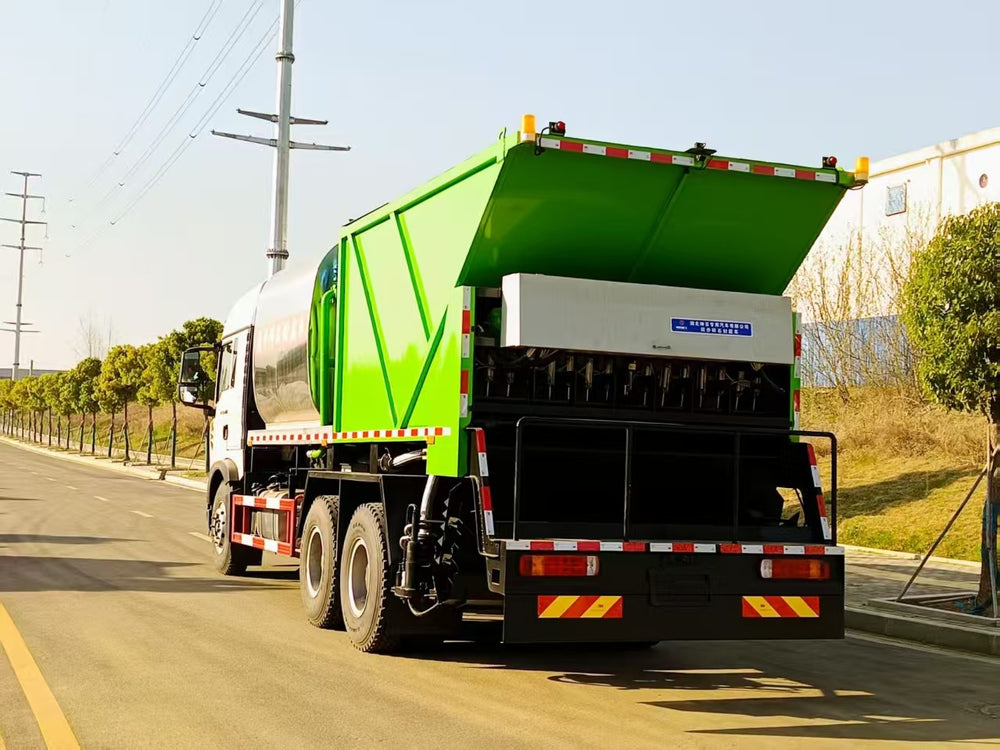

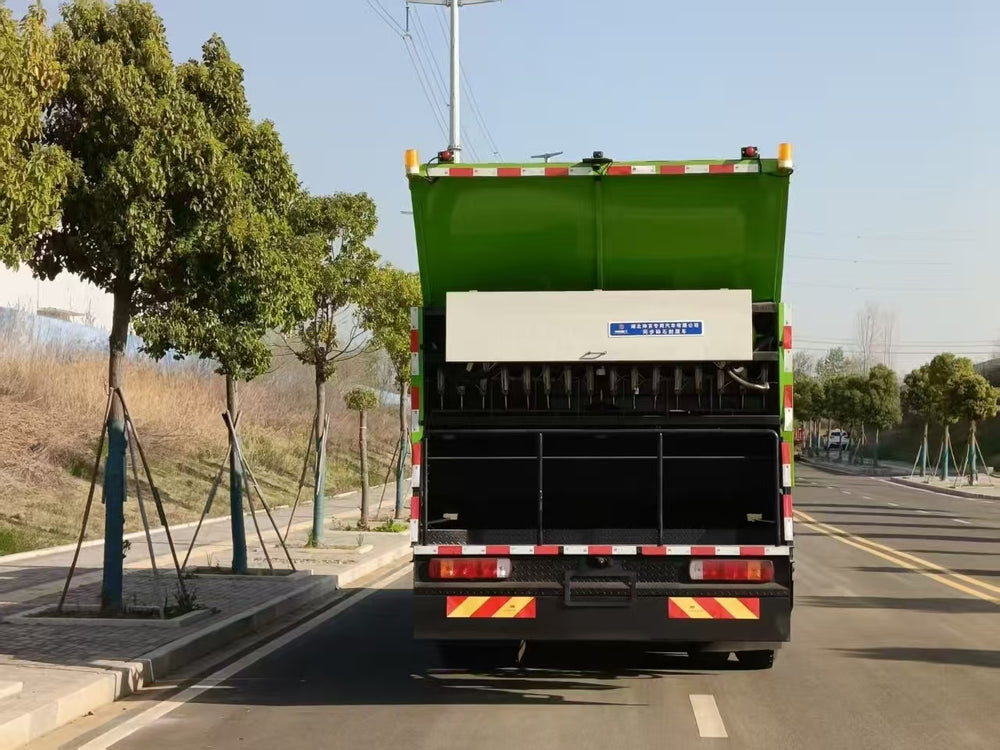

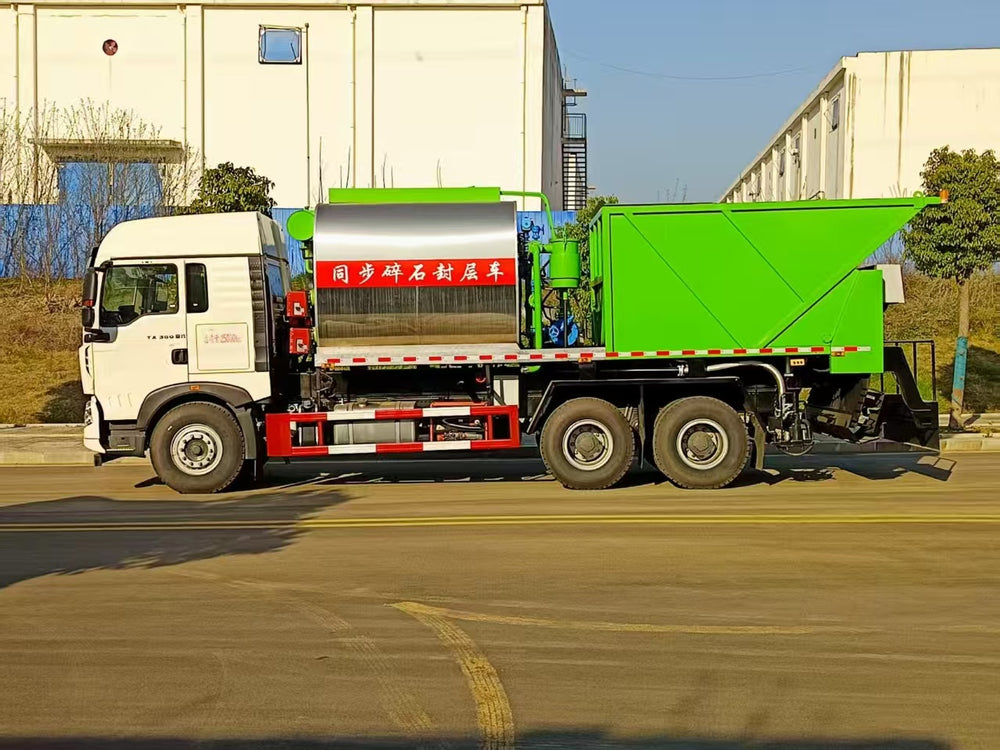

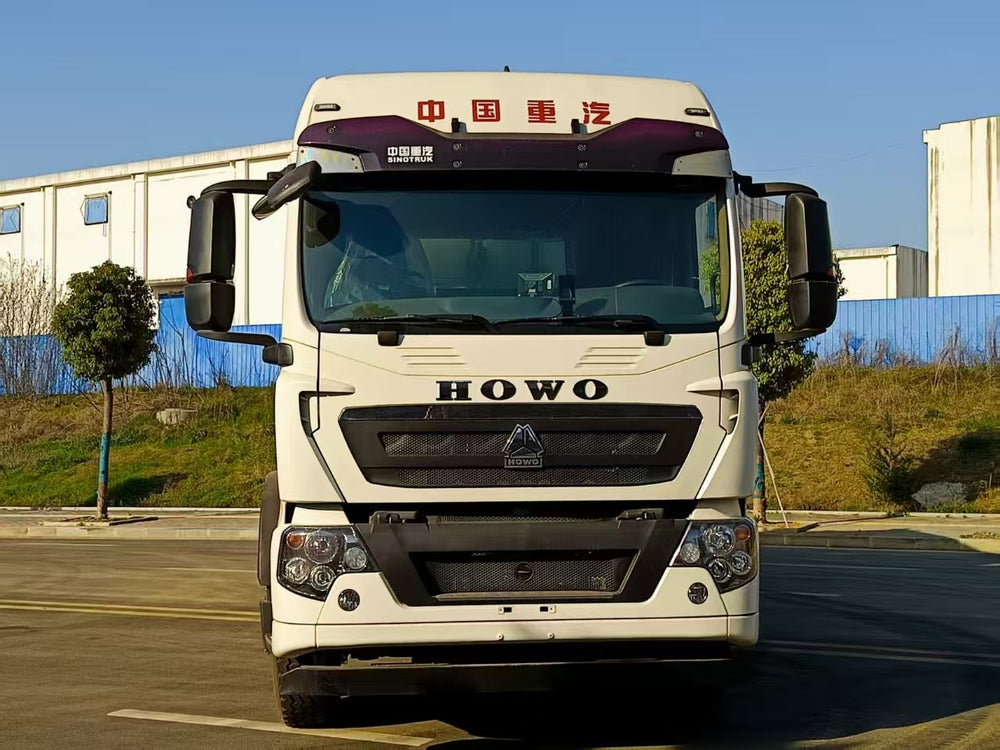

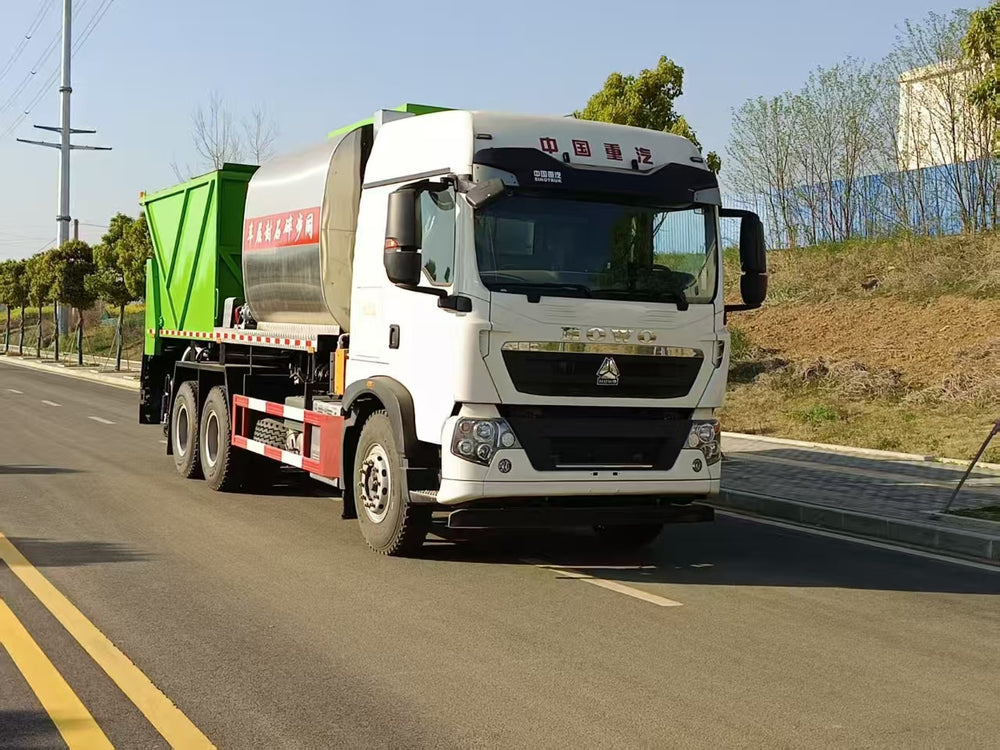

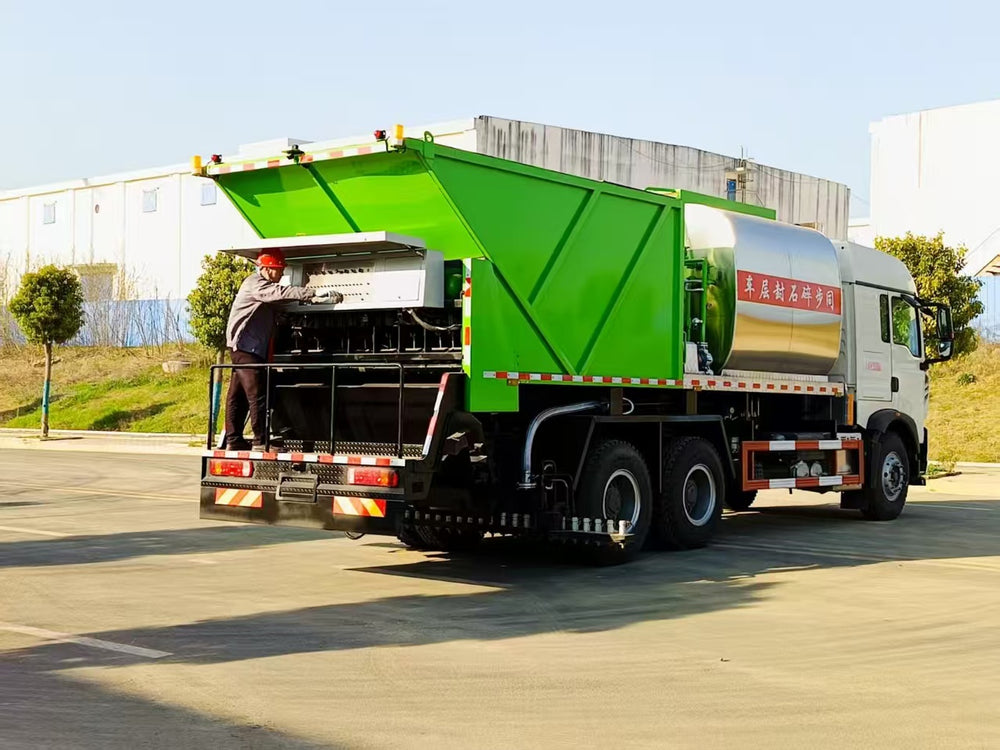

Howo 6×4 20m³ Rear Eight-wheel Synchronous Chip Sealer Truck
Request a Quote Now
| Complete Vehicle Model | ABC5250TFCZZ6 Synchronous Chip Sealer Truck (Sinotruk Howo, Asphalt Tank: 8m³, Aggregate Bin: 12m³) |
| Chassis Model | ZZ1257N464GF1 |
| Engine | Germany MAN 350 Horsepower |
| Total Volume of Asphalt Tank + Aggregate Bin | 20m³ (Asphalt Tank: 8m³, Aggregate Bin: 12m³) |
| Core Asphalt System Configuration | |
| Asphalt Pump Model | QGB950 |
| Asphalt Pump Specification | Shanggui High Viscosity Asphalt Pump, 950 Liters Per Minute |
| Hydraulic System Configuration | |
| Hydraulic Pump | Triple Gear Pump |
| Control Valves | Automatic Directional Valve + Overflow Valve |
| Asphalt Pump Drive | Hydraulic Drive Motor for Asphalt Pump |
| Intelligent Control System Configuration | |
| Control Mode | Cab Touch Screen Computer Intelligent Control |
| Control Chip | Germany Infineon Chip Control System |
| System Features | Vehicle-mounted High Temperature Resistance, Dustproof, Shockproof, Waterproof, Lightning Protection, Several Times Higher Reliability Than PLC |
| Asphalt Nozzles | 32 Intelligent Asphalt Nozzles, One Control Per Nozzle |
| Aggregate Gates | 16-channel Aggregate Gates |
| Spreading Performance Parameters | |
| Maximum Spreading Width | 4 Meters |
| Asphalt Spreading Rate | 0.25 - 4.0 L/㎡ |
| Aggregate Spreading Rate | Adjustable |
| Heating & Temperature Control System | |
| Heating Mode | Automatic Heat Transfer Oil Heating |
| Burner | Dual G20 Burners, Imported from Italy Riello |
| Temperature Sensor | Japan Omron Temperature Sensor |
| Power & Optional Equipment | |
| Generator Standard Options | Honda 5.5kW / Lutian 7kW / 7kW Diesel Generator |
| Generator Optional Drive | Hydraulic Motor Drive |
| Optional Equipment | Vertical Mixer |
| Applicable Spreading Media | |
| Supported Media | Emulsified Asphalt, Hot Asphalt, Modified Asphalt, Rubber Asphalt, etc. |
