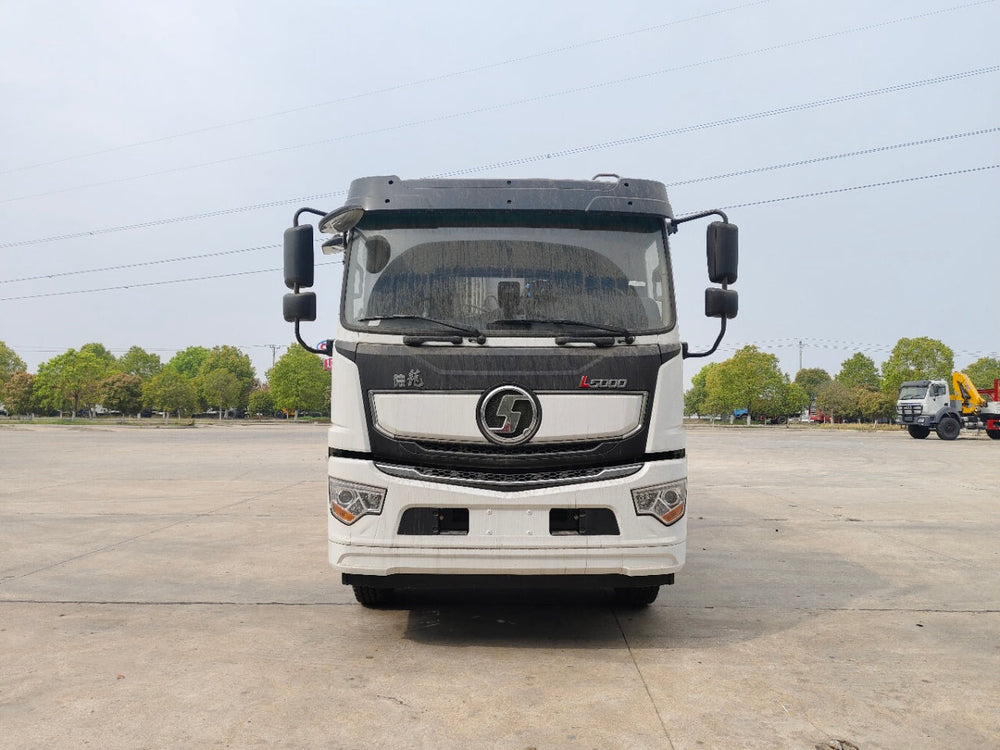

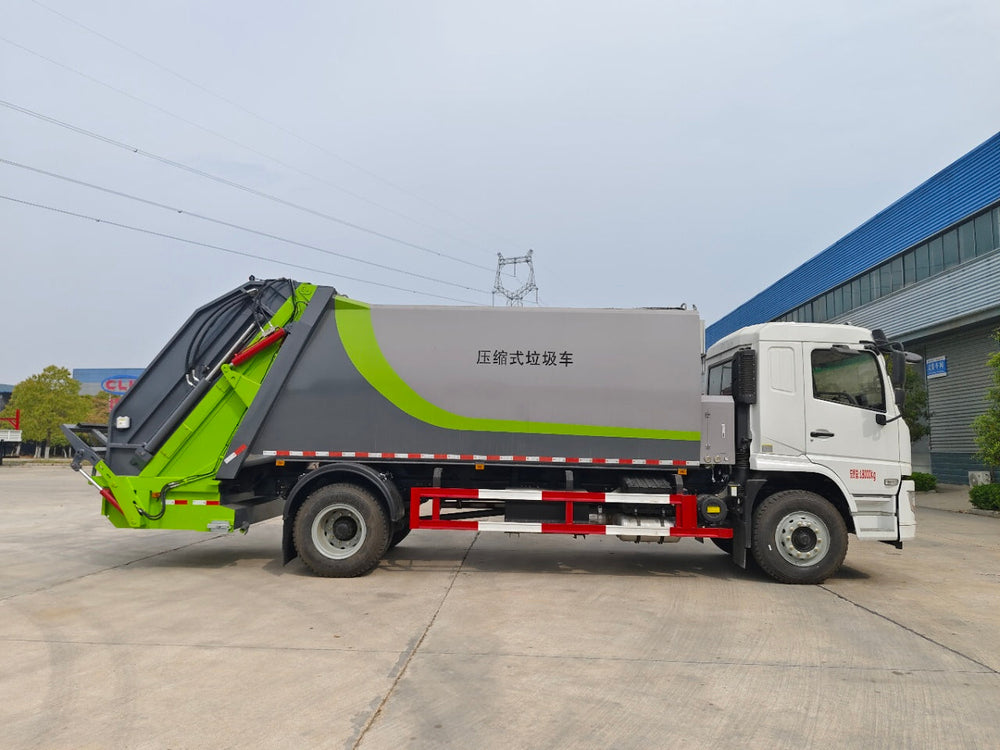

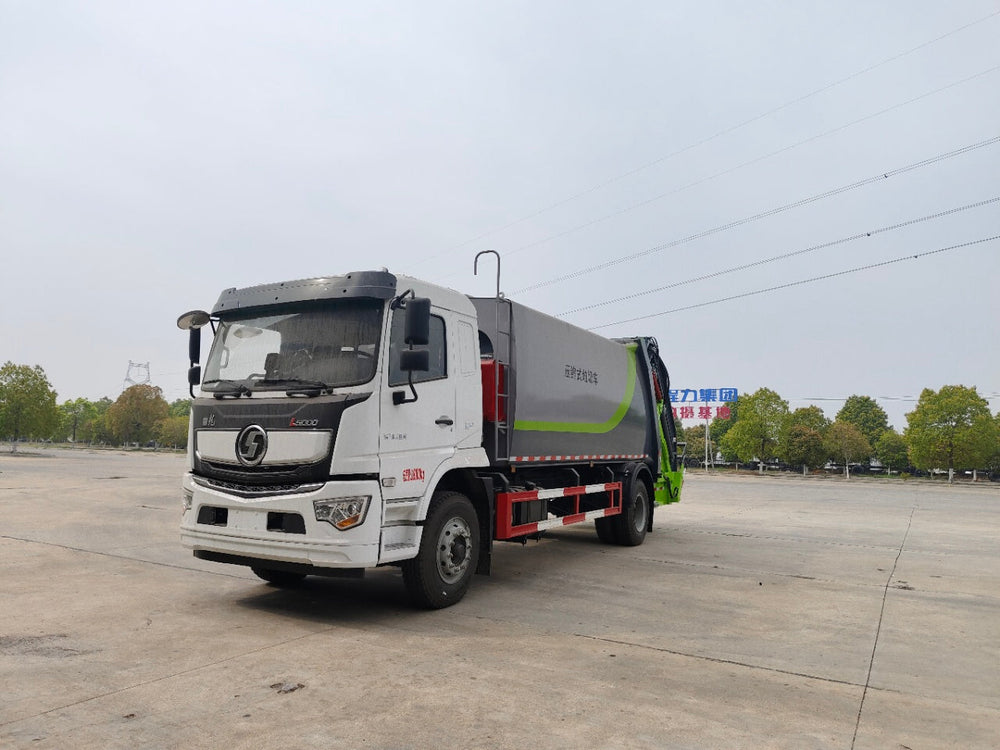

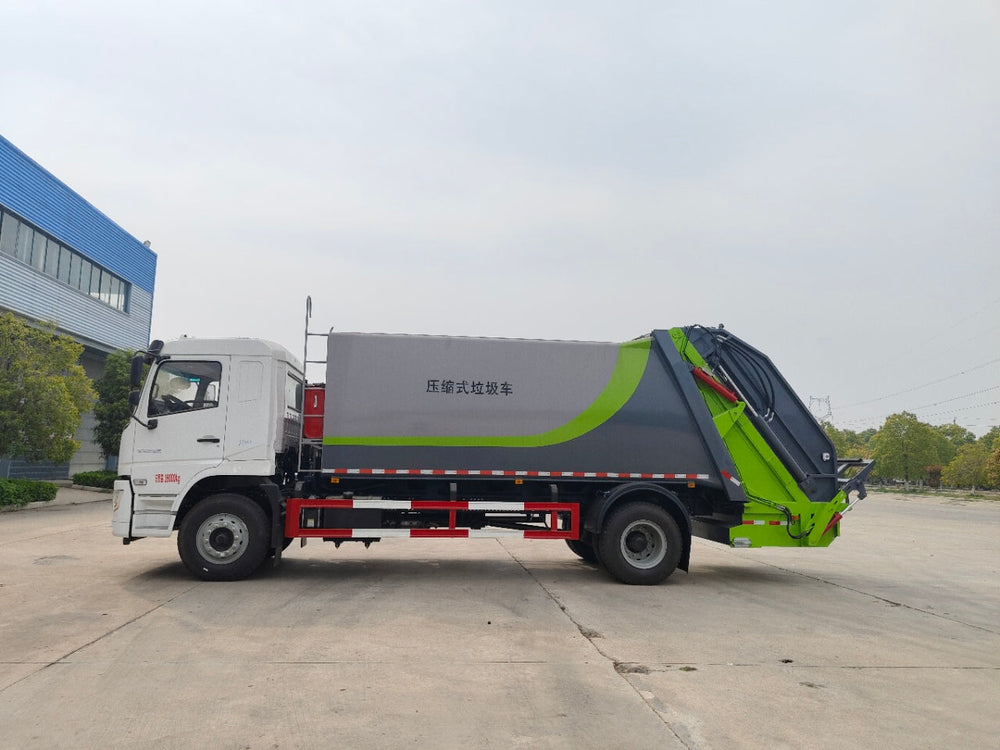

SHACMAN 10-18m³ Refuse Compactor Truck

SHACMAN 10-18m³ Refuse Compactor Truck
SHACMAN 10-18m³ Refuse Compactor Truck
SHACMAN 10-18m³ Refuse Compactor Truck
SHACMAN 10-18m³ Refuse Compactor Truck
1 / 4
SHACMAN 10-18m³ Refuse Compactor Truck
SHACMAN 10-18m³ Refuse Compactor Truck
SHACMAN 10-18m³ Refuse Compactor Truck
SHACMAN 10-18m³ Refuse Compactor Truck

1. Chassis Configuration

Parameter Value
Cab Model L5000 Cab
Engine Specification Weichai 240 Horsepower
Transmission Fast 8-speed Gearbox
Front Axle Rated Load 4.8 Ton Front Axle
Rear Axle Type & Load 10 Ton Single-stage Rear Axle
Tire Spec 10.00R20 Steel Wire Radial Tire
Cab Interior Accessories Original Factory Air Conditioner, Air Suspension Seat, Central Locking System, Electric Window Lifters

2. Superstructure Tank Body Configuration

Parameter Value
Optional Tank Net Volume 10 / 12 / 14 / 16 / 18 Cubic Meters
Main Body Material High-strength Wear-resistant Steel Plate for Whole Body
Tank Plate Thickness Side Plate: 5mm, Bottom Plate: 6mm
Filler Plate Thickness Side Plate: 6mm, Bottom Plate: 8mm
Slide Plate & Slideway Thickness 8mm
Pusher Cylinder Process Quenching & Tempering Treatment, 3-stage Structural Design
Structural Advantage Minimize space occupied by pusher plate, maximize tank volume for larger garbage loading capacity

3. Electro-hydraulic System Configuration for Superstructure

Parameter Value
Power Take-off Fengzheng Power Take-off Unit
Hydraulic Pump Gear Pump
Multi-way Valve Wesenbore Multi-way Valve
Auxiliary Valves Balance Valve, Compression Valve, Throttle Valve
Hydraulic Cylinder Liancheng Hydraulic Cylinder (all cylinders with quenching & tempering treatment and buffer structure)
High-pressure Hose 3-layer Steel Wire Reinforced High-pressure Tubing
Steel Pipe Spec Global-through Thickened 22# Steel Pipe, Wall Thickness: 2.2mm
Hydraulic Oil Tank Equipped with 3-stage Filter Screen
Cylinder Pin Shaft Treatment Surface Quenching Treatment, High Hardness, Anti-bending & Anti-fracture
Control System CAN Bus Intelligent Touch Screen Operating System with Wireless Remote Control
Programmable Functions Custom auto-cycle switching time, throttle output adjustment on touch screen
Diagnostic Function Automatic Fault Detection & Alarm Reminder Function, Other Standard Full Accessories
